On Sale Until December 31, 2023.
Martin Logan does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for more information or to order. Thank you very much.

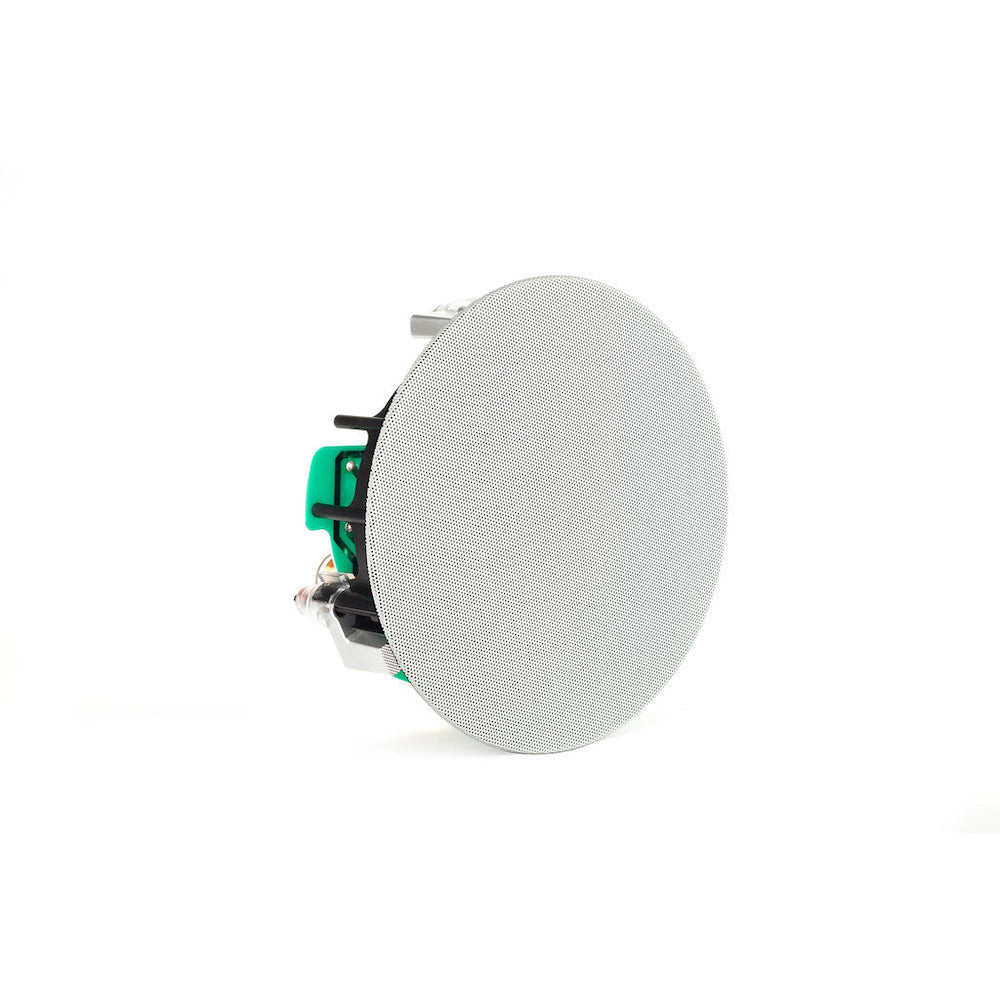

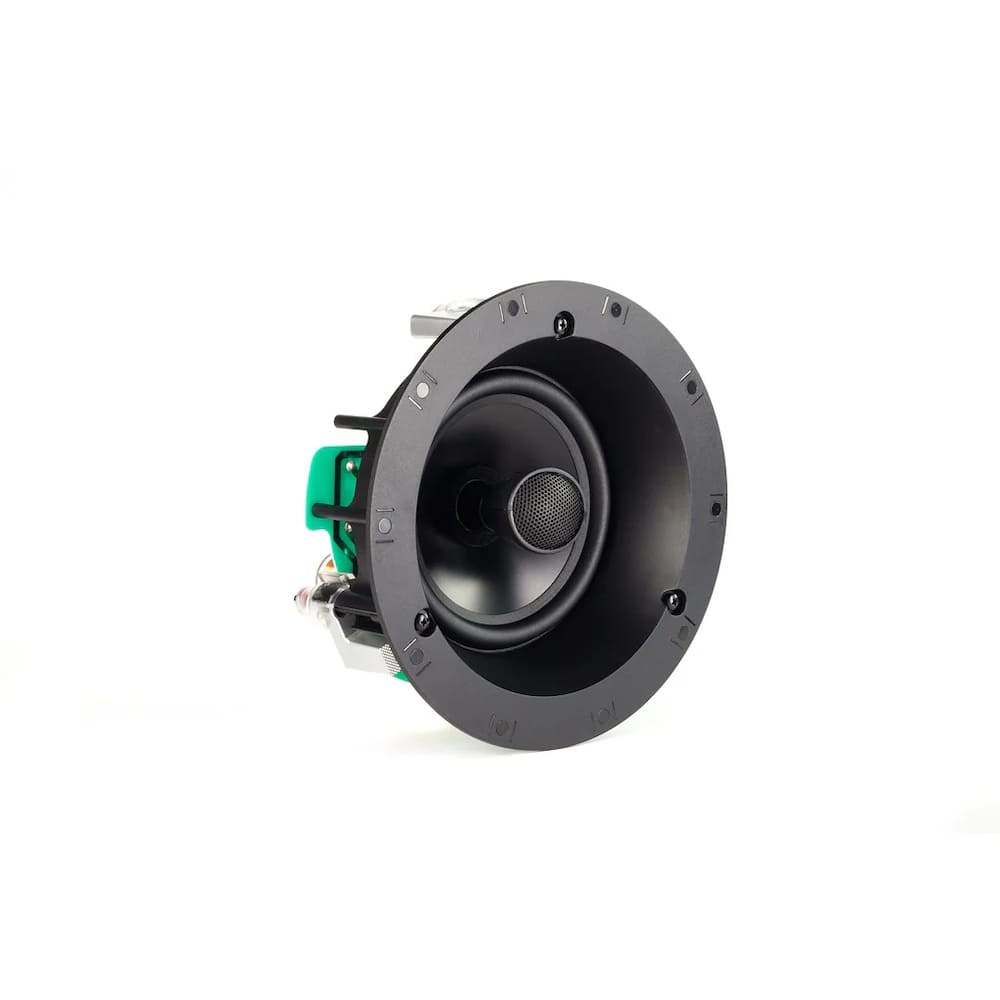

The new Martin Logan Helos 12 features a high-resolution neodymium tweeter mounted on a pivoting tweeter stem that easily aims at the primary listening location. Its design allows the audience to enjoy the highest levels of in-ceiling audio performance, while still providing rich, detailed sound throughout the entire room.
NOTE: PRICE IS PER PAIR. Please contact us to add singles.
Specifications:
|
Frequency Response
|
47–20,000 Hz ±3dB
|
|
Aiming
|
Pivoting Tweeter Stem
|
|
Recommended Amplifier Power
|
20—200 watts per channel
|
|
Sensitivity
|
89 dB/2.83 volts/meter
|
|
Impedance
|
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Crossover Frequency
|
2800 Hz
|
|
High Frequency Transducer
|
1" (2.5 cm) neodymium soft-dome tweeter
|
|
Low Frequency Transducer
|
6.5" (16.5 cm) cast basket, high rigidity aluminum cones with extended throw drive assembly, thermal protection
|
|
Components
|
Air core coils, polyester capacitors
|
|
Inputs
|
Binding posts
|
|
Weight
|
4.5 lbs. (2 kg)
|
|
Cut-Out Dimensions
|
8.35" dia.
(21.2 cm dia.)
|
|
Projection From Wall Surface
|
.2" (.45cm)
|
|
Depth Behind Wall Surface
|
4.4" (11.2 cm)
|
