Channels / Zones
|
8 channels / Up to 4 zones
|
|
Power Output RMS per Channel (8 Ohm)
|
60 Watts
|
|
Power Output RMS per Channel (4 Ohm)
|
120 Watts
|
|
High Output Mode (Bridged) RMS per Channel (8 Ohm)
|
200 Watts
|
|
Digital-to-Analog Converter
|
PCM up to 24 bit/192 kHz
|
|
Inputs (analog)
|
4x RCA pairs (left/right)
|
|
Inputs (digital S/PDIF)
|
1x Optical
|
|
Inputs (network)
|
RJ-45 10Base-T/100
Base-TX ethernet port (female)
|
|
Inputs (trigger)
|
1x 3.5mm (5 – 24V DC/AC)
|
|
Outputs (speaker level)
|
4x removable Phoenix style (left/right) accommodate wire up to 12AWG
|
|
Outputs (subwoofer)
|
4x RCA (with bass management and room correction)
|
|
Outputs (other)
|
1x 3.5mm 12V trigger
|
|
Audio In-Out Matrix
|
Yes
|
|
Advanced Load Monitoring
|
Yes
|
|
Controls (via web-based UI)
|
Bass level: ±6dB for each zone;
Trebel level: ±6dB for each zone;
Level balancing: ±10dB for each zone
|
|

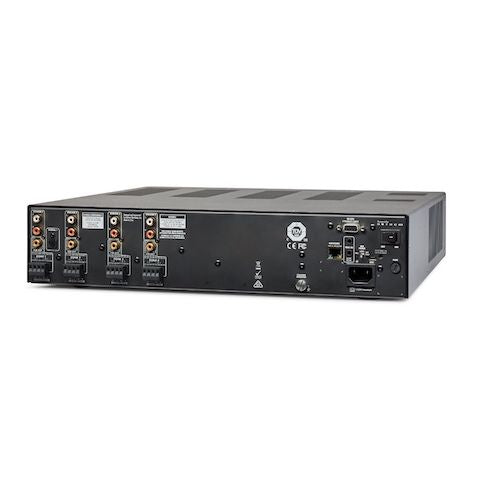

Controls (back panel)
|
Power Mode: Auto, Trigger,
External Command;
Network Reset (pinhole);
Factory Reset (pinhole);
Main Power: On /Off
|
|
Microphone (for room correction)
|
Included dual input microphone
(3.5mm and mini-USB)
|
|
Setup
|
Web-based user interface
|
|
IP Control (via IP or RS-232)
|
Drivers for Control4, Crestron, Savant, URC, Elan and RTI(coming soon)
|
|
AC Voltage
|
120V~50/60Hz
|
|
Rack Mount Ears / Feet
|
Included
|
|
Rack Space (feet removed)
|
2U
|
|
Dimensions (H x W x D, with feet)
|
3.9” x 17” x 17” (9.9 x 43.2 x 43.2 cm)
|
|
Frequency Response
|
10Hz – 20kHz ±0.5dB
|
|
Room Correction
|
Anthem Room Correction (ARC®)
|
|
Inputs (Other)
|
Micro-USB (for ARC); RS-232
|
|
Weight
|
21 lbs. (9.5kg)
|
