Description

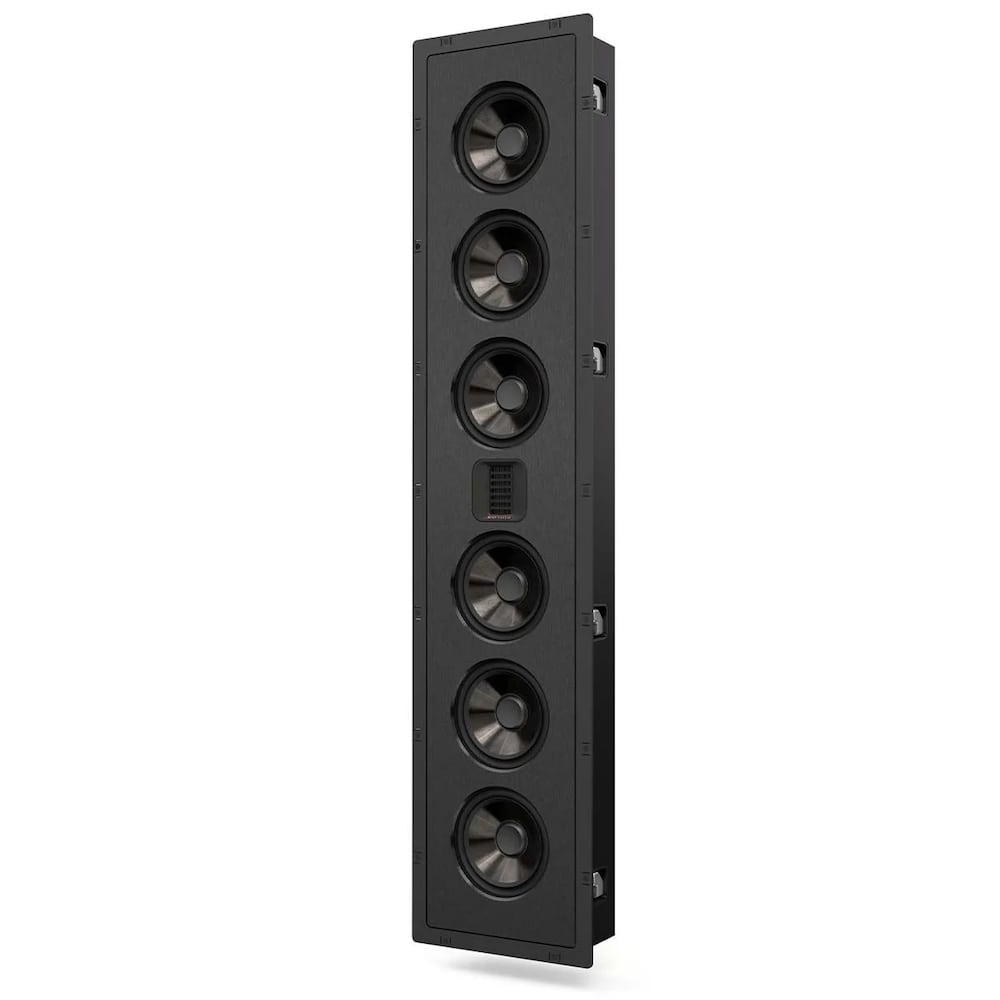

The Martin Logan Monument 7XW features 7 drivers and a lightning-fast Folded Motion XT Obsidian tweeter, a 6.5-inch unidirectional carbon fiber multi-section cone midrange driver with a Nomex® backer, 2 matching 6.5-inch woofers, and 3 6.5-inch passive radiators, seamlessly blended with a flagship-class Vojtko crossover network constructed from audiophile-grade components.
NOTE: PRICE IS PER EACH
Technical Specifications:
|
Tweeter Dispersion (horizontal x vertical) |
80° x 30° |
|
High Frequency Driver |
1.25 x 2.4 inch (3.2 x 6.1 cm) |
|
Tweeter Aiming |
Rotatable tweeter for horizontal |
|
Mid-Frequency Drivers |
6.5-inch (16.5 cm) black unidirectional |
|
Low Frequency Driver |
Two 6.5-inch (16.5 cm) black |
|
Passive Radiators |
Three 6.5-inch (16.5 cm) |
|
Components |
Custom air core coil inductors, |
|
Suitable Amplifier Range |
20–300 watts |
|
Max Power Handling |
150 watts |
|
Binding Post Inputs |
Push style (two sets for |
|
Required Wall Opening (includes tolerance) |
45.57 x 9.29 inch |
|
Projection From Wall Surface |
0.31 inch |
|
Depth Behind Wall Surface |
3.8 inch |
|
Optional Accessories |
Pre-install bracket (PN: 7XWBRK) |
