Martin Logan Motion XTW6-LCR In Wall Speaker
Martin Logan Motion XTW6-LCR In Wall Speaker
Martin Logan does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for more information or to order. Thank you very much.
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description

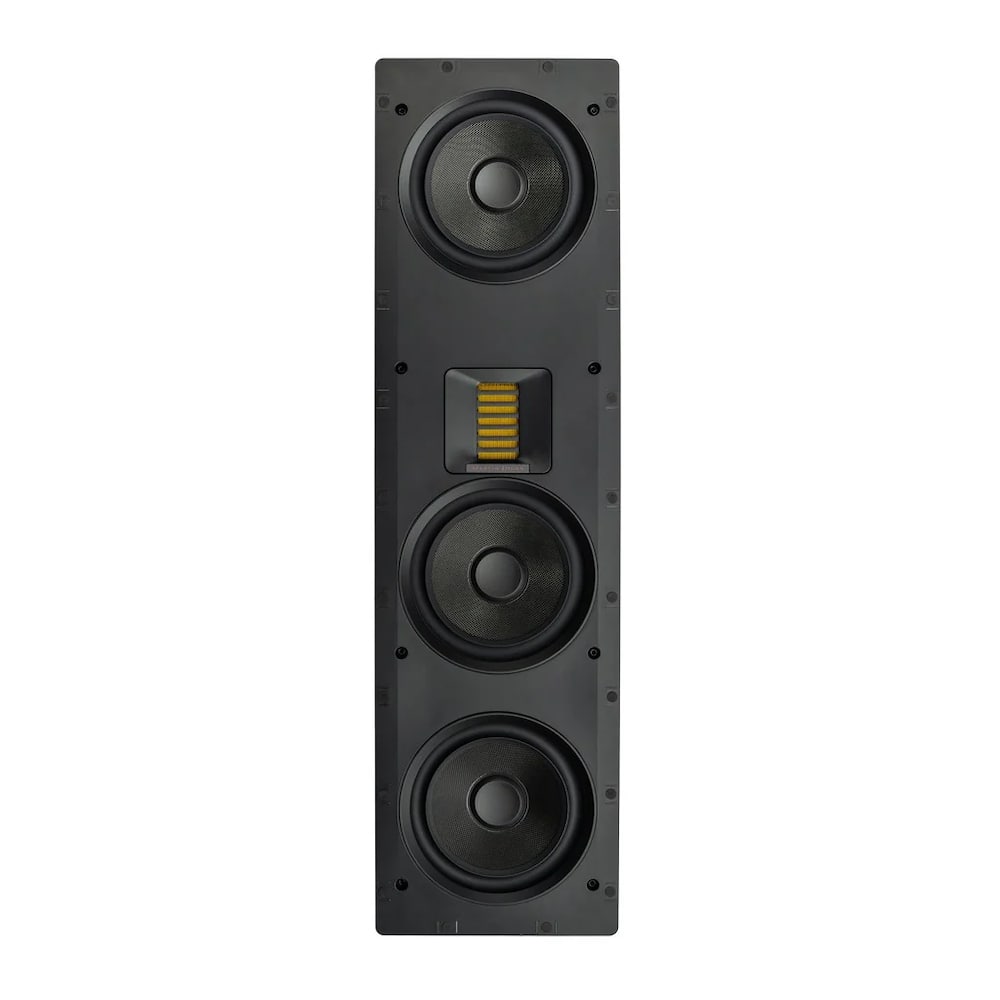

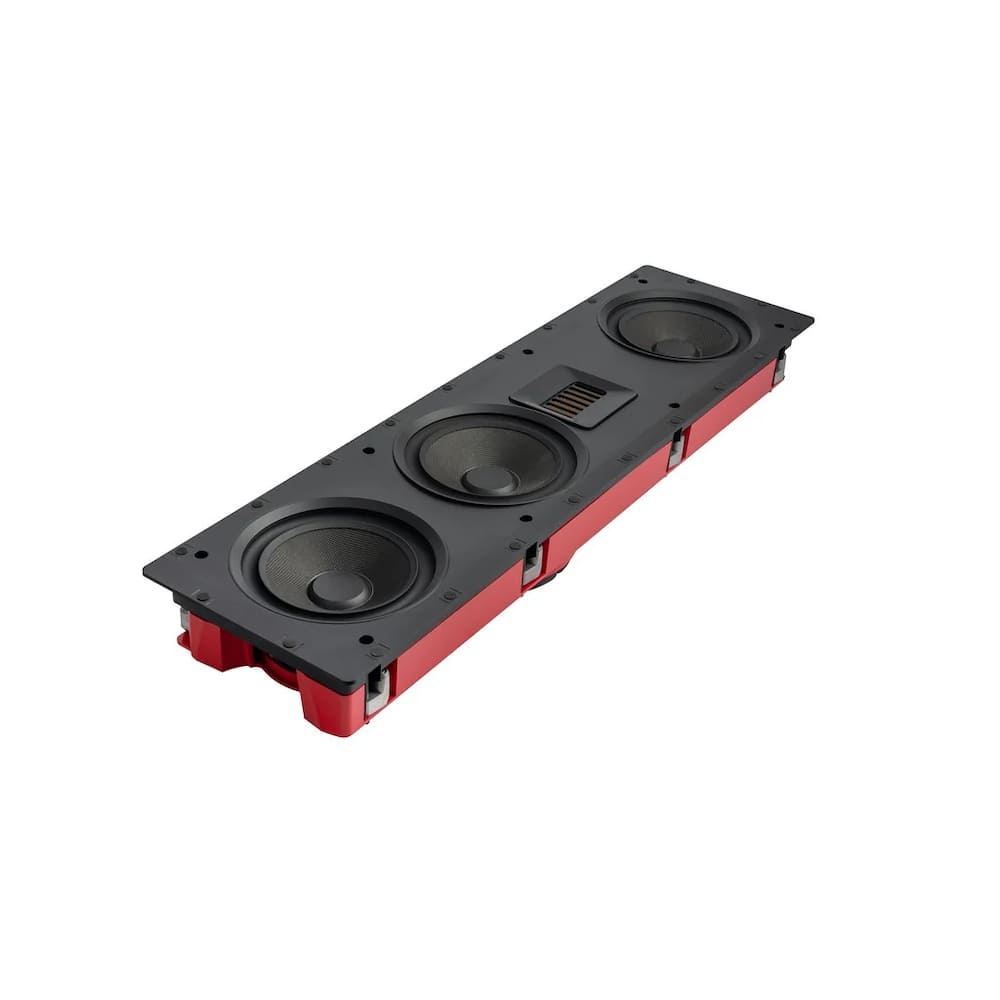

The Martin Logan Motion XTW6-LCR has a dedicated 6.5” midrange driver that brings its acoustic performance to the same level as a traditional floor standing speaker. With a rotating tweeter housing, the XTW6-LCR can be used horizontally when needed, and is the perfect choice for systems desiring a higher level of performance without the large footprint of a tower speaker. It's the largest “LCR” model in the Motion XT CI series.
NOTE: PRICE IS PER EACH
Technical Specifications:
|
Tweeter Dispersion (horizontal x vertical) |
80 x 30 degrees |
|
Recommended Amplifier Power |
Range 50–300 Watts |
|
High Frequency Driver |
FMT Transducer 1.27” x 2.4” (3.22cm x 6.09cm) Opening 4.5” x 2.75” (11.43cm x 6.98cm) Diaphragm |
|
Crossover Frequency |
260, 2470 Hz |
|
Crossover Type |
3 way |
|
Driver Configuration |
1 x 1.27” x 2.75” FMT, 1 x 6.5” midrange, 2 x 6.5” Woofers |
|
Woofer Specifications |
Two 6.5” (16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap. |
|
Cabinet Material |
Black w/ White Paintable Grill |
|
Connector |
Push style |
|
Components |
Custom air core coil inductors, polyester film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection. |
|
Max Power Handling |
150 Watts |
|
Midrange Driver |
One 6.5” (16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Sealed back chamber format. Concave dust cap |
|
Required Wall Opening (includes tolerance) |
6.64” x 27” (16.9 x 68.5cm) |
|
Projection From Wall Surface |
0.13” (0.32cm) |
|
Depth Behind Wall Surface |
3.54” (8.99cm) |
