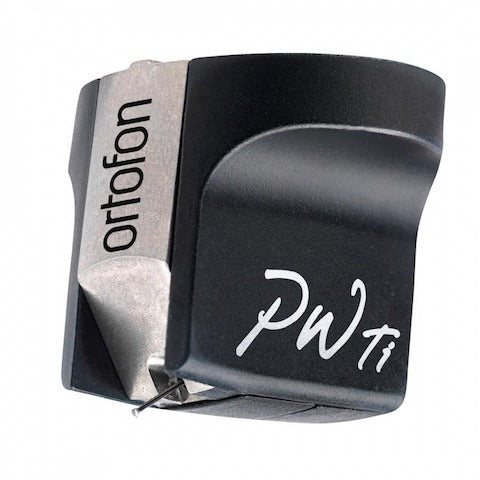

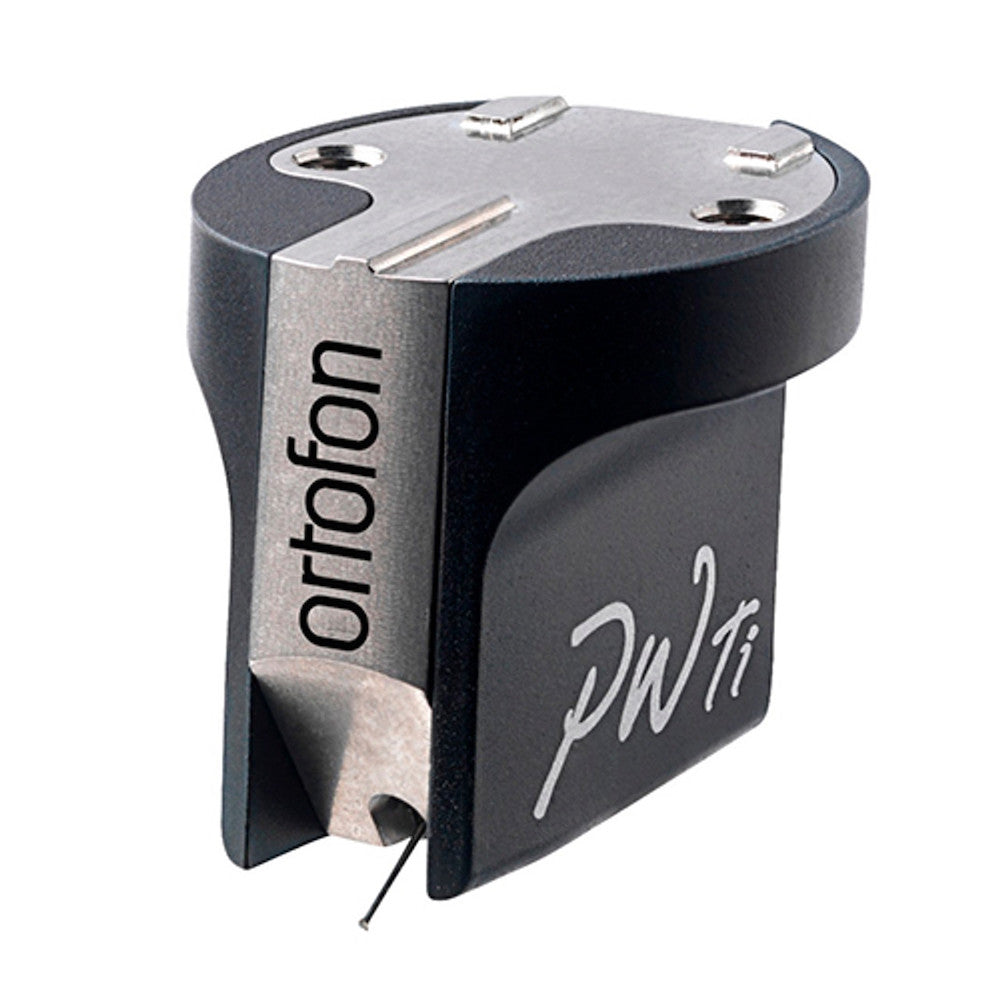

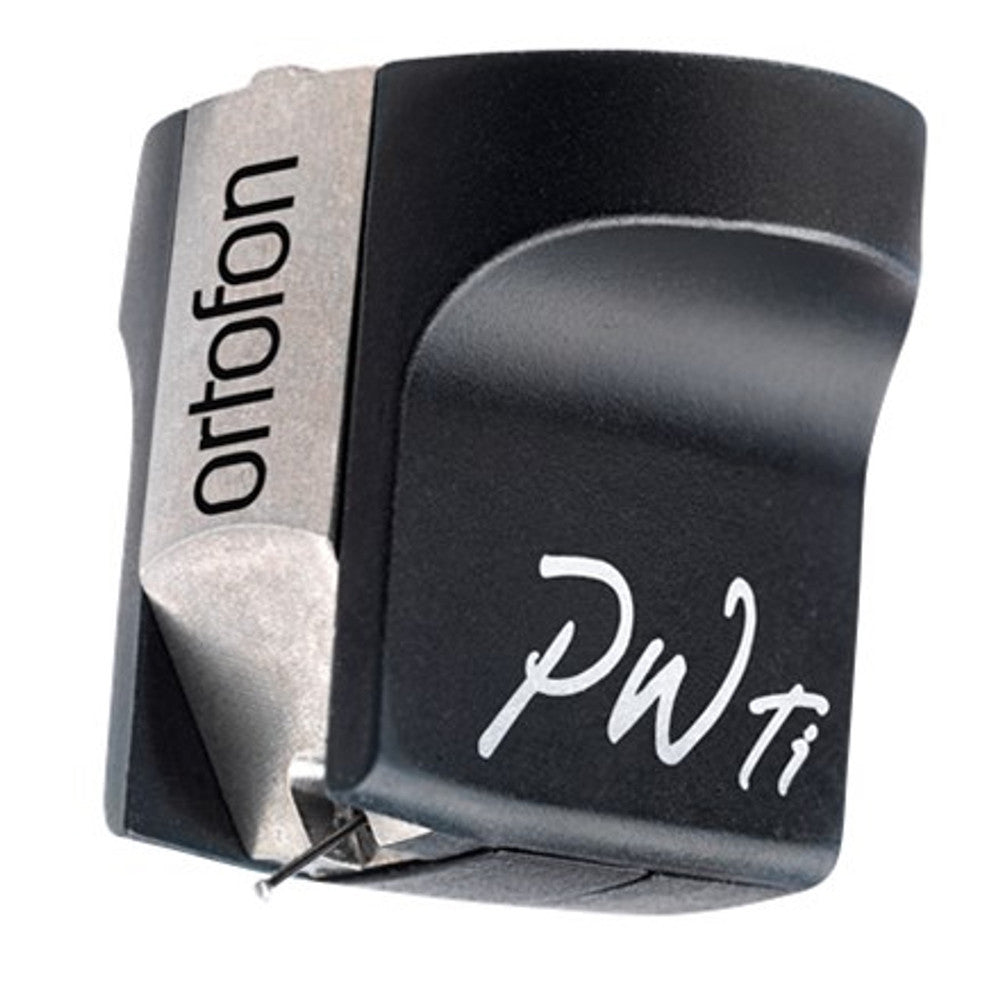

At the heart of the MC Windfeld Ti lies a revolutionary customized Selective Laser Melting manufacturing technology pioneered by Ortofon for manufacturing of the legendary MC A90 in 2008. The use of Titanium in the MC Windfeld Ti has provided a further improvement to the overall rigidity of the structure and the cartridge weight.
Our extensive knowledge of vibration properties, characteristics in different shapes and materials, competences in magnetism, mechanical design and new technologies has been applied for optimization of the MC Windfeld model. The MC Windfeld Ti has gone to the next level by reducing unwanted vibrations and increasing the dynamic capability of the cartridge.
Those who choose to adopt the MC Windfeld Ti will experience the lifelike, dynamic and open sound, with exceedingly clear midrange. The MC Windfeld Ti remains extremely musical while paying close attention to micro dynamic details, with its delicate, but also analytical nature.
Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
Channel balance at 1 kHz - 0.5 dB
Channel separation at 1 kHz - 25 dB
Channel separation at 15 kHz - 20 dB
Frequency range at - 3dB - 10 Hz - 50 kHz
Frequency response - 20 Hz - 20 kHz +2 dB/- 1 dB
Tracking ability at 315Hz at recommended tracking force - 90 µm
Compliance, dynamic, lateral - 13 µm/mN
Stylus type - Special polished Nude Ortofon Replicant 100 on Boron Cantilever
Stylus tip radius - r/R 5/100 µm
Tracking force range - 2.0-2.5 g (20-25 mN)
Tracking force, recommended - 2.3 g (23 mN)
Tracking angle - 23°
Internal impedance, DC resistance - 7 Ohm
Recommended load impedance - > 10 Ohm
Coil wire material - Aucurum
Cartridge body material - SLM Titanium and Stainless Steel
Cartridge colour - Titanium/Black
Cartridge weight - 11 g
