Shanling EM7 Streamer Headphone Amplifier Dac

Description

Usually Ships Within 2 Days.

Shanling's EM7 is a desktop all-in-one Streamer and DAC/AMP. The EM7 packs top-quality performance under the hood. Featuring the flagship ES9038Pro Desktop-grade 8-channel DAC on the EM7. This 32-Bit DAC feeds a fully balanced amplifier section built on Shanling’s trusted OP+BUF architecture. On one hand the ES9038Pro provides crisp signal decoding with ultra-low distortion and high dynamic range, on the other hand, the specially designed amplifier section provides powerful amplification to the signal. The end result is an authentic Hi-Res audio experience with ultimate clarity and details. It also features Shanling’s in-house developed OP+BUF analog amplifier architecture that produces a whooping 7W of clean output power at 32Ω of load. EM7 is an ideal flagship device that serves as a single device for an entire audio chain. You get customized Android 10 OS pre-installed on the EM7 that allows you access to multiple streaming applications!!

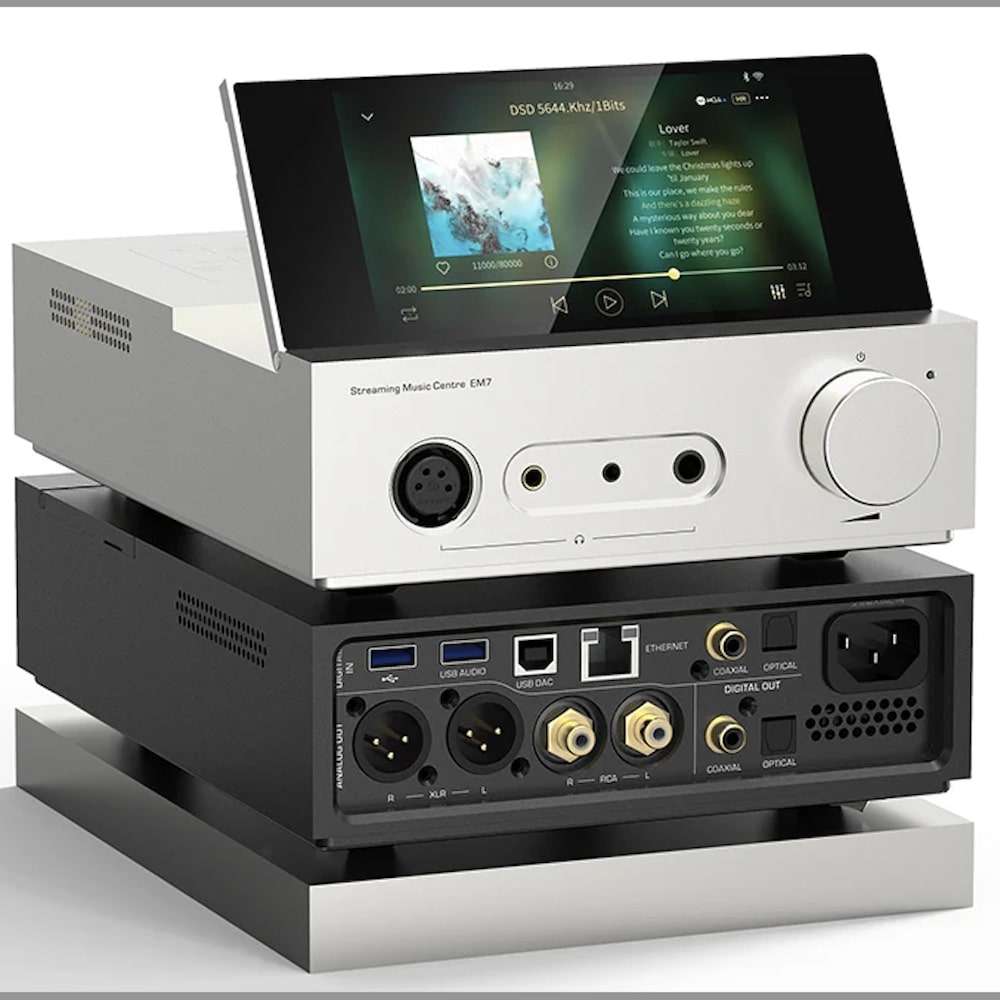

EM7 is a very powerful device. It houses multiple headphone output ports including 3.5mm+6.35mm single-ended outputs and 4.4mm+4-pin XLR balanced outputs. With their trusted OP+BUF analog section, the Em7 offers up to 7W of clean power at 32Ω of impedance load. EM7 holds ultimate power, it can easily drive most headphones on the market. At the same time, EM7 also has low output impedance, making it suitable for sensitive IEMs and HPs too. For ease of use and easy viewing from different angles, Shanling EM7 houses a big 5.8” full HD tiltable display. Users can easily adjust the angle of the screen to get a clear view.

In order to keep the output clean, the DAC and AMP sections are isolated from the Android section. The EM7 adopts an independent power supply with a low-noise toroidal transformer for the analog section and a high-quality switching power supply for the Android section.

Specifications:

Dimensions: 252 x 188 x 67.5 mm
Weight: 3.2kg
Display: 5.8-inch 1920*1080 IPS Touch screen
System: Based on Android 10, Closed and Customized
Hi-Res Support: Up to PCM 32bit / 768 kHz & DSD512
Bluetooth: Version 5.0, serving as both Receiver and transmitter
BT codec support: Receiver LDAC & SBC // Transmitter LDAC, aptX-HD, aptX, SBC
Wi-Fi: Dual band 2.4G & 5G
DAC: ESS ES9038Pro
Analog Section: OPA1611 based I/V conversion, OPA2211 based LPF, OPA2211+BD139+BD140 based Amplifier

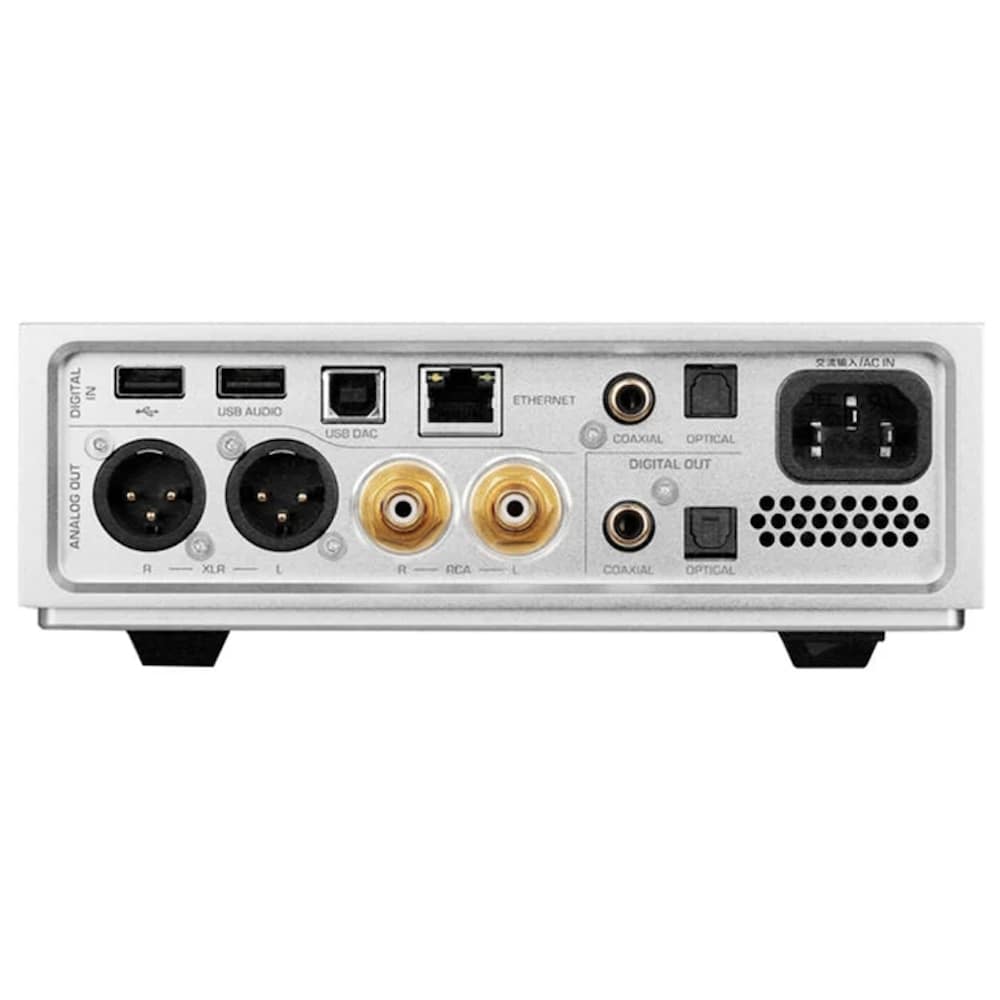

Analog outputs: 4.4mm & XLR balanced, 3.5mm & 6.35mm Single-ended, with pair of RCA and XLR
Digital outputs: SPDIF Coaxial & Optical, USB Audio Output
Digital inputs: USB-B, Coaxial SPDIF & Optical, 2x USB port for USB drives, MicroSD card slot
Output power Single Ended: Up to 8.5V / 2.3W @ 32 Ohm // 9V / 270mW @ 300 Ohm
Output power Balanced: Up to 15V / 7W @ 32 Ohm // 18V / 1W @ 300 Ohm
Output Impedance: 1.2 Ohm SE // 2.4 Ohm BAL
Balanced THD+N: 0.0003%
Balanced Dynamic Range: 125 dB
Balanced SNR: 125 dB
Balanced Channel separation: 104dB
