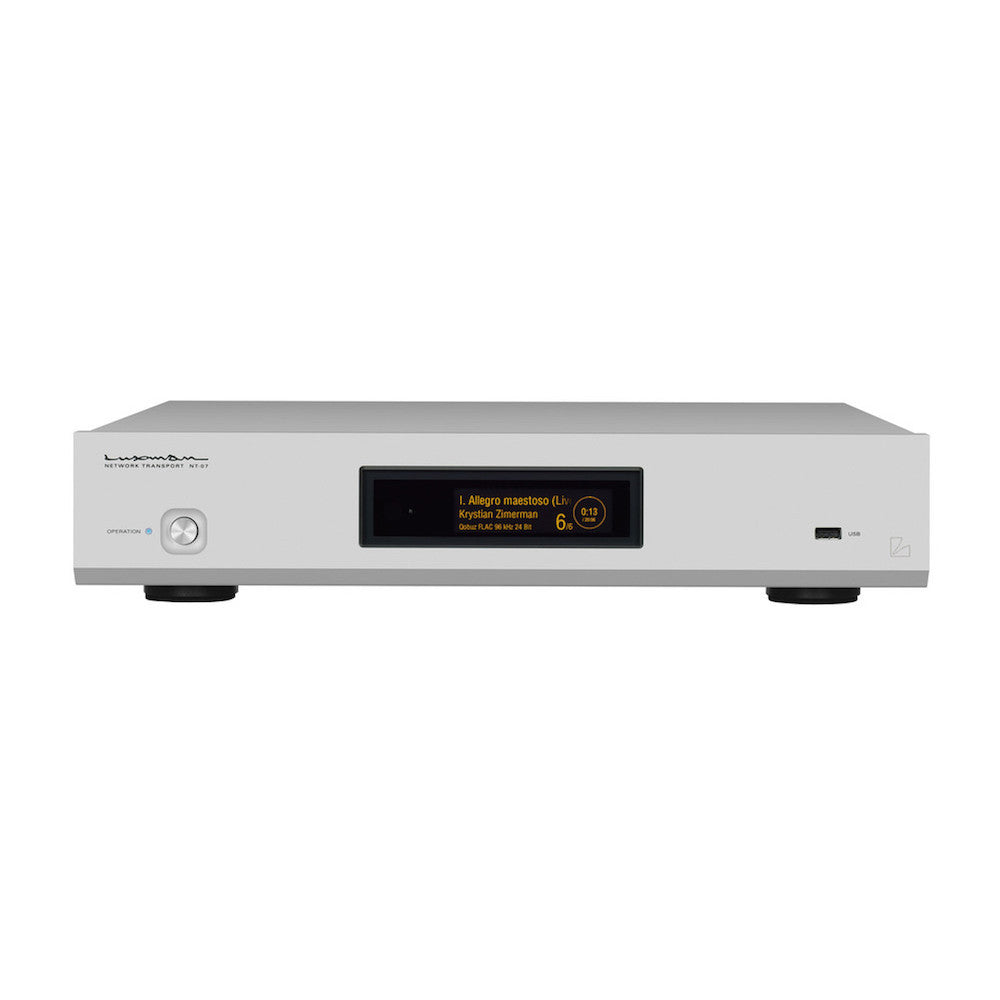

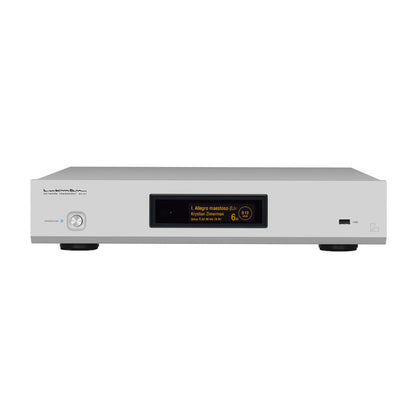

Luxman NT-07 Music Server

The new Luxman NT-07 Music Server is equipped with a powerful audio signal processing module based on the latest generation of application processors, a thorough, audio focused noise suppression system, a dedicated control app compatible with smartphones and tablets, infrared remote control and a slender, full-size chassis that can easily integrate into any existing system.

This upgrade can realize a whole new world of listening enjoyment, configurable to suit the listener's tastes.

Sound sources can be selected from files stored on UPnP (Open Home) compatible network storage (NAS) or the latest music streaming service (Qobuz, Tidal, Spotify), etc. The system supports sampling frequencies of up to 768kHz/32bit PCM and 22.4 MHz DSD.

In addition to the network, HDMI input/output is also available. The HDMI system (ARC) also supports the input of video sources from TV, using the ARC function, as well as through-output to the TV/display, enabling audio signals from various video sources to be reproduced in a 2-channel audio environment.

Features:

Network Transport

Supports various music streaming services (Qobuz, TIDAL, Spotify, Tuneln)

"LUXMAN Stream", a dedicated control application for this unit, provides sophisticated operability, allowing users to select music sources, create playlists, and configure various settings for this unit. Available free for iOS and Android.

Core decoding of MQA format sound sources supported (ON/OFF available)

PCM/DSD sampling function that can be set for each playback format.

Planned to be compatible as an output device for the popular Roon comprehensive music playback software

Specifications:

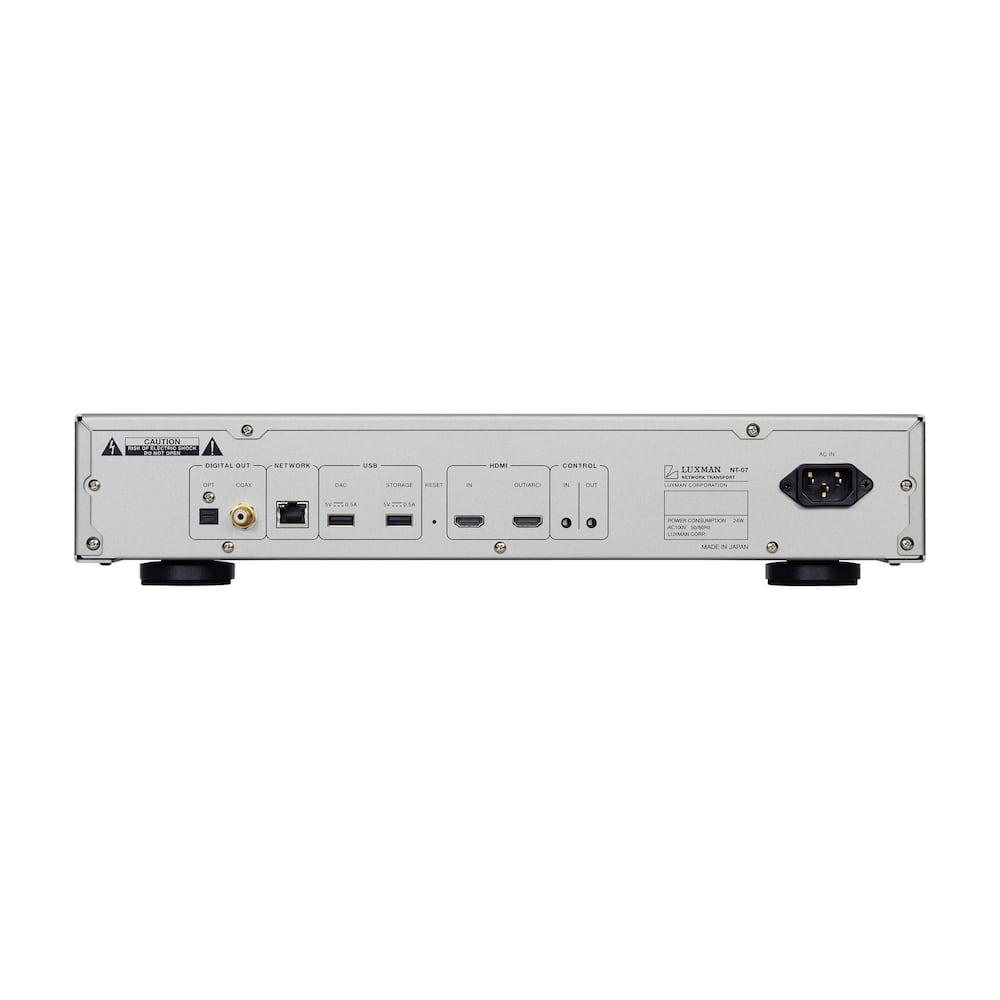

Digital inputs Network: 1000Base-T (Gigabit Ethernet)

HDMI: PCM 2-channel, 4K video pass-through

Digital output USB (USB2.0 compliant), OPT, COAX

HDMI (PCM 2 channels, 4K video pass-through)

ARC (Audio Return Channel) support)

Storage connection USB x 2 terminals (USB 2.0 compliant, single partition, FAT32, exFAT, NTFS supported)

Sampling frequency USB: PCM 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz (16, 24, 32bit) DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.5MHz (1bit)

COAX/OPT/HDMI (ARC): PCM 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (16, 24bit)

Supported file formats WAV, AIFF, FLAC, ALAC, MQA, MP3, AAC, DSD (DSF, DFF)

Streaming protocols UPnP (OpenHome), TIDAL Connect, Spotify Connect, Roon Ready (to be supported)

Power supply voltage AC100V (50/60Hz)

Power consumption 24W (as stipulated by the Electrical Appliance and Material Safety Law:

HDMI input/output / USB storage connection)

5.9W (in standby mode:

(when HDMI input/output/USB storage device is not connected)

Depth includes 3 mm front window and 13 mm rear terminal

Power cable (JPA-10000i: with polarity mark)
