Cambridge Audio Dac Magic 200M Dac Headphone Amplifier
Cambridge Audio Dac Magic 200M Dac Headphone Amplifier
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description
The new Cambridge Audio Dac Magic 200M features twin ESS DACs that decrease crosstalk and improve separation because there’s a DAC dedicated to both left and right channels. These fully balanced, optimised, and efficient signal paths reveal previously hidden glittering musical prizes. The DacMagic 200M is a dedicated hi-fi separate that beats integrated DACs for pure sound performance.

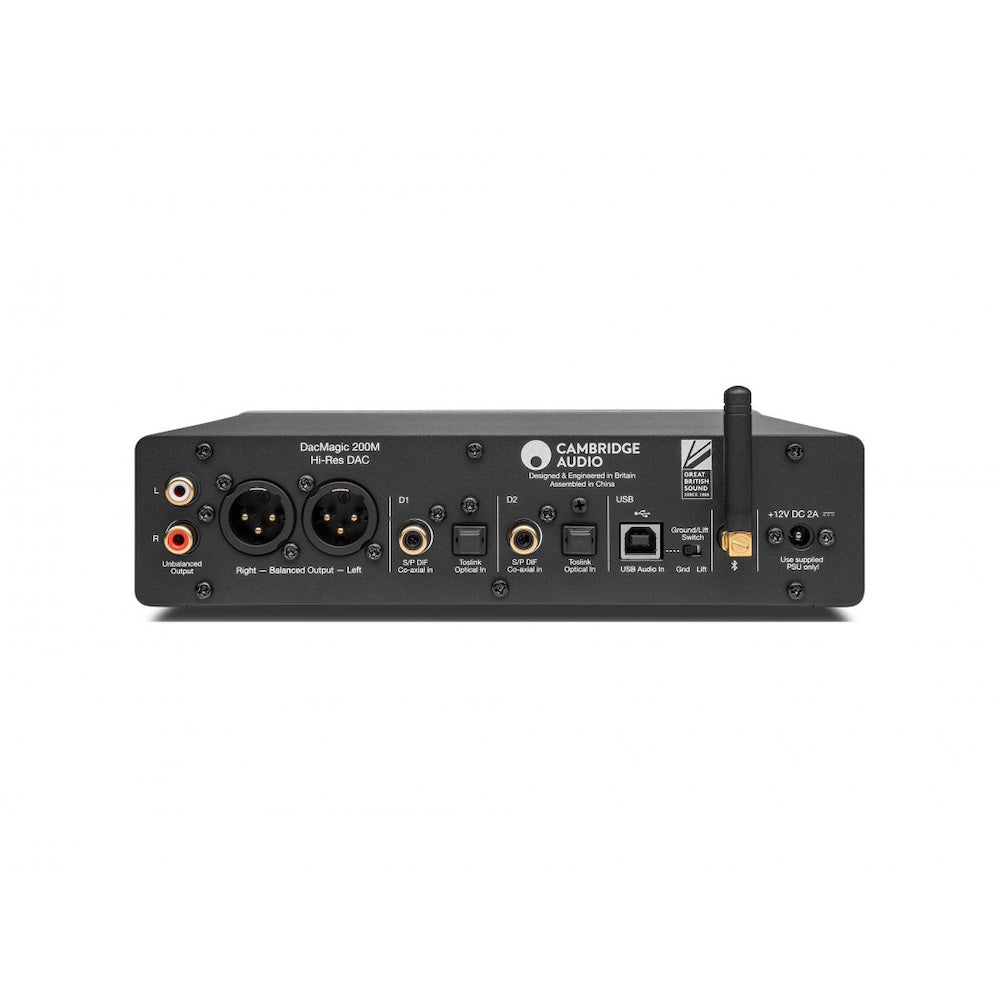

The new Dac Magic 200M features two pairs of coax and optical inputs, a USB computer in and Bluetooth aptX for wireless connection keep the most demanding listener happy. A pair of balanced XLRs, unbalanced RCAs and a ¼” (6.3mm) headphone-out complete the picture. A powerful XMOS processor can handle 1000 million instructions per second, to send digital information to the dual DACs, which work asynchronously at a clock speed of 100Mhz to convert digital to analogue in a ‘bit perfect way.
Specifications:
| DIGITAL TO ANALOGUE CONVERTERS | Dual ESS ES9028Q2M DACs |
| DIGITAL FILTER | Selectable, Fast – Slow – Short delay |
| THD+N @ 1KHZ 0DBFS | <0.0005% (A-Weighted) |
| SIGNAL TO NOISE RATIO | >115dB (A-Weighted) |
| CROSSTALK @ 10KHZ | < -110dB |
| OUTPUT IMPEDANCE | <50 Ohms (unbal), <100 Ohm (bal) |
| MAX. OUTPUT LEVEL (UNBALANCED) | 2.1V rms (fixed or variable – user selectable) |
| MAX. OUTPUT LEVEL (BALANCED) | 4.2V rms (fixed or variable – user selectable) |
| DIGITAL INPUT WORD WIDTHS SUPPORTED | 16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-24bit (USB) |
| DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED | 44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB) |
| MQA COMPATIBILITY | Full decoding (Core + Renderer) |
| BLUETOOTH | v4.2, A2DP profile, SBC and AptX codecs |
| ROON TESTED | Yes |
| HEADPHONE OUTPUT THD+N | < 0.001% at 1kHz 0dBFS @ 100mW into 32ohm |
| HEADPHONE OUTPUT S/N | > 115dB (A-Weighted) |
| MAX OUTPUT POWER | >300mW @ 32ohm, >65mW @ 150ohm |
| RECOMMEND HEADPHONE IMPEDANCE | 10 Ohm to 600 Ohm |
| MAX POWER CONSUMPTION | 12W |
| COLOUR | Lunar Grey |
