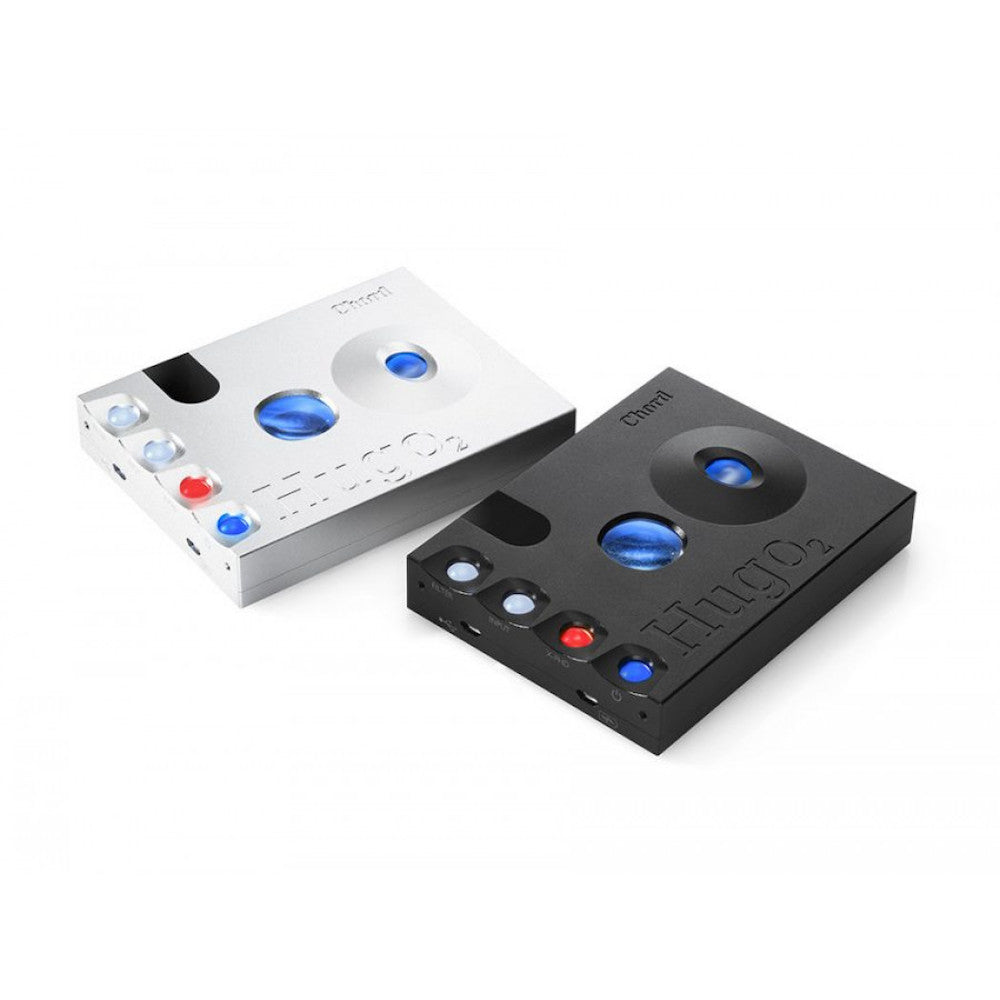

Hugo 2:
In 2014, we introduced Hugo, a revolutionary portable DAC and headphone amp that became a landmark product in the audio landscape. Advances in digital technology, including the latest FPGAs and WTA (Watts Transient Aligned) filters, have enabled us to introduce a next-generation version, Hugo 2, featuring flexible new features, plus next-generation technical and sonic performance.
Hugo 2 can be used both at home and on-the-go, either with headphones or within a conventional audio system. Its line-level output and full-function remote control adds real flexibility in full-size and desktop systems.

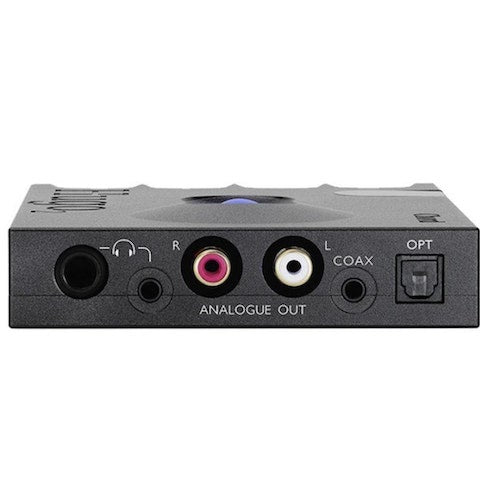

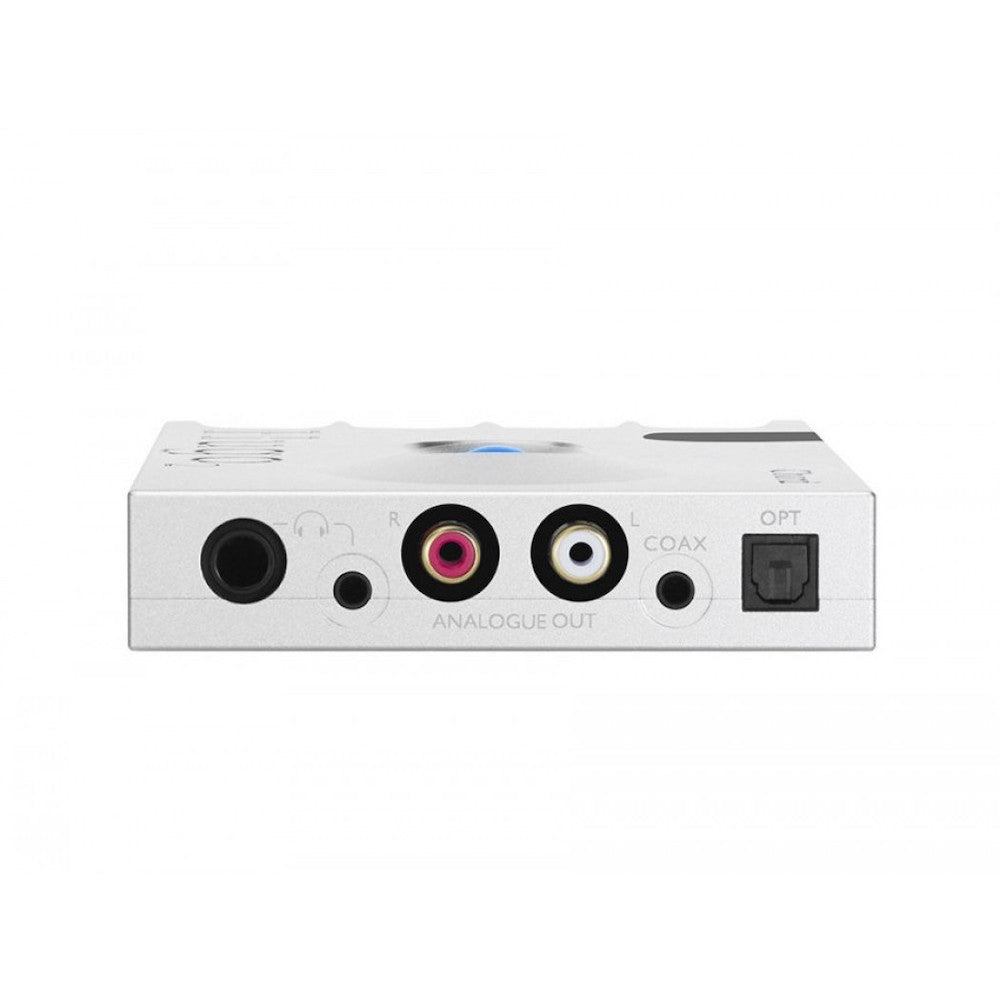

The device offers four digital inputs (optical, coaxial and HD USB) plus extended-range Bluetooth, with high-resolution file playback up to 768kHz and up to DSD512 (Octa DSD), via its HD USB input. Analogue outputs include 2x RCA, plus 3.5mm and 6.35mm headphone outputs.
A four-function switch filter offers a useful degree of user-selectable frequency-shaping, bringing warm and soft or transparent and incisive presentations, giving additional flexibility and user control. For headphone-listening, Hugo 2 retains the popular digital crossfeed function of the original and offers three operation modes. The system duplicates the effect of listening to speakers and is based on advanced binaural audio research.

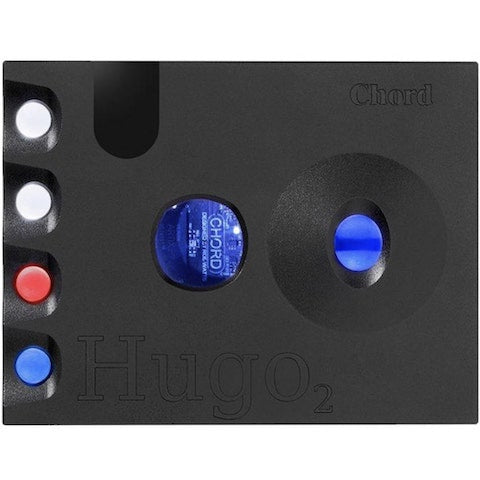

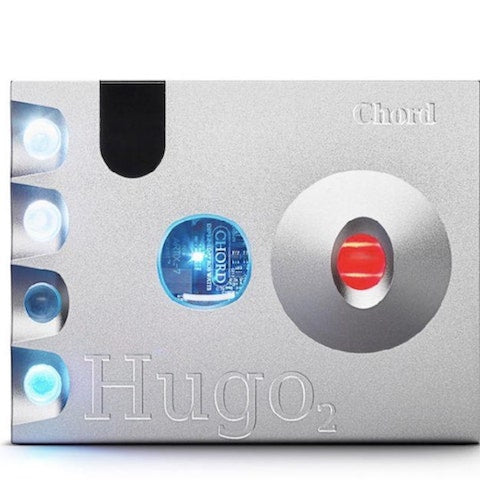

Hugo 2 features four spherical control buttons, which illuminate with colour-coding information and control power, input, filtering, plus the unit’s crossfeed functions.
Battery playing time is around seven hours and two modes of automatic charging are included using the dedicated Micro USB charging port; an indicator shows charging and battery-charge status.
Hugo 2 Specifications:
Chipset: Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA
Tap-length: 49,152
Pulse array: 10 element pulse array design
Frequency response: 20Hz – 20kHz +/- 0.2dB
Output stage: Class A
Output impedance: 0.025Ω
THD: <0.0001% 1kHz 3v RMS 300Ω
THD and noise at 3v RMS: 120dB at 1kHz 300ohms ‘A’ wighted (reference 5.3v)
Noise 2.6 uV ‘A’ weighted: No measurable noise floor modulation
Signal to noise ratio: 126dB ‘A’ Weighted
Channel separation: 135dB at 1kHz 300Ω
Power output @ 1kHz 1% THD: 94mW 300Ω
740mW 32Ω
1050mW 8Ω
Weight: 450g
Dimensions: 2.3cm (H) 10cm (W) 13.1cm (D)
Boxed Dimensions: 8.5cm (H) 12.2cm (W) 22cm (D)

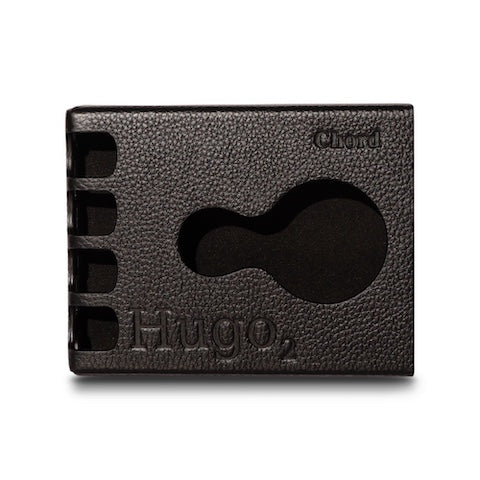

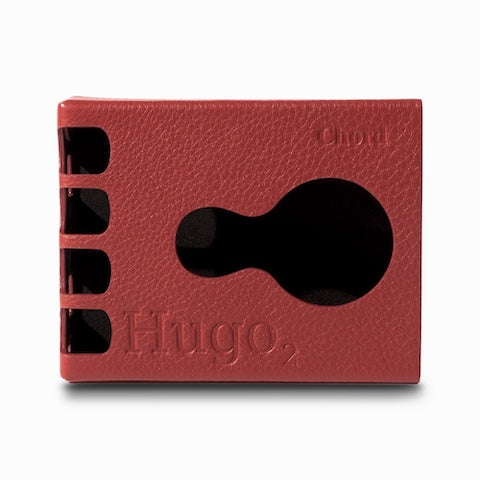

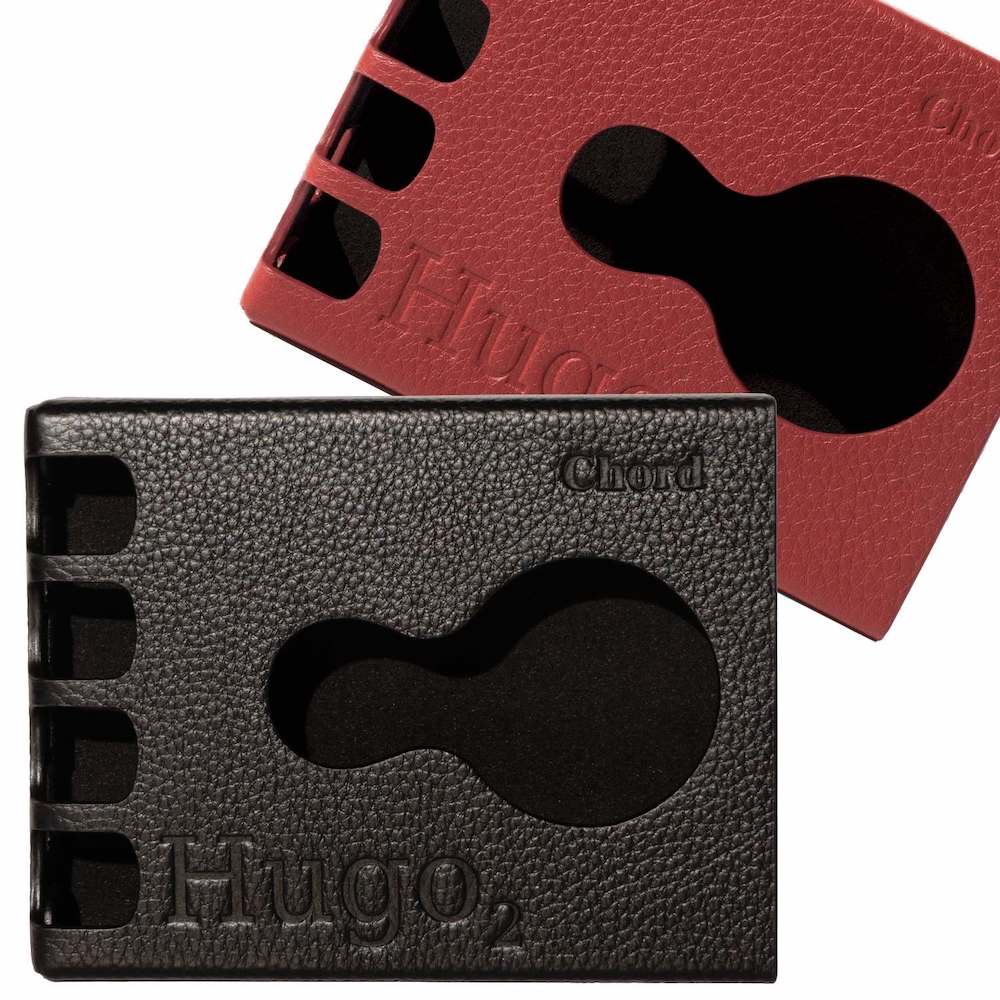

Premium Leather Case:
Designed to complement our award-winning Hugo 2 transportable DAC/headphone amplifier, the Hugo 2 protective leather case offers reliable protection from everyday knocks and bumps. The case has been styled by Chord Electronics and VanNuys Inc. and is exclusively manufactured by VanNuys Inc. in Tokyo.
Luxuriously finished, the Hugo 2 protective leather case offers a snug fit that perfectly cossets Hugo 2’s machined-aluminium casework, offering protection both at home and on the go. The design gives unrestricted access to Hugo 2’s double-ended connectivity suite and newly introduced top-mounted features, which include the device’s control spheres, iconic viewing porthole and the volume control sphere.
