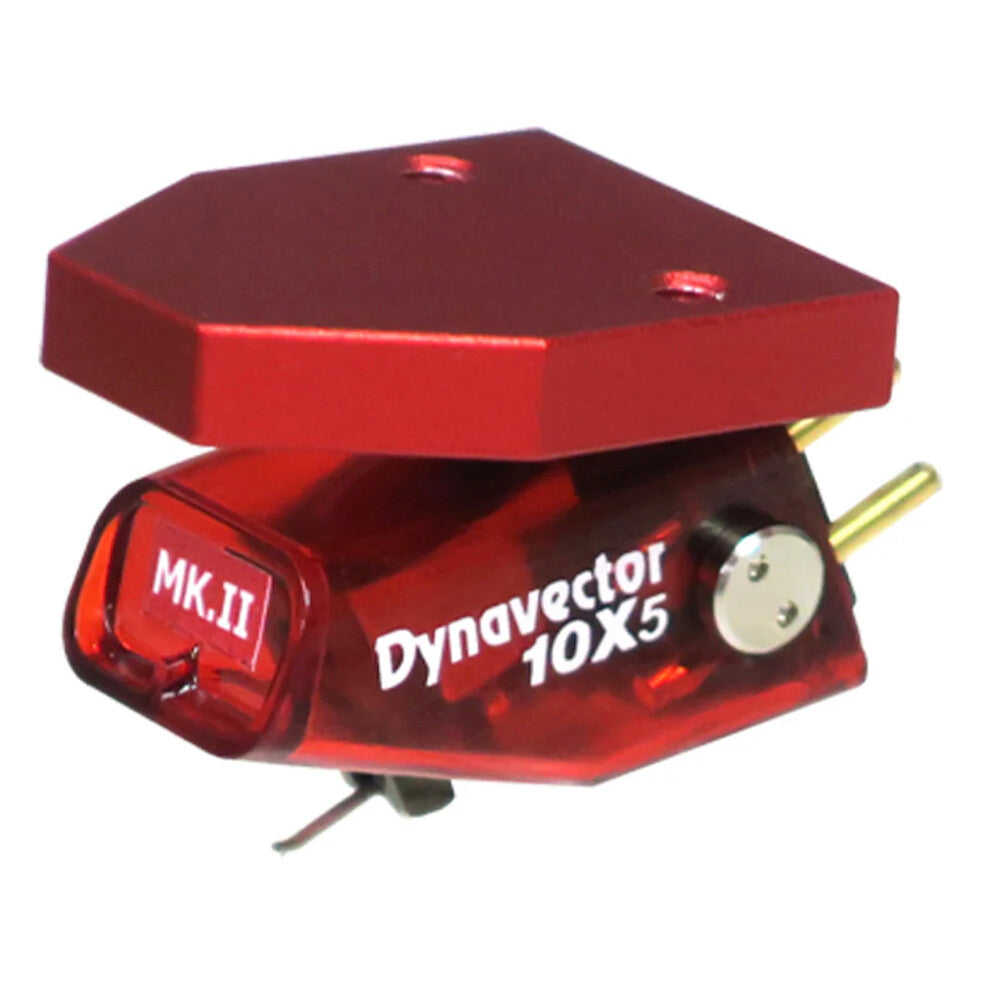

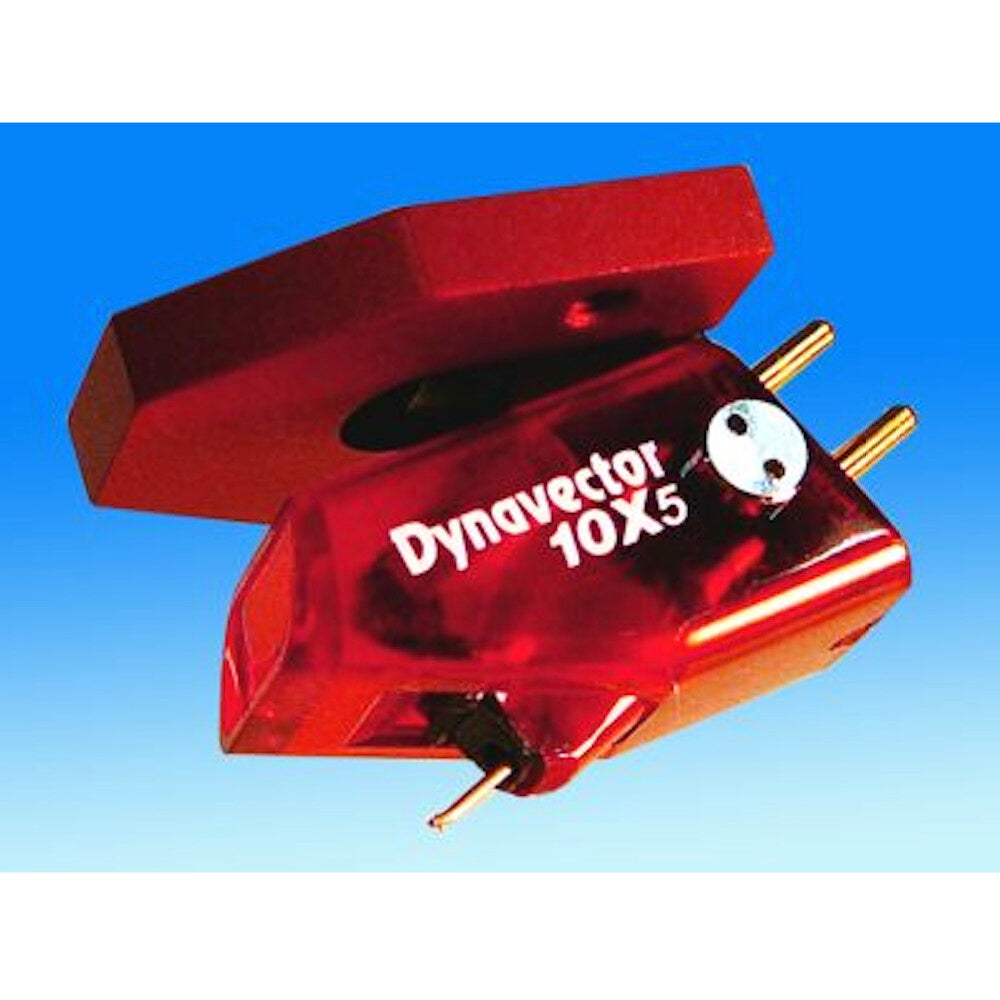

Dynavector DV-10X5 MKII Phono Cartridge

Dynavector DV-10X5 MKII Phono Cartridge

Usually Ships Within 2 days.

Regular price $900.00
Regular price Sale price $900.00
Sale Featured Sold out
Free Express Shipping In Canada
DV-10X5 MKII H/L

Free Express Shipping In Canada

Canadian Warranty

Professional Customer Experience

View full details

Description

Dynavector's 10X5 MKII MC cartridge does not require a step-up device or MC phono preamplifier. Along with several exclusive Dynavector technologies that include Magnetic Flux Damping, Softened Magnetism (Patent) and powerful neodymium magnets that provide the smooth treble response Dynavector are renowned for. The Dynavector 10X5 MKII also features an improved stylus assembly with the nude diamond “Shibata III” line contact stylus and improved hardened cantilever material. These improvements ensure secure tracking ability over even the most torturous of record grooves whilst achieving extended high frequency response and enhanced musical resolution. The legendary Dynavector coil winding technology using the finest of wire has enabled the Dynavector 10X5 MKII to minutely increase the coil windings and achieve a reduction in impedance to 150 ohms whilst retaining a healthy 2.8mV output. Mounting the cartridge to the tonearm is achieved by a rigid red aluminium head block that provides a stable platform for the cartridge along with easy and secure fixing to the tonearm.

Specifications:

  • Type: High output moving coil cartridge with flux damper and softened magnetism
  • Output Voltage: 2.8mV (at 1KHz, 5cm/sec.)
  • Channel Separation: 25 dB (at 1KHz)
  • Channel Balance: 1.0 dB (at 1KHz)
  • Frequency Response: 20 - 20,000Hz (± 2dB)
  • Compliance: 12 mm/N
  • Tracking Force: 1.8 - 2.2 g
  • Impedance: 150 ohms
  • Recommended Load Impedance: > 1000 ohms
  • Cantilever: 6mm length hardened aluminium pipe
  • Stylus Tip: Nude Diamond "Shibata III" Line Contact
  • Weight: 7.5 g
