Dynavector

Dynavector DV 507 MKII Tonearm

Dynavector DV 507 MKII Tonearm

Usually Ships Within 2 Days.

Regular price $8,000.00
Regular price Sale price $8,000.00
Sale Featured Sold out
Free Express Shipping In Canada

Free Express Shipping In Canada

Canadian Warranty

Professional Customer Experience

View full details

Description

Dynavector's DV 507 MKII tonearm delivers impeccable trackability, effortlessly gliding over even the most challenging of warped recordings. Bid farewell to skips and interruptions, and let your vinyl collection be heard as it was meant to be. This tonearm unveils an unparalleled level of resolution and musical detailing that will leave you spellbound. Rediscover your music collection with a depth and richness that transcends your expectations. At the heart of the DV 507 MKII's prowess is its cutting-edge bi-axis inertia control system. Whether you're using a high-end cartridge or a classic favorite, this tonearm boasts unmatched accuracy in tracing the music signal grooves etched into your cherished vinyl records. Experience your music with unprecedented precision, where every note, every subtlety is faithfully brought to life.

Specifications:

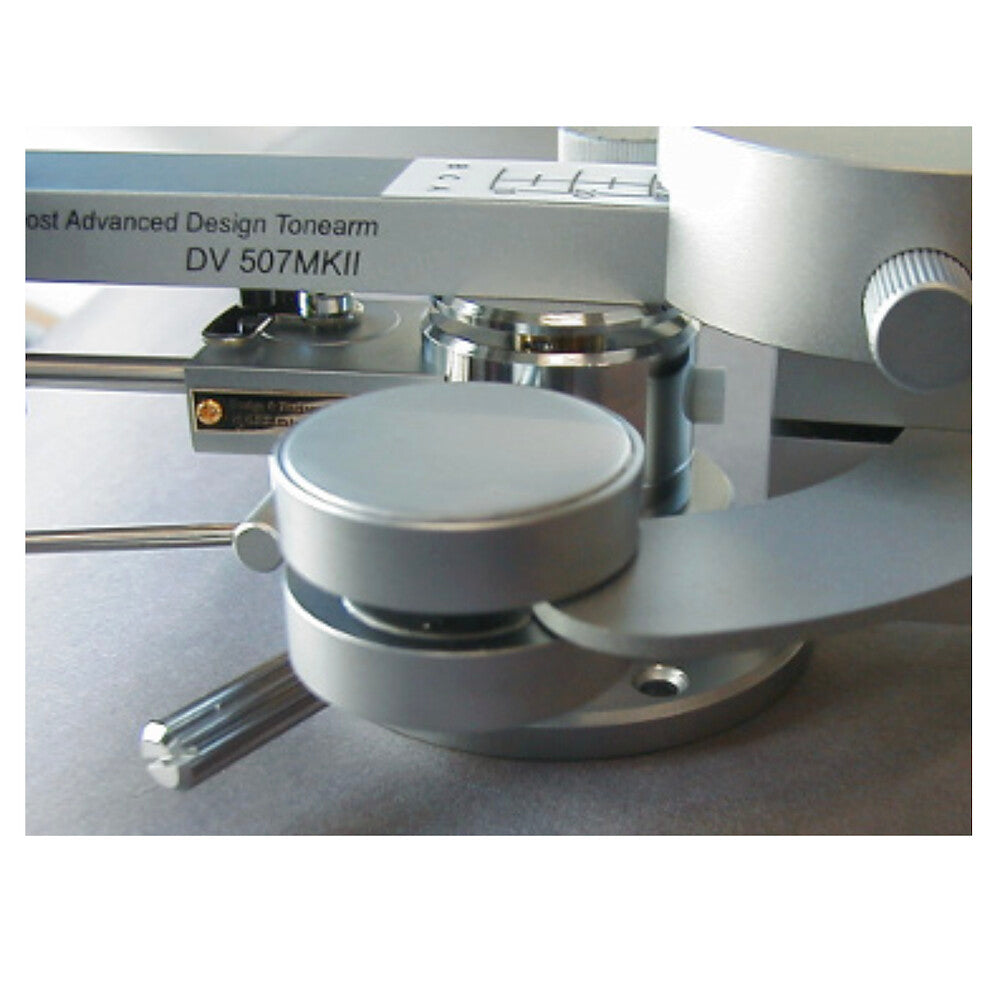

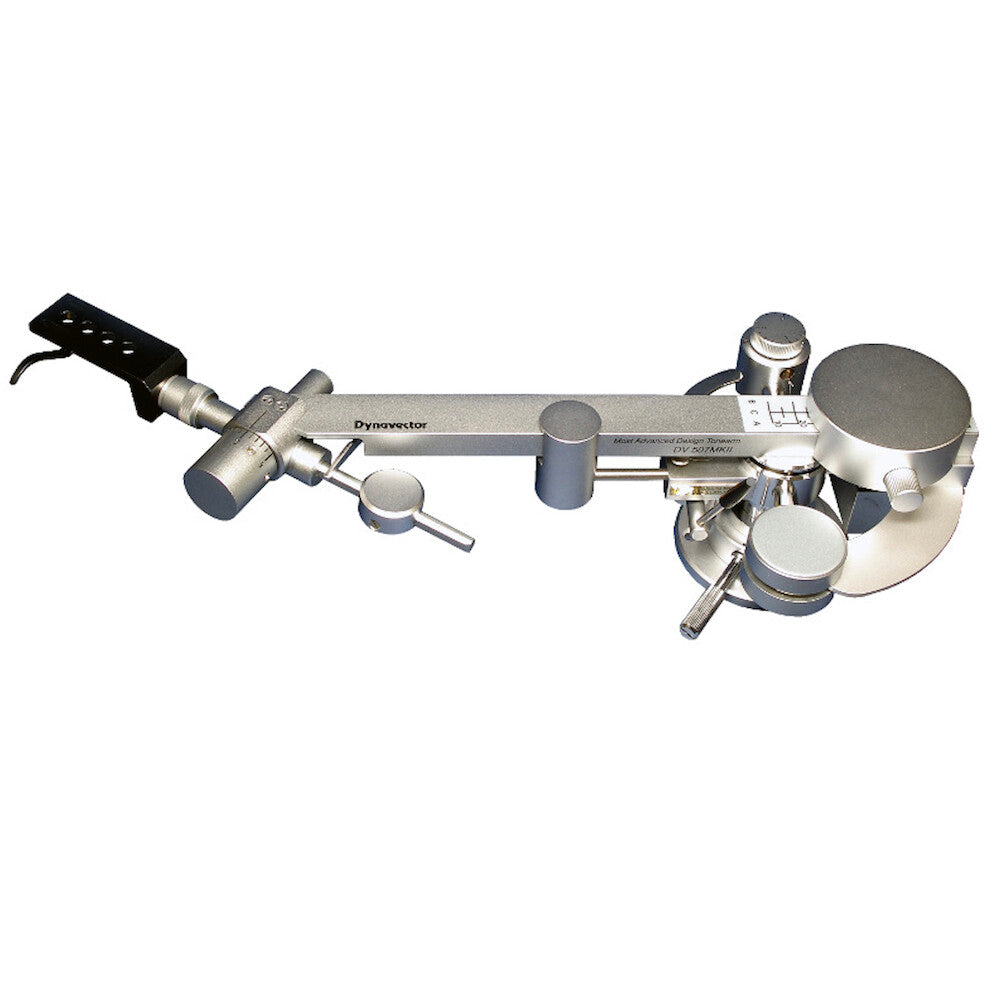

Type Bi-Axis inertia controlled Dynamic and Eddy Current Damping Dynamic Balance type tone arm
Overall length 306mm. With head shell: max 326 mm
Effective length 241mm (i.e. tonearm pivot point to cartridge stylus point)
Overhang 15mm
Offset angle 21.5 degree
Height 59mm lifts up to 92mm
Height adjustment range 39mm-72mm at sub arm center
Depth 36mm without connecting cable
Optimum cartridge weight 15-35 g, including headshell
Horizontal tracking angle error -1.1 degree - +2.2 degree , 0 degree at inner band of record, 2.2 degree at outside
Tracking force adjustment range 0-38 g by 0.2 g step
Sensitivity Horizontal:less than 50 mgrams, Vertical:less than 40 mgrams
Net weight 1,380 g
Output connection 5P connector
Headshell connection EIA standards 4 Pin connector
Accessary low resistance (0.046 ohms/m, 54pF/m) high quality arm cable,
milled aluminium headshell weight 15.4 g.
mounting template for the arm
overhang guage for the headshell
