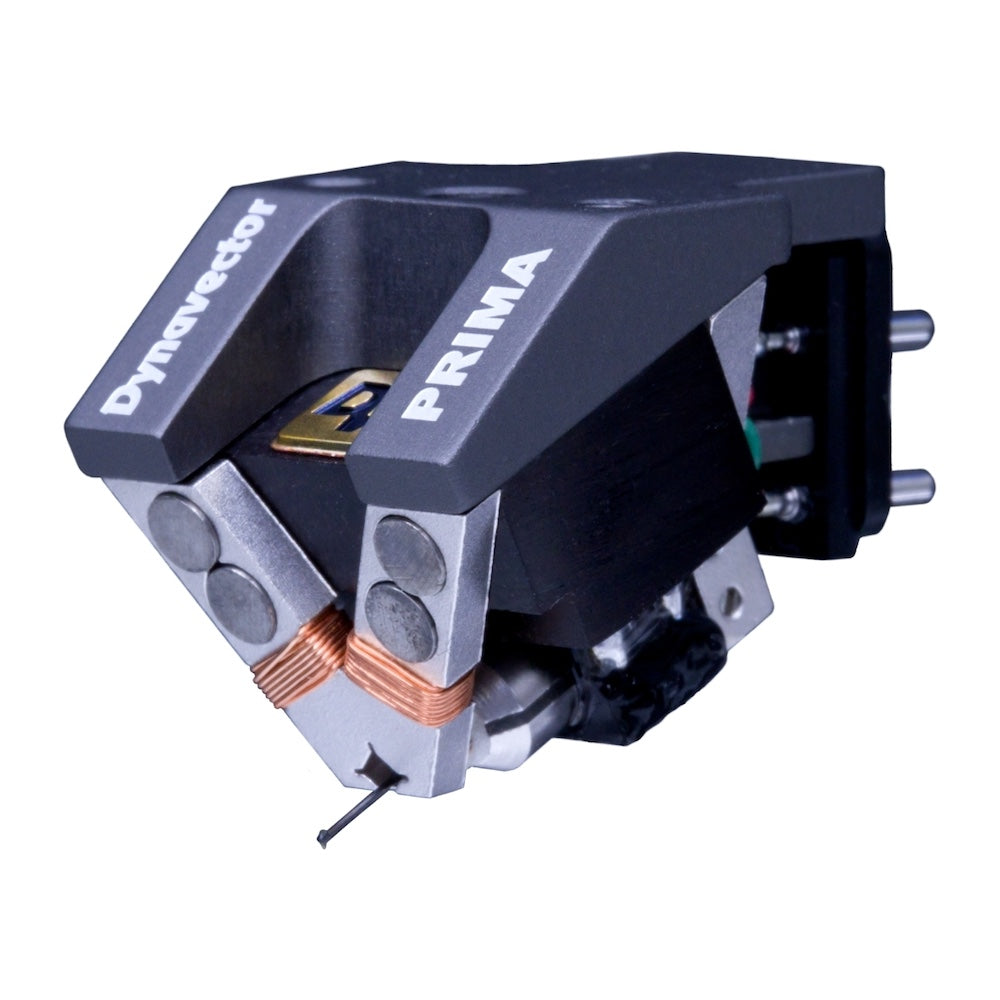

Dynavector XV Prima Phono Cartridge

Description

The new Dynavector XV Prima features the Special Annealing Process now reaches the XV Series, bringing the full potential of the magnetic circuit to Dynavector’s flagship for the first time.

Developed in collaboration with specialists in advanced magnetic materials, the Special Annealing Process addresses a problem that conventional magnetic annealing cannot fully solve. Processing and machining, distort the crystal structure of metal at the atomic level, reducing magnetic permeability. A generic annealing process cannot fully reverse this.

Dynavector’s process requires fine tuning and adjustments in temperature, atmosphere, duration, and both heating and cooling rates for each component. A technique passed down through the tradition of Japanese swordsmithing and now applied to the pursuit of perfect sound.

In the XV Prima, this discipline goes further than ever before. Not only the yokes and the equaliser, but the eight ALNICO magnets themselves have also be treated with Dynavector’s Special Annealing. This pushes the ALNICOs potential to its limit. No other Dynavector cartridge has been built this way.

The result is pure iron and magnet restored to its full magnetic potential, delivering unrivalled resolution, smooth wide-range expression and an expansive sound field.

With the new XV Prima, the open body, the 8 ALNICO magnets, the 4-part equalizer, the stable African Ebony and now the Special Annealing magnetic circuit, converges into one instrument of exceptional stability and musical integrity.

The soundstage is wide and naturally proportioned. Tonality is honest. The balance across the frequency spectrum is something you stop noticing because it simply sounds correct.

Rather than relying on a single material, the XV Prima combines precision-machined aluminium with carefully selected African ebony used to support the magnetic assembly.

Chosen for its high density, uniform internal structure and natural damping characteristics, the ebony contributes to the stable and balanced sound character that defines the XV Prima. After precision machining, each ebony component is individually finished by skilled craftsmen to ensure consistency and long-term stability. The result is a hybrid structure that combines mechanical integrity with a natural and musically coherent presentation.

The inverted V-body exposes the magnetic circuit and wiring completely, eliminating the energy retention and resonance that enclosures can introduce. Yet the structure provides a secure, natural grip, inspiring confidence where most nude cartridges demand caution.

The same refusal to compromise extends to the magnetic circuit itself. In a conventional MC cartridge, magnetic flux travels through a yoke to reach the generating coil. Every millimetre of that journey introduces loss and distortion. The XV shortens the journey to its absolute minimum.

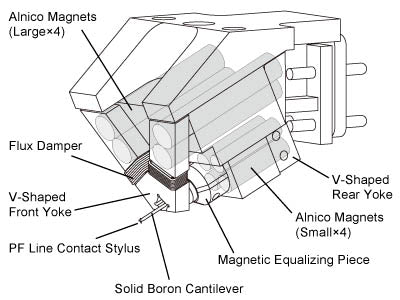

Eight ALNICO magnets make this possible. Four form the main circuit through the V-shaped front yoke. Four more sit directly adjacent to the armature, one for each coil, delivering flux via the shortest possible path.

ALNICO was chosen deliberately. Where rare earth magnets generate a powerful but harder field, ALNICO produces one of exceptional smoothness and linearity. The result is naturalness of tone, delicacy in the upper frequencies and a musical coherence that high-energy magnets rarely achieve.

Specifications:
