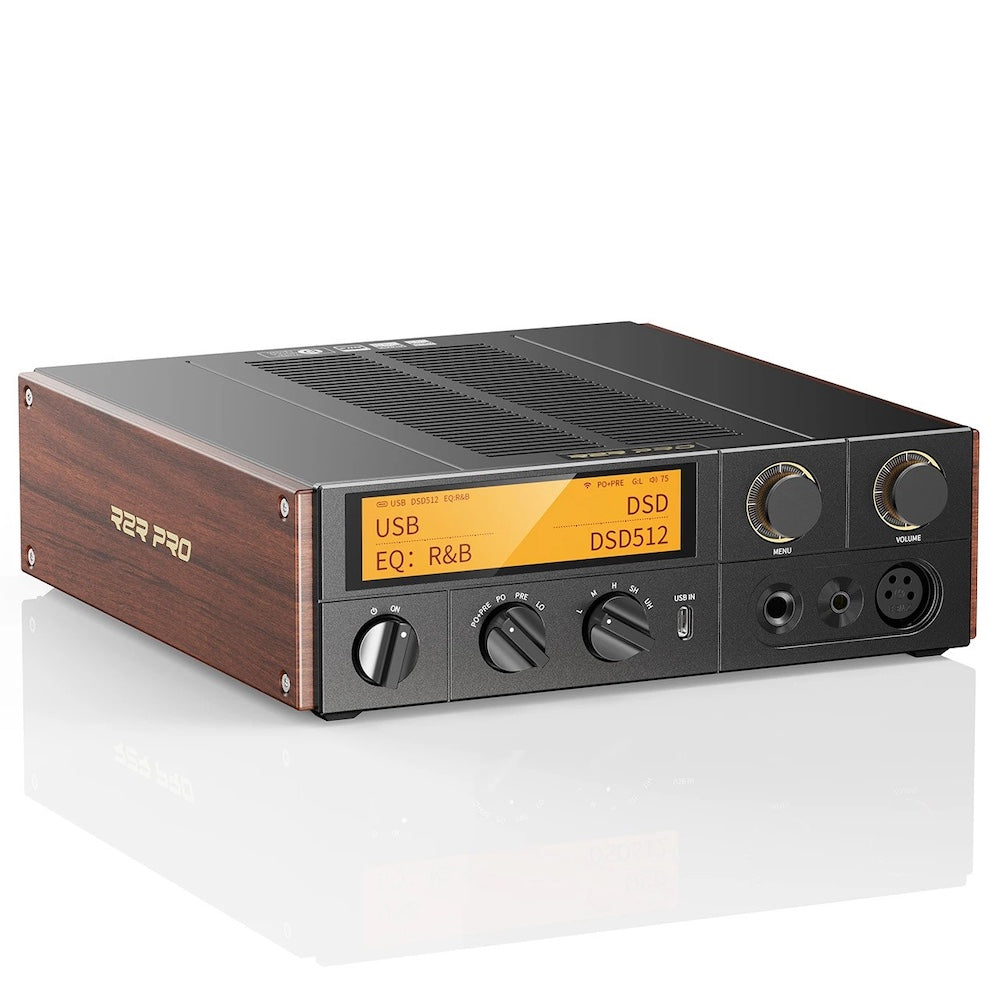

Fiio K17 R2R PRO Flagship Desktop Headphone Amplifier Dac

Fiio K17 R2R PRO Flagship Desktop Headphone Amplifier Dac

BLACK IS IN STOCK.
Silver Usually Ships Within 1-2 Days.

Regular price $1,399.00 CAD
Regular price Sale price $1,399.00 CAD
Sale New Arrivals Sold out
Free Express Shipping In Canada
K17

No Discount Possible on this Product

Affirm Cannot Be Used With This Product

Free Express Shipping In Canada

Canadian Warranty

Professional Customer Experience

View full details

Description

The new FiiO K17 R2R PRO features a segmented architecture, the upper 5 bits are decoded through 31 thermometer-coded resistors, minimizing the error accumulation often found in traditional R2R designs and reducing distortion. The result is a sound that captures everything listeners love about R2R, clear yet smooth, natural, warm, and effortlessly listenable.

The new K17 R2R PRO is Roon Ready and features AirPlay, and Qplay certifications The K17 R2R PRO works seamlessly with the platforms and devices you already use. Newly added NAS server playback brings your home music library into the picture, supporting NFS and SMB protocols with one-tap access via the FIIO Control app. From cloud streaming to lossless local network playback, whatever you want to hear, the K17 R2R gets it to your ears.

The K17 R2R PRO delivers versatile connectivity with support for Roon Ready, QPlay, and AirPlay streaming, along with local playback via onboard storage or a LAN NAS. It accepts both single-ended and balanced analog inputs for amplification, while USB decoding is powered by the XMOS XU316 for up to 768kHz/32-bit, DSD256, and full MQA support. Bluetooth 5.1 is handled by the Qualcomm QCC5125, with aptX HD, aptX Adaptive, and LDAC compatibility, and additional digital inputs include optical and coaxial connections.

The K17 R2R PRO features a carefully crafted fully discrete amplifier circuit. This discrete circuit is of an OP+ transistor current amplification design, equipped with the classic pair of ON Semiconductor MJE243/253 transistors. It is capable of producing high current with low output impedance. The result is up to 4000mW+4000mW output power in balanced mode, nearly double that of the K9 Pro ESS. This allows it to easily drive various kinds of headphones and IEMs and to produce smooth, pleasant, and natural sound. From the DAC, to the I/V conversion, to the low-pass filtering, and to headphone amp, the entire audio circuit is of a fully differential circuit architecture design. This ensures both high dynamic range of the signals as well as significantly reduced crosstalk. Various parts of the audio circuit, including the I/V conversion and LPF stages, use multiple low-noise precision Texas Instruments (TI) op-amps to ensure dynamic audio output.



Features:

  • Physically Separated Boards to Avoid Interference
  • Custom High-Quality Low-Noise Transformer
  • Separate Power Supplies for Digital and Analog Circuits
  • 3 Low Phase Noise Femtosecond Audio Crystal Oscillators
  • High-quality Nichicon, ELNA, Rubycon, Panasonic, and WIMA Components
  • High-Performance X2000 Multi-Core Processor



Specifications:

Digital Audio Outputs
Coaxial output: 192kHz/24bit; DSD64
Optical output: 192kHz/24bit
SNR/THD
SNR: ≥ 125dB (A-weighted)
THD+N: <0.0052%(1kHz/-8dB@32Ω)
Device Weight
6.4lbs
Dimensions
9.65 × 8.78 × 2.72"
Amplifier
Output Power
Output power 1: L+R≥1850mW+1850mW (32Ω single-ended, THD+N<1%, Ultra high gain mode)
Output power 2: L+R≥4000mW+4000mW (32Ω balanced, THD+N<1%, Ultra high gain mode)
Output power 3: L+R≥240mW+240mW (300Ω single-ended, THD+N<1%, Ultra high gain mode)
Output power 4: L+R≥950mW+950mW (300Ω balanced, THD+N<1%, Ultra high gain mode)

Line Output
RCA output: L+R=2.5Vrms+2.5Vrms (1kHz@10kΩ)
XLR output: L+R=5Vrms+5Vrms (1kHz@10kΩ)
DAC
DAC Chipset
Proprietary R2R PRO DAC
Streamer
Supported Formats
Bluetooth 5.1, SBC/aptX/aptX LL/aptX HD/atpX Adaptive/LDAC





Includes:

  • FiiO K17 R2R
  • AC Power Cord (North America)
  • 6.35mm to 3.5mm headphone adapter
  • 2x USB-A to USB-C cables
  • XLR4 port dust cover
  • Extra fuse
  • Infrared remote
  • Quick start guide
