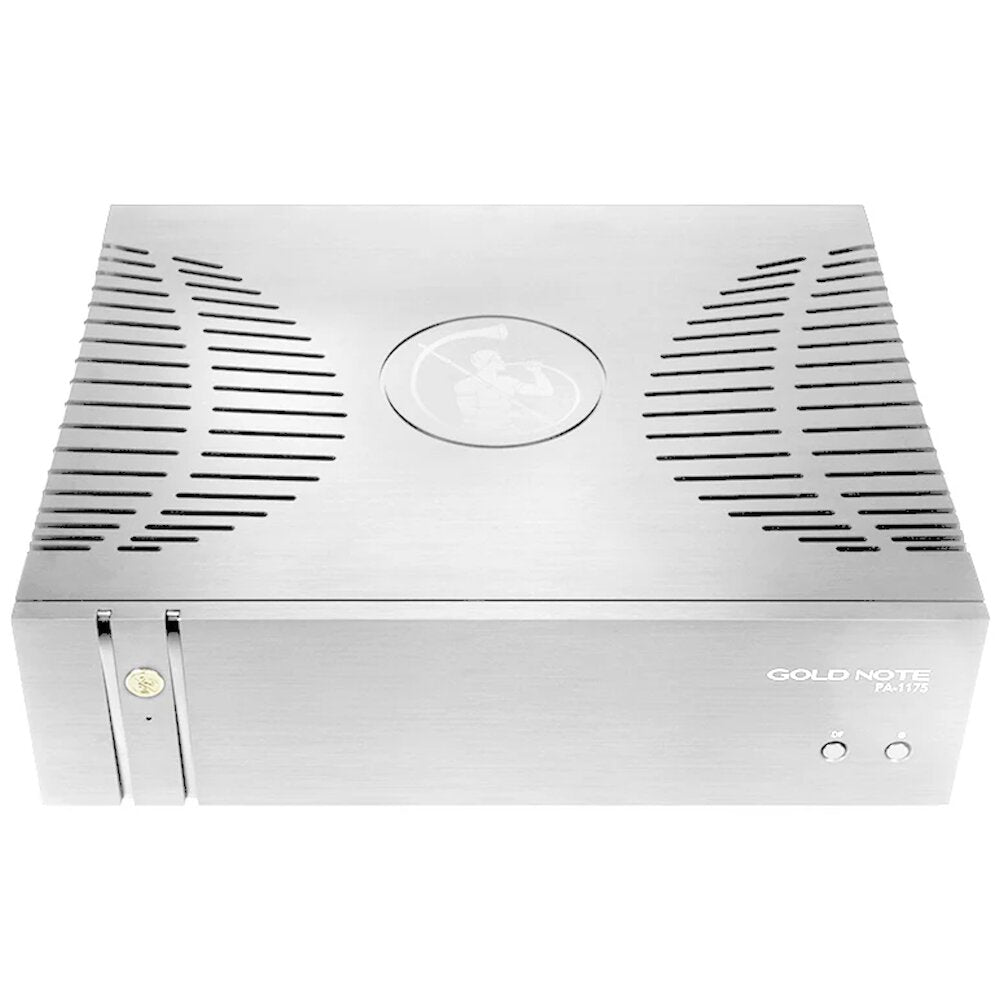

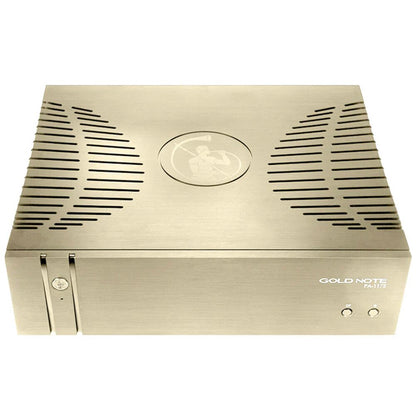

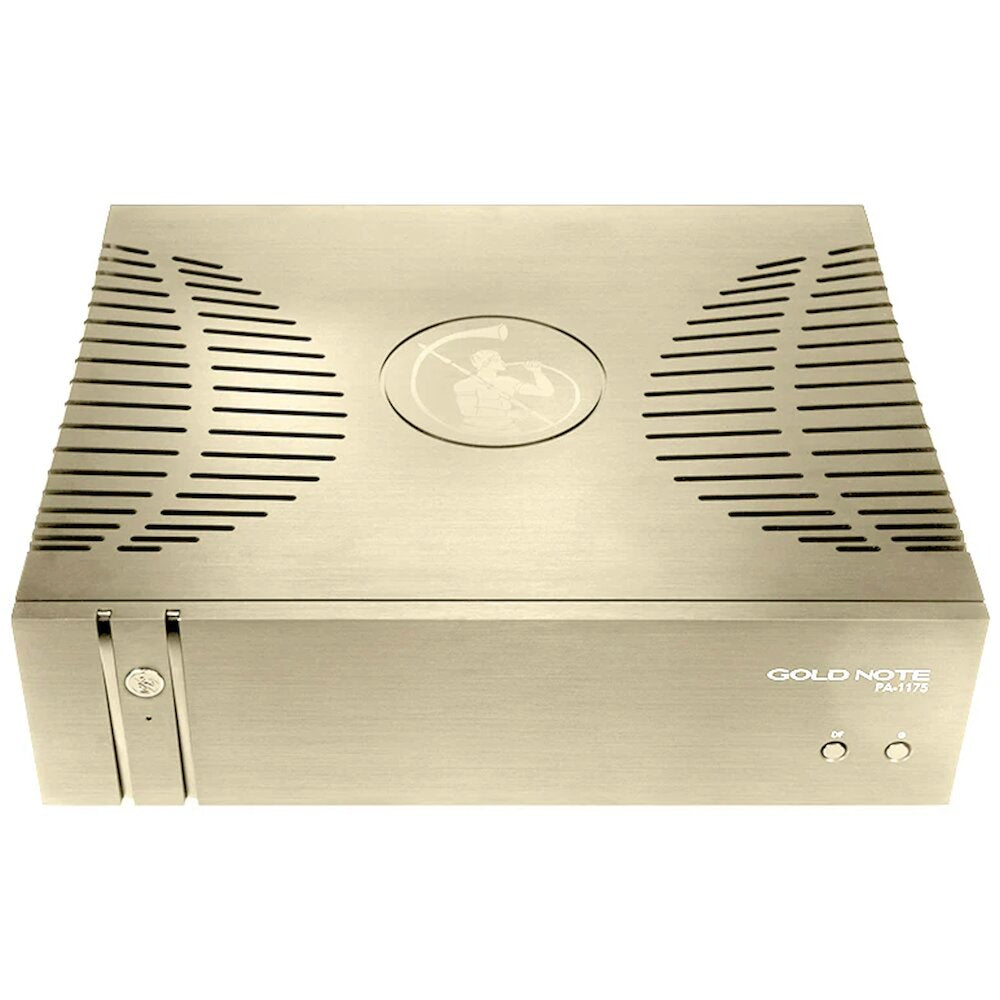

Gold Note PA-1175 MKII Power Amplifier
Gold Note PA-1175 MKII Power Amplifier
Initial Stock Due In Late May To Early June.
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description
Gold Note's PA-1175 MkII is the 2nd generation of Gold Note High-End stereo Class-A/B Power Amplifier. The PA-1175 MkII is an outstanding power amplifier featuring a proprietary adjustable Damping Factor technology that can be easily selected from the front panel. Its new solid state design features a proprietary Gold Note Optical BIAS proprietary creation that enables a constant current generator to achieve high current and high power with ultra low distortion. Our proprietary and innovative Optical BIAS design controls the voltage of the unit. It features optical decoupling to overcome the downgrading solutions of traditional electronics. Analysing optically the signal while it gets completely separated from the audio signal path assures highest protection and unbeatable performance.
To avoid RFI and EMI interferences, the PA-1175 MkII is made of a massive steel chassis and thick aluminium panels vented by the unmistakable Gold Note curved slots design. The PA-1175 MkII power transformer is a special toroidal model featuring a unique cut spiral nucleus. The refined mechanical process makes the nucleus completely stable, canceling any mechanical vibration to guarantee a terrific performance and perfect insulation, while a small secondary transformer powers the auxiliary functions with dedicated circuits outside of the audio path signal.
Specifications:
| POWER OUTPUT |
200W@8Ω per channel [520W@8Ω in mono BTL] |
|---|---|
| FREQUENCY RESPONSE |
1Hz – 100KHz @ ± 1dB |
| THD (TOTAL HARMONIC DISTORTION) |
<0.01% @ 20Hz-20kHz |
| SIGNAL TO NOISE RATIO |
-110dB |
| DAMPING FACTOR |
Selectable high/low |
| SLEW RATE |
20V/µs |
| INPUT SENSITIVITY |
1000mV RCA and 4000mV XLR |
| INPUT IMPEDANCE |
47KΩ |
| POWER CONSUMPTION |
1200W max – 1,2 W idle |
| POWER TRANSFORMERS |
640VA custom GN toroidal |
| DIMENSIONS |
430mm W 135mm H 370mm D |
| WEIGHT |
Kg. 20.5 net |
| FINISHES |
Brushed Aluminium in Black, Silver or Gold |
