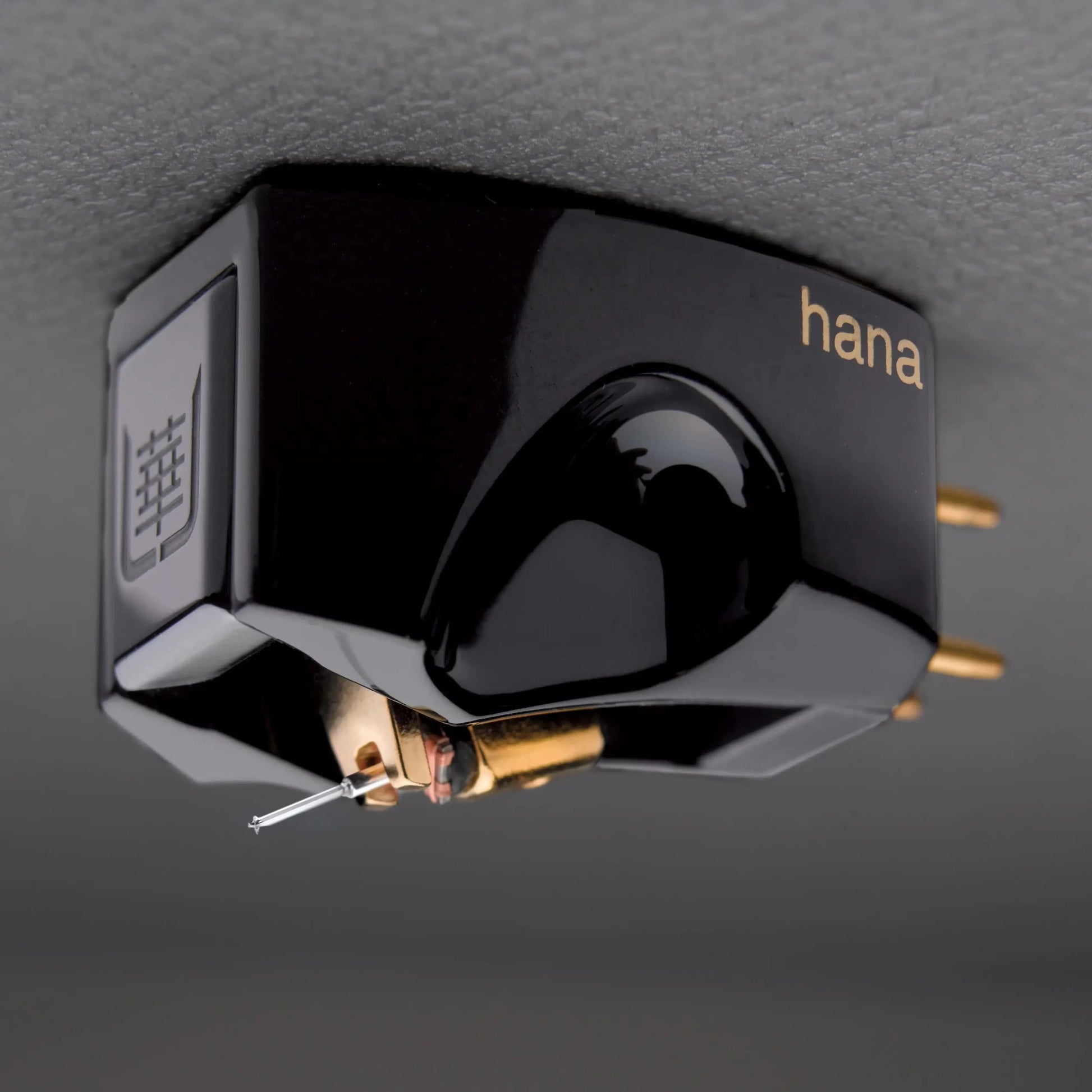

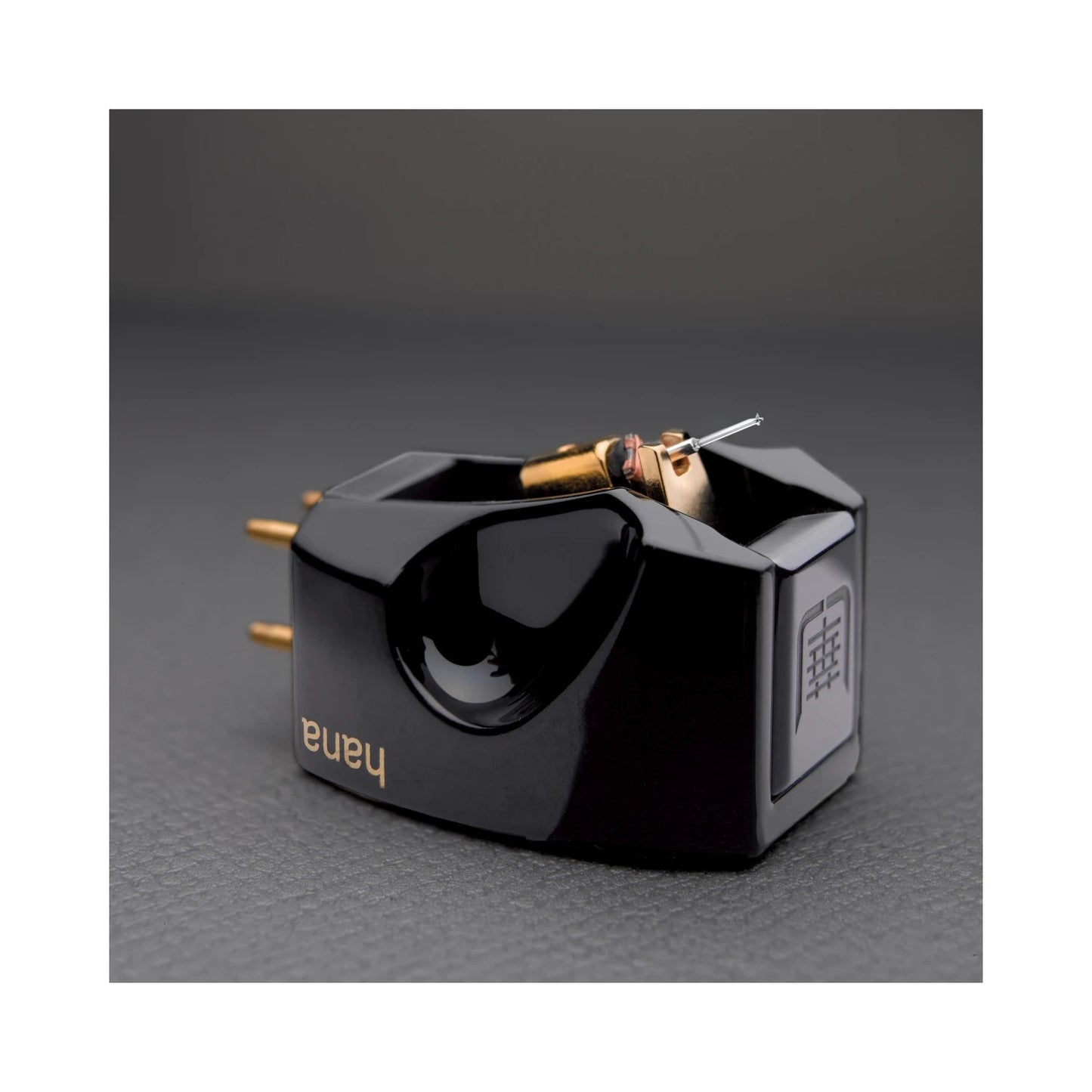

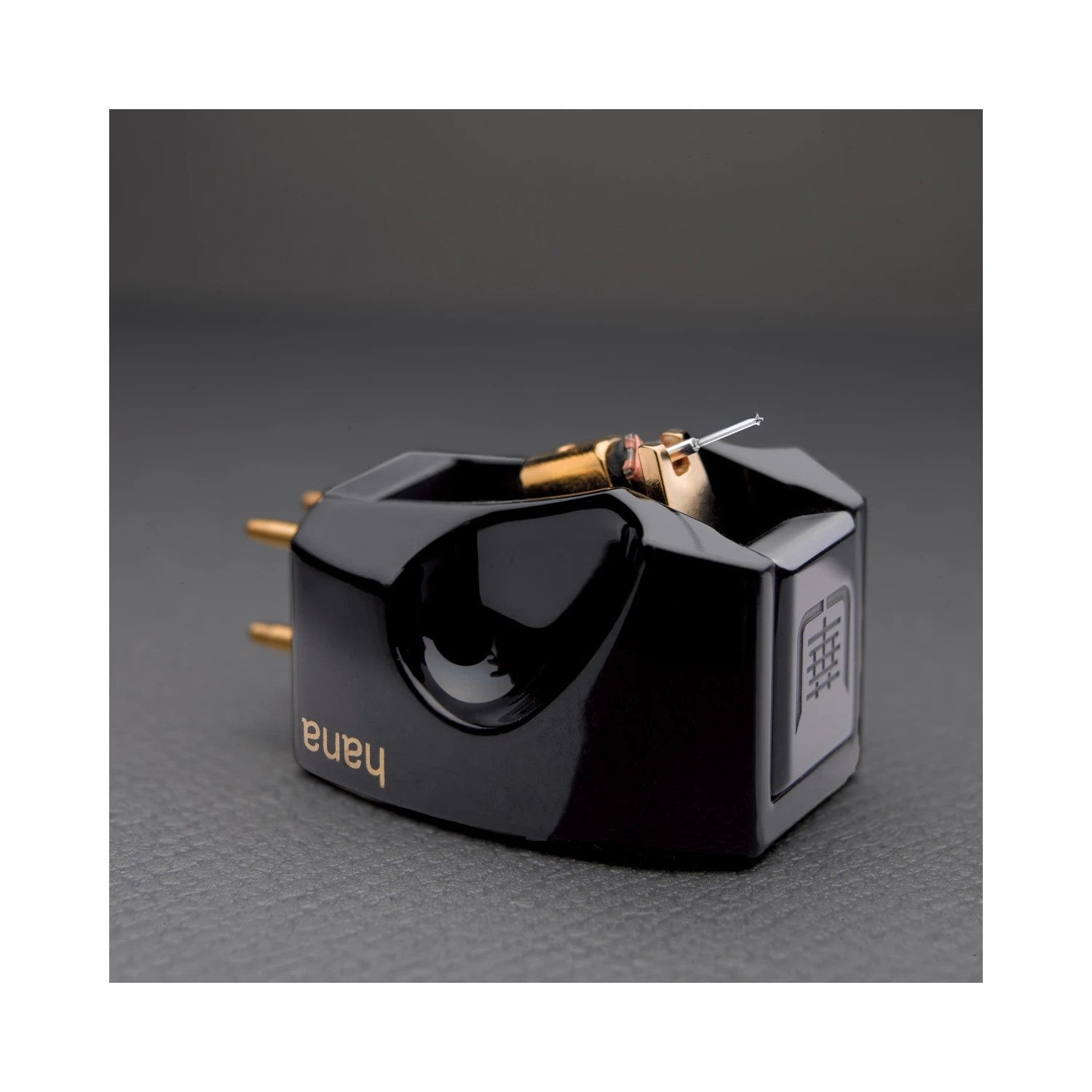

Hana Umami Black Cartridge

Description

The new Hana Umami Black moving coil cartridge  incorporates a category first diamond cantilever, the hardest possible material, ideal for signal transfer. Another category first, the Umami Black uses the newly developed “OKD” with the world’s first “Integrated Pole Piece and Rear Yoke” and Inverted U-shaped Front Yoke, optimizing energy transfer from the diamond cantilever.

The Umami Black features a U-shaped (bifurcated) inverted front yoke is engineered for both mechanical resonance control and magnetic field alignment, while also providing precise support for the diamond cantilever. Unique to the Umami Black, the rare-earth neodymium-iron-boron (NdFeB) magnet is used in the high-efficiency generator, delivering superior energy conversion.

The Umami Black also features a 2mm square hybrid Carbon permalloy armature, comprising 78% carbon-infused nickel-iron, is precisely hand-wound with 30-micron, 4N high-purity copper wire on Excel’s proprietary machinery. This ultra-light moving coil has an output of 0.3mV at 5 ohms.

The Umami Black features an exquisite Urushi lacquer finish, applied through a specialized thermosetting process that bonds to the aluminum body via vapor deposition.

Specifications:

• Material Duralumin
• Finish Gloss Urushi Lacquer
• Cantilever Diamond
• Stylus Nude Microline
• Armature Material Permalloy
• Armature Shape Square Cross
• Parts Material Pure Iron
• Magnet Neodymium (NdFeB)
• Terminal Plate PEEK (Polyether Ether Ketone)
• Terminal Pin 24K Gold Plated
• Coil Impedance 6 Ω/1KHz 8
• Output 0.4mv/1KHz 0.4mV
• Coil Wire Material High Purity Copper
• Terminating Impedance > 60 Ω
• Treatment Cryo-genic Yes
• Frequency Response 15-50,000Hz
• Output Balance 0.5dB/1KHz
• Channel Separation >30dB/1KHz
• Tracking Force Weight 2g
• Trackability 70μm/2g
• Dynamic Compliance 10 x 10(-6) cm/dyne (100Hz)
• Cartridge Weight 10.5g
