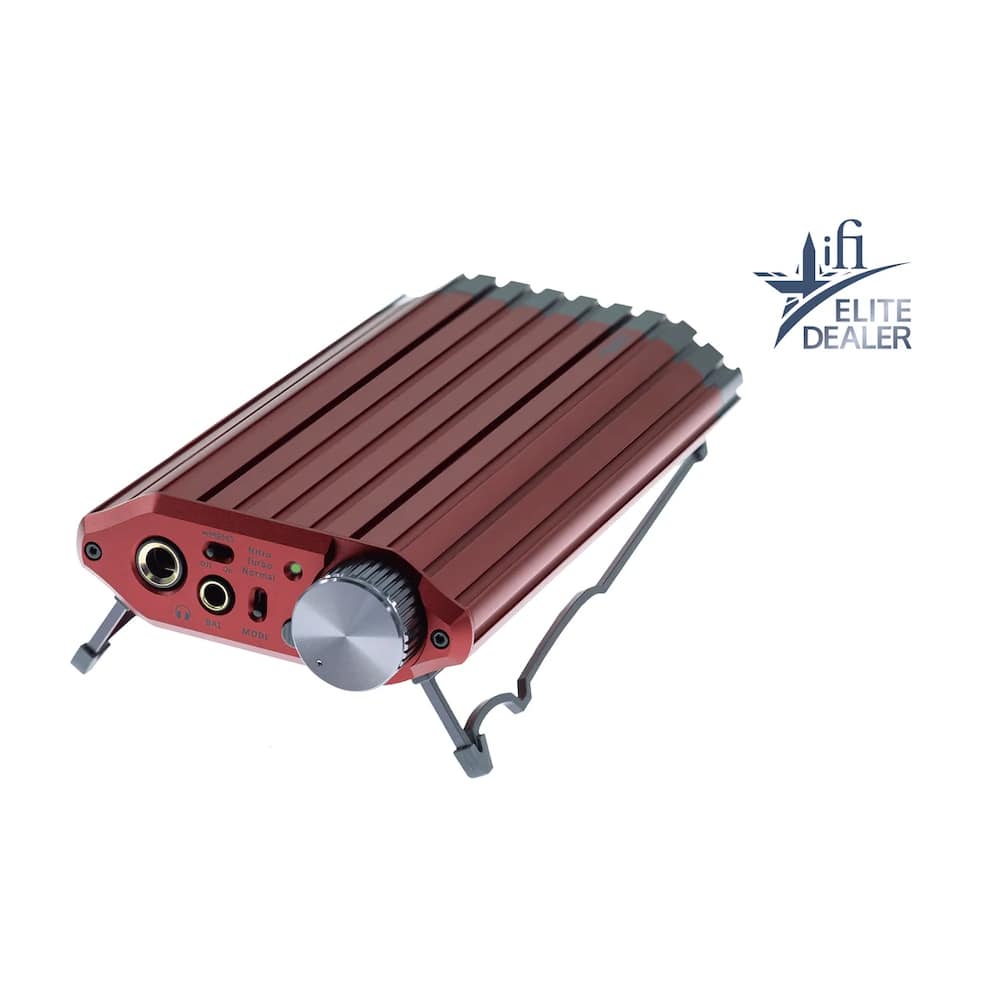

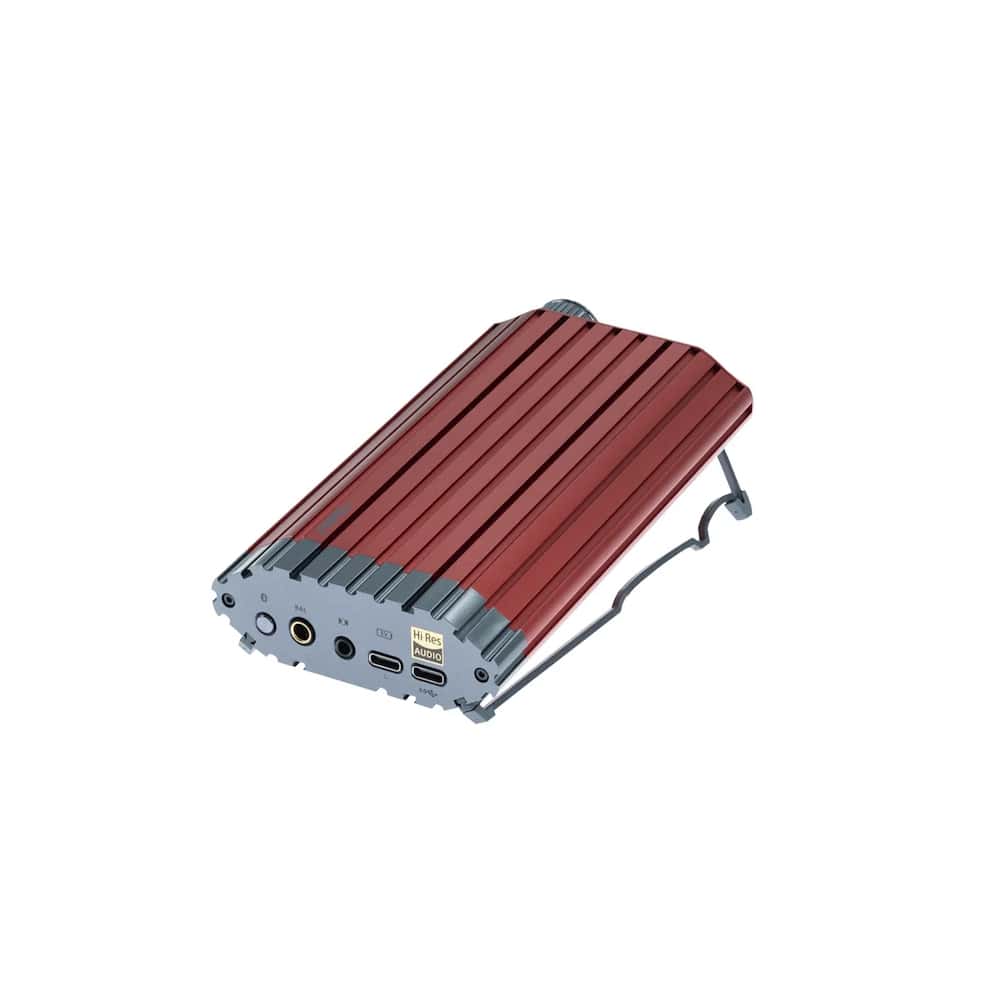

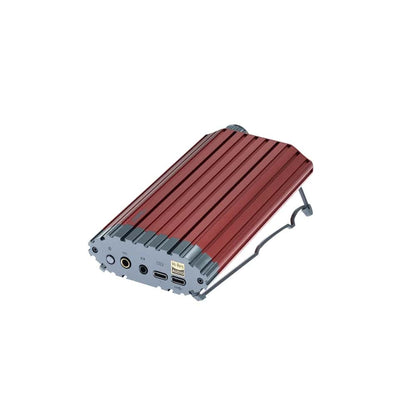

iFi Audio IDSD Diablo2 DAC Headphone Amplifier
iFi Audio IDSD Diablo2 DAC Headphone Amplifier
IN STOCK.
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience

Description
iFi Audio's new iDSD Diablo2 features twenty-two rails for improved cooling performance, with eight of these rails being compatible with the Diablo wings, enabling desktop stand use. Offering 3 power modes: Normal for IEMs, Turbo for mid-sensitivity headphones, and Nitro for demanding headphones, boasting a 19.2V maximum output. The Diablo 2 comes with four wings that you can customise to position it horizontally, like a desktop DAC/amp, or vertically to save space. A switch underneath activates iFi’s iEMatch technology. This feature is tailored for high-sensitivity headphones and earphones, greatly benefiting your in-ear monitors (IEMs). It removes background noise and increases the usable volume range.
Specifications:
| BATTERY | Lithium-polymer 4800mAh |
| BLUETOOTH FORMATS | aptX Lossless aptX Adaptive aptX LDAC LHDC/HWA AAC SBC |
| CHARGING | Via USB-C – BC v1.2 compliant up to 1900mA |
| DIGITAL INPUTS | 1x USB-C; 1x S/PDIF (optical/coaxial) Bluetooth 5.4™ |
| DIMENSIONS | 166x85x28.5mm |
| DNR | ≥114dB(A) |
| HEADPHONE OUTPUT | 1x balanced 4.4mm 1x 6.3mm |
| HI-RES SUPPORT | 768kHz DSD512 full MQA |
| MAXIMUM OUTPUT POWER |
Output: 4.4mm 6.3mm 4.4mm: >19.2V/611mW (@600Ω); >12.87V/5180mW (@32Ω) 6.3mm: >9.6V/153mW (@600Ω); >8.85V/2450mW (@32Ω) xMEMS: >28Vpp (4.4mm output) |
| NET WEIGHT | 455g (1.0Ibs) |
| OUTPUT | 4.4mm 6.3mm |
| OUTPUT IMPEDANCE | ≤200Ω |
| POWER CONSUMPTION | Nitro 12W | Turbo 5W | Normal 2W | xMEMS 8W |
| RMS OUTPUT POWER |
4.4mm: >19.2V/611mW (@600Ω); >7.4/1710mW (@32Ω); >11.5/2060mW (@64Ω) 6.3mm: >9.6V/150mW (@600Ω); >8.1V/2050mW (@32Ω); >9.3V/1360mW (@64Ω) |
| SNR | ≥114dB(A) |
| THD+N | 0.002% @ 0dBFS 200kΩ |
