JVC D-ILA Projectors Native 4K With 8K E-ShiftX

JVC D-ILA Projectors Native 4K With 8K E-ShiftX

Name: JVC D-ILA Projectors Native 4K With 8K E-ShiftX
Brand: JVC
SKU: 43639971479793
Price: 8,999.00 CAD
Availability: InStock

JVC

$8,999.00

Shipping calculated at checkout.

JVC D-ILA

Quantity

JVC manufactures some of the best projectors in the world.

Development of D-ILA imaging devices began in 1997. Ever since, JVC has remained on the cutting edge, incorporating the most advanced imaging technologies of the times. Now, after a quarter century of evolution, we are proud to present a new chapter in our story from Yokosuka, Japan, where D-ILA devices are developed and produced.

DLA-NZ9

8K60p/4K120p input with 8K/e-shiftX
0.69-in 4K D-ILA
100mm High Resolution All Glass Lens
BLU-Escent(Laser Light source) and Ultra-High Contrast Optics realizes 3,000 lm Light Output
100,000:1 Native Contrast ∞:1 Dynamic Contrast
HDR(HDR10+/Frame Adapt HDR/HLG)
Wide Color Gamut (DCI cover)
FILMMAKER MODE^™^*1NEW

DLA-NZ8

8K60p/4K120p input with 8K/e-shiftX
0.69-in 4K D-ILA
65mm High Resolution All Glass Lens
BLU-Escent(Laser Light source) and Ultra-High Contrast Optics realizes 2,500 lm Light Output
80,000:1 Native Contrast ∞:1 Dynamic Contrast
HDR(HDR10+/Frame Adapt HDR/HLG)
Wide Color Gamut (DCI cover)
FILMMAKER MODE^™^*1NEW

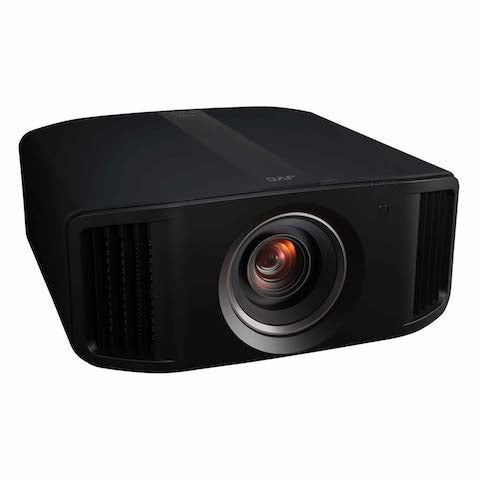

DLA-NZ7

8K60p/4K120p input with 8K/e-shift
0.69-in 4K D-ILA
65mm High Resolution All Glass Lens
BLU-Escent(Laser Light source) realizes 2,200 lm Light Output
40,000:1 Native Contrast ∞:1 Dynamic Contrast
HDR(HDR10+/Frame Adapt HDR/HLG)
FILMMAKER MODE^™^*1NEW

DLA-NP5

4K120p input
0.69-in 4K D-ILA
65mm High Resolution All Glass Lens
1,900lm Light Output
40,000:1 Native Contrast 400,000:1 Dynamic Contrast
HDR(HDR10+/Frame Adapt HDR/HLG)
FILMMAKER MODE^™^*1NEW

Specifications:

		DLA-NZ9	DLA-NZ8	DLA-NZ7	DLA-NP5
Device		0.69-inch Native 4K D-ILA Device (4096x2160) x3
e-shift		8K/e-shiftX		8K/e-shift	-
Display Resolution		8192 x 4320			4096 x 2160
Lens	Type	x2 Motorised Zoom & Focus, All-glass Lens
Lens	Diameter	100 mm	65 mm
Lens Shift	Vertical/Horizontal (motorised) *In 16:9 aspect ratio mode	±100% / ±43%	±80% / ±34%
Projection Display Size		60 inch - 300 inch (diagonal)	60 inch - 200 inch (diagonal)
Light Source		Laser Diode			NSH 265 W
Brightness		3,000 lm	2,500 lm	2,200 lm	1,900 lm
Contrast Ratio	Dynamic	∞:1			400,000:1
Contrast Ratio	Native	100,000:1	80,000:1	40,000:1	40,000:1
DCI-P3 Color Gamut		●		-	-

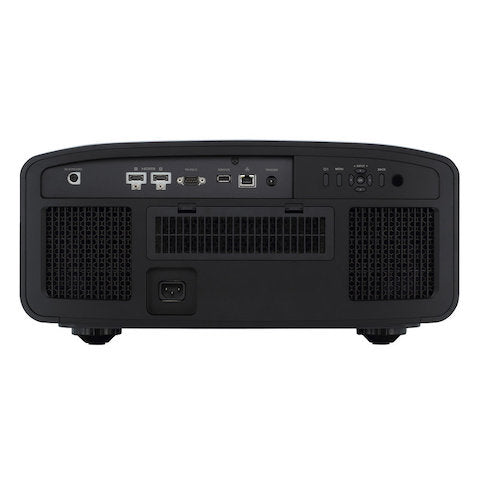

Input Terminal	HDMI	2 (48Gbps, HDCP2.3, CEC does not support)
Input Terminal	TRIGGER	1 (Mini Jack, DC12V/100mA)
Output Terminals	3D SYNCHRO	1 (Mini-Din 3pin)
Output Terminals	RS-232C	1 (Dsub 9pin)
Control Terminals	LAN	1 (RJ-45)
Service Terminal	SERVICE	1 (USB Type A) (for firmware update)
Video Input Signal Format	Digital	480p, 576p, 720p 60/50, 1080i 60/50, 1080p 120/100/60/50/30/25/24, 2048x1080 60/50/30/25/24, 3840x2160 120/100/60/50/30/25/24, 4096x2160 120/100/60/50/30/25/24, 7680x4320 60/50/48/30/25/24			480p, 576p, 720p 60/50, 1080i 60/50, 1080p 120/100/60/50/30/25/24, 2048x1080 60/50/30/25/24, 3840x2160 120/100/60/50/30/25/24, 4096x2160 120/100/60/50/30/25/24
PC Input Signal Format	Digital (HDMI)	VGA/SVGA/XGA/WXGA/WXGA+ SXGA/WSXGA+/UXGA/WUXGA/WQHD(60)/WQHD(120)
3D Format	Frame Packing	720p 60/50, 1080p 24
	Side-by-Side (half)	720p 60/50, 1080p 60/50/24, 1080i 60/50
	Top & Bottom	720p 60/50, 1080p 24
Power Consumption	Projector in use	440 W	440 W	420 W	420 W
	Standby	Eco-mode: 0.3W	Eco-mode: 0.3W	Eco-mode: 0.3W	Eco-mode: 0.3W
	Networked standby	1.5W(LAN)	1.5W(LAN)	1.5W(LAN)	1.5W(LAN)
Fan Noise		24dB (When the Low Mode)	24dB (When the Low Mode)	24dB (When the Low Mode)	24dB (When the Low Mode)
Power Requirement		AC100-240 V, 50/60 Hz
Dimension (W x H x D, including feet)		500 x 234 x 528 mm	500 x 234 x 505 mm		500 x 234 x 495 mm
Dimension (W x H x D, including feet)		19-11/16 x 9-7/32 x 20-13/16 inch	19-11/16 x 9-7/32 x 19-29/32 inch		19-11/16 x 9-7/32 x 19-1/2 inch
Weight (net)		25.3 kg	23.1 kg	22.5 kg	19.6 kg
Weight (net)		55.7 lbs	50.8 lbs	49.5 lbs	43.12 lbs
