KEF Soundlight Series Speakers

Description

The new KEF Soundlight Series Ci100.2QR and Ci100QS speakers deliver KEF's renowned audio quality as unobtrusively as possible. Part of our Soundlight Series of unobtrusive architectural speakers, both meant to match the aesthetics of flush-mounted downlighting.

The new KEF Soundlight Series is yet another major innovation form KEF. When installed, Soundlight speakers are so tiny that they blend in with halogen light fixtures yet will amaze you with their astonishing performance, thanks to KEF's patented Uni-Q's exceptionally wide dispersion

<>KEF's new Ci loudspeaker design makes them so quick and easy to install that once the wire is run and the hole is cut in your wall or ceiling you can be listening to music in less than two minutes.

UTB™ Ultra-Thin Bezel
75mm (3in.) Uni-Q driver
16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
Removable rear can
Magnetic grille
Paintable grille and bezel
Weather Resistant Construction
IP64 certified

Priced Per Pair. Please Contact Us For Odd Number Requirements.

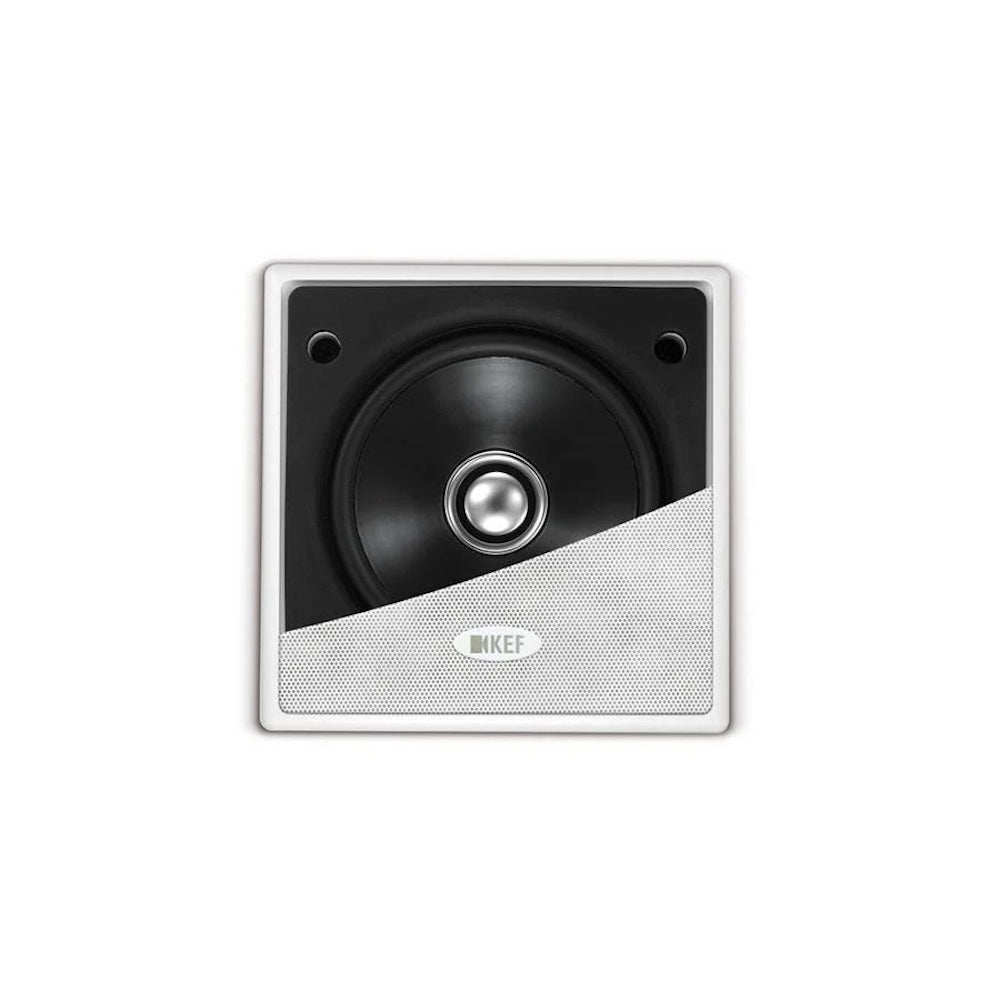

SPECIFICATIONS Ci100QS:

Nominal Impedance

4 Ohms

Sensitivity

88dB (2.83V/ 1m)

Frequency Response

80 - 27kHz (±6dB) 2pi/open-backed

Crossover Frequencies

3kHz

Drive Units

LF: 100mm (4in.)
HF: 19mm (0.75in.)

Recommended Amplifier Power

10 - 50 W

Product External Dimensions

H x W x D : 127 x 127 x 76 mm (5.0 x 5.0 x 2.99 in.)

Cut-out Dimensions

H x W : 112 x 112 mm (4.41 x 4.41 in.)

Mounting Thickness

Ceiling Thickness (Maximum): 24mm (0.95 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)

Optional Rough In Frame

RIF100S

Optional Rear Enclosure

RNC100S

Mounting Depth From Surface

Without back can : 72mm (2.83in.)

Net Weight

0.67kg (1.48lbs.)

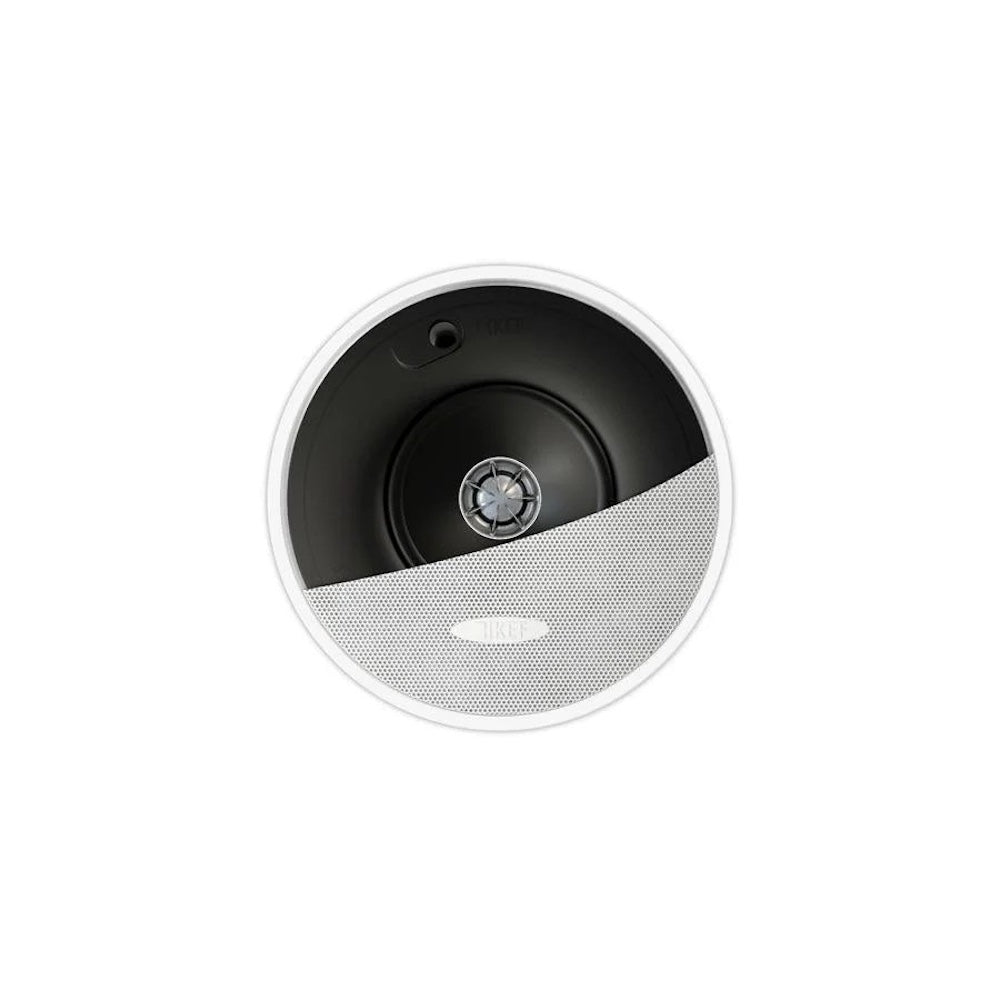

SPECIFICATIONS Ci100QR:

Nominal Impedance

4 Ohms

Sensitivity

83dB (2.83V/lm)

Frequency Response

90Hz-27kHz (+/-6dB)
130Hz-27kHz (+/-6dB) with back can

Crossover Response

3.5kHz

Drive Units

LH: 75mm (3in.) Uni-Q
HF: 16mm (0.6in.)

Recommended Amplifier Power

10 - 50W

Product External Dimensions

Diameter: 136mm (5.4in.)
Depth: 57mm (2.2in.)
Depth: 110mm (4.3in.) with back can

Cut-Out Dimensions

Diameter: 118mm (4.6in.)

Mounting Thickness

Ceiling Thickness (Maximum): 22mm (0.87 in.)
Ceiling Thickness (Minimum): 6mm (0.24 in.)

Mounting Depth From Surface

52mm (2in.)
103mm (4.1in.) with back can

Net Weight

0.50kg (1.10lbs)
0.65kg (1.44lbs) with back can
