Luxman

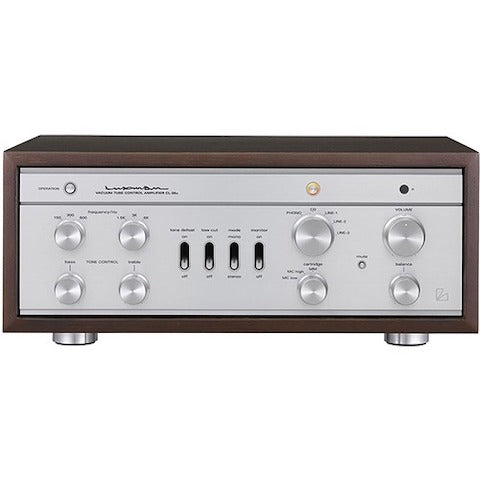

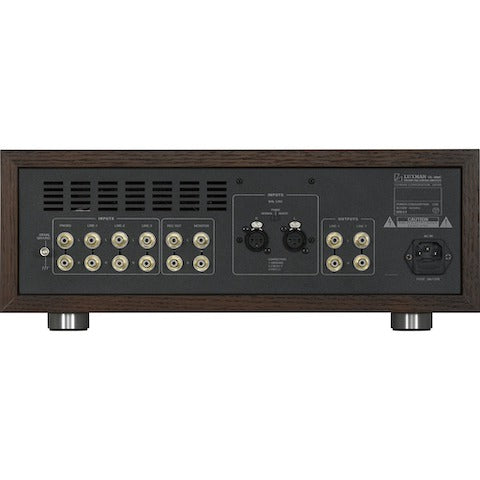

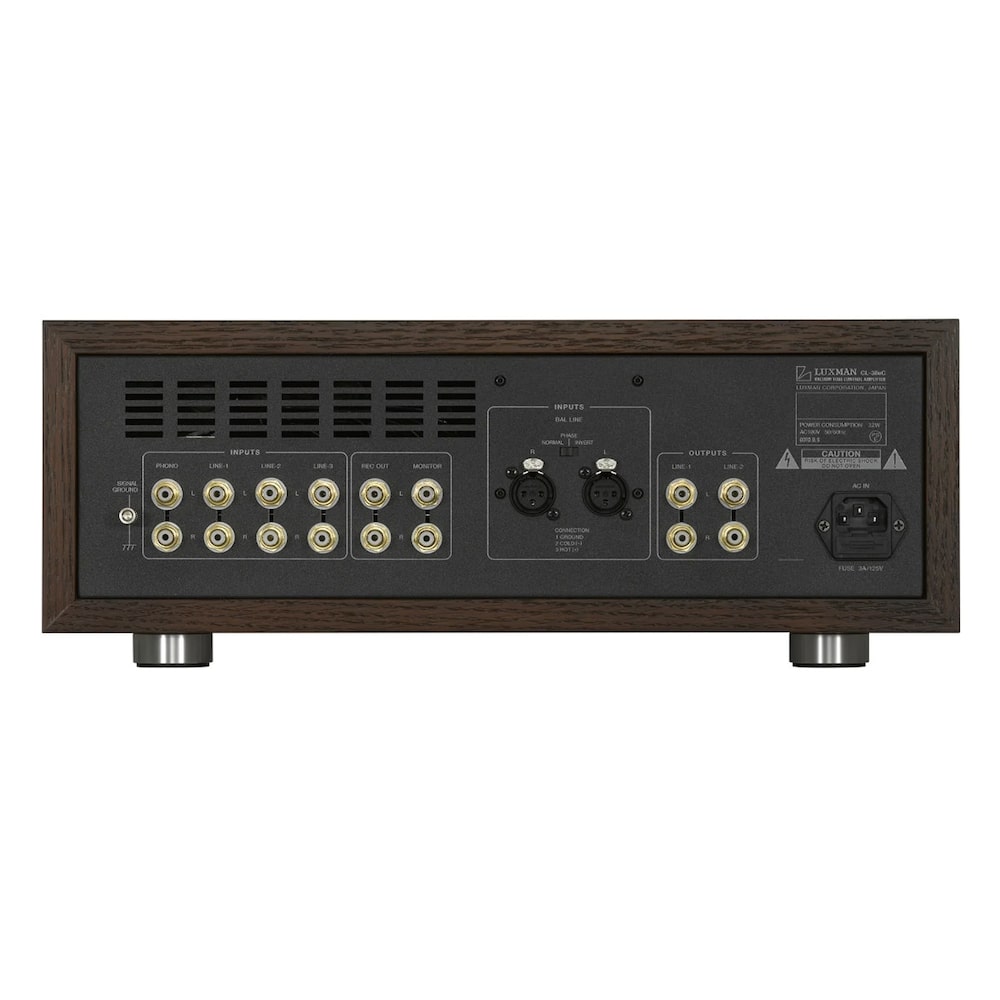

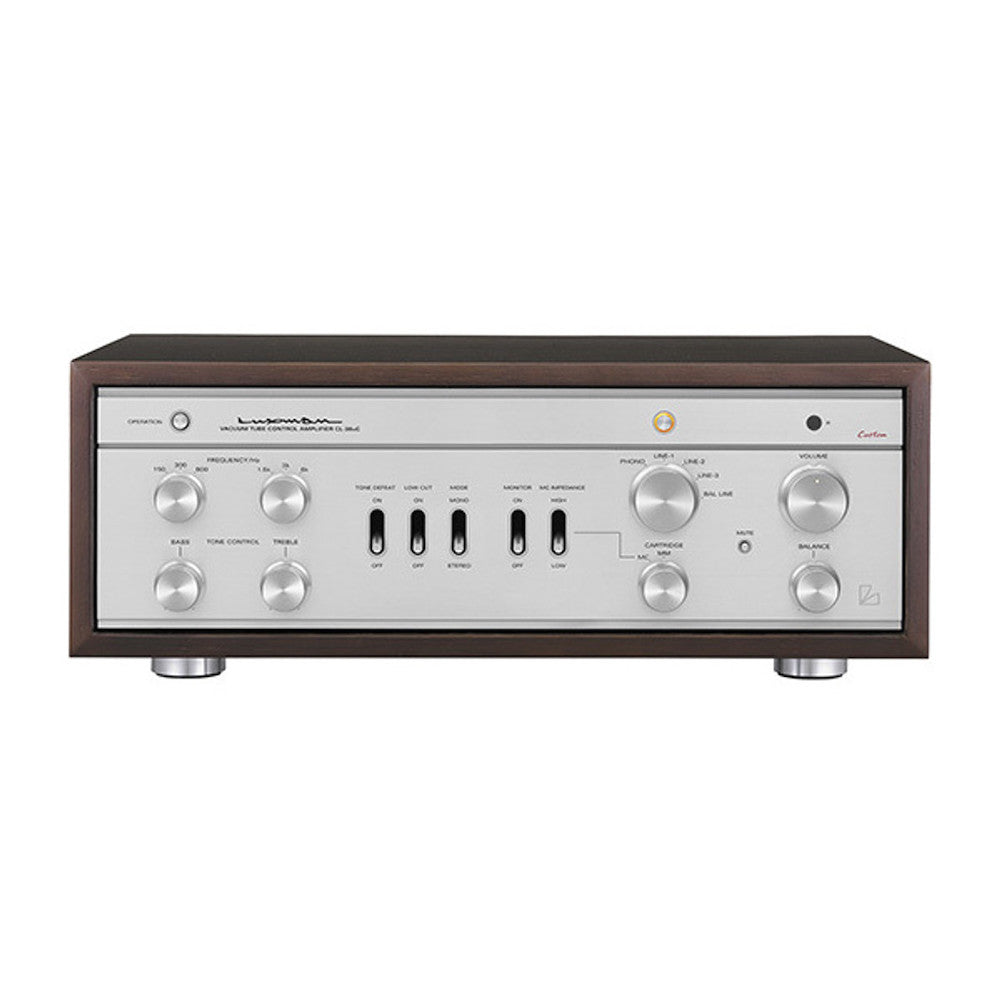

Luxman CL-38uC Tube Preamplifier

Luxman CL-38uC Tube Preamplifier

Regular price $9,000.00
Regular price Sale price $9,000.00
Sale Featured Sold out
Free Express Shipping In Canada

Free Express Shipping In Canada

Canadian Warranty

Professional Customer Experience

View full details

Description





Usually ships within 2-3 days.





The CL-38u uses SRPP (Shunt Regulated Push Pull) circuitry for all stages to achieve the highest sound quality possible. A genuine phono equalizer is included, the MC-low and MC-high impedance (gain) inputs each have independent MC transformers and are selectable using the MC impedance lever switch. Tone controls enable the listener to fine tune the sound quality.

The CL-38uC’s balanced input terminals have dedicated transformers, improving integration with other high-end equipment. The built-in phono equalizer circuit is compatible with MM and MC cartridges and is equipped with step-up transformers for MC cartridges an independent left & right two step gain selector. The three-position switchable crossover frequencies for bass and treble tone controls enable the listener to fine tune the signal to the desired tonal character.



Specifications:
Input sensitivity/
input impedance
PHONO (MM): 2.0mV/47kΩ
PHONO (MC high): 0.3mV/100Ω
PHONO (MC low): 0.08mV/30Ω
LINE: 190mV/50kΩ
BAL.LINE: 190mV/20kΩ *2
Output/output impedance Rated 1V/300Ω
Frequency response PHONO: 20Hz to 20kHz (±0.5dB)
LINE/BAL.LINE: 10Hz to 70kHz (within -3.0dB)
Total harmonic distortion 0.006% or less (1kHz)
0.06% or less (20Hz to 20kHz)
S/N ratio (IHF-A) PHONO (MM): 68dB or more
PHONO (MC high): 63dB or more
PHONO (MC low): 60dB or more
LINE/BAL.LINE: 100dB or more
Tone control ±8dB, selectable frequency range
BASS: 150/300/600Hz,
TREBLE: 1.5k/3k/6kHz
Low cut 30Hz(-6dB/oct.)
Circuit SRPP
Vacuum tubes ECC83S×3, ECC82×5
Power supply 230V~(50Hz)/115V~(60Hz)
Power consumption 35W
External dimensions 440(W) x 169(H) x 307(D) mm
19mm front panel knob of and 12mm rear panel
terminals are included in the depth measurement
Net weight 13.3kg (main unit)
Accessories Remote control (RA-19), Power cable
