NAD C 3050 Integrated Amplifier
NAD C 3050 Integrated Amplifier
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description
The new NAD C 3050 Integrated Amplifier combines the design of the brand's 1970s 3030 with the latest audio technologies. Designed on NAD’s latest Modular Design Construction platform, MDC2, the C 3050 is easily customizable and ready for feature and technology upgrades.

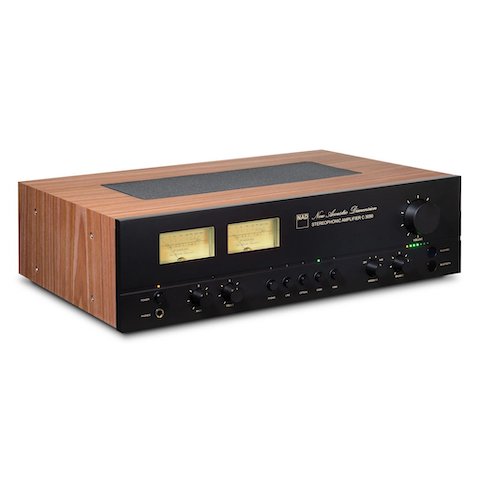

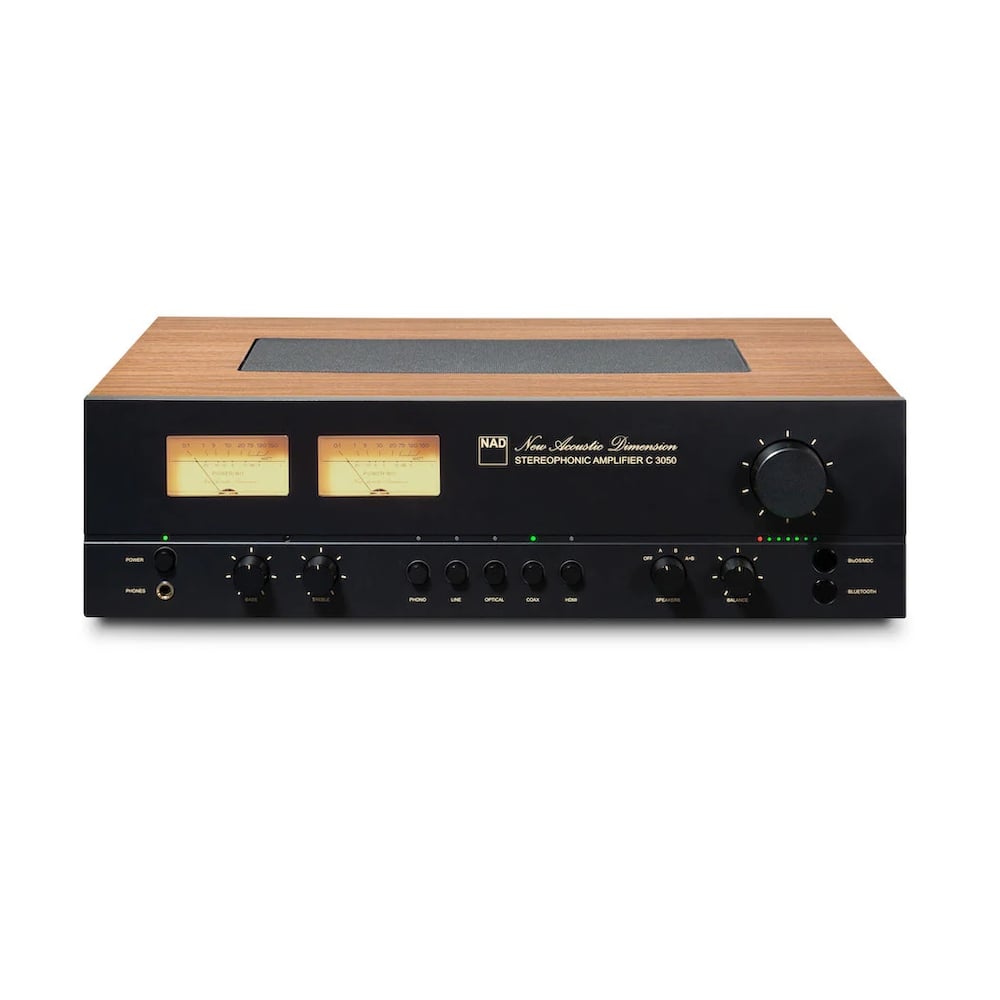

In addition to the C 3050's dark grey finish, its retro appeal extends to its dual VU meters, a walnut-finished vinyl-clad metal case, and the physical buttons for input controls.
NAD’s proven HybridDigital UcD amplifier design delivers 100 watts per channel. The digital section is built around a Texas Instruments PCM5242 high-resolution differential DAC, known for its excellent dynamic performance and immunity to clock jitter. This high-performance DAC enables the C 3050 to reproduce all your digital sources with amazing musicality, stunning clarity, and precise soundstaging.

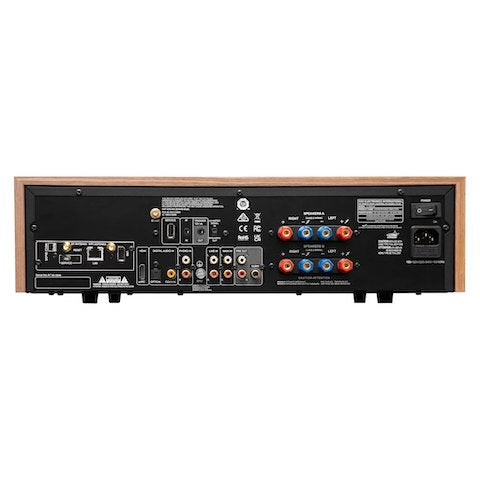

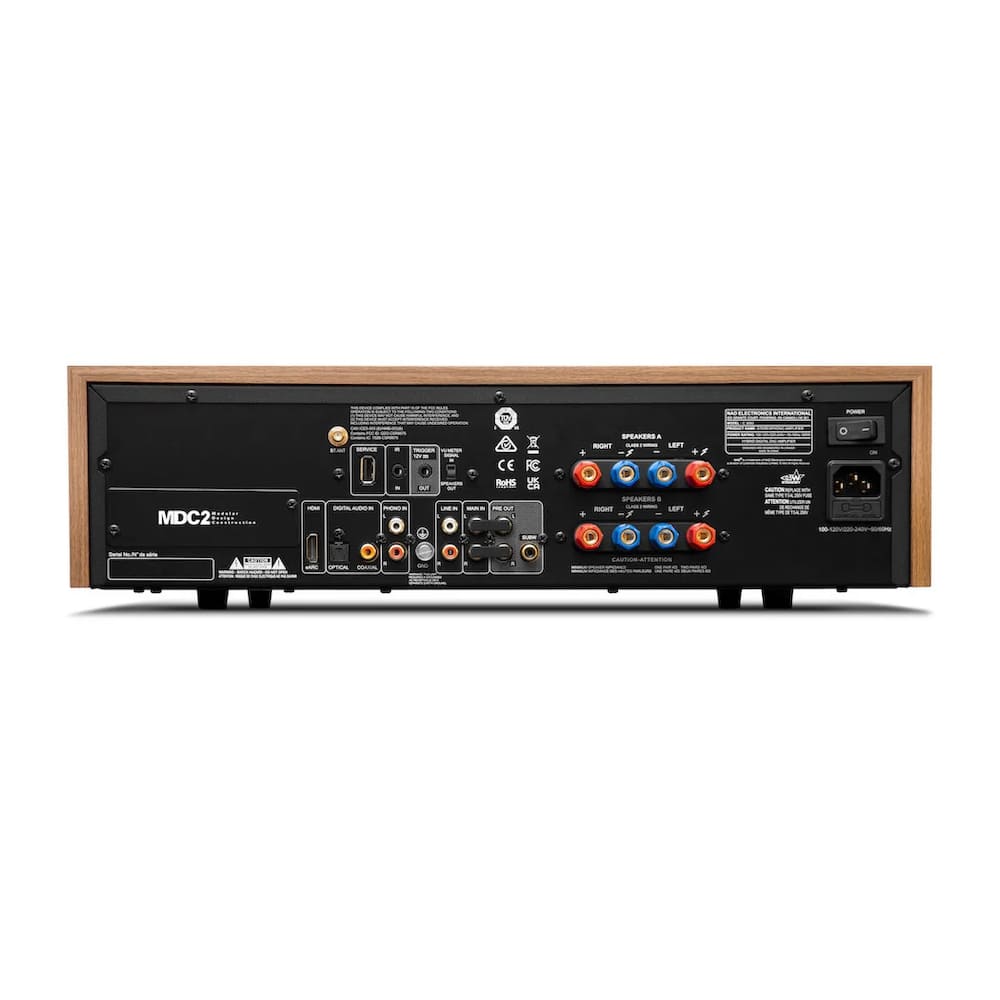

The full suite of digital and analog inputs includes an ultra-low-noise phonostage, dedicated headphone amp, and HDMI eARC interface. Connections include optical and coax digital inputs, line input, subwoofer output, 12V trigger, IR input, and a pre-out/main-in connection enabling you to use the C 3050 as a standalone preamp, or to add more power.
The C 3050 includes an MDC2 expansion slot that can be used for optional upgrades like adding BluOS hi-res multi-room streaming, Dirac Live room correction, two-way Bluetooth support for aptX HD and AAC, AirPlay 2, Spotify Connect, Tidal Connect, or future technologies. In addition, adding the optional MDC2 BluOS-D module enables the C 3050 to be part of a whole-home music system with as many as 63 other zones. You can have different music playing in different zones, or group zones to play the same music simultaneously.
Features:
- Retro design elements including VU meters and push-button input controls
- HybridDigital UcD Amplifier
- AptX HD Bluetooth (receive only)
- Ultra-low-noise MM phono stage with infrasonic filtering circuitry
- Dedicated headphone amplifier
- MDC2 port for expanded functionality including BluOS high-resolution multi-room music streaming, Dirac Live room correction, Apple AirPlay 2, Spotify Connect, Tidal Connect, and two-way Bluetooth support for aptX-HD and AAC
Specifications:
- THD (20 Hz – 20 kHz)
- <0.005 % at 2V out
- Signal-to-Noise Ratio
- >95 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
- Channel separation
- >100 dB (1 kHz)
- >90 dB (10 kHz)
- Input impedance (R and C)
- 28 kohms + 360 pF
- Maximum input signal
- >4.5 Vrms (ref. 0.1 % THD)
- Output impedance
- 440 ohms
- Input sensitivity
- 270 mV (ref. 500 mV out, Volume maximum)
- Frequency response
- ±0.3 dB (20 Hz – 20 kHz)
- Maximum voltage output -IHF load
- >2 V (ref. 0.1 % THD)
PHONO INPUT and PRE-OUT:
- THD (20 Hz – 20 kHz)
- <0.03% at 2 V out
- Signal-to-Noise Ratio
- >79 dB (200 ohms source; A-weighted, ref. 500 mV out)
- Input Impedance (R and C)
- 46 kohms/100 pF
- Input sensitivity
- 5.5 mV (ref. 500 mV out, Volume maximum)
- Frequency response
- ±0.3 dB (20 Hz – 20 kHz)
- Maximum input signal at 1kHz
- >80 mVrms (ref. 0.1 % THD)
LINE INPUT, HEADPHONE OUT:
- THD (20 Hz – 20 kHz)
- <0.005% at 1V out
- Signal-to-Noise Ratio
- >96 dB (32 ohms loads; A-WTD, ref. 2 V out, unity gain
- Frequency response
- ±0.3 dB (20 Hz – 20 kHz)
- Channel separation
- >60 dB at 1kHz
- Output impedance
- Output impedance
BluOS AUDIO:
- Supported audio file format
- MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
- Supported high- resolution audio file format
- FLAC, MQA, WAV, AIFF
- Sampling rate
- up to 192 kHz
- Bit depths
- 16 – 24
- Control4, Crestron, ELAN, Lutron, Push, Roon, RTI, URC
- Skills and support for Amazon Alexa, Google Assistant and Apple’s Siri with corresponding enabled devices and App
