Description
The new Cayin iDAC-6 MKII Tube Dac delivers a natural, slightly weighted, and immensely enjoyable sound that sets it apart from the rest. Whether you're an audiophile or a music enthusiast, this DAC will immerse you in a world of captivating audio.
The iDAC-6 MKII features the latest ES9028PRO DAC chipset and a triple Femtosecond Crystal Oscillator design, the iDAC-6 MK2 is a powerhouse for decoding. It can handle DSD512 and PCM 768kHz via USB, coaxial, and optical inputs, pushing the boundaries of audio quality.
With the new iDAC-6 MKII you can fine tune your audio with ease using the dual timbre mode (tube or solid state), source inputs, PCM and DSD filters, and volume control. The independent circuit design ensures top-notch performance, and you can switch timbre on both the single-ended and balanced outputs.
The iDAC-6 MKII is crafted from solid aluminum alloy with a sandblasted finish, that is both visually appealing and sturdy. Its redesigned LCD screen and user-friendly interface provide a seamless experience.

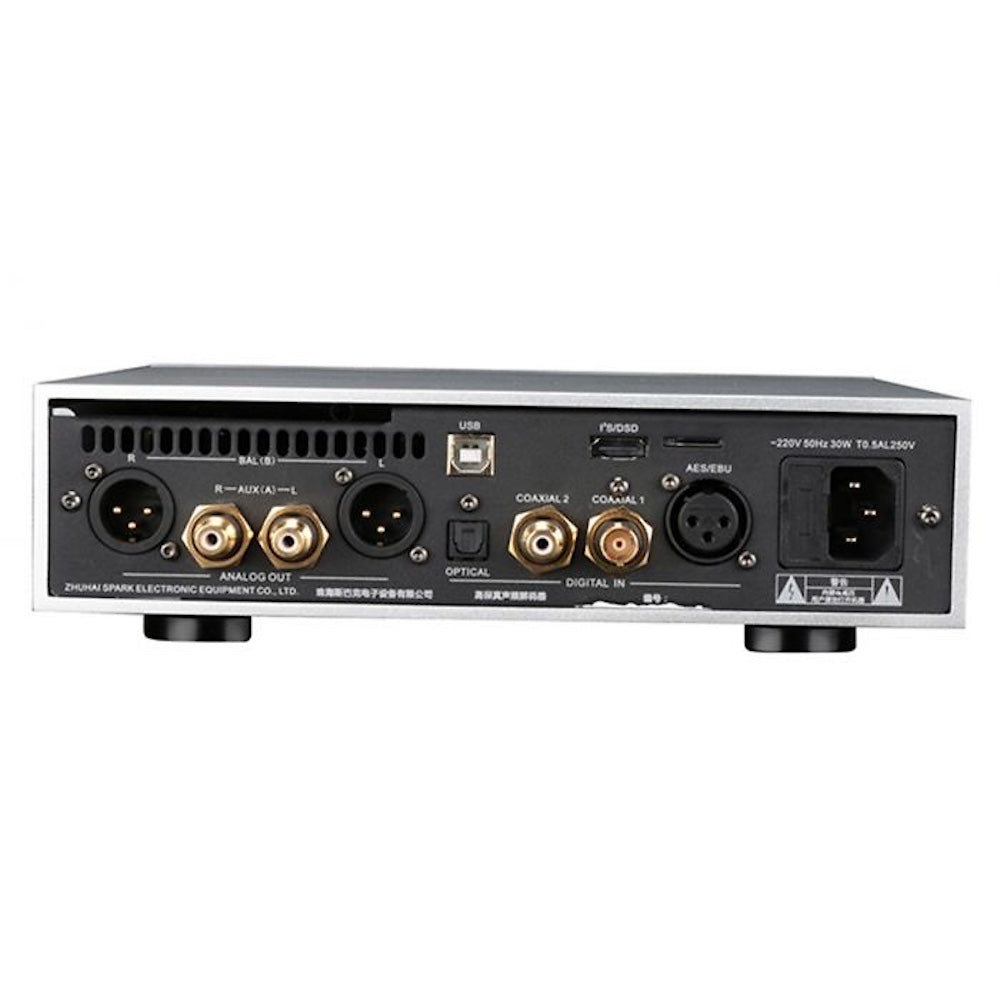

The iDAC-6 MKII also features BNC and I²S inputs, this DAC offers more flexibility than ever before. The packaging is compact and environmentally friendly, ensuring your investment arrives in pristine condition.
Specifications:
| DAC chipset | ES9028Pro |
| Dimensions (W x D x H) | 240mm x 252mm 69mm |
| Output voltage | Line: 2.2V + 2.2V RCA, 4.4V + 4.4V XLR transistor and tube |
| Outputs line and preamp | XLR (balanced), RCA (unbalanced, switchable tube / transistor) |
| Weight | 3.8 kg |
| Inputs |
USB supports DSD64-DSD512 native I2s - to DSD512 Toslink x 1 75 Ohm Coax x 2 110 Ohm AES/EBU x 1 |
| Output Voltage | RCA: 2.2V RMS |
| Tubes | 4 x 6H16B |
| BAL: 4.4V RMS AES / EBU, Optical, Coax: up to 24Bit / 192kHz, DSD64 (DoP) Preamp: 7V + 7V RCA transistor, 6V + 6V RCA tube 13V + 13V XLR transistor, 10V + 10V XLR tube |
