Shanling

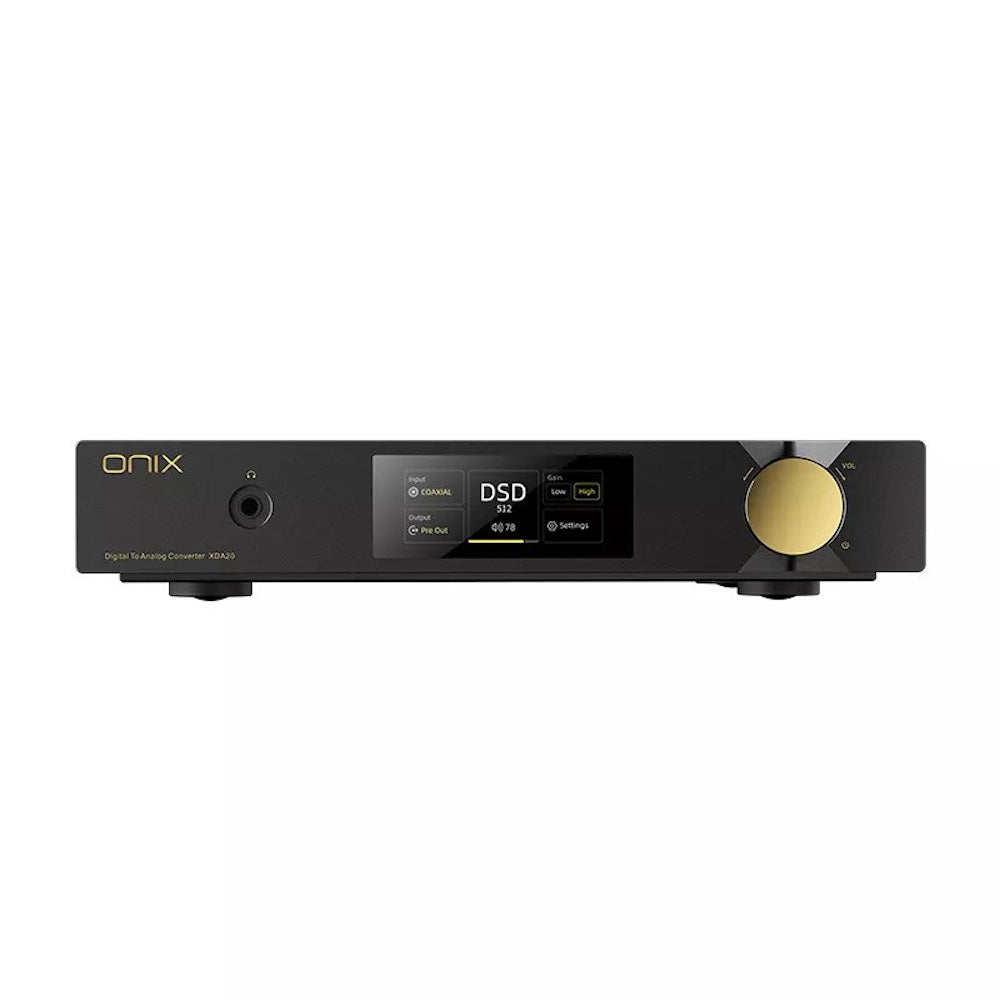

Onix Zenith XDA20 Dac Headphone Amplifier
Onix Zenith XDA20 Dac Headphone Amplifier
Usually Ships Within 2 Days.
Regular price
$3,299.00
Regular price
Sale price
$3,299.00
Unit price
per
Sale
Featured
Sold out
Free Express Shipping In Canada
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description
The new Onix Zenith XDA20 DAC Headphone Amplifier from Shanling features the ESS Technology ES9039Pro chips. With two converters installed. Together with eight operational amplifiers TI OPA1611 from Texas Instruments in its own I/V circuit, this solution offers exceptional accuracy and decoding of signals up to PCM with parameters up to 32/768 and DSD up to DSD512.
The XDA20 features audiophile components. The power supply is based on Talema transformers for 15 W and 25 W, and the filter uses Vishay capacitors. The built-in headphone amplifier based on the TPA6120 assembly from Texas Instruments guarantees power up to 1.6 W when working on headphones with a nominal resistance of 32 Ohms, which allows you to work even with a complex load. The XMOS XU316 chip is responsible for outputting the signal via I2S (HDMI) and USB-B interfaces.
Specifications:
- Weight: approximately 5.7kg
- Size (including base): 320 x 240 x 62mm
- Gain compensation: high, low
- D/A conversion chip: 2xES9039PRO chips
- USB DAC receiver chip: for XMOS XU316
- Control mode: touch screen/remote control/knob
Supported Specifications:
- SPDIF input: PCM: 192kHz/24bit, DSD: DOP64
- I²s input: PCM: 768kHz/32bit, DSD: DSD512
- USB DAC input: PCM: 768kHz/32bit, DSD: DSD512
RCA Output:
- Output level: 2.1V
- Frequency response: 20Hz-40kHz (-0.5dB)
- THD+N: 0.0003% ( A-Weight at 2.1Vrms )
- Dynamic range: 123dB
- Channel separation: 122dB
- Signal to noise ratio: 123dB (A-Weight)
- Noise: 117dB
XLR Output:
- Output level: 4.2V
- Frequency response: 20Hz-40kHz (-0.5dB)
- THD+N: 0.0003% ( A-Weight at 4.2Vrms )
- Dynamic range: 127dB
- Channel separation: 126dB
- Signal to noise ratio: 127dB (A-Weight)
- Noise: 114dB
6.35mm Headphone Output:
- Output power:
Low gain: 101mW at 32Ω (1.8Vrms at 32Ω)
High gain: 1620mW at 32Ω (7.2Vrms at 32Ω)
High gain: 252mW at 300Ω (8.7Vrms at 300Ω)
- Frequency response: 20Hz - 40kHz (-0.5dB)
- THD+N: 0.003% (A-Weight at 1Vrms)
- Dynamic range: 121dB
- Channel separation: 69dB
- Signal to noise ratio: 120dB (A-Weight high gain); 117dB (A-Weight low gain)
- Noise: 112dB (low gain)
- Output impedance: 3.3Ω
Package Included:
- 1 x XDA20
- 1 x Power Cable
- 1 x Remote Control
- 1 x User Manual
