Description

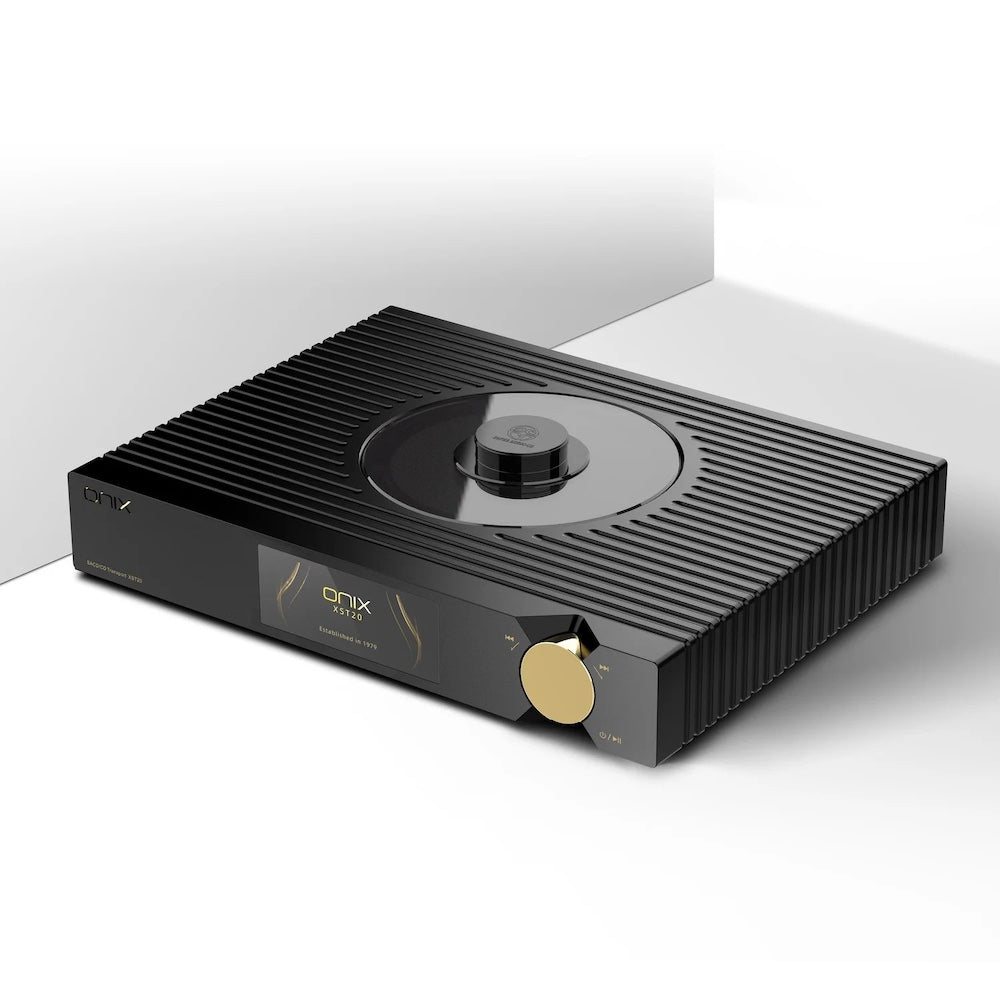

The new Onix Zenith XST20 Transport from Shanling features a robust CNC unibody aluminum alloy chassis and featuring an elegant top-loading design with a reliable SANYO HD870 mechanism, the XST20 is engineered for pure signal extraction. It supports a wide range of discs including SACD (single and multi-layer), CD, and MQA-CD. Offering versatile digital outputs like I2S for Native DSD64 output from SACDs, along with Optical, Coaxial, BNC, AES/EBU, and USB, it seamlessly integrates into high-end audio systems. Premium components like a 25VA Talema transformer and a high-precision 45.1584MHz clock ensure stable power and accurate timing, delivering an authentic and captivating listening experience.
Specifications:
Dimensions (incl. base): 320mm (W) × 240mm (D) × 71.5mm (H)
Weight: 5.2kg
Screen: 3.4-inch High-Definition Color Touchscreen Display
Mechanism: SANYO HD870
Power Supply: 110V/220V AC Input
Disc Specifications:
Supported Formats: CD, Multi-layer SACD, Single-layer SACD, MQA-CD
MQA-CD Expansion: MQA Full Decoder, MQA Core, MQA Source
Output Specifications:

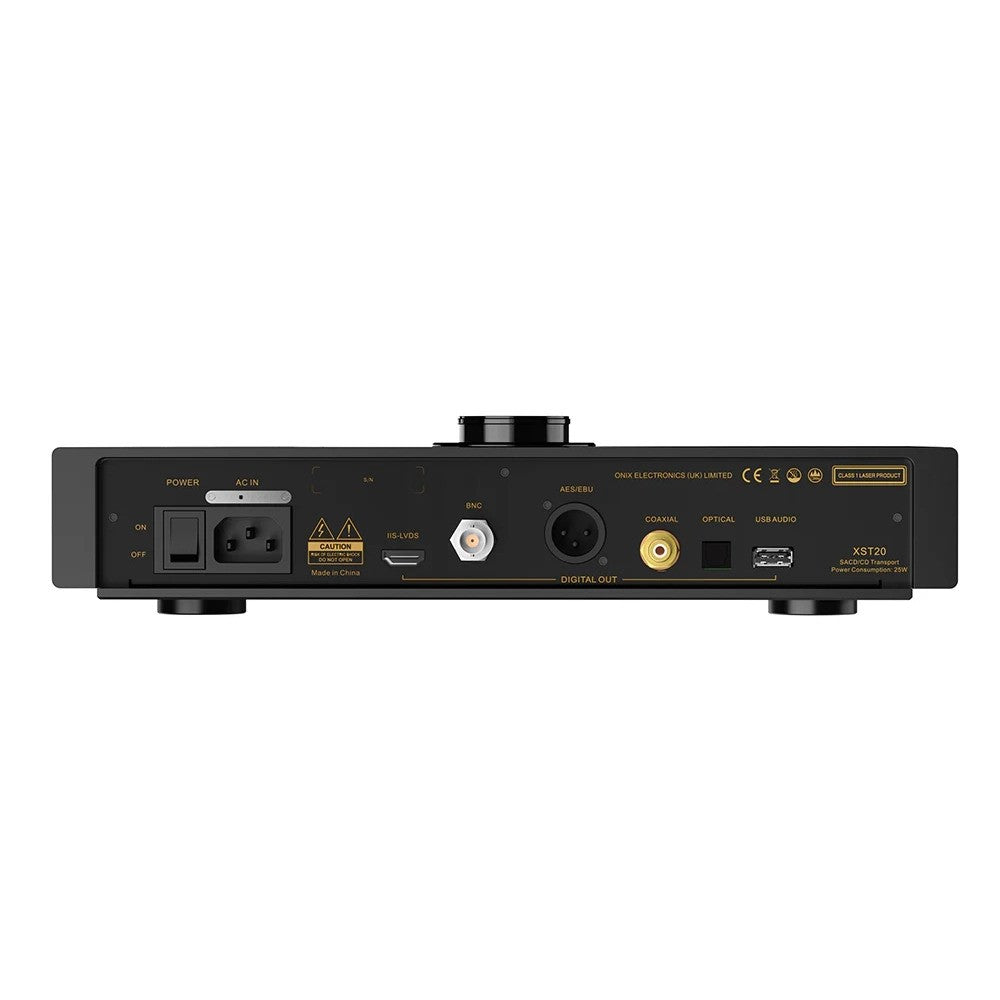

Optical, Coaxial, BNC, AES/EBU:
CD Output: PCM 44.1kHz
SACD Output: DoP64 / D2P (DSD over PCM)
I2S (HDMI Interface):
CD Output: PCM 44.1kHz
SACD Output: DSD64 (True Native)
USB Type B
CD Output: PCM 44.1kHz
SACD Output: Not Supported via USB
In the Box:
ONIX XST20 SACD/CD Transport
XRC-3C Remote Control
Power Cord (3-pin IEC)
Quick Start Guide
Warranty Card
