The Pathos Classic Remix Integrated Amplifier's mission is to meet the demanding expectations of the public audiophile while at the same time meet the attention of young people and those who are “just” in love with the Music. To successfully achieve this, Pathos has used all their years of experience in hybrid amplifications, to refine every aspect of the circuitry and carefully select components to meet the highest quality and musicality.
The result is then a hybrid device, Class A / B, with a fully balanced circuit and capable of providing a power of 70 + 70W (prudential). The Classic Remix contains an oversized laminated transformer from 240VA developed in partnership with a major supplier and deputy to fuel the final section through stabilization, bridge rectifier and capacitors with filtering of more than 45k-uF, input selectors to switching of mechanical relays watertight specially designed for field audio with internal contact and sealed under vacuum to prevent oxidation and finally the ability to adjust and store the listening volume of each entrance.
Additionally, there is an optional HiDac Mk2 board, that will allow the Classic Remix to receive music from your PC by USB or from a digital source by S/PDIF. The company is proud of not having left nothing to chance and safe in doing so to satisfy the most demanding audiophiles.
Specifications:
Type: Integrated stereo amplifier, fully balanced, hybrid technology
Preamplifier stage: Tube (2 x 6922 ECC88)
Final stage: Solid-state, bridge mode, class AB
Output power: 2 x 70 W RMS @ 8 Ω (Both channel driven)
Frequency response: 1.5 Hz - 200 KHz ± 0.5 dB
Max input voltage: 4.25 V RMS
Input sensitivity: 500 mV RMS
Input impedance: 47K Ω
Output polarity: Non-inverting, balanced pin 2 +
Volume regulator: 2 x Burr Brown PGA2310 (180 steps 0.5 dB)
THD: 0.025% @ 70 W
S/N Ratio: > 100 dB
Power requirements: 250 W @ 70 W PC / 100 W @ zero volume / < 0.5 W @ standby

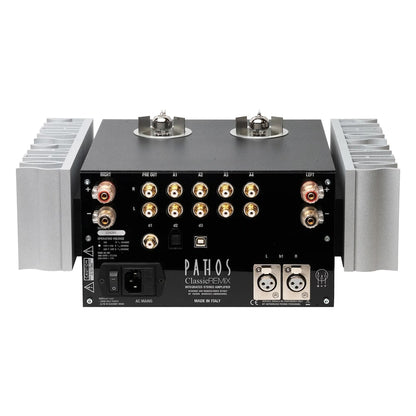

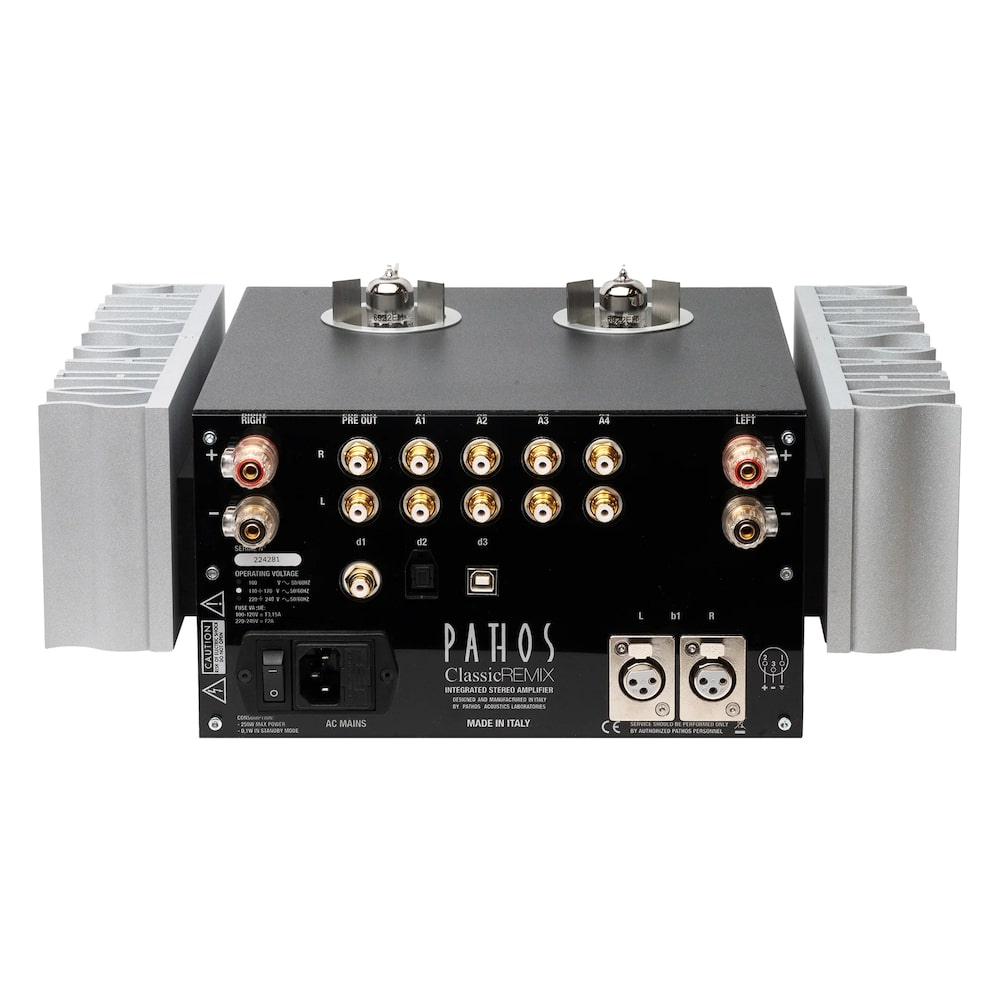

Connections
Analog inputs: 1 x balanced XLR, 4 x RCA
Digital inputs (optional HiDac Mk2 board required): 1 x USB B, 1 x S/PDIF coaxial, 1 x S/PDIF optical
Outputs: 1 x pre out stereo, 1 x headphone 6.3 mm
Headpone Specifications
Output power: 1.6 W @ 32 Ω
Output impedance: 10 Ω
Max output level: 10 V RMS
Frequency response: 1.5 Hz - 200 KHz ± 0.5 dB
THD: 0.025%
Dimensions
Amplifier: 14.5" (D) x 11" (W) x 6.7" (H)
Packed: 19.2" (D) x 17" (W) x 11.8" (H)
Weight (net / packed): 30.8 lb (14 kg) / 38.5 lb (17.5 kg)
