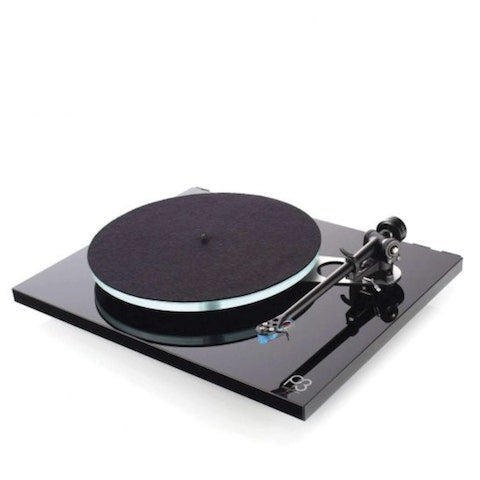

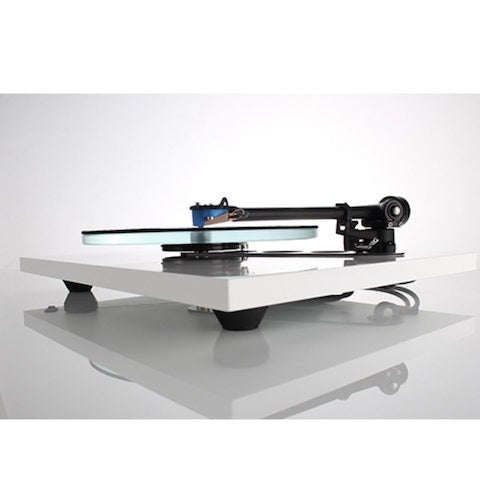

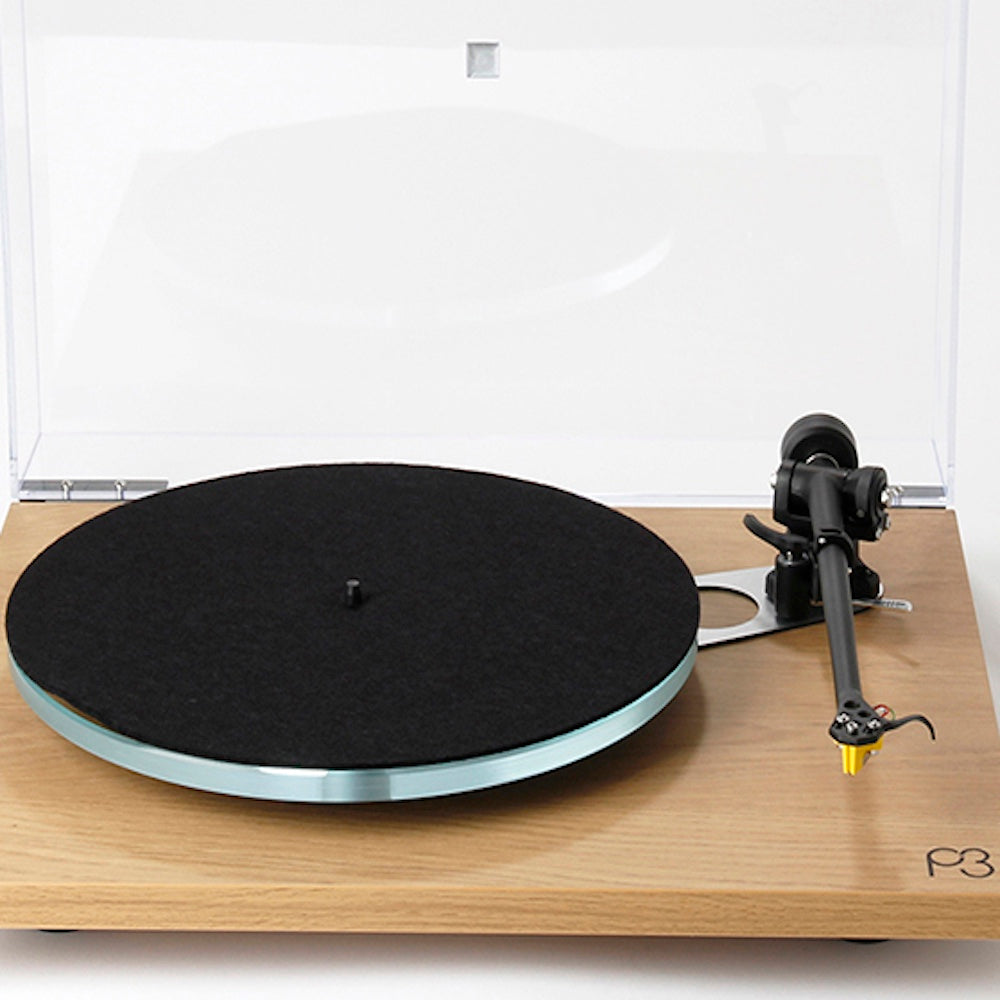

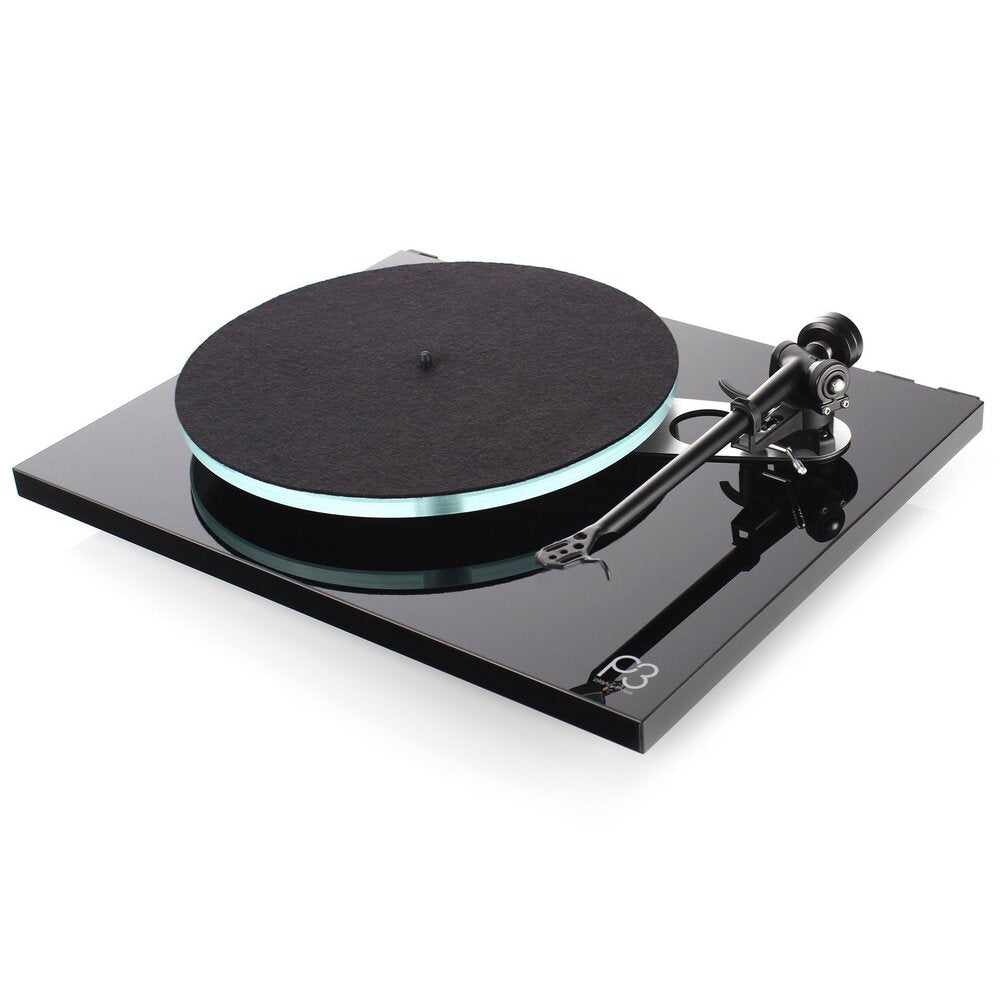

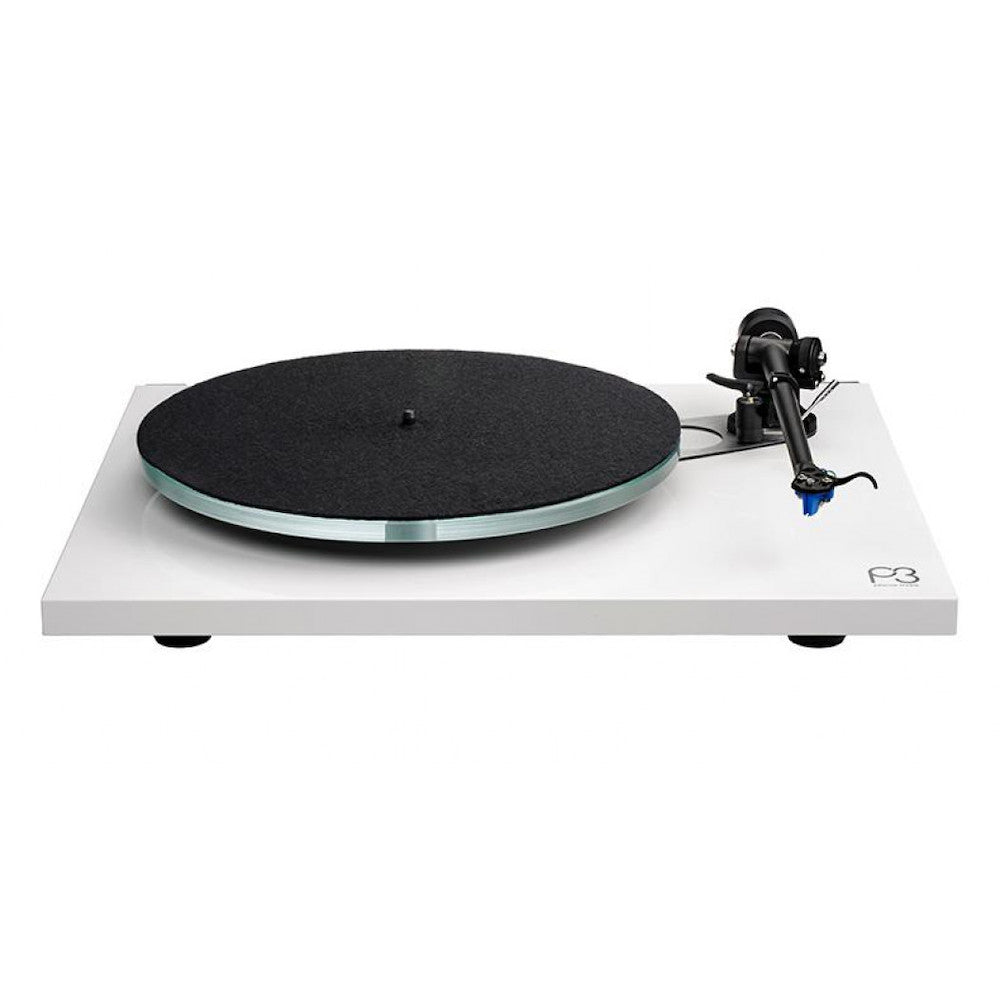

The new Planar 3 features clever use of lightweight particulate core and a highly rigid phenolic resin skin that became the foundations of the high level of performance achieved by the now iconic original Planar range.
A lightweight acrylic laminated plinth strengthened using a new improved double brace system mounted specifically where the increased rigidity is required (between the tonearm mounting and the main hub bearing) which forms a structurally sound “stressed beam” assembly. This rigid plinth design prevents energy absorption and unwanted resonance, which will add unnatural distortions to the music. Equally, heavier mass can transfer more unwanted energy, such as motor or bearing noise directly into the rotating record. The use of braces instead of the complete skin allows double thickness phenolic resin in these key areas while providing further weight reduction to the plinth which directly addresses the issue of mass absorption and unwanted energy transmission.
The LIMITED EDITION 50th Anniversary features below. Please contact to bundle with an upgraded cartridge.
- Walnut Effect plinth with custom aluminium badge
- RB330 Precision tonearm

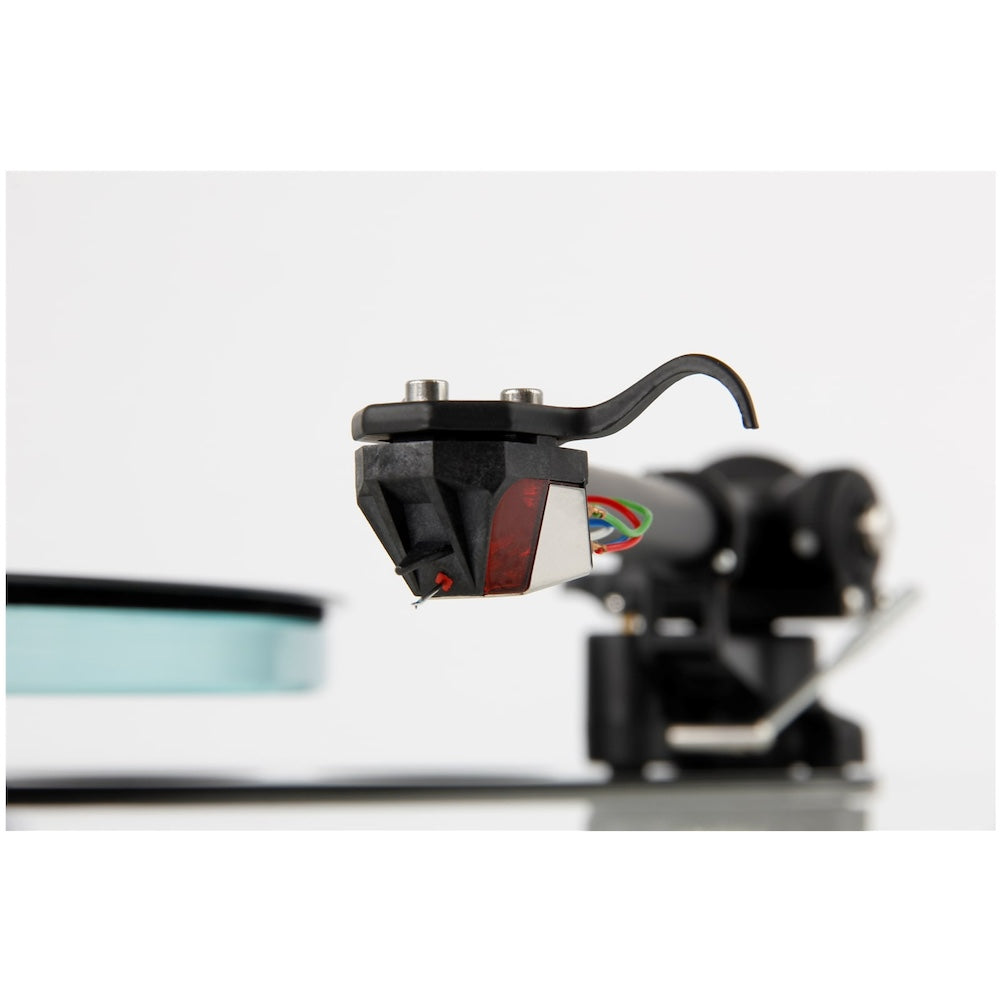

- Exact MM cartridge factory fitted

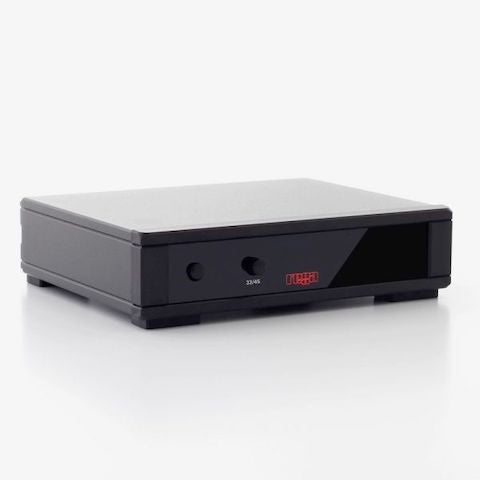

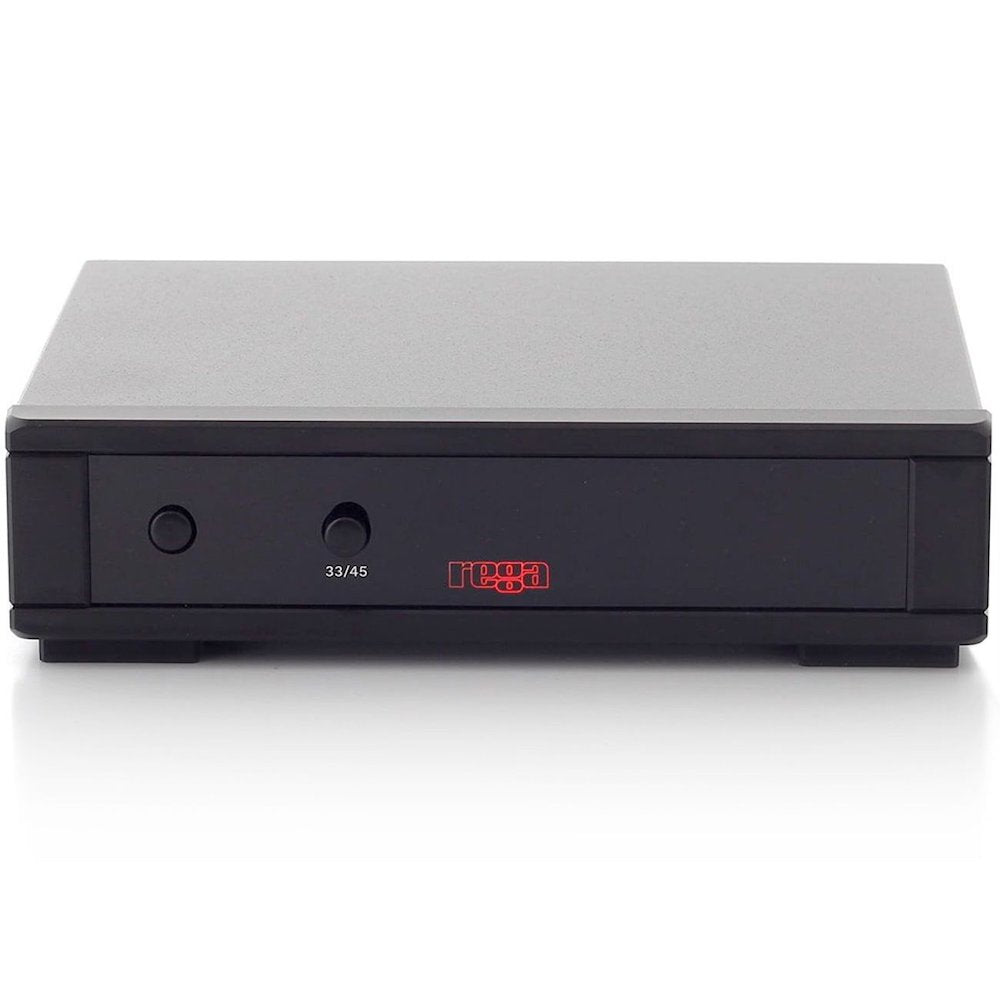

- Neo turntable PSU MK2 included
- 24 V low noise, low vibration motor, hand tuned to the custom Neo PSU Mk2.
- Double brace technology
- 12 mm float glass opti-white polished platter
- CNC machined Planar 6 drive pulley for use with the Neo PSU.
- Supplied with a smoked dust cover as standard.
- Reference EBLT drive belt fitted as standard
- Anniversary Special Edition only available to buy during 2023
-
Lifetime warranty against manufacture defects
Available in Gloss Black, White or Red. Please indicate preference in the check out notes.

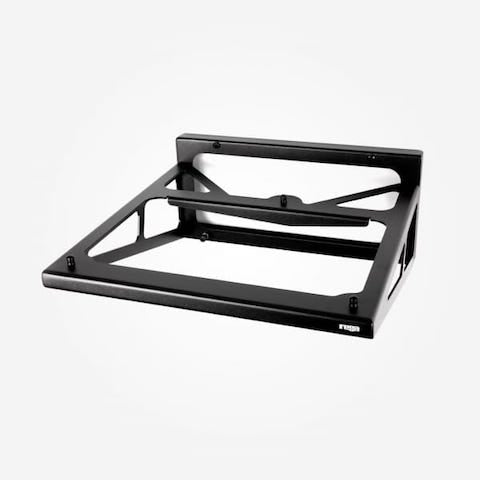

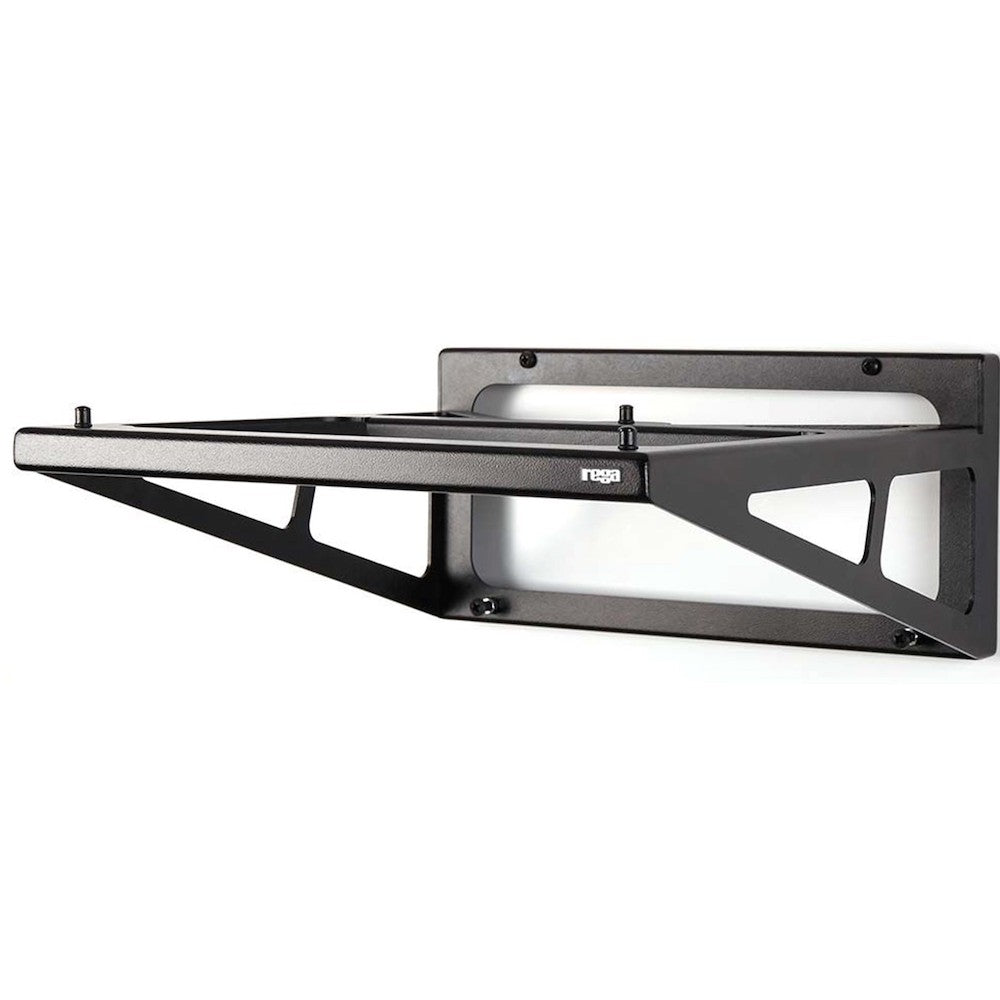

Wall Bracket Available For $325. Please contact us. Thank you.
KEY FEATURES
- What Hi-Fi? Product of the year 2016, 2017, 2018, 2019, 2020
- RB330 precision tonearm
- Rega Elys 2 cartridge factory fitted (optional)
- Double brace technology
- 24 V low noise, low vibration motor
- 12 mm float glass opti-white polished platter
- Supplied with clear dust cover as standard.
- Compatible with Rega Neo turntable power supply (sold separately)
- High gloss plinth with three colour options
- Advanced EBLT drive belt fitted as standard from March 2021
-
Lifetime warranty against manufacture defects
Specifications:
Tonearm: Hand assembled precision RB330 tonearm
Motor
24 V low noise motor
Platter
12 mm glass polished edge
Connectivity
RCA / Phono
Power (additional)
Mini DIN for connection to Neo PSU (optional upgrade)
Dimensions (lid closed) (W x H x D)
447 x 117 x 360 mm
Weight
6.0 kg
SPECIFICATIONS:
- Weight
- 1.0Kg
- Dimensions
- W 375mm × H 175mm × D 400mm
