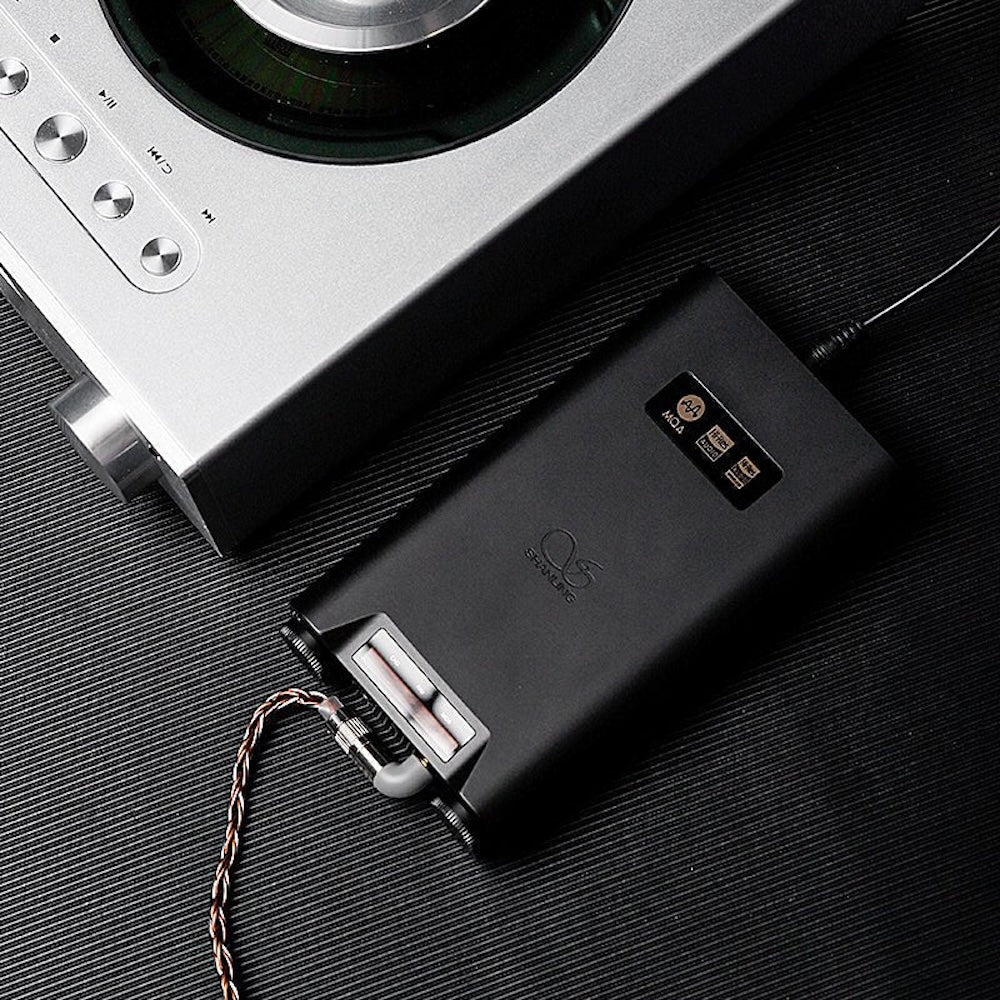

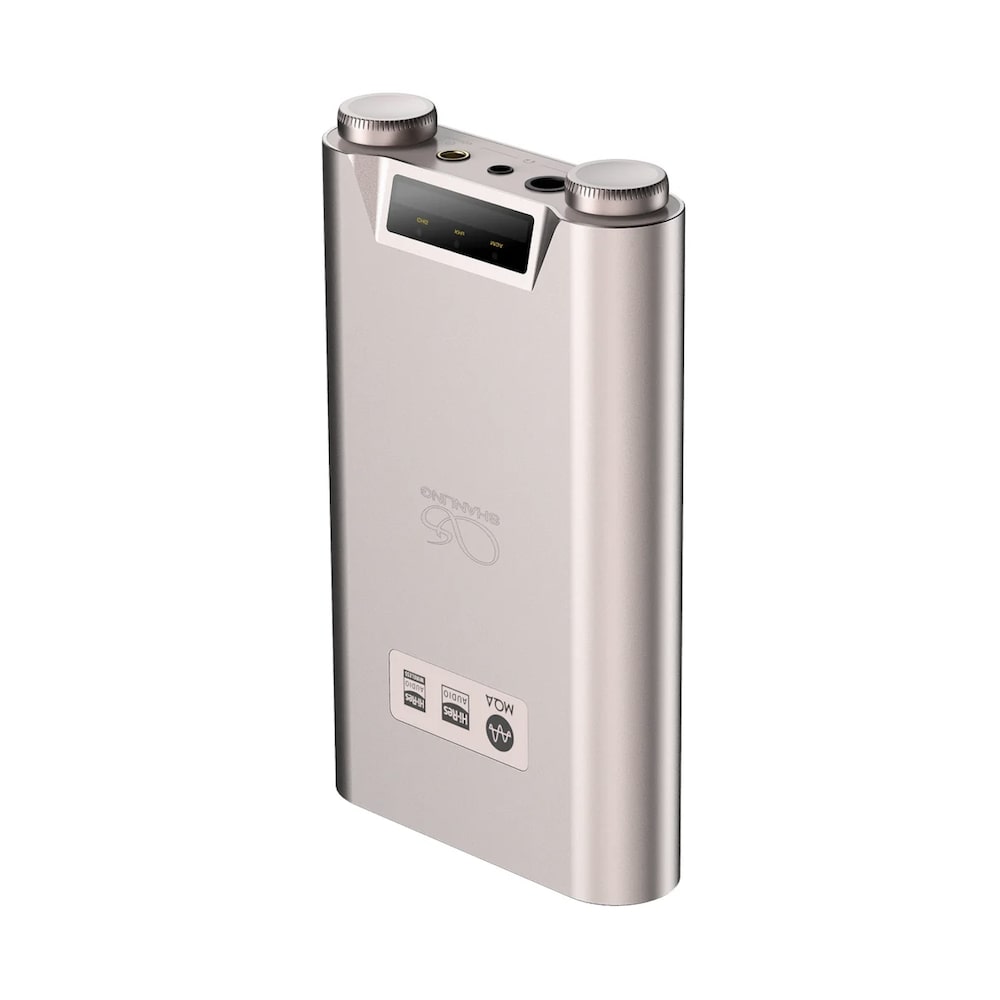

Shanling's H7 portable DAC/Amp showcases a range of essential features to enhance your audio experience. With its versatile connectivity options, the H7 offers 3.5mm, 4.4mm, and 6.35mm headphone outputs, as well as rear RCA connections, allowing you to connect various headphones and audio devices effortlessly. The Xmos USB input supports Hi-Res playback, including MQA, ensuring you can enjoy high-quality audio from your digital sources. Additionally, the combined input for Coaxial and Optical SPDIF further expands your connectivity options.
At the heart of the H7 lies the flagship AK4499EX DAC chip from AKM, paired with the matching AK4191 Modulator, delivering unrivaled audio performance. The H7 also boasts an exceptionally powerful amplifier, capable of providing up to 1.2W @ 32 Ohm, ensuring rich and dynamic sound reproduction. The H7 goes beyond traditional portable audio devices by incorporating a Bluetooth receiver module with LDAC support, enabling wireless audio streaming with superior quality.
One of the standout features of the H7 is its MicroSD card slot, enabling direct local playback. Load your MicroSD card with your favorite music files and effortlessly control playback through the Eddict Player app on your Android or iOS phone. Enjoy the freedom to use the H7 as a standalone player with limited control, providing a truly independent and immersive music experience. Experience the pinnacle of portable audio with the Shanling H7. Elevate your listening journey and unlock the full potential of your music.
Specifications:
DAC:AKM AK4499EX With AKM AK4191EQ
Audio Circuit: TPA6120A2 / OPA2211 / MUSES8920
USB Input: XMOS XU316
Platform: Ingenic X2000
Output Connectors: 6.35/4.4/3.5mm & RCA
Dimensions:142 x 85 x 25 mm
Weight: 352.5 g
Screen:1.44-inch Screen
System: Open Android 10
Audio formats: DSD(".iso",".dsf",".dff") / ISO / DXD / APE / FLAC / WAV / AIFF / AlF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8/ OPUS
Hi-Res Support:32 bit / 768 kHz, DSD 512, MQA 8x
Gain Setting: Three Level Setting
Storage: MicroSD Card Slot, up to 2TB
Digital Filters:6 Preset Filters
Battery: 2x 18650
Battery Capacity: 6800 mAh
Battery Life: Up to 10h SE / 8H BAL
Bluetooth 5.0 Receiver
Bluetooth Codec Support: LDAC / AAC / SBC
RCA Output
Output Level: 2.4 Vrms
Frequency Response: 20Hz - 40kHz (-0.2dB)
THD+N: 0.0006%
Dynamic Range: 121dB
Signal-to-noise: 121dB
Output impedance: 47KΩ
Single-Ended Output:
Output Power
Low Gain: 28mW @32 Ohm
Medium Gain: 112mW @32 Ohm
High gain: 450mW @32 Ohm
Frequency Response:20 Hz - 40 KHz (-0.2 dB)
THD+N:0.0009%
Channel separation:75 dB @ 32 Ohm
Dynamic Range:121 dB
Signal-To-Noise:121 dB
Noise:>113 dB(<1.5 uV)(Low Gain)
Output Impedance:<1 Ohm
Balanced Output:
Output Power
Low Gain: 87mW @32 Ohm
Medium Gain: 348mW @32 Ohm
High gain: 1300mW @32 Ohm
Frequency Response:20 Hz - 40 KHz (-0.2 dB)
THD+N:0.0007%
Channel separation:115 dB @ 32 Ohm
Dynamic Range:123 dB
Signal-To-Noise:123 dB
Noise:>111 dB(<1.5 uV)(Low Gain)
Output Impedance:<1 Ohm
