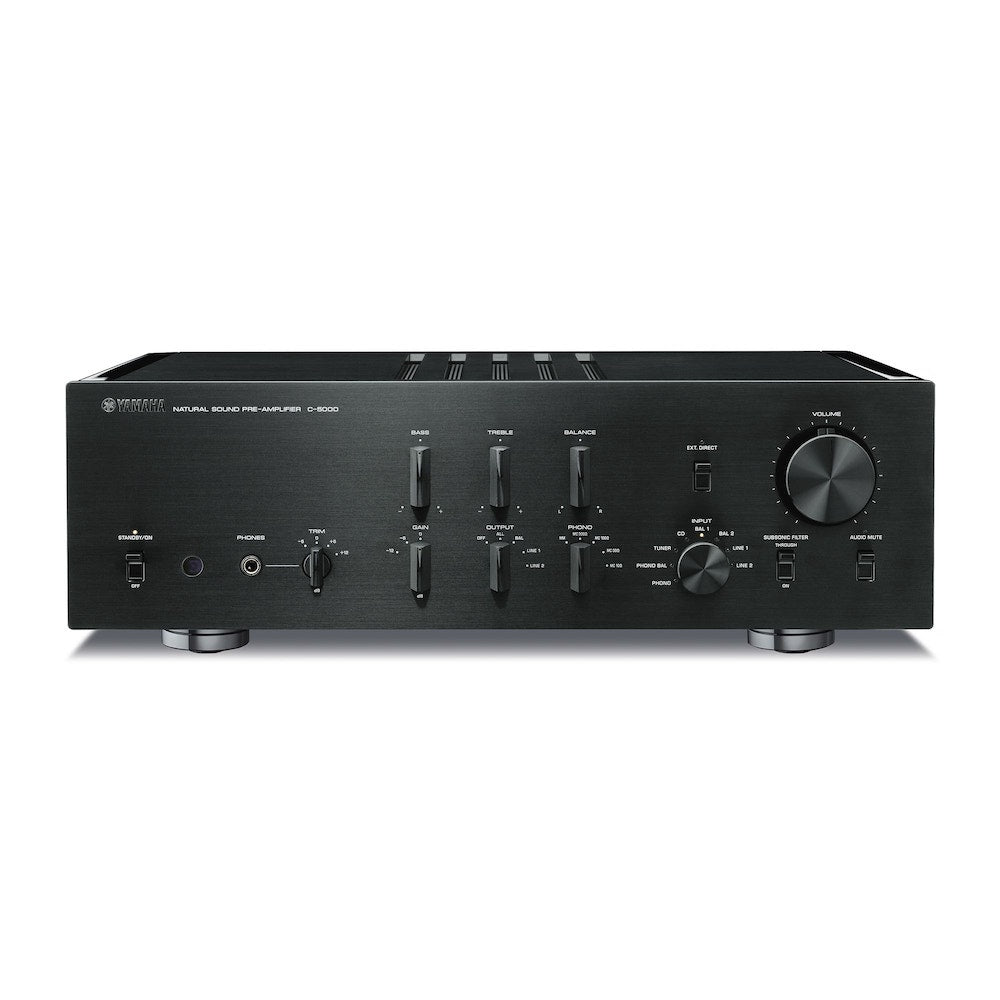

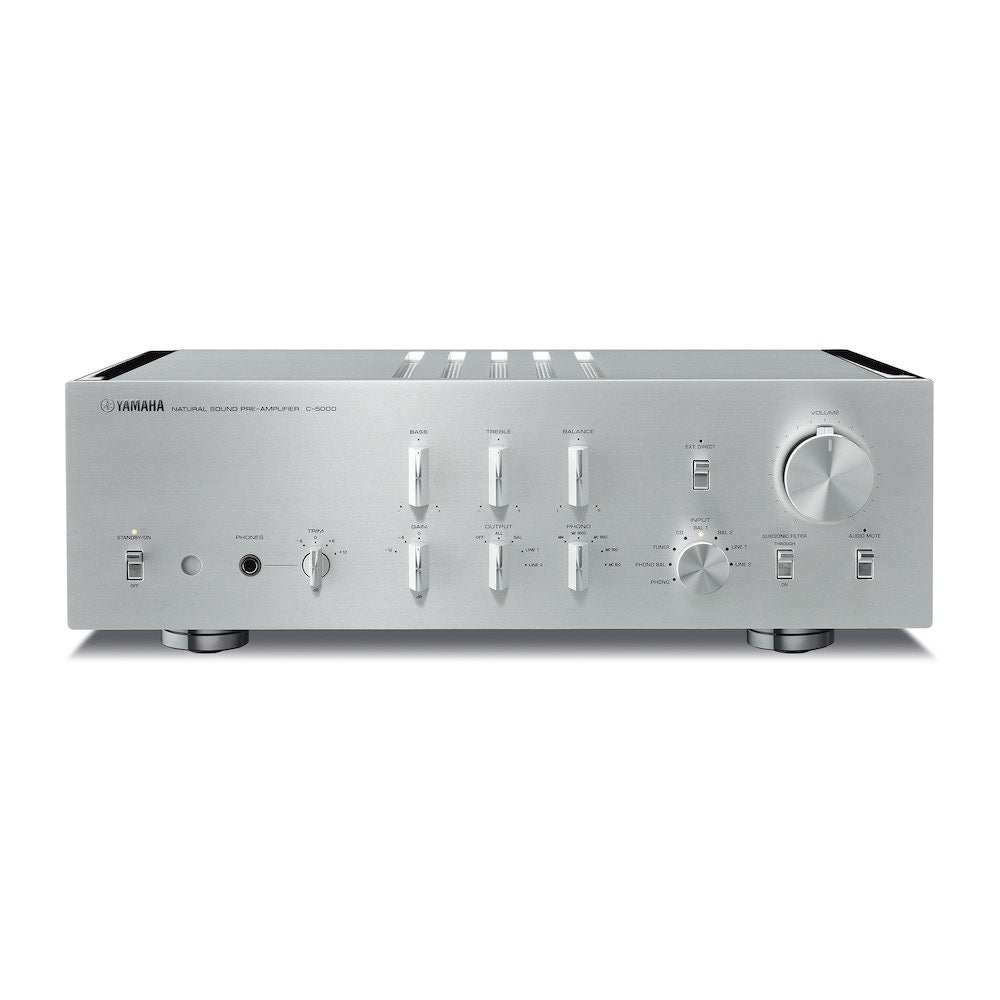

Yamaha C-5000 Preamplifier
Yamaha C-5000 Preamplifier
Couldn't load pickup availability
Lighting fast delivery in Canada
Canadian Warranty
Customer Experience
Description
Yamaha does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for additional information or to order. Thank you very much.
Typically ships within a couple of days.
The low magnetic leakage on the new C5000 lowers adverse impact on the audio signal. Following detailed research based on trial listening, the power transformer was enclosed in a copper-plated case to suppress magnetic flux and vibration. This also assists in minimizing the influence of flux in the phono circuit.
By copper-plating the chassis to minimize the influence of voltage on the circuit, the C-5000 is capable of expressing the subtlest nuances as well as powerful bass.
Additionally, thick screw-type wires are utilized to reduce the impedance of the power supply and maximizes the transmission of musical information.
The volume knob is both rigid and precise - employing ball-bearings and precision-cut aluminium to achieve its touch while the lever switches have also been refined for enhanced operation.
- Perfectly balanced signal transmission
- Floating balanced pre-amp
- Symmetrical, folding-book circuit design
- Low-impedance design
- Rigid and precise design
- Dual Toroidal Transformer
SPECIFICATIONS:
| C-5000 | ||
|---|---|---|

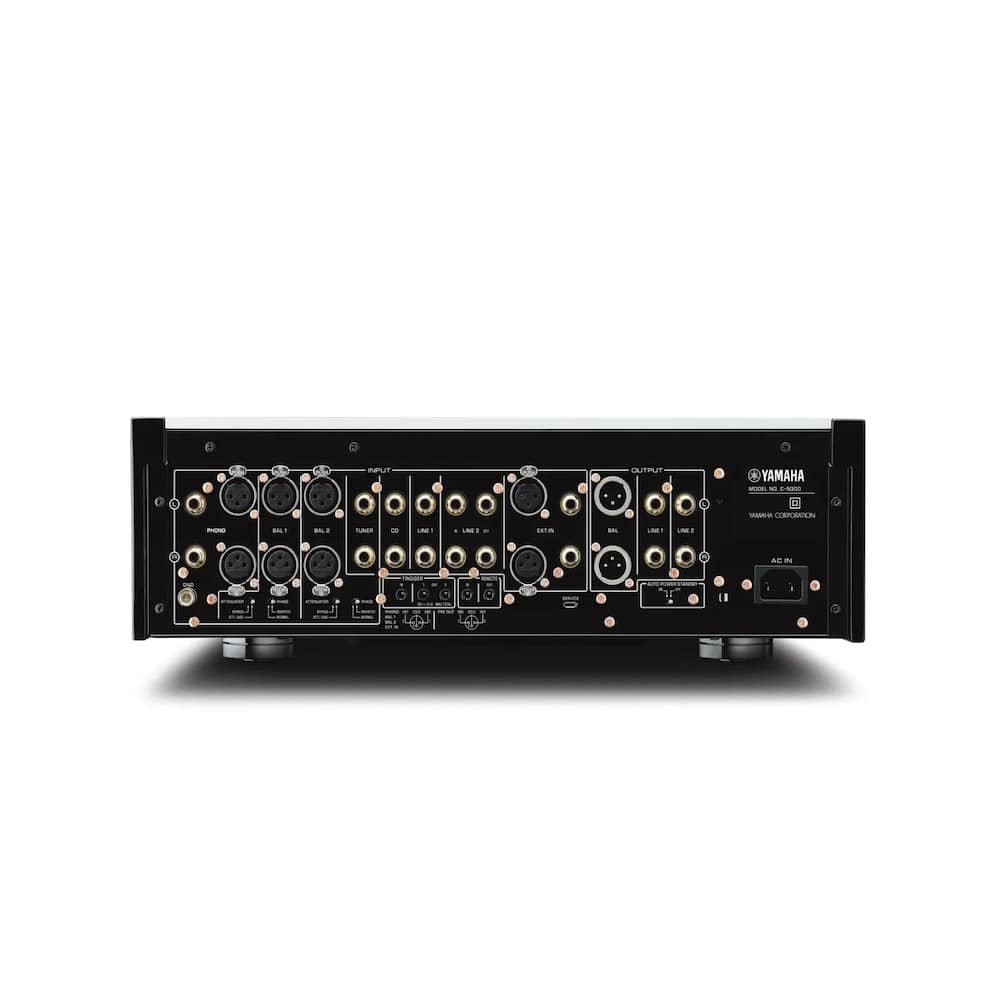

| Audio Specifications | Input Terminal | RCA:6 (PHONO, TUNER, CD, LINE 1, LINE 2 IN, EXT IN), BAL:4 (PHONO, BAL 1, BAL 2, EXT IN), TRIGGER IN: 1 (Slave mode), REMOTE IN:1 |
| Output Terminal | RCA:3 (LINE 2 OUT, LINE 1, LINE 2), BAL:1 (BAL), TRIGGER OUT: 2 (Master mode), REMOTE OUT:1 | |
| Rated Output Voltage | [Input 200 mV, 20 Hz-20 kHz, 0.01% THD] (BAL BYPASS) 2 Vrms / 150 ohm, (BAL ATT) 1 Vrms / 150 ohm, (LINE 1 / LINE 2) 1 Vrms / 150 ohm), (LINE 2 RECOUT) 200 mVrms / 1.2 kohm | |
| Maximum Output Voltage | [1 kHz, 0.05% THD] (BAL) 6 Vrms, (LINE 1 / LINE 2) 3 Vrms, (LINE 2 RECOUT) 3Vrms | |
| Input Sensitivity / Input Impedance | [BAL / LINEOUT: 1 V] (BAL) 200 mVrms / 52 kohm, (LINE,etc) 200 mVrms / 47 kohm, [LINE 2 RECOUT, 150mV (1 kHz) ] (PHONO MC 300 ohms) 100 uVrms / 300 ohms, (PHONO MC 100 ohm) 100 uVrms / 100 ohms, (PHONO MC 30 ohm) 100 uVrms / 30 ohm, (PHONO MC 10 ohm) 100 uVrms / 10 ohm, (PHONO MM BAL(UNBAL)) 2.5 mVrms / 52 k(47 kohm), (EXT IN) 1 Vrms / 20 kohm | |
| Maximum Input Signal Voltage | [LINE2 REC (1kHz, 0.05% THD)] (BAL) 2.8 Vrms, (BAL ATT) 5.6 Vrms, (LINE,etc) 2.8 Vrms,(PHONO MC) 2 mVrms, (PHONO MM) 50 mVrms, ［BAL/LINEOUT (1kHz 0.05% THD)］(EXT IN) 5.6 Vrms | |
| Frequency Response | [JEITA, Load 22 kohm] (BAL/LINE, etc) +0 / -3 dB (10 Hz-100 kHz), +0 / -0.3 dB (20 Hz-20 kHz) | |
| Total Harmonic Distortion Plus Noise | [JEITA, Input: 0.5 V] 0.0100% (BAL [LINE, etc.] to BAL [LINE], 20 Hz-20 kHz), 0.0200% (MM / MC BAL [UNBAL] to LINE 2 RECOUT, 20 Hz-20 kHz) | |
| Channnel Separation | [JEITA, Input 1.0 kohm terminated, 1 kHz / 10 kHz] 110 dB or higher (BAL / LINE, etc.), 80 dB or higher (MC, BAL / UNBAL), 98 dB or higher (MM, BAL / UNBAL) | |
| Function Separation | [IHF-A network, Input 1.0 kohm terminated, JEITA] 110 dB or higher (BAL / LINE, etc.), 75 dB or higher (MC, BAL / UNBAL), 95 dB or higher (MM, BAL / UNBAL) | |
| Signal-to-Noise Ratio | [IHF-A network, Input 1.0 kohm terminated, JEITA] 110 dB or higher (BAL / LINE, etc.), 80 dB or higher (MC, 300 ohms, BAL / UNBAL), 98 dB or higher (MM, BAL / UNBAL) | |
| Residual Noise | [IHF-A network] 3 uV (BAL / LINE OUT) | |
| Tone Control Characteristics | (BASS) Boost / Cut [30 Hz] ±9 dB, Turnover Frequency 350 Hz, (TREBLE) Boost / Cut [20 Hz] ±9 dB, Turnover Frequency 3.5 kHz | |
| Headphone Jack Rated Output Power | 35 mW + 35 mW (CD, etc. [1 kHz, 32 ohm, 0.2% THD]) | |
| Deviations from RIAA Equalizer | ±0.5 dB (MC / MM BAL [UNBAL]) | |
| Subsonic Filter | 15 Hz: -3 dB (MC / MM BAL [UNBAL]) | |
| General | Power Consumption | 60 W |
| Standby Power Consumption | 0.2 W | |
| Power Management (Auto Power Standby) | Yes | |
| Dimension (W×H×D) | 435 x 142 x 451 mm; 17-1/8” x 5-5/8” x 17-3/4” | |
| Weight | 19.1 kg; 42.11 lbs. | |
