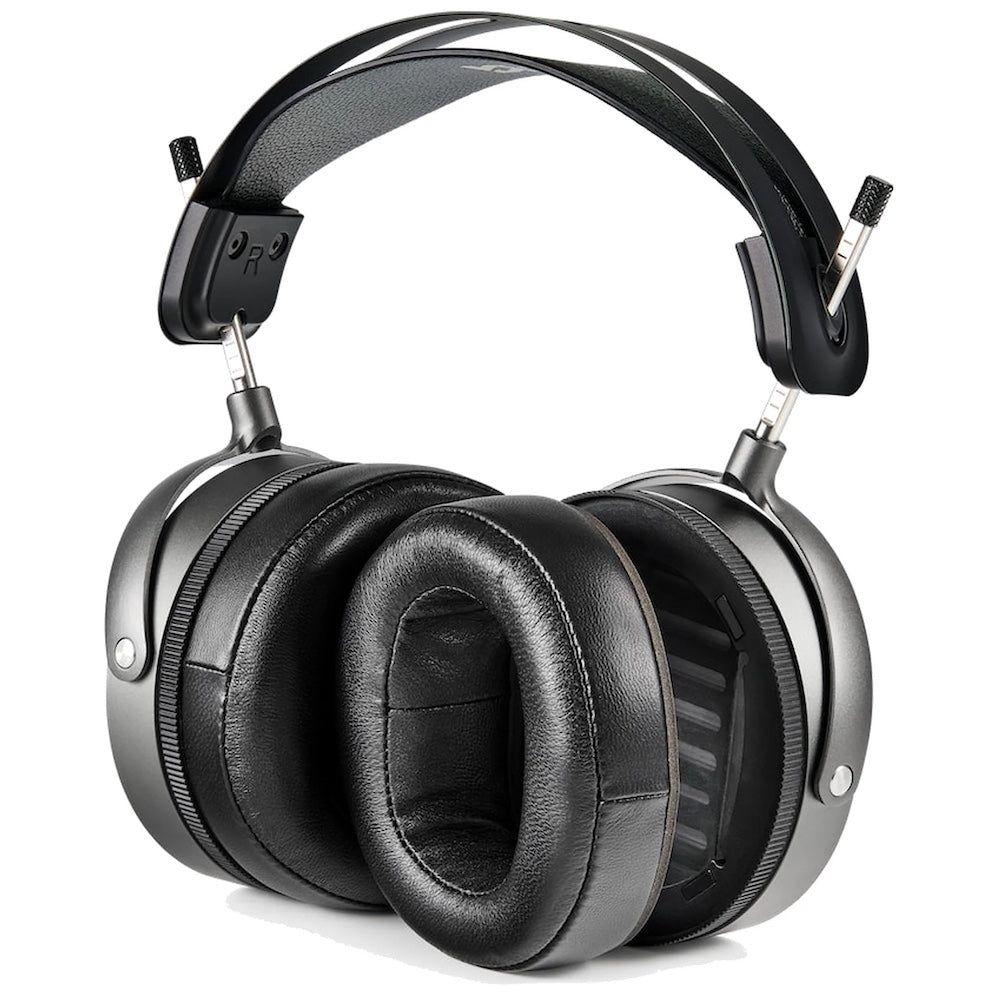

Create with newfound levels of depth and subtlety when you put on MM-520. Work with the confidence that your choices will always translate well. Enjoy luxurious comfort for marathon mix sessions from MM-520's upgraded memory foam ear pads. Magnetic attachment makes maintenance and cleaning easy as a snap.
MM-520's planar magnetic drivers have been refined and perfected in our Southern California workshop, integrating our patent-pending SLAM technology to provide the low-end definition and midrange precision that engineers like Manny stake their work upon.
Specifications |
|
|
Style |
Over-ear (circumaural), open-back |
|
Transducer type |
Planar Magnetic |
|
Magnetic structure |
Fluxor™ magnet array |
|
Phase management |
Fazor™ |
|
Acoustic management |
SLAM™ |
|
Magnet type |
Neodymium N50 |
|
Diaphragm type |
Ultra-Thin Uniforce™ |
|
Transducer size |
90 mm |
|
Maximum SPL |
>130dB |
|
Frequency response |
5Hz - 50kHz |
|
Impedance THD |
18 ohms <0.1% @ 100dB SPL, 1 kHz |
|
Sensitivity |
102dB/1mW (@Drum Reference Point) |
|
Minimum power requirement |
>100mW |
|
Maximum power handling |
5W RMS |
|
Weight |
555g |
|
Shipping Weight |
6 lbs. |
|
Package dimensions |
16 L x 14 H x 8 W in. |

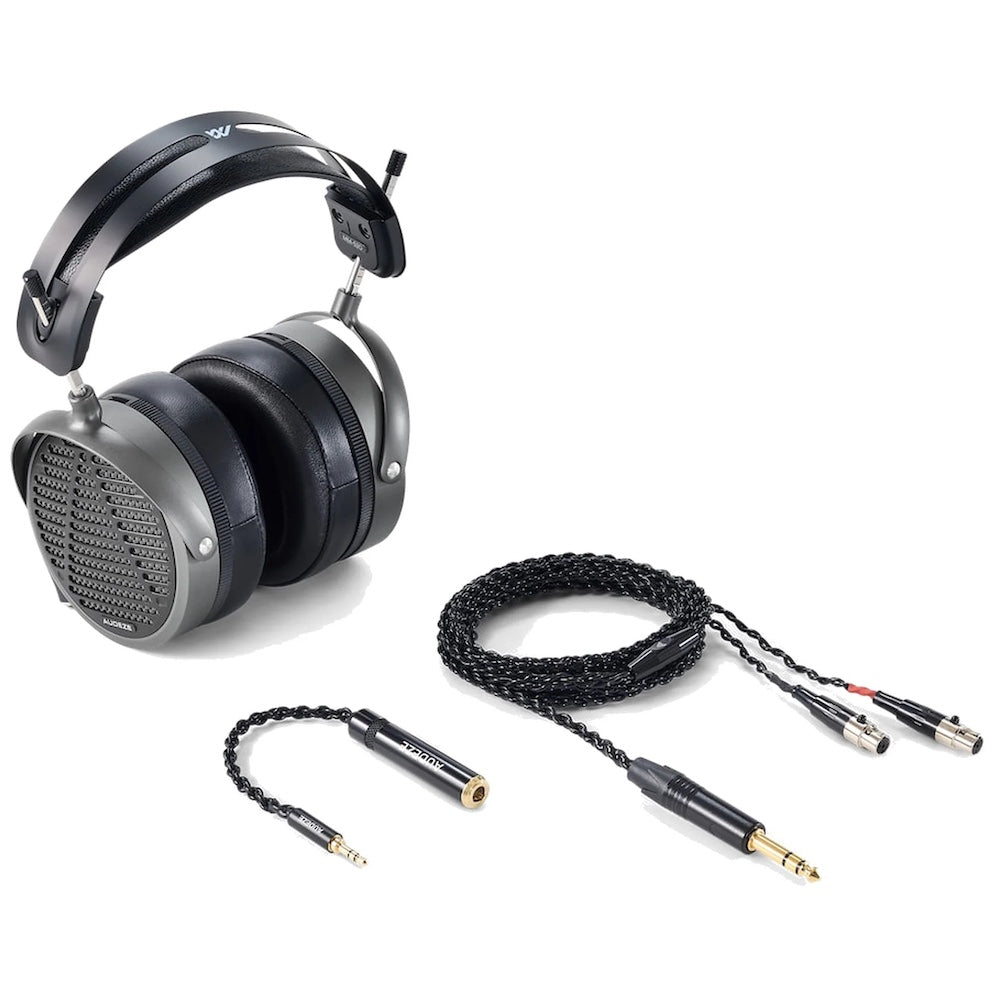

Includes:
MM-520 Headphone
2.5m (8.2ft) headphone cable
3.5mm to 6.3mm adaptor
Standard Travel Case
MM-Series Soft Carry Bag
