Cayin CS-100A Tube Integrated Amplifier

Cayin CS-100A Tube Integrated Amplifier

Usually Ships Within 1-2 Days.

$4,699.00
$4,699.00
Sale Sold out
Free Express Shipping In Canada
CS-100A

Free Express Shipping In Canada

Canadian Warranty

Professional Customer Experience

View full details

Description

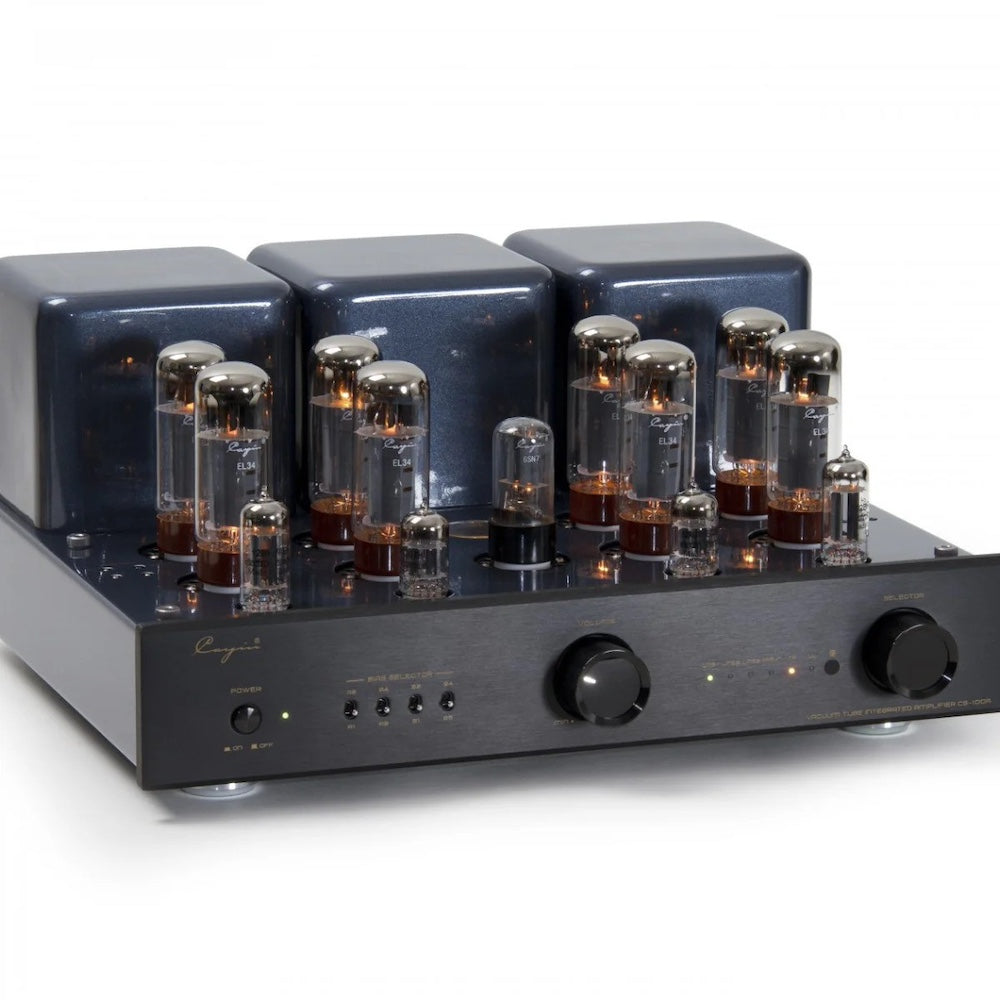

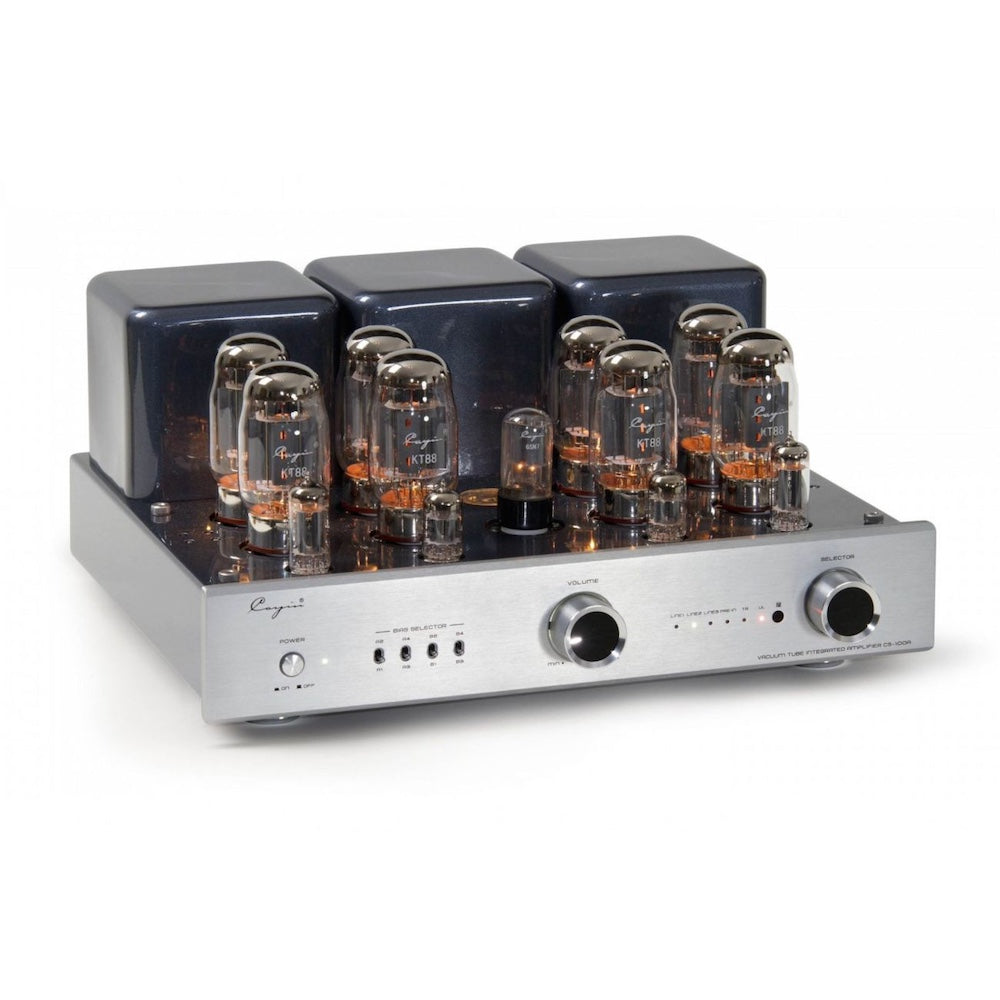

The new Cayin Audio CS-100A tube amplifier is rated at 80 watts per channel in Class AB Ultra-linear mode and 50-watts per channel in triode mode. It features an on board bias meter, can be used with KT-88 or the EL family tubes and uses silver internal wiring.

The CS-100A incorporates a 6SN7 tube for voltage amplification, 12AU7EH for phase inversion/voltage amplification and 12BH7EH for voltage amplification and driver stages, with KT-88 or EL-34 output valves. Soft-Start circuitry protects the amplifier and extends the life of internal components and tubes.

The CS-100A features a high grade Alps volume control, audio-grade capacitors, carbon film resistors, toroidal transformer for power supply and wide-bandwidth EI output transformers.

Specifications:

  • Power Output: 2 x 50W (Triode), 2 x 80W (Ultralinear)
  • THD: 1%(1kHz)
  • S/N Ratio: 92dB
  • Input Sensitivity: 450mV (Integrated), 1300mW (Pre-In)
  • Input Terminals: 3 x Line, 1 x Pre-In
  • Output Terminals: Sub-out
  • Tubes: 1 x 6SN7GTB, 2 x 12AU7EH, 2 x 12BH7EH, 8 x KT88(or EL34)
