Cayin

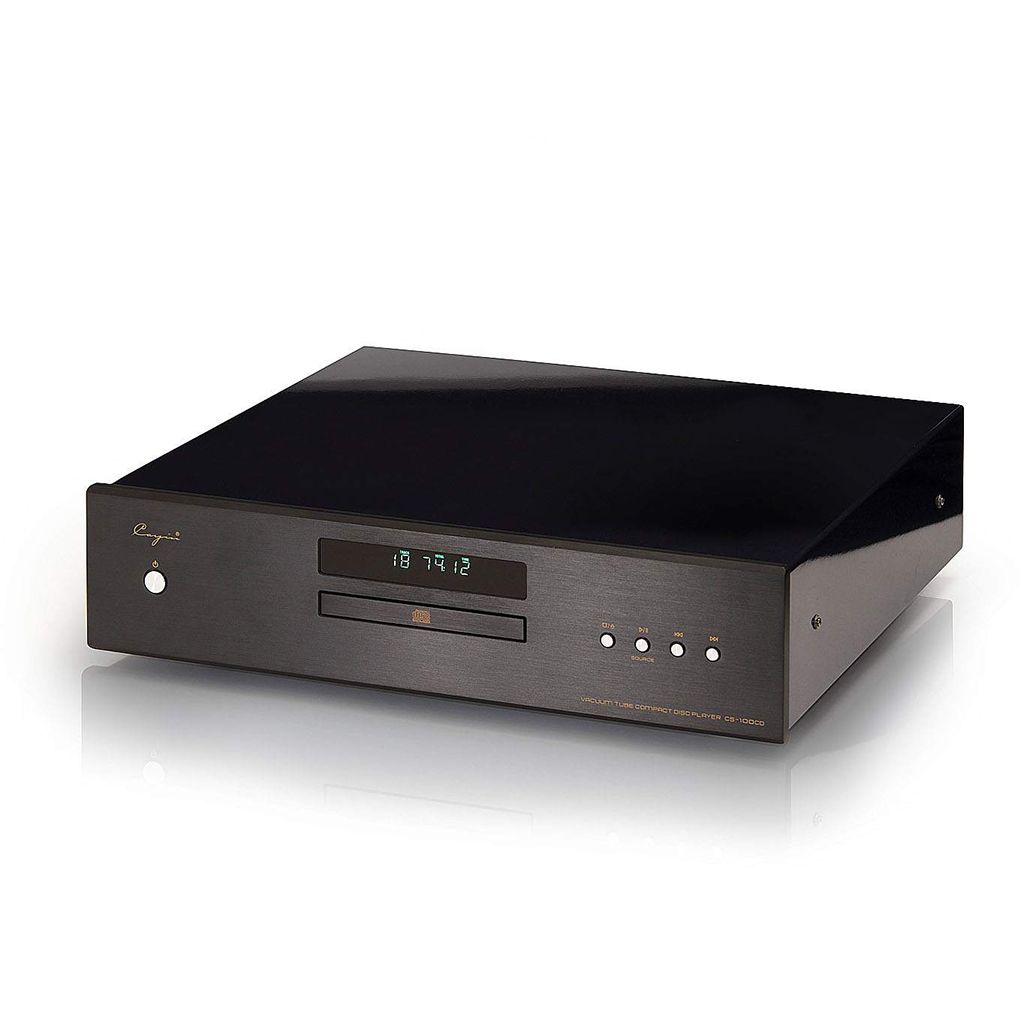

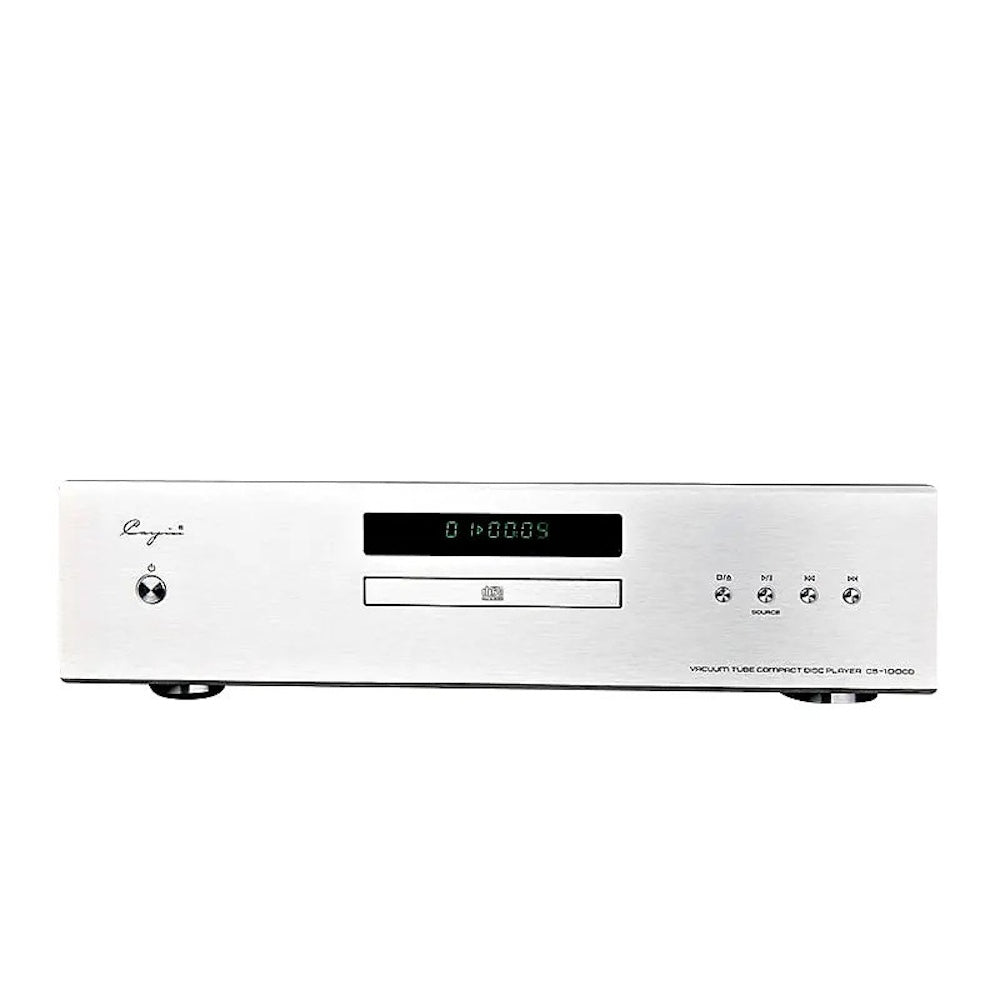

Cayin CS-100CD Tube CD Player Dac

Cayin CS-100CD Tube CD Player Dac

Usually ships in 1-2 days.

Regular price $3,300.00
Regular price Sale price $3,300.00
Sale Featured Sold out
Free Express Shipping In Canada
CS-100CD

Free Express Shipping In Canada

Canadian Warranty

Professional Customer Experience

View full details

Description

The new Cayin CS-100CD is a state-of-the-art CD player designed for exceptional audio performance. This model features dual PCM1792A DAC chipsets from TI for advanced digital filtering and D/A conversion, delivering a fully balanced output circuit.

The CS-100CD utilizes high-quality Op-Amps for its low pass filter and I/V converter circuits. Its audio output stage is powered by four 6922EH vacuum tubes and audio-grade capacitors, with separate circuits for balanced and unbalanced outputs. A 12DT5 tube regulates the power supply, ensuring consistent performance.

The CS-100CD CD player offers versatile digital outputs, including Optical, Coaxial, and AES/EBU, along with a USB Audio input for high-resolution digital audio, supporting up to 24 bit/192 kHz. It also supports Coaxial and Optical digital inputs with the same high resolution.

Independent power supplies for digital and analog circuits minimize interference, ensuring clean power delivery to all components. The meticulous design reduces power interference and maintains high-fidelity audio reproduction.

Cayin’s precise engineering ensures the CS-100CD delivers music with clarity and detail, revealing the true depth and essence of your favorite recordings.

Specifications:

Output Level

2.3V +/- 2dB

Dynamic Range

110dB

Channel separation(1kHz)

80dB

S/N Ratio

100dB

Distortion and noise

-60dB

CD PLAYER Support CDCD-R16-bit 44.1kHz
Digital Input
Optical input 16/24-bit 44.1-192kHz
Coaxial input 0.5V @7516/24-bit 44.1-192kHz
USB Audio (only for USB version) Compatible with Audio Class 1.0 and Audio Class 2.0.
               Support Windows XP®Windows Vista®Windows 7® Windows 8® and Mac
             OS(10.6.3 and above)
Digital Output
Optical output: 16/24-bit 44.1-192kHz. According to the IEC958 standard
Coaxial output 0.5V @75 16/24-bit 44.1-192kHz According to the IEC958 standard.

AES/EBU output

11016/24-bit 44.1-192kHzAccording to the IEC958 standard.

Specifications
