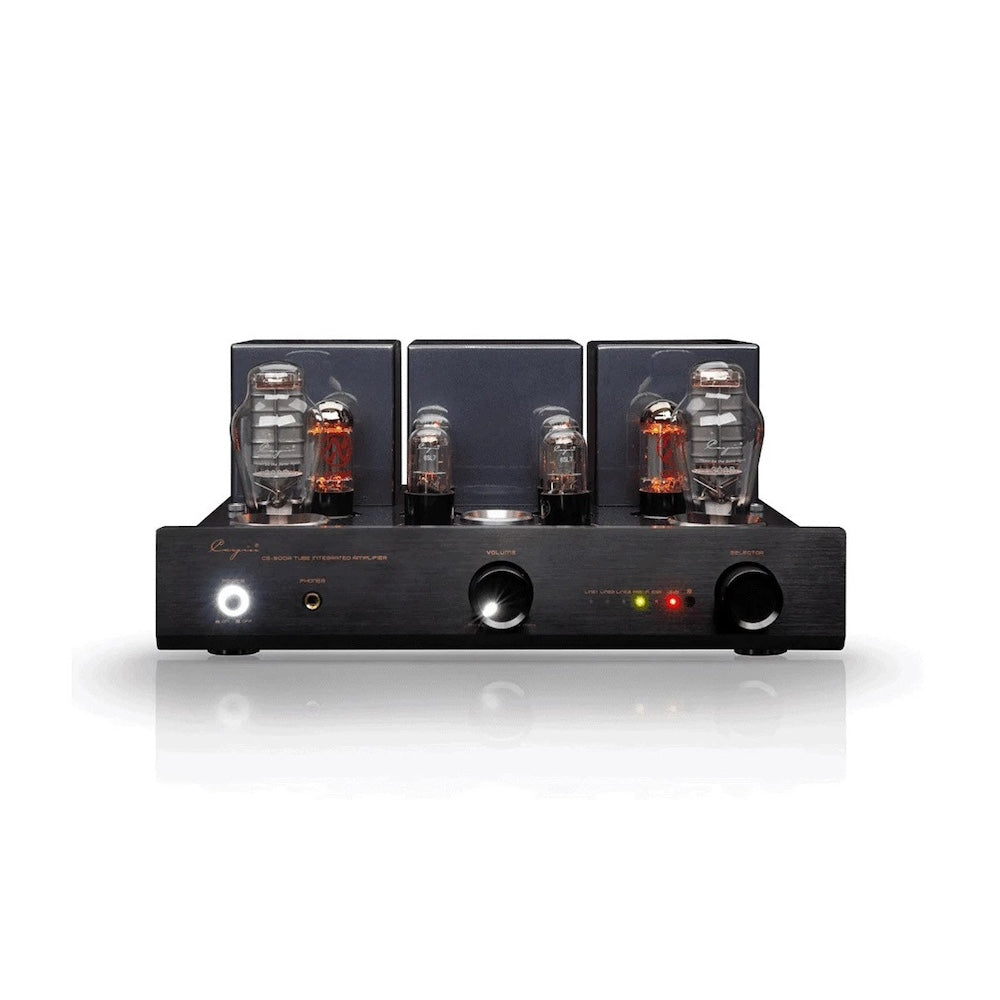

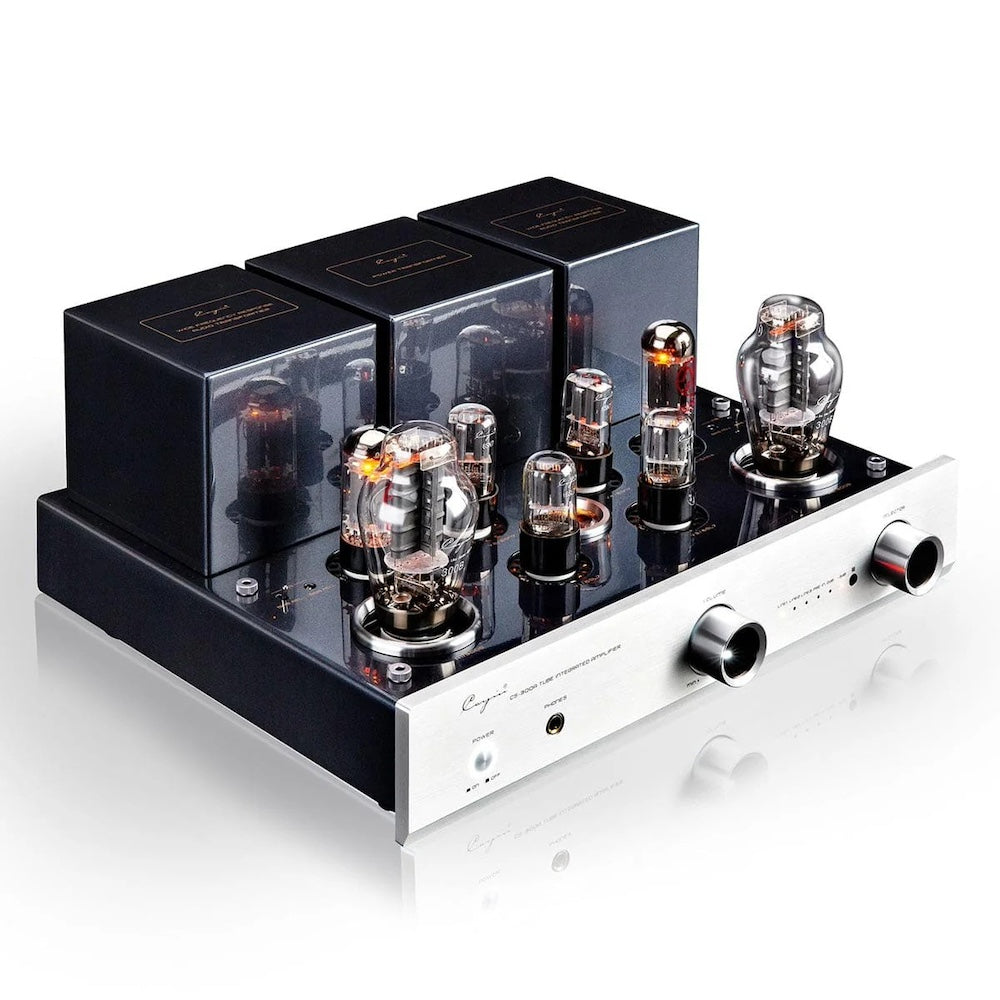

The new Cayin CS-300A tube integrated amplifier is hand crafted and designed as a single-ended triode (SET) Class A amplifier. Made for music lovers that appreciate the timeless, rich sound of 300B tubes. This amplifier delivers a pure and smooth sound experience with exceptional clarity, making it ideal for connoisseurs of high-end audio. With 8 watts RMS per channel, the CS-300A is capable of driving high-efficiency speakers, offering a full-bodied and harmonious sound profile.
The CS-300A is powered by 300B directly heated triodes, renowned for their warm, detailed, and musical sound signature. These tubes are configured in a single-ended circuit, amplifying with purity and finesse.
The 6SL7 is utilized for the voltage amplification stage, while the 6SN7 serves as the driver stage, providing exceptional detail and control over the signal.
Two GZ34 tubes are used for separating the high voltage channels, ensuring clean and stable power supply, which contributes to the smoothness of sound.
Despite its single-ended design, the CS-300A delivers 8 watts per channel, ensuring ample power for high-efficiency speakers to produce vivid, detailed, and dynamic sound.
Specifications:
Frequency range: 10Hz ~ 32kHz (-3dB)
|
Total harmonic distortion (THD): 1% (1kHz)
|
Output power (RMS): 2 x 8 watts
|
Input impedance:> 100Kohm (RCA)
|
Output impedance: 4Ω , 8Ω , 16Ω
|
Tube assembly: 6SL7 x 2, 6SN7 x 2, GZ34 x 2, 300B x 2
|
Dimensions W x H x D: 420 × 382 × 195mm
|
Weight: 26kg
|

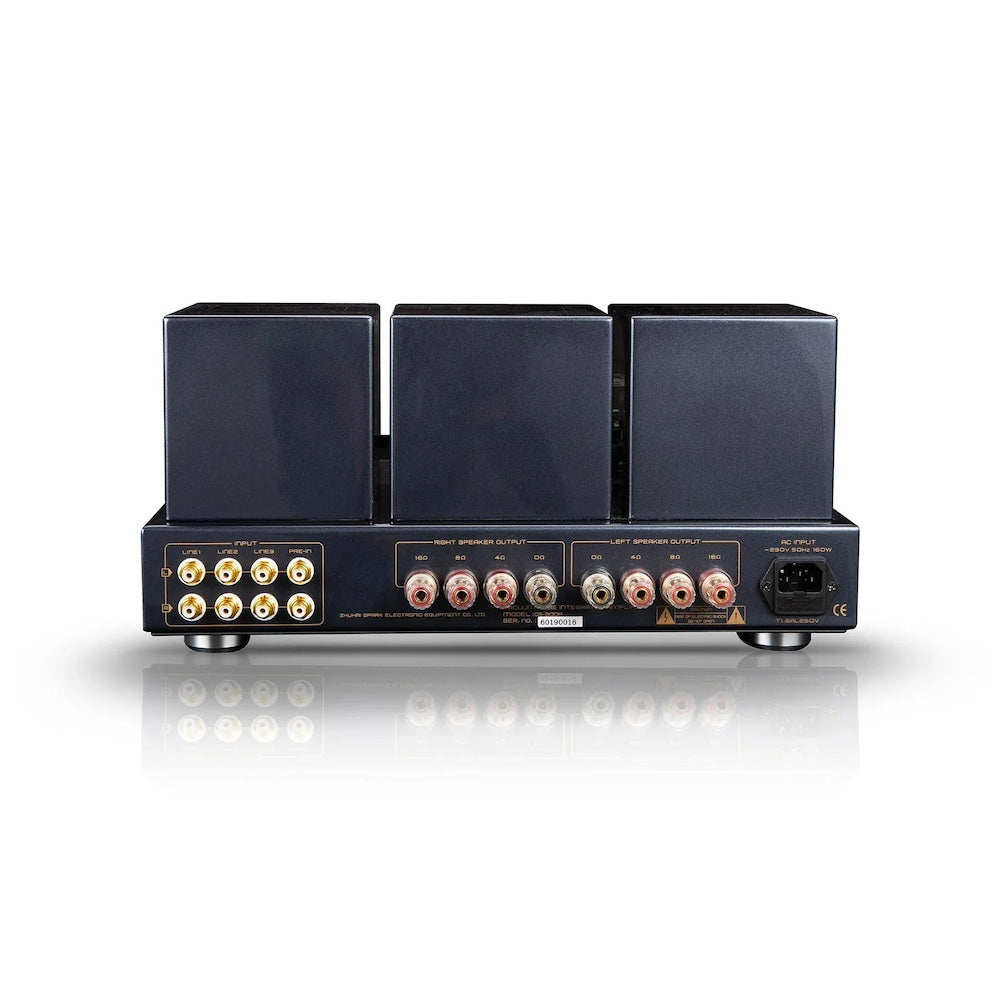

Inputs: Line1, Line2, Line3, Pre-In
|
Circuit: Class A, single-ended
|
Housing colours: Anthracite Metallic
|
Housing front: Silver / Black
|
Input sensitivity: 280mV (line), 1000mV (pre-in)
|
Speaker impedance: 4Ω, 8Ω, 16Ω
|
Power consumption: 160 watts
|
Special features: Headphone Output, Metal Remote Control
|
