Martin Logan

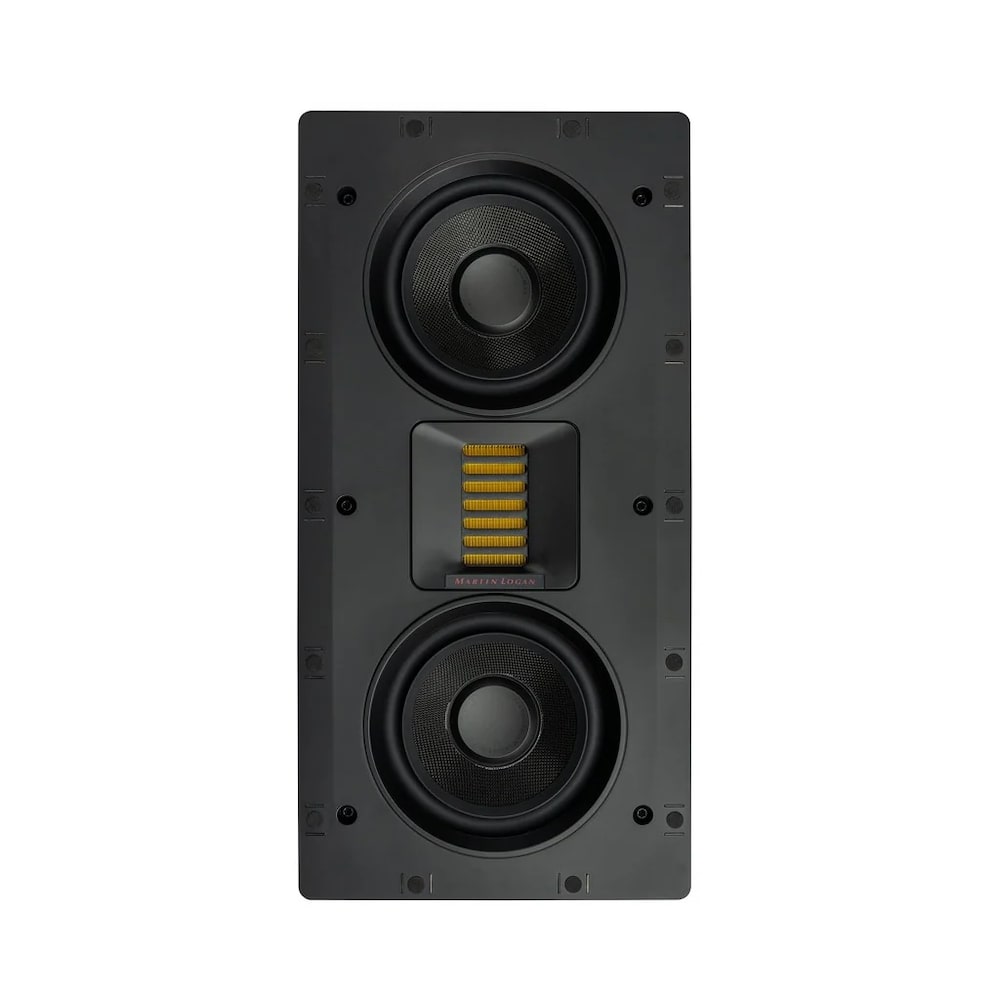

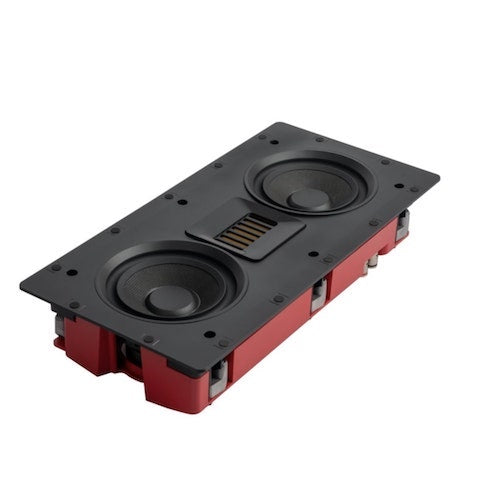

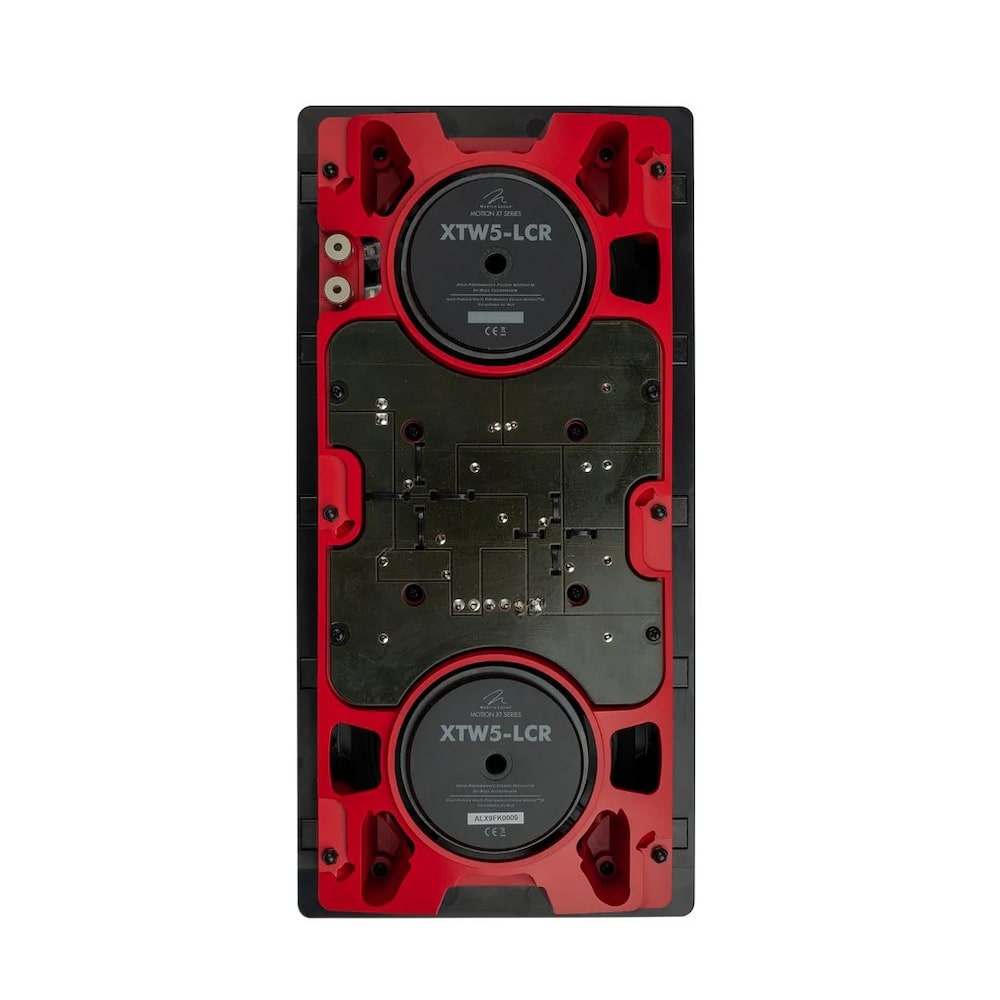

Martin Logan XTW5-LCR In Wall Speaker

Martin Logan XTW5-LCR In Wall Speaker

Regular price $1,399.99
Regular price Sale price $1,399.99
Sale Featured Sold out
Shipping calculated at checkout.

Lighting fast delivery in Canada

Canadian Warranty

Customer Experience

View full details

Description

Martin Logan does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for more information or to order. Thank you very much.

The Martin Logan XTW5-LCR functions equally well as a center, front or surround channel, or anywhere higher performance and/or a more rectangular shape is desired. A perfect complement for a flat panel TV or projector screen; the XTW5-LCR allows for flexible placement and incredible performance. Its FMT XT tweeter can be rotated to help create the sound dispersion that works best for your space.

NOTE: PRICE IS PER EACH

Technical Specifications:

Frequency Response

61 - 25,000 Hz ±3dB

Tweeter Dispersion (horizontal x vertical)

80 x 30 degrees

Recommended Amplifier Power

Range 50–250 Watts

Sensitivity

92dB @2.83V/ 1 meter

Impedance

4 ohms. Compatible with 8 ohms

High Frequency Driver

FMT Transducer 1.27” x 2.4” (3.22cm x 6.09cm) Opening 4.5” x 2.75” (11.43cm x 6.98cm) Diaphragm

Crossover Frequency

2,180 Hz

Crossover Type

2 way

Driver Configuration

1 x 1.27” x 2.75” FMT, 2 x 5.25” Woofers

Woofer Specifications

Two 5.25” (13.33 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap.

Cabinet Material

Black w/ White Paintable Grill

Connector

Push style

Components

Custom air core coil inductors, polyester film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection.

Max Power Handling

125 Watts

Weight

9.8 lbs. (4.4 kg) each

Dimensions (overall size)

7.87” x 15.79” x 3.32” (20 x 40.1 x 8.43cm)

Required Wall Opening (includes tolerance)

14.5” x 6.5” (36.8 x 16.5cm)

Projection From Wall Surface

0.12” (0.3cm)

Depth Behind Wall Surface

3.20” (8.13cm)
