Description

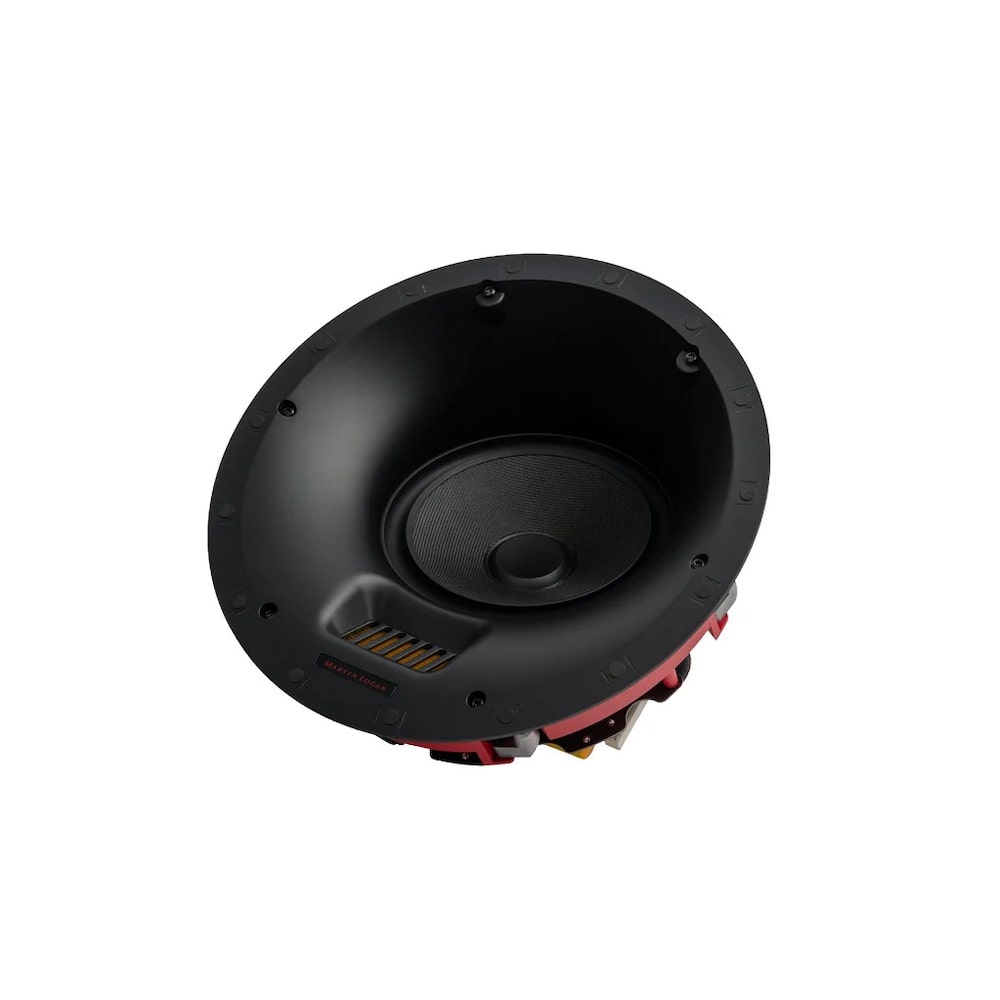

The “HT” version of the Martin Logan Motion XTC8 features a fixed angle mounting of the tweeter and woofer in order to provide a massive improvement in performance for listeners who are farther away. This is the perfect choice for when a speaker must be mounted apart from where the listener will be standing, walking or sitting, like in a home theater.
NOTE: PRICE IS PER EACH
Technical Specifications:
|
Tweeter Dispersion (horizontal x vertical) |
30 x 80 degrees |
|
Recommended Amplifier Power |
Range 50–300 Watts |
|
High Frequency Driver |
FMT Transducer 1.27” x 2.4” (3.22cm x 6.09cm) Opening 4.5” x 2.75” (11.43cm x 6.98cm) Diaphragm |
|
Crossover Frequency |
2,000 Hz |
|
Crossover Type |
2 way |
|
Driver Configuration |
1 x 1.27” x 2.75” FMT, 1 x 8” Woofers |
|
Woofer Specifications |
One 8” (20.32 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap. |
|
Cabinet Material |

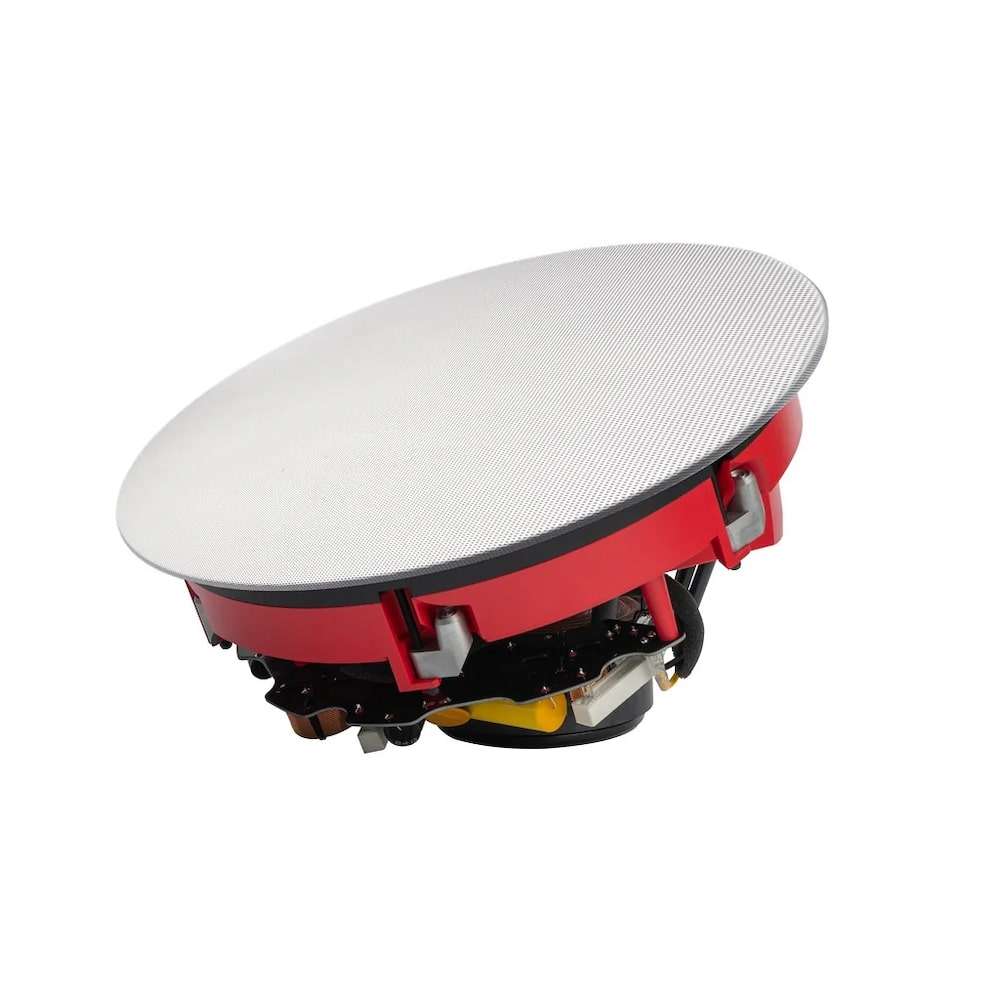

Black w/ White Paintable Grill |
|
Connector |
Push style |
|
Components |

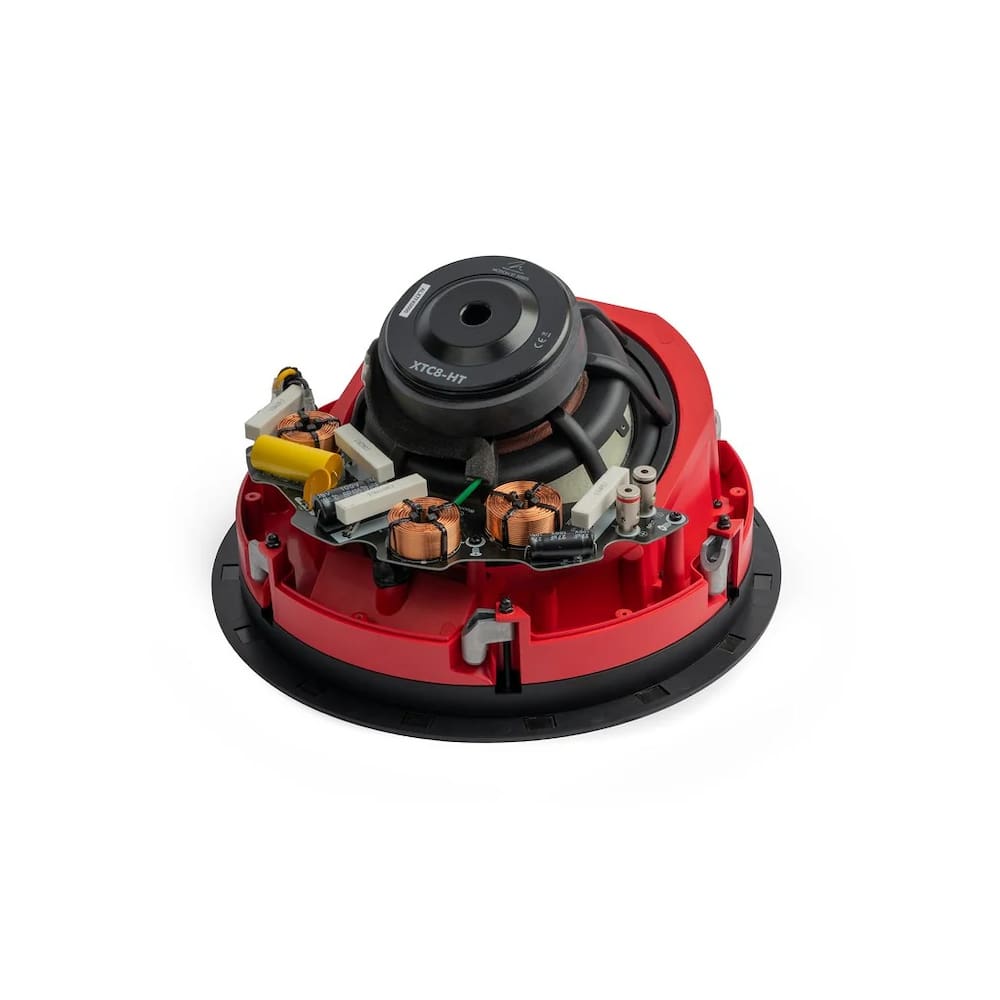

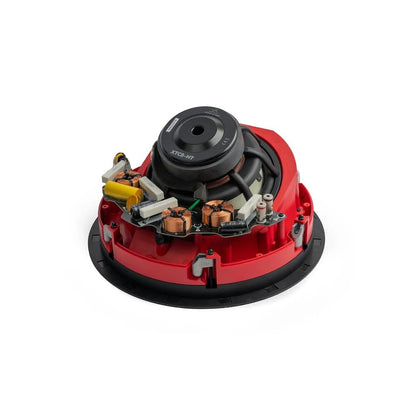

Custom air core coil inductors, polypropylene film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection. |
|
Max Power Handling |
150 Watts |
|
Dimensions (overall size) |
12.68” x 7.15” (32.2 x 18.14cm) |
|
Required Wall Opening (includes tolerance) |
11.5” (29.1cm) diameter |
|
Projection From Wall Surface |
0.26” (0.65cm) |
|
Depth Behind Wall Surface |
7.03” (17.84cm) |
