Description
The new Clearaudio Concept Series MC Cartridges combine high-quality moving coil technology with a minimalist design. Here, audiophile explorers discover what the optimisation of magnetic circuits can deliver: This cartridge releases crystal clear sounds and represents nothing less than a revolution in it‘s class.
Equipped with a boron cantilever, the concept mc and concept mc Signature has channel matching to within half a decibel, 11 ohms internal impedance and is fitted with a Micro line stylus – features normally unheard of in this price range.
All of which adds up to make this high-quality cartridge a bargain for the cost-conscious high-end fan.

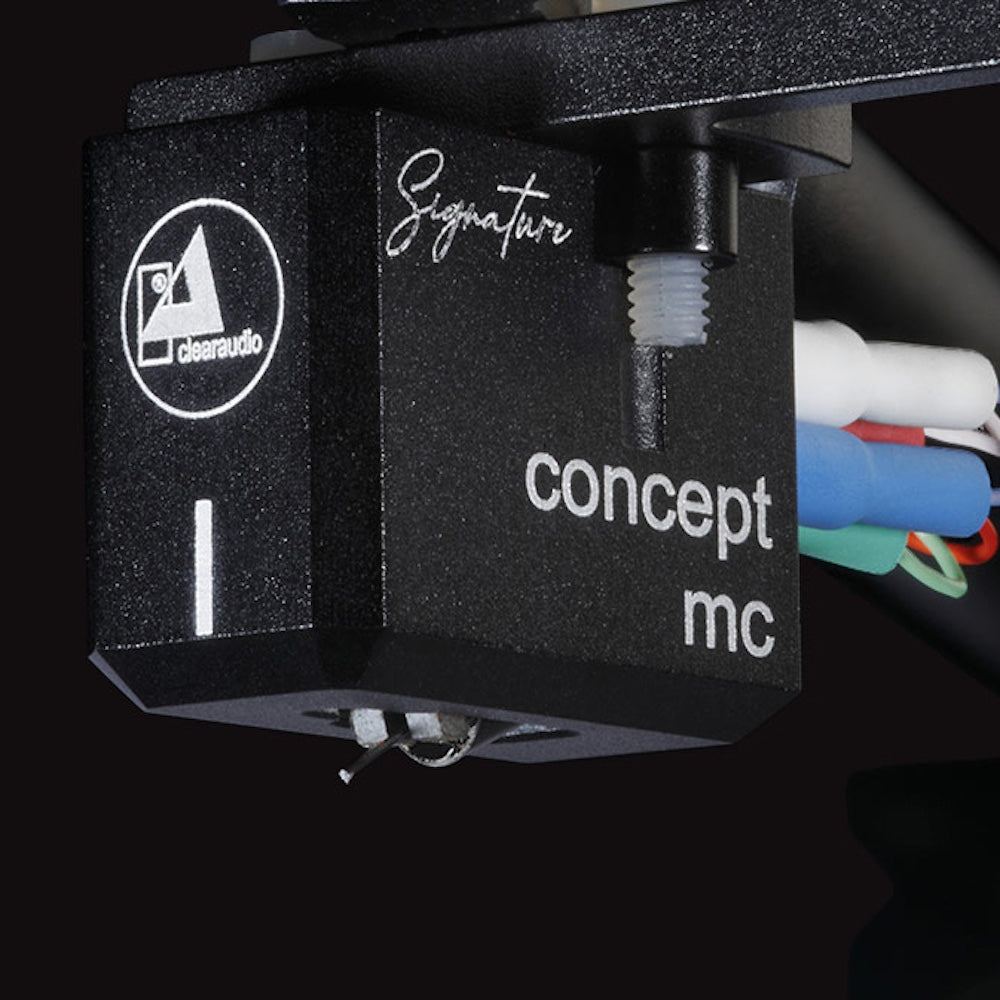

Specifications - Concept MC Signature:
| TOTAL MASS: | 8.0g |
| FREQUENCY RESPONSE: | 20Hz – 20kHz |
| OUTPUT VOLTAGE (AT 5 CM/SEC): | 0.4mV |
| CHANNEL SEPARATION: | > 30dB |
| CHANNEL BALANCE: | < 0.3dB |
| TRACKING ABILITY: | 80μm |
| RECOMMENDED TRACKING FORCE: | 2.2g (± 0.2g) |
| CARTRIDGE IMPEDANCE: | 11Ω |
| CANTILEVER / STYLUS SHAPE: | Boron / Micro Line |
| COMPLIANCE: | 9μ/mN |
| COIL ASSEMBLY: | — |
| COIL MATERIA:L | OFC - copper |
| CARTRIDGE BODY: | Aluminium-magnesium alloy with ceramic surface layer |
| MANUFACTURER’S WARRANTY | 2 years* |

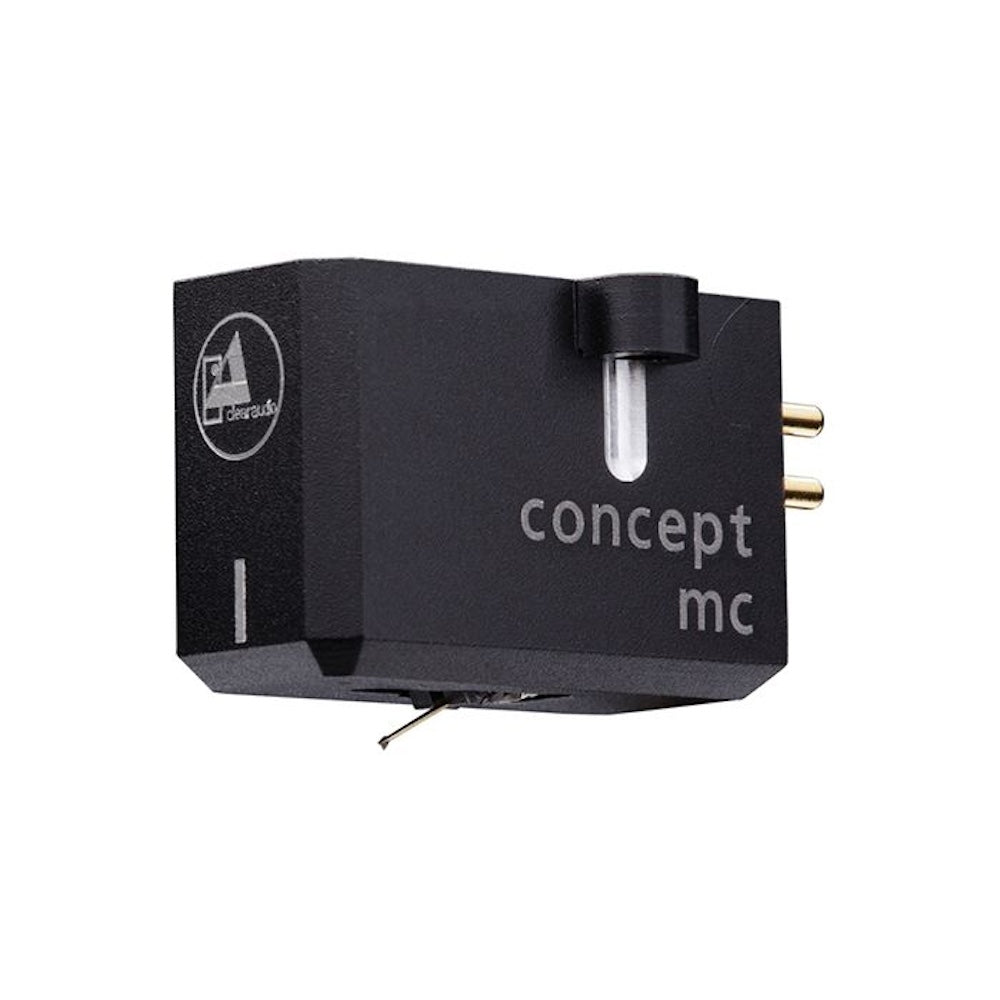

Specifications - Concept MC:
| TOTAL MASS: | 8.0g |
| FREQUENCY RESPONSE: | 20Hz – 20kHz |
| OUTPUT VOLTAGE (AT 5 CM/SEC): | 0.4mV |
| CHANNEL SEPARATION: | > 28dB |
| CHANNEL BALANCE: | < 0.5dB |
| TRACKING ABILITY: | 80μm |
| RECOMMENDED TRACKING FORCE: | 2.2g (± 0.2g) |
| CARTRIDGE IMPEDANCE: | 11Ω |
| CANTILEVER / STYLUS SHAPE: | Boron / Micro Line |
| COMPLIANCE: | 9μ/mN |
| COIL ASSEMBLY: | — |
| COIL MATERIA:L | OFC - copper |
| CARTRIDGE BODY: | Aluminium-magnesium alloy with ceramic surface layer |
| MANUFACTURER’S WARRANTY | 2 years* |
