Dynavector

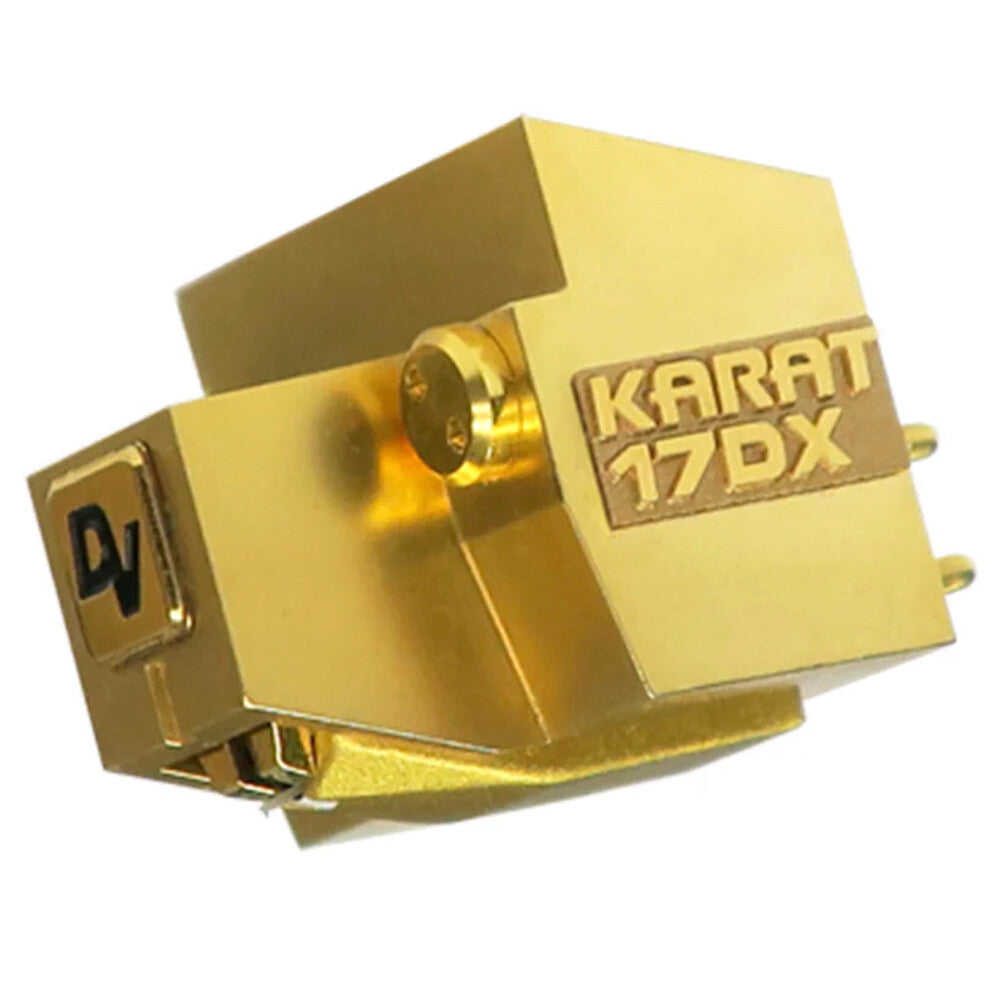

Dynavector DV Karat 17DX Phono Cartridge

Dynavector DV Karat 17DX Phono Cartridge

Usually Ships Within 2 Days.

Regular price $2,600.00
Regular price Sale price $2,600.00
Sale Featured Sold out
Free Express Shipping In Canada

Free Express Shipping In Canada

Canadian Warranty

Professional Customer Experience

View full details

Description

Dynavector's DV Karat 17DX frequency response at 20 to 20,000 Hz is ruler flat providing an extremely accurate groove tracking ability. However, several new features will ensure that the new 17DX will shortly gain the same legendary status and soon surpass its predecessors. The rationale for the new KARAT 17DX was to significantly improve upon the now legendary original KARAT series. After exhaustive listening and technical research, the decision was made to incorporate a body machined from solid brass, Samarium-cobalt magnets for lower magnetic resistance, unmatched coil winding techniques, the incredible 1.7mm long cantilever with Micro Ridge stylus all combining in a brand-new KARAT 17DX that will delight the listener, providing clear and articulate reproduction of analog recordings without a hint of harshness in the high frequency range.

Specifications:

  • Type: Low output moving coil cartridge with flux damper and softened magnetism
  • Output Voltage: 0.3mV (at 1KHz, 5cm/sec.)
  • Channel Separation: 25 dB (at 1KHz)
  • Channel Balance: 1.0 dB (at 1KHz)
  • Frequency Response: 20 - 20,000Hz (± 1dB)
  • Compliance: 15 mm/N
  • Tracking Force: 1.8 - 2.0 g
  • Impedance: 32 ohms
  • Recommended Load Impedance: > 100 ohms
  • Cantilever: 1.7mm length solid diamond
  • Stylus Tip: Micro-Ridge
  • Weight: 11.0 g
