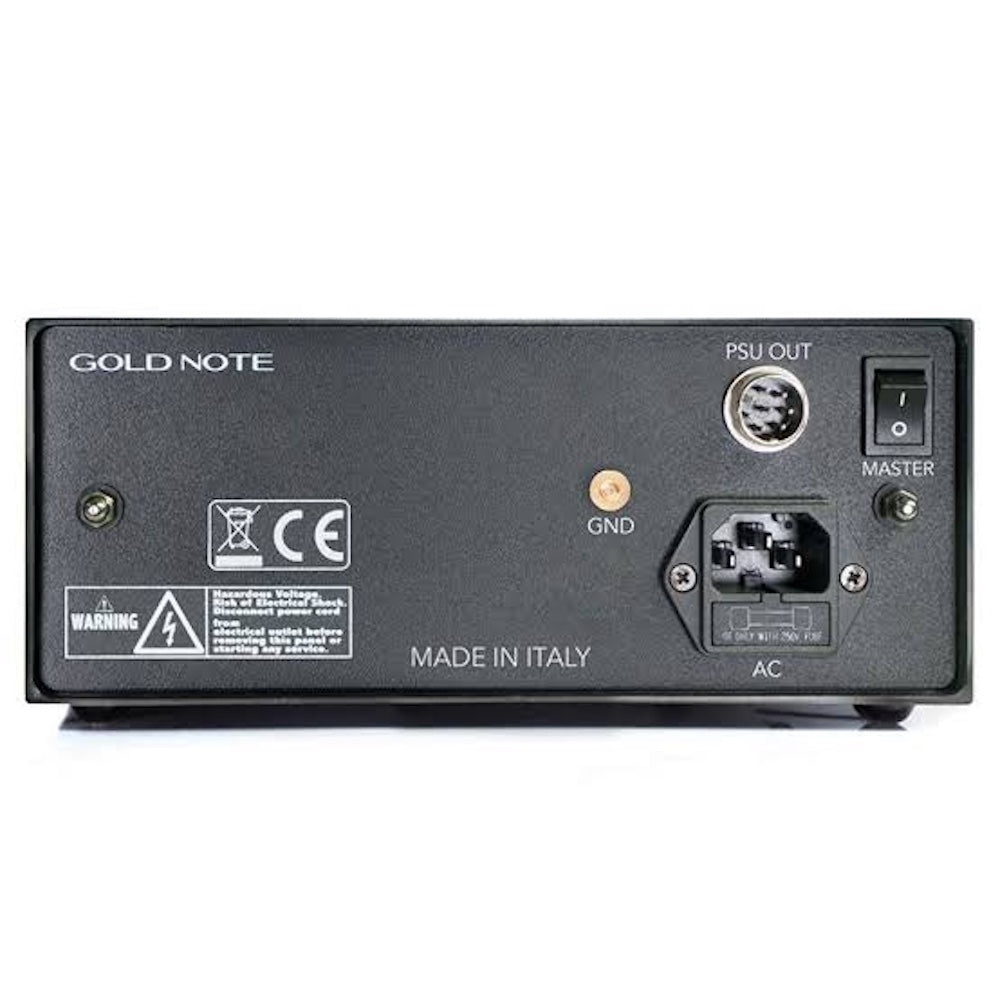

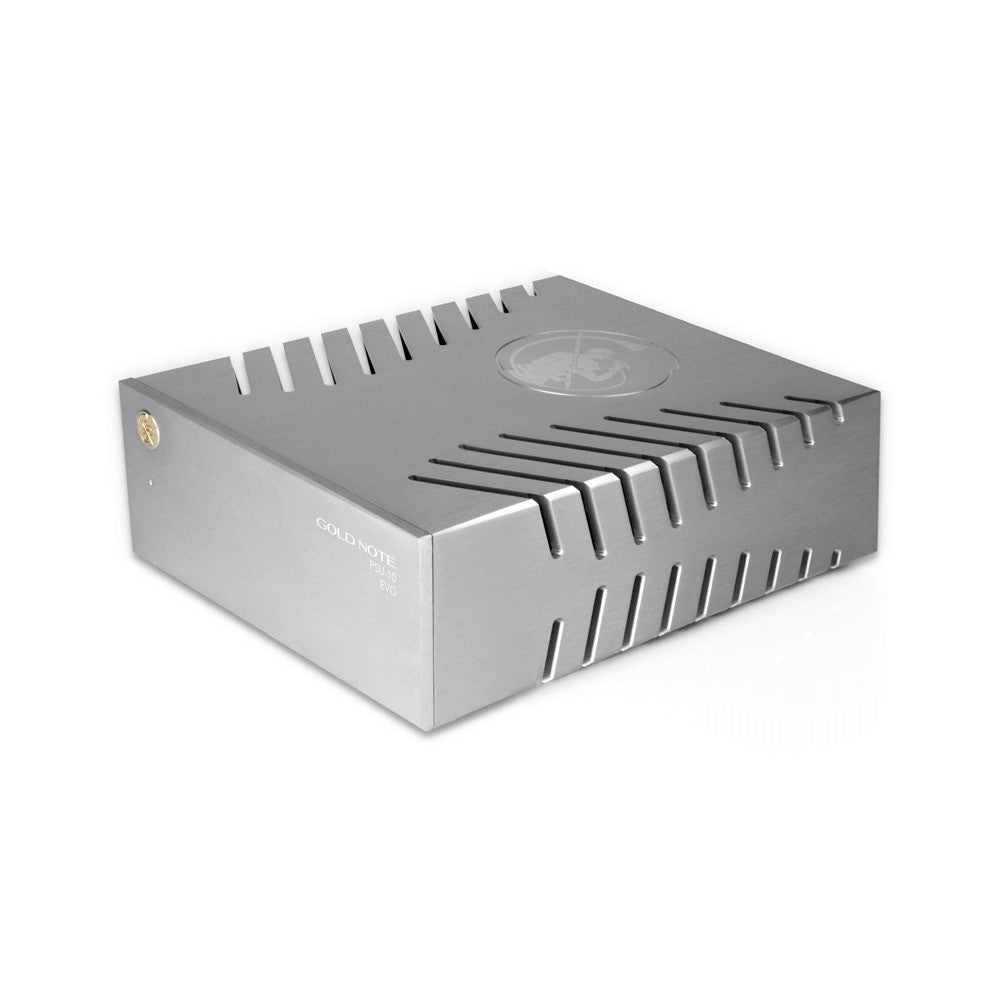

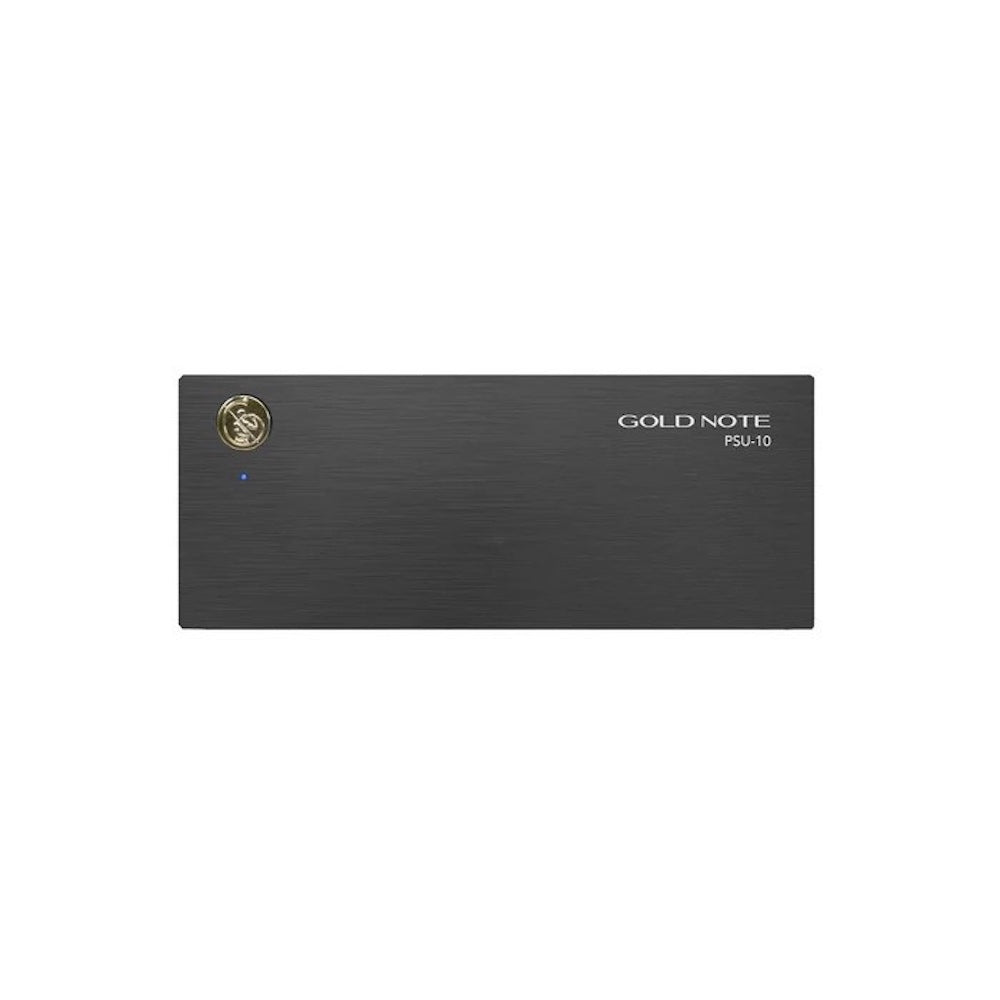

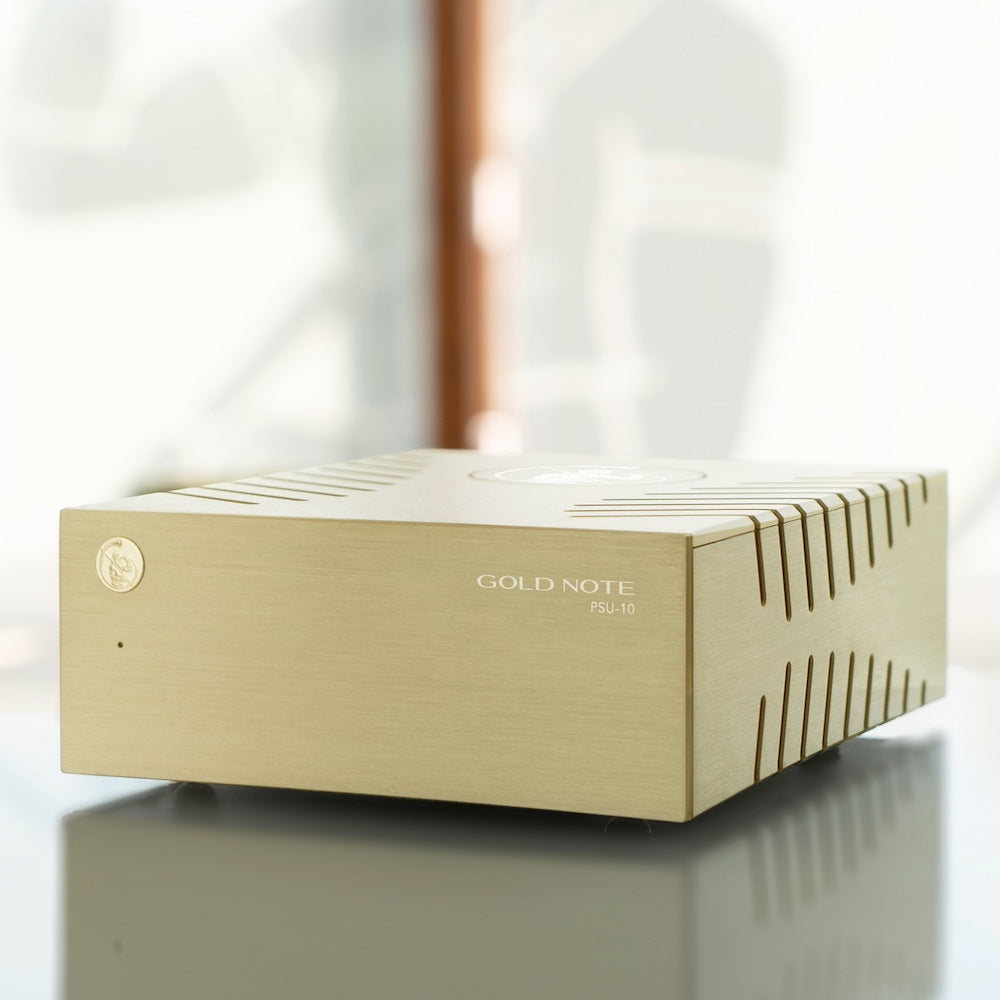

Gold Note PSU-10 External Power Supply

Gold Note PSU-10 External Power Supply

Usually Ships Within 2 Days.

$1,800.00 CAD
$999.00 CAD $1,800.00 CAD
Sale Sold out
Free Express Shipping In Canada
PSU-10

Free Express Shipping In Canada

Canadian Warranty

Professional Customer Experience

View full details

Description

The new Gold Note PSU-10 external power supply is designed to improve the performance of the Gold Note PH-10 phono preamp that features a hybrid Super Inductive Dual Choke technology. It is characterized by an inductive filter on the analogue stage and is powered by a double inductor that drives the high current stages both negative and positive. This proprietary technology is able to perfectly filter the signal voltage to eliminate any interference and electrical noise from the AC power system, achieving complete isolation and creating an ideal environment for the PH-10 phono stage to perform at its best. The power and cleanliness of sound generated by PSU-10 allow for reduced interference, ensure better dynamics and resolution, restore the smallest sound details and reproduce the musical event in an extremely realistic way. Dedicated to the pre-phono PH-10, the PSU-10 power supply has 4 power stages with 4 very low noise voltage regulators. The device is powered by 4 transformers, 3 of which are dedicated to the power supply and 1 to the special dual choke inductive filter. The PH-10 must be updated with the latest firmware to be compatible with the PSU-10 power supply; to know how to update your PH-10 consult the Download area of the Gold Note website.

The PSU-10 features a 4-transformer power supply stage enhanced with ultra-low-noise voltage regulators. The power supply stage takes advantage of a 4-transformer layout with 3 transformers entirely dedicated to the power supply and 1 for the inductive filter.

The PSU-10 Dual Choke Hybrid design features an inductive filter on the analogue stage and is powered by a double inductor, driving both the negative and positive high-current stages. Our proprietary technology perfectly filters the current to eliminate interference and electrical noise from the AC power system achieving ideal insulation, an ideal working environment for the electronics to perform at their best.



Specifications:

TECHNICAL FEATURES
Four rail audio grade power supplyFour ultra-low-noise voltage regulators
MAXIMUM VARIATION OF OUTPUT VOLTAGE0,05 %
LINE NOISE REJECTION>80dB
COMMON MODE NOISE REJECTION>80dB
FULL POWER RESPONSE TIME<2,5µsec

POWER

POWER SUPPLY100-120V / 220-240V with auto sense, 50/60Hz

POWER CONSUMPTION 25W

DYNAMIC POWER>50W

STAND BY POWER<1WFUSE0,5A T

DIMENSIONS AND WEIGHT

DIMENSIONS200mm W | 80mm H | 260mm D

WEIGHTKg. 4 Kg. 5kg – boxed
