The Epoch3’s reproduction of low frequency pitch information is second-to-none, while the bass dynamics are solid and authoritative. Harmonics are extremely faithful giving the recording the correct colour, and the mid-range is plush with resolution
The specially designed diamond stylus, for the first time in a Grado, is mounted on a sapphire cantilever that connects to the stylus generating system. The Epoch3 features a unique generating system that hasthe lowest effective moving mass of any cartridge, tracking accurately on vinyl. Our patented Flux-Bridger generator design creates a superior balance throughout the full frequency spectrum with superb resolution and clarity, which produces an overall truer picture of the music
Grado has combined newly developed coil winding techniques with decades-old disciplines. All of the internal magnetic circuit parts are Swiss screw machined or molded metal, which have tolerances on the order of the best Swiss-made watches. A new four-step shielding process brings not only exact unison between the four coils but an unobstructed path for the cleanest signal in any phono cartridge. This creates precise balance between channels and accurate stereo imaging. The Epoch3 is wound with the finest properly sized and annealed 24-karat solid gold wire, which is the ultimate conductor for the transmission of the music from your record.

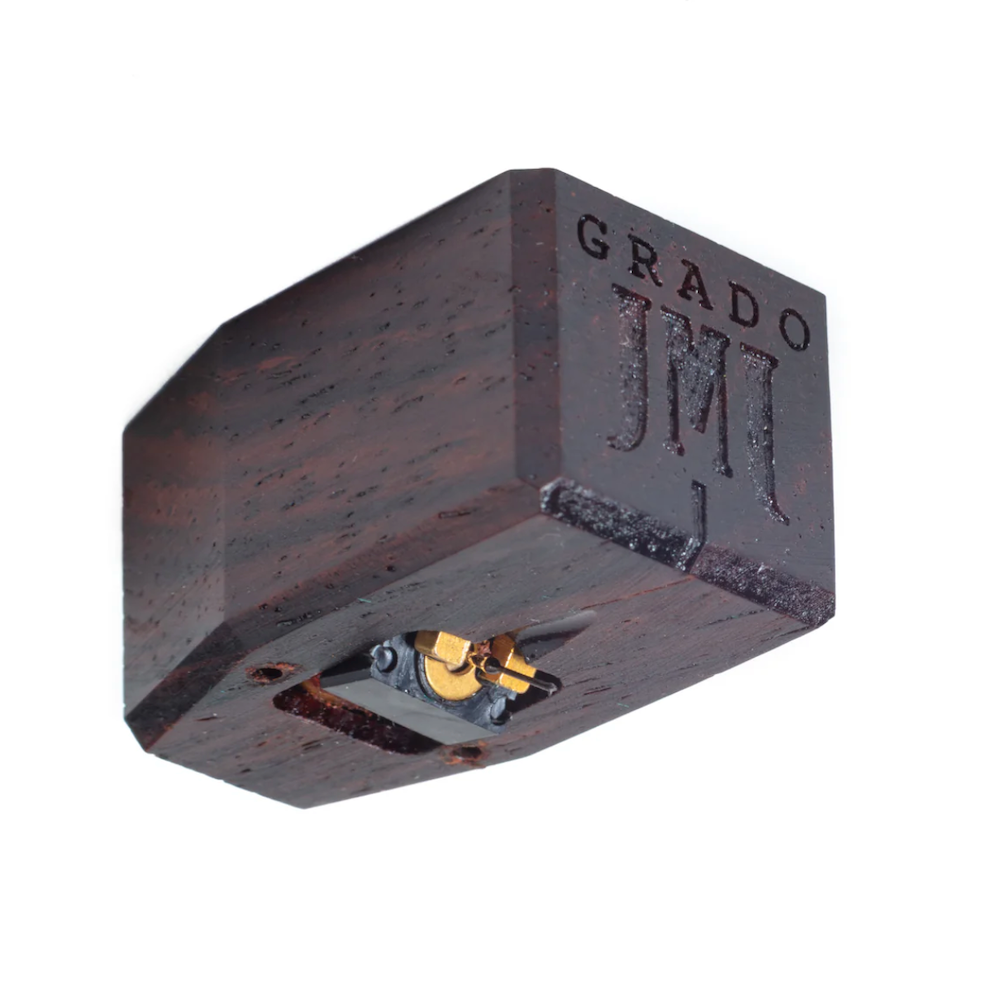

The flagship Grado cartridge is nestled inside a cocobolo housing, adding solid mass and a bold yet revealing signature sound. Cocobolo, known for fine instruments and those chess sets that look too nice to touch, is some of the most beautiful and tonally pleasing woods we have ever used.
- Body: Honduras Cocobolo Wood
- Cantilever: Sapphire / Eliptical Diamond
- Output: 1.0mV @5 CMV (45)
- Controlled Frequency Response: 5-75 KHz
- Channel Separation: Average 35db - 10-30k Hz
- Input Load: 10k-47k ohms
- Inductance: 8mH
- Resistance: 95 ohms
- Pickup weight: 12 grams
- Tracking force: 1.6 - 1.9 grams
- Compliance: 20μm/mN
- Non-Sensitive to Capacitive Load
