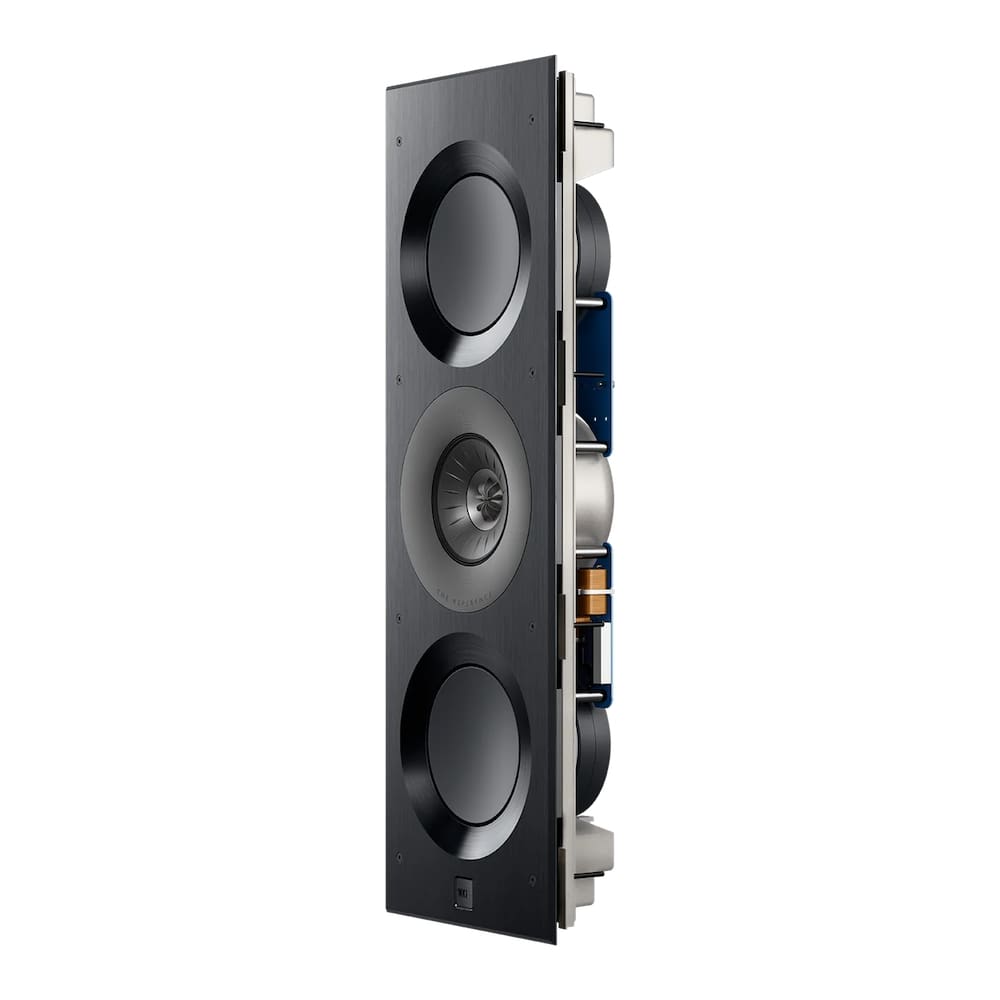

KEF Ci3160REFM-THX Reference In Wall Speaker

KEF Ci3160REFM-THX Reference In Wall Speaker

Regular price $11,999.99
Regular price Sale price $11,999.99
Sale Featured Sold out
Shipping calculated at checkout.

Lighting fast delivery in Canada

Canadian Warranty

Customer Experience

View full details

Description











The in-wall Ci3160REFM-THXReference architectural is a world-class speaker that is handcrafted by the KEF engineers in Maidstone, UK. It mirrors the Reference 3 Speaker's performance in an in wall application. It does not only meet the standards set by The Reference, but also one of the highest THX® performance classes – THX® Certified Ultra. Together with the 12th generation Uni-Q driver array with Metamaterial Absorption Technology (MAT), Ci3160REFM-THX delivers an immersive, high-fidelity soundstage with unmatched sonic excellence even for large home theatres and living rooms.

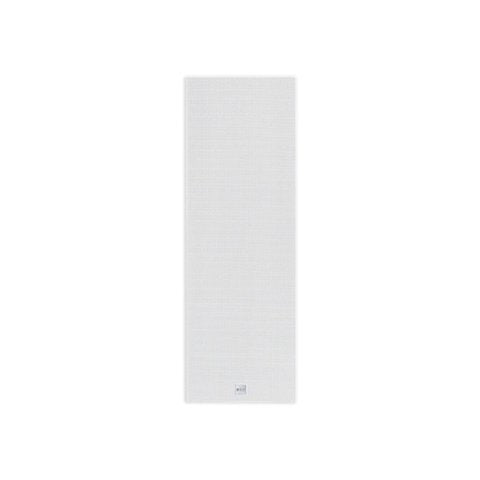

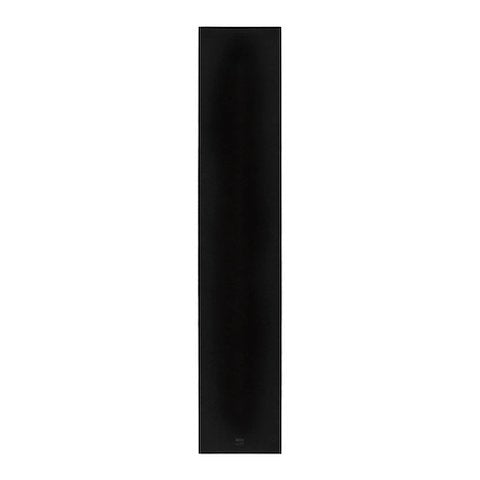

Paintable magnetic metal grille and magnetic cloth grille.

PRICED AS EACH.

Specifications:



Nominal Impedance
Sensitivity (2.83V/1m)
89dB
Frequency Response (±6 dB) open-backed
40 - 28kHz
Frequency Range (-10 dB)
32 - 45kHz
Nominal Coverage (degrees)
150°
Crossover Frequency
600Hz, 3000Hz
Drive Units
LF: 2 x 160mm (6.5in.)

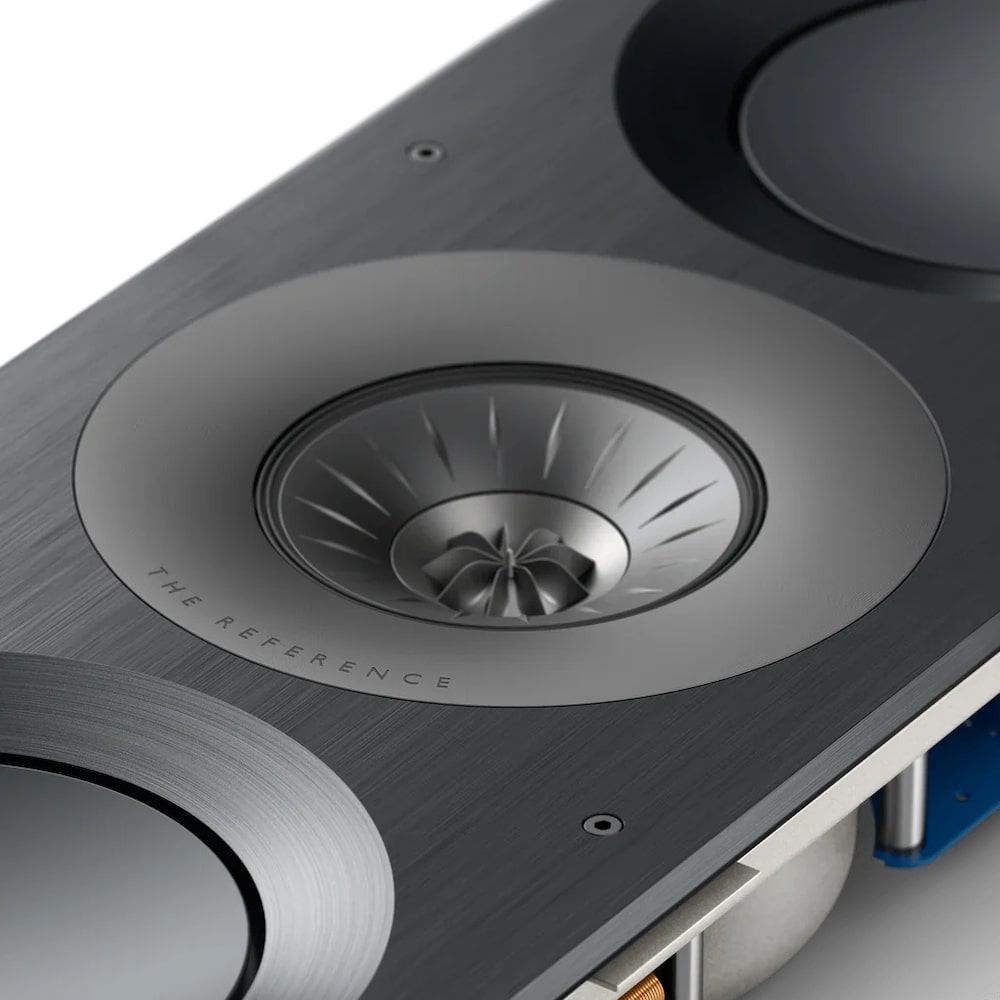

MF: 125mm (5.25in.) Uni-Q
HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology
Recommended Amplifier Power
50 - 350 W
Recommended High-pass Filter (Hz)
35Hz - 80Hz
Product External Dimensions (H X W X D)
680 x 230 x 105.7mm (26.77 x 9.06 x 4.16in.)
Cut-out Dimensions (H X W)
660 x 209mm (25.98 x 8.23in.)
Net Weight
13.6kg (29.92lbs.)
Mounting Depth From Surface
99mm (3.9in.)
Optional Rough In Frame
RIF3160L
Ideal Rear Volume (L)
60
Minimum Rear Volume (L)
30
Max SPL (dB)
110dB
Certification
THX Certified Ultra
Wall Thickness (Maximum)
40mm (1.58in.)
Wall Thickness (Minimum)
6mm  (0.24in.)
