Martin Logan

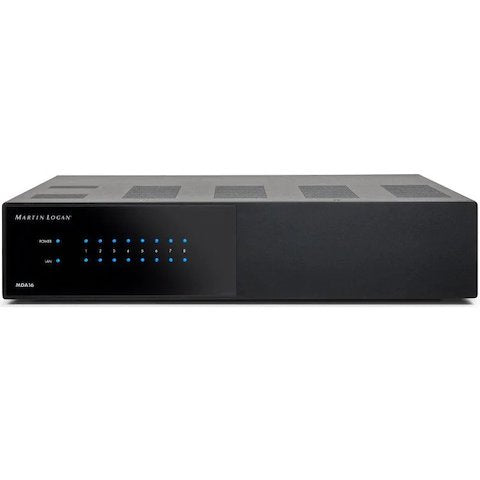

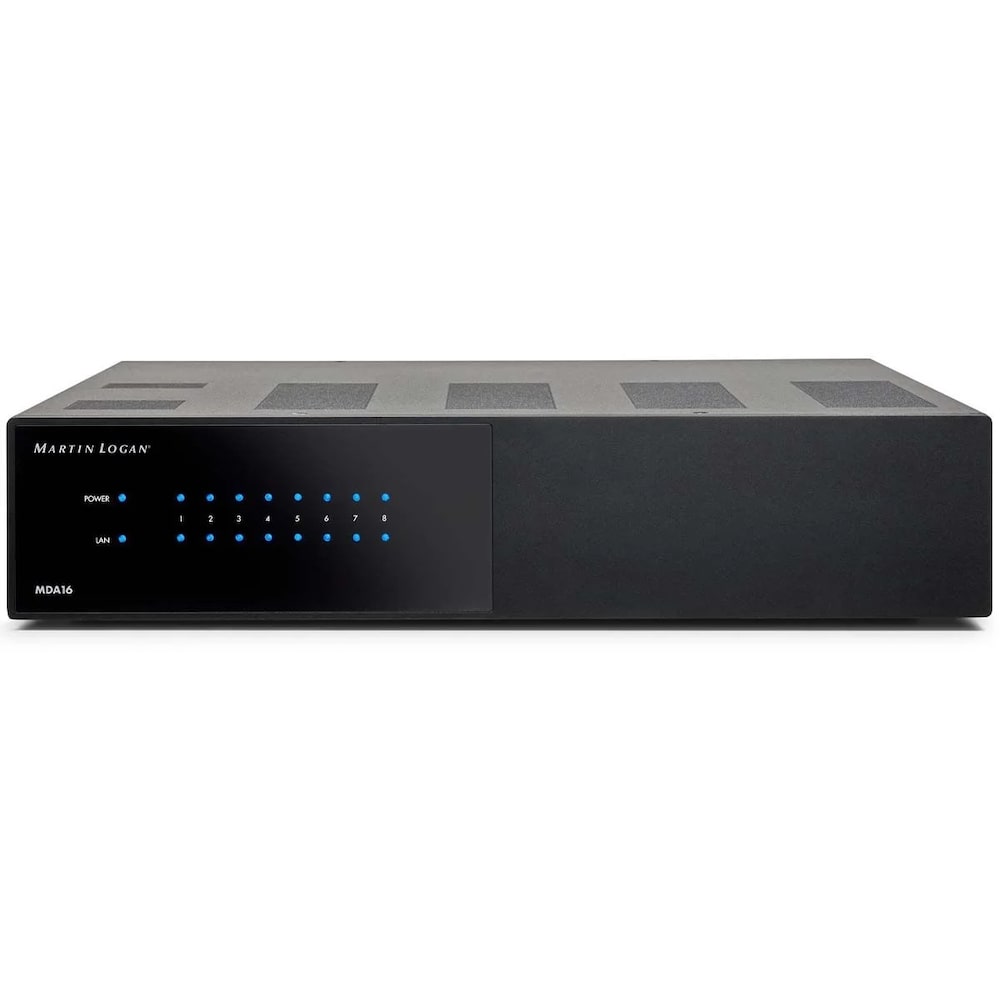

Martin Logan MDA16 16 Channel 8 Zone Amplifier

Martin Logan MDA16 16 Channel 8 Zone Amplifier

Regular price $3,999.99
Regular price Sale price $3,999.99
Sale Featured Sold out
Shipping calculated at checkout.

Lighting fast delivery in Canada

Canadian Warranty

Customer Experience

View full details

Description

Martin Logan does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for more information or to order. Thank you very much.

MDAs deliver dramatic levels of performance where it matters—in the room. MDAs accept high-resolution PCM up to 24-bit/192kHz. MDAs will never hold back a compelling musical experience. The MDA16 powers up to eight zones with sixteen full channels at 60 Watts per channel into 8 Ohms (or 120 into 4 Ohms). Zones can also be bridged for a high output mode with 200 Watts per channel into 8 Ohms.

Technical Specifications:

Channels / Zones

16 channels / Up to 8 zones

Power Output RMS per Channel (8 Ohm)

60 Watts

Power Output RMS per Channel (4 Ohm)

120 Watts

High Output Mode (Bridged) RMS per Channel (8 Ohm)

200 Watts

Digital-to-Analog Converter

PCM up to 24 bit/192 kHz

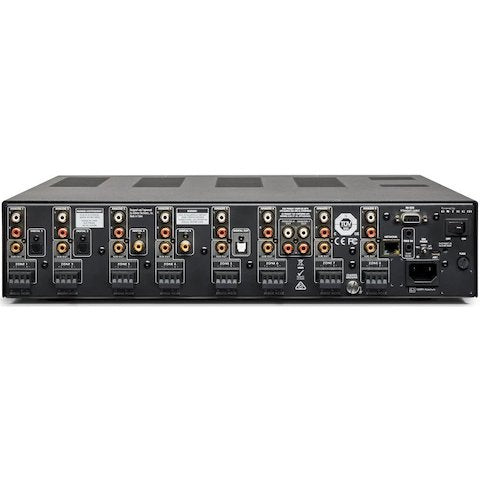

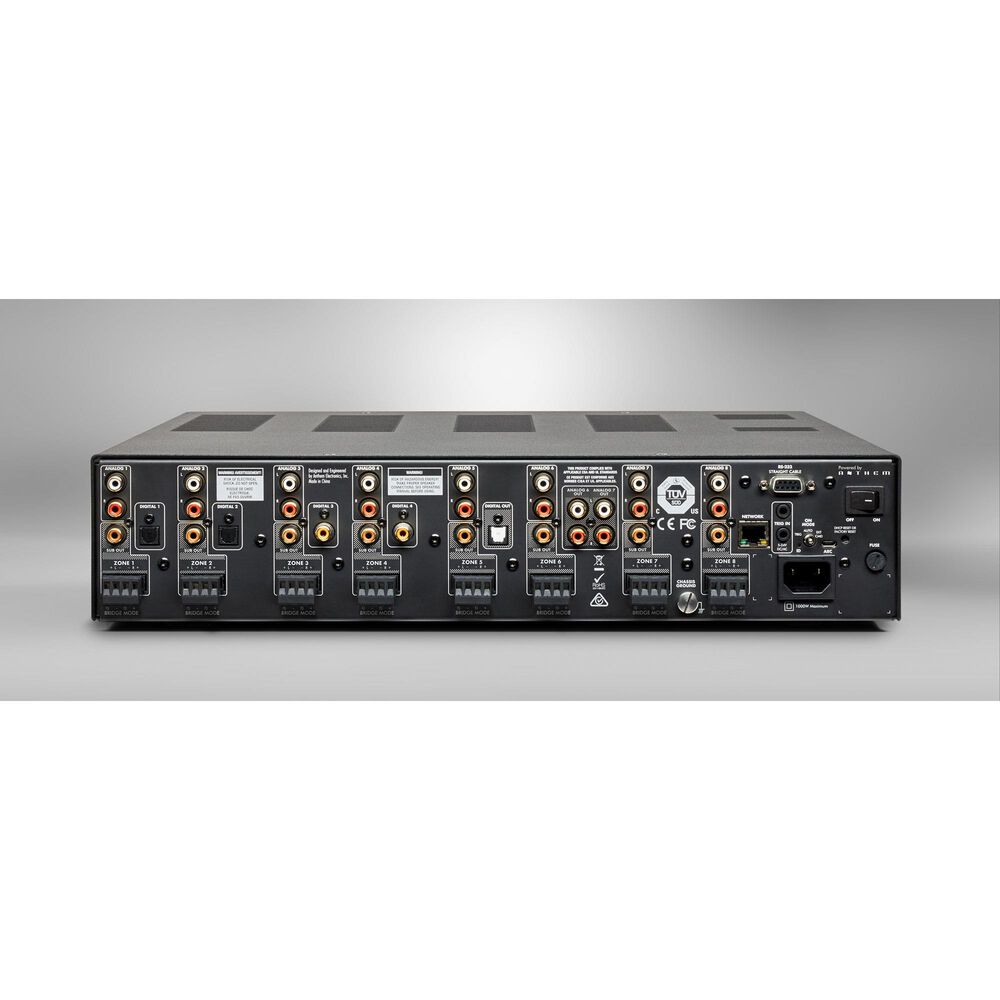

Inputs (analog)

8x RCA pairs (left/right)

Inputs (digital S/PDIF)

2x RCA coaxial; 2x optical (Toslink)

Inputs (network)

RJ-45 10Base-T/100
Base-TX ethernet port

Inputs (trigger)

1x 3.5mm (5 – 24V DC/AC)

Outputs (speaker level)

8x removable Phoenix style (left/right) accommodate wire up to 12AWG

Output (analog, passthrough)

2x RCA pair (left/right)

Outputs (subwoofer)

8x RCA (with bass management and room correction)

Outputs (digital matrix)

1x optical (Toslink)

Outputs (other)

1x 3.5mm 12V trigger

Audio In-Out Matrix

Yes

Advanced Load Monitoring

Yes

Controls (via web-based UI)

Bass level: ±6dB for each zone;
Trebel level: ±6dB for each zone;
Level balancing: ±10dB for each zone

Controls (back panel)

Power Mode: Auto, Trigger,
External Command;
Network Reset (pinhole);
Factory Reset (pinhole);
Main Power: On /Off

Microphone (for room correction)

Included dual input microphone
(3.5mm and mini-USB)

Setup

Web-based user interface

IP Control (via IP or RS-232)

Drivers for Control4, Crestron, Savant, URC, Elan

AC Voltage

120V~50/60Hz

Rack Mount Ears / Feet

Included

Rack Space (feet removed)

2U

Dimensions (H x W x D, with feet)

3.5” x 17” x 16.4” (8.9 x 43.2 x 41.7 cm)

Frequency Response

10Hz – 20kHz ±0.5dB

Room Correction

Anthem Room Correction (ARC®)

Inputs (Other)

Micro-USB (for ARC); RS-232

Weight

24 lbs. (10.8kg)
