All Motion Series On Sale While Supplies Last.
Please CALL Us For Pricing on Packages/Bundles.
Martin Logan does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for more information or to order. Thank you very much.

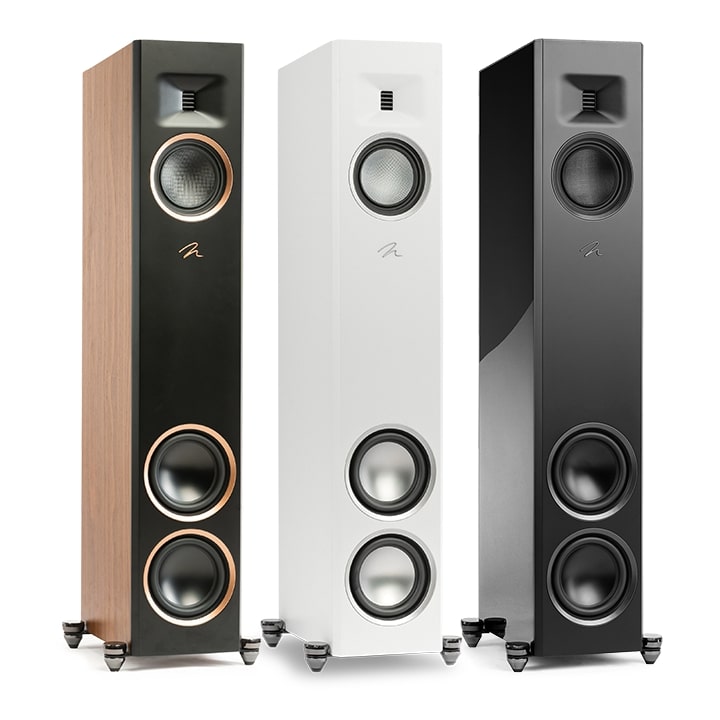

The compact 20i features a performance that is anything but small, the new Motion 20i features a Folded Motion® tweeter, dual 5.5-inch aluminum cone woofers with a rear-firing bass port, and a proprietary Vojtko crossover network. Motion 20i delivers the classic broad soundstage of the Motion Series from a newly designed enclosure enhanced by the slightest of modifications, including the drive-stabilizing dust cap design, stiffened motor suspension, and low-mounted woofers to reduce an acoustically harmful phenomenon known as floor bounce. The speaker’s enclosure sports a reinforced baffle and a fabric grille. Available in three stylish finishes: gloss black, matte white, and red walnut.
PRICED PER PAIR.
Specifications:
|
Frequency Response
|
46–25,000 Hz ±3dB
|
|
Recommended Amplifier Power
|
20—200 watts per channel
|
|
Horizontal Dispersion
|
80°
|
|
Vertical Dispersion
|
80°
|
|
Sensitivity
|
90 db/2.83 volts/meter
|
|
Impedance
|
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Crossover Frequency
|
500 & 2,600 Hz
|
|
High Frequency Transducer
|
1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm
|
|
Low Frequency Transducer
|
Two 5.5" (14cm) aluminum cone woofers in a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured dust caps reduce cone break-up.
|
|
Components
|
Precision Vojtko™ with custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel
|
|

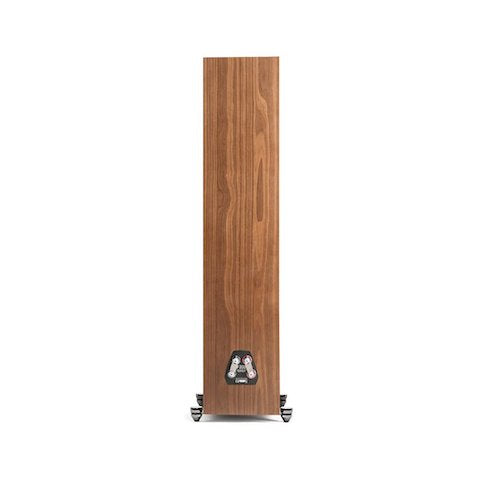

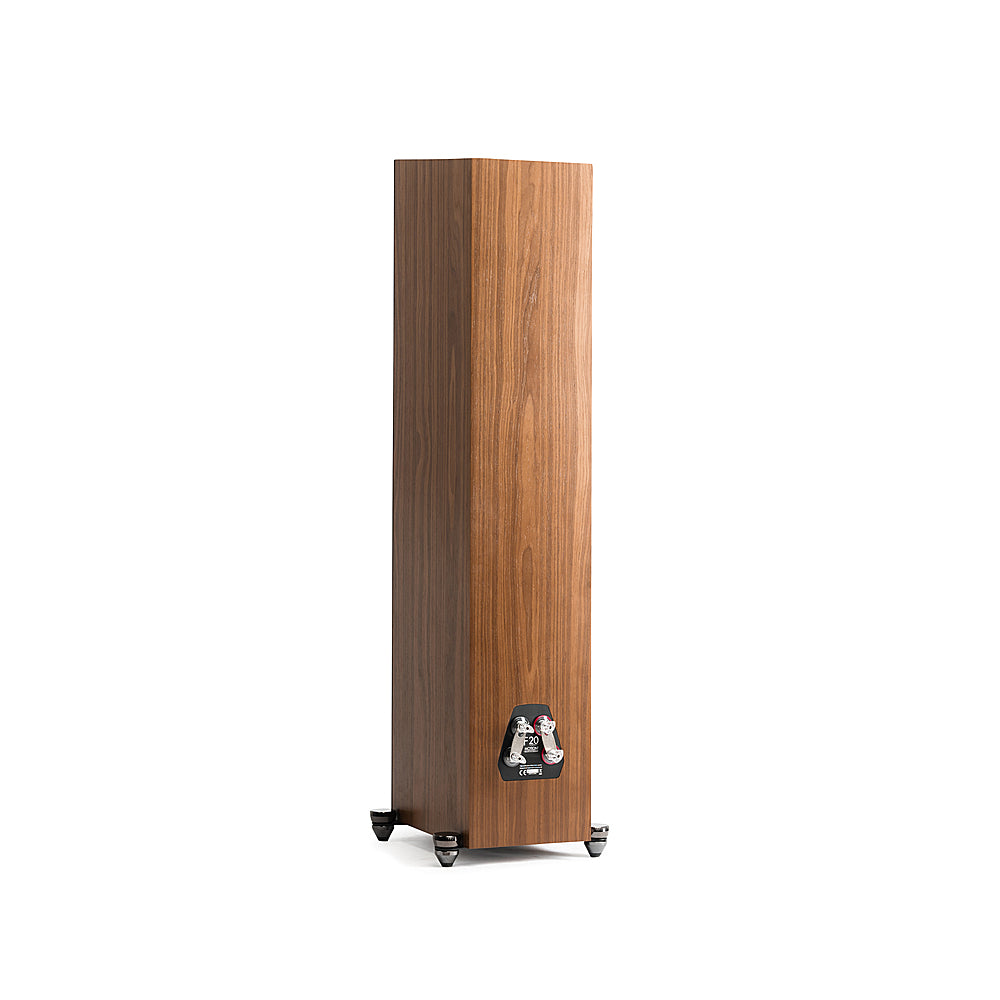

Inputs
|
Custom 5-way bi-wire tool-less binding posts
|
|
Weight
|
37 lbs. (16.8 kg)
|
|
Dimensions
|
36.6" x 6.8" x 11.7 "
(92.9cm x 17.3cm x 29.7cm)
|
