Description
No Discounts Possible. Affirm Cannot Be Used.

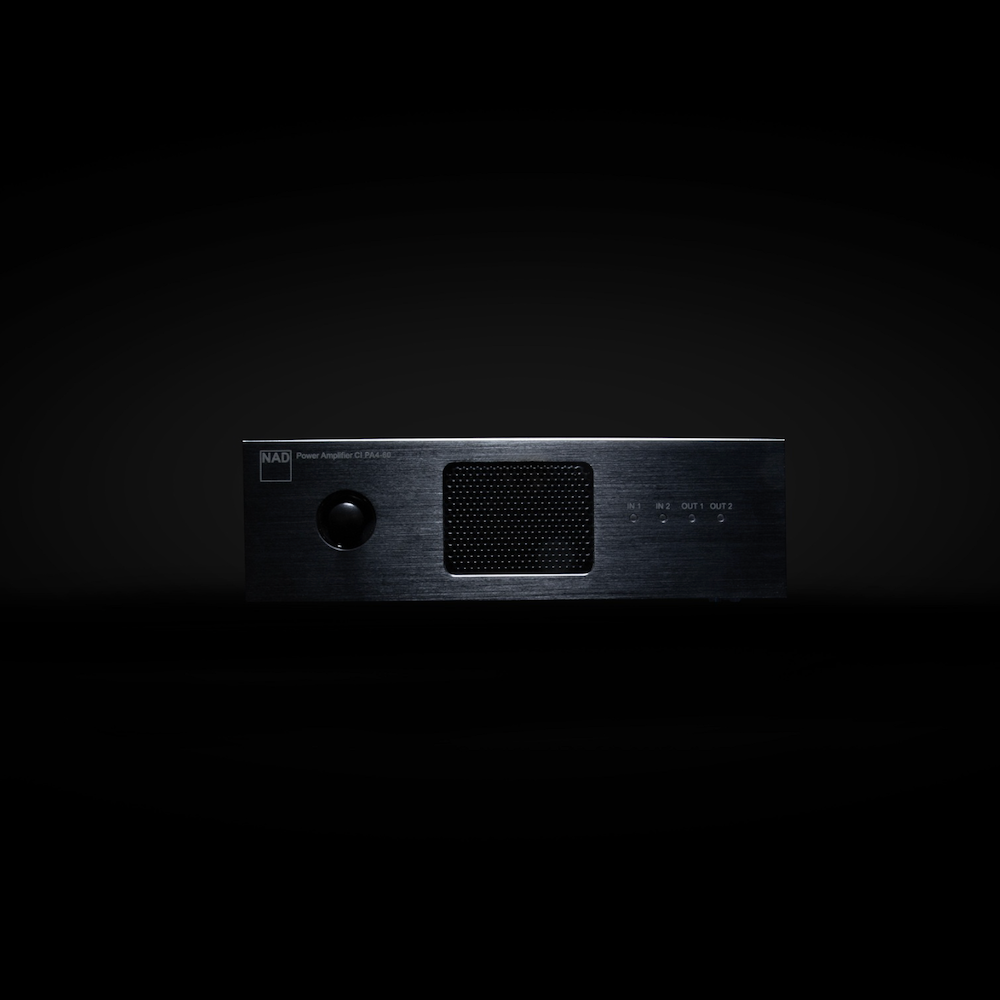

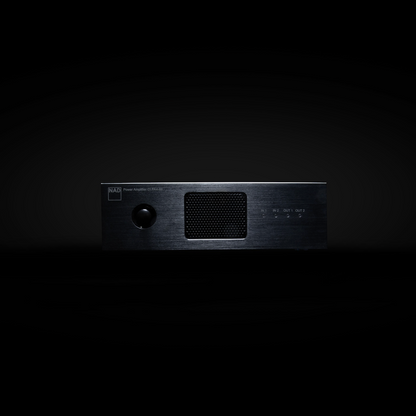

NAD's CI PA4-60 is designed with minimal rack space requirements (1/3 width x 1U height) while still managing to pack in a 4 x 60W DirectDigital™ amplifier. The amp can be used in a standalone configuration or daisy chained with multiple PA4-60s via the analogue loop out, powering up to 12 channels in just 1U of rack space. With NAD’s legendary load invariant amplification design, the CI PA4-60 effectively handles long cable runs and difficult speaker loads, producing clear and detailed audio at even low SPL. This amplifier is highly reliable and efficient, designed with thermostatic fan cooling to pull air through from the front to the rear of the unit, meaning they can be stacked with minimal space between.
Key Features:
4 x 60W or 2 x 120W (continuous into 8 ohms) of DirectDigital™ amplification
Dynamic Load Management auto-detects and routes power to outputs according to number of speakers connected
Compact 1/3 width x 1U height rack size
2 x RCA line inputs with input gain potentiometers
1 RCA line output (loop out from Input 1)
Global/local dip switch for Input 1
Stereo/mono selection for Inputs 1 & 2
2 x 4-pin snap-on Phoenix block speaker connectors
Flexible wall or rack mount, and surface placement options
Specifications:
AUDIO
• Signal-to-Noise Ratio
• -102dBA
• Distortion
• THD+N, 0.005%
• Amplification
• DirectDigital™
• Rated Power Output
• Dynamic Power Management – 120W x 2 or 60W x 4 (8 Ohms)
• IHF Dynamic Power
• 300W (4ohm)/200w (8ohm)

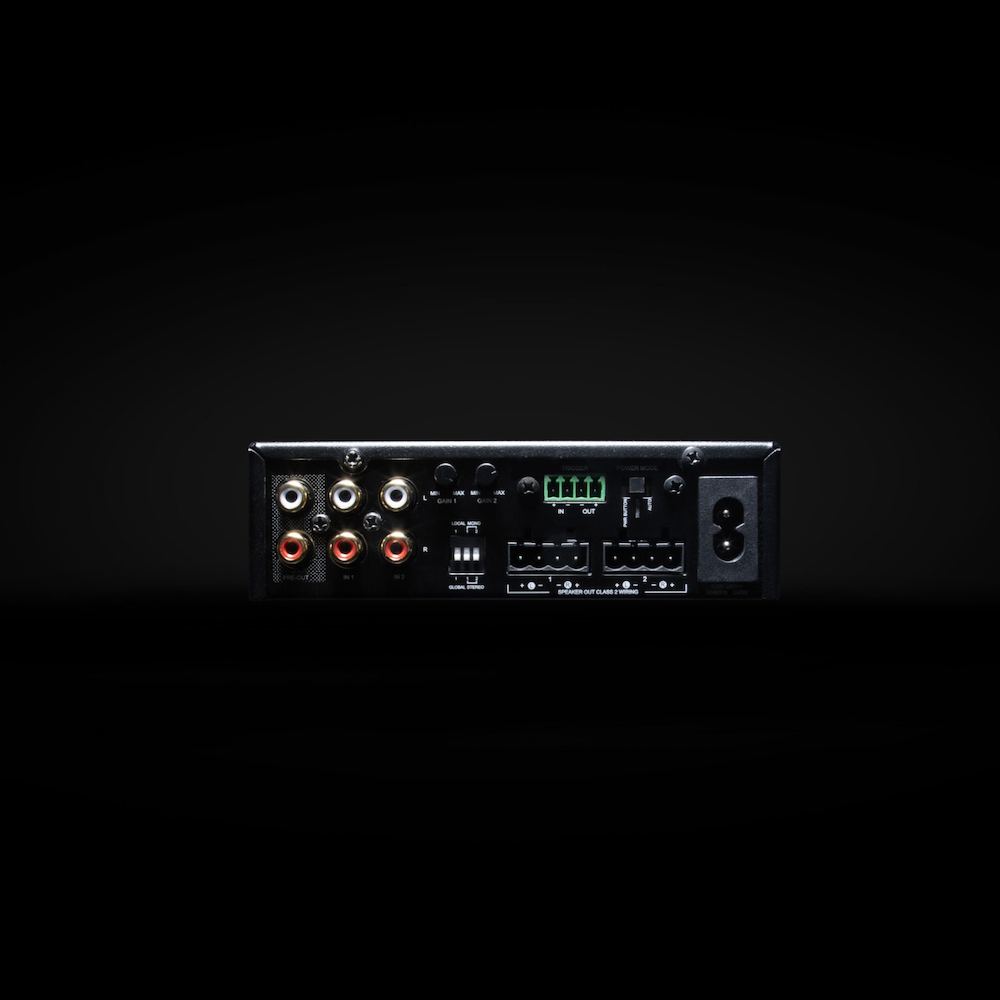

CONNECTIONS
• Power Supply
• Universal 2-pin AC cord input (100-240AC)
• Inputs
• 2 x Stereo RCA
• Outputs
• 1 x Stereo RCA Pre-Out, 2 x Speaker outputs
• Speaker Terminals
• 2x 4-PIN Snap On PHX 5.08mm Connector (Supports up to 12 AWG)
• 12v Trigger Input
• x1 (Unit Power On)
• 12v Trigger Output
• x1
USER INTERFACE & CONTROL
• Input Gain Control
• x2 Input Gain Potentiometers (-6 to +6 dB range)
• Power Mode Control
• 3-way switch (Power Button, 12v Trigger, Signal Sense options)
• Input Control
• Input 1 Local/Global, x2 Input Stereo/Mono selection
• Status Indicator
• Power Status LED
• Source Status Indicator
• x2, Connected Input Active
• Output Status Indicator
• x2, Output pair 1, Output Pair 2 (Output active, Temperature/Protection warning)
GENERAL
• Finish
• Black
• Included Accessories
• 120V AC Power Cord
• 230V AC Power Cord
• 2 x Short rack ears (also used as wall mount brackets)
• 2 x Long Rack ears/Blanking plates
• 2 x Shoulder Bolts + 2 x Rubber Washers (already attached for ChassisLink)
• 2 x 4-PIN Snap On PHX 5.08mm Speaker Connectors
• 1 x 4-PIN PHX Connector for 12v Trigger In/Out
• 4x optional stick on rubber feet
• Max Power Consumption
• TBD
• Storage Environment
• -10°C to 50°C, 20% to 80% relative humidity
• Operating Environment
• 0°C to 40°C
• Dimensions (Product)
• (WxHxD metric) 146.5 x 44 x 384 mm
• (WxHxD imperial) 5.77 x 1.73 x 15.11 inches
• Weight (excluding rack ears & connectors)
• 2.35 kg/5.18 lbs
• Dimensions (Shipping, Single Unit)
• (LxWxH metric) 520 x 228 x 140 mm
• (LxWxH imperial) 20.5 x 9 x 5.5 inches
• Weight
• 3.35 kg/7.4 lbs
• Dimensions (Shipping, Masterpack)
• Units per carton: 6
• (LxWxH metric) 532 x 470 x 444 mm
• (LxWxH imperial) 20.5 x 9 x 5.5 inches
• Weight
• 20.3kg
• GS1/UPC/EAN Codes
• Black
• SKU/Version
• PA4-60
• Generation
• 1
