Woo Audio 3ES (2nd Gen) Electrostatic Headphone Amplifier

Woo Audio 3ES (2nd Gen) Electrostatic Headphone Amplifier

PLEASE CONTACT US FOR AVAILABILITY.

Regular price $13,999.00
Regular price $12,869.00 Sale price $13,999.00
Sale Featured Sold out
Free Express Shipping In Canada
3ES

Free Express Shipping In Canada

Canadian Warranty

Professional Customer Experience

View full details

Description

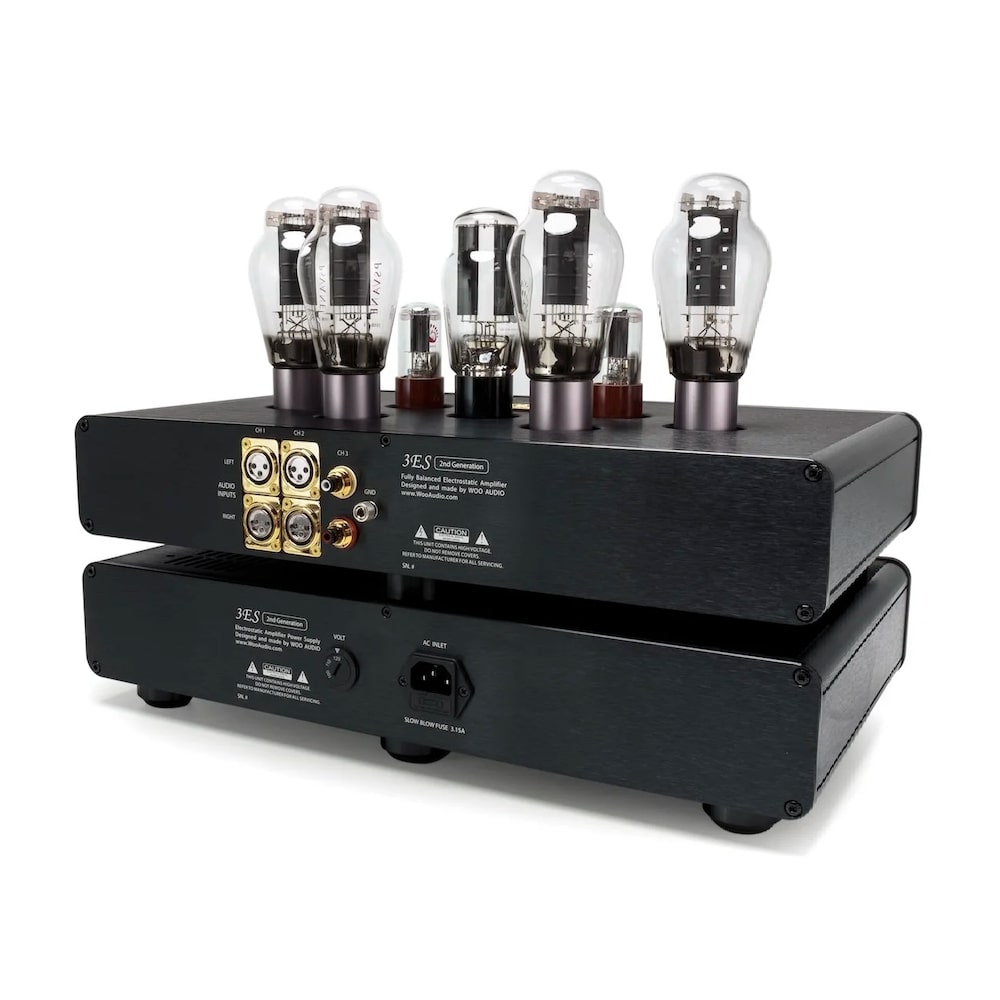

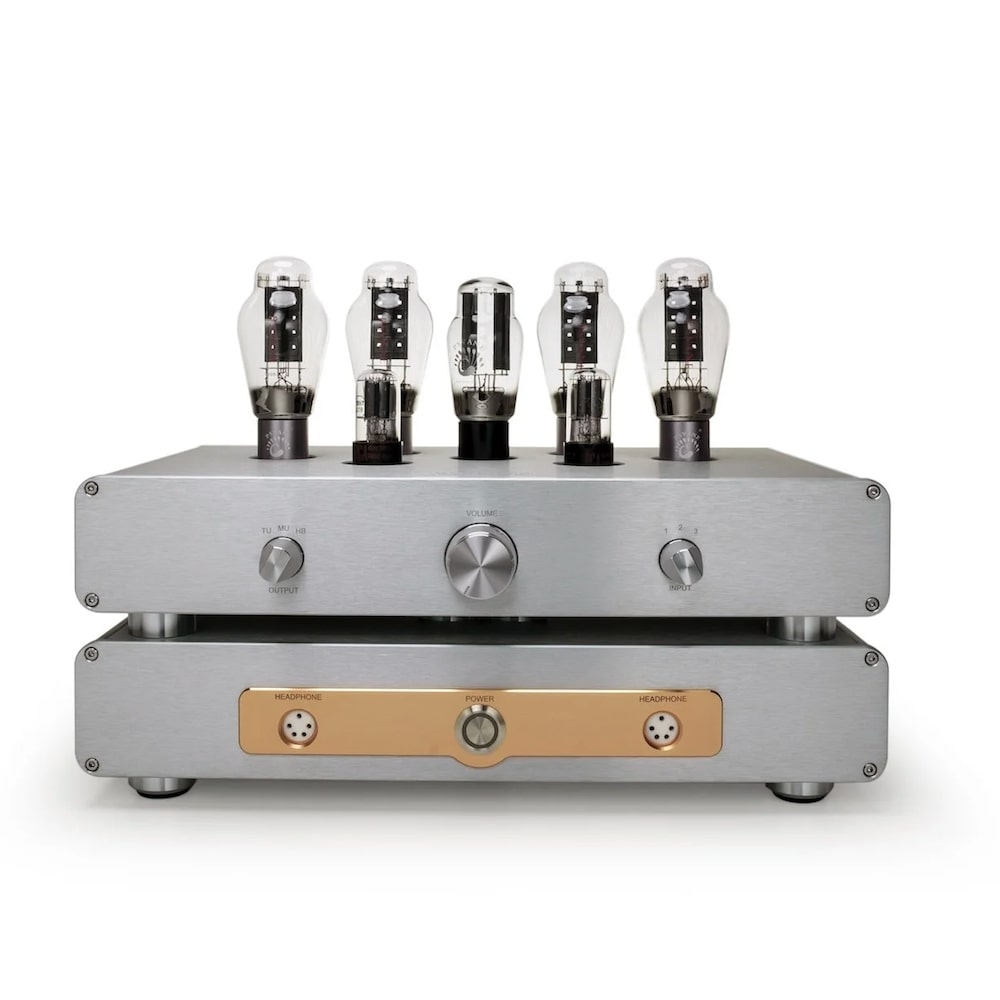

Woo Audio's all-new 3ES (2nd generation) is our flagship electrostatic headphone amplifier. The new 3ES (2nd generation) is simply without equal, delivering unmatched musicality, power, and precision. For those seeking the absolute best for their electrostatic headphones, 3ES (2nd gen) is a league of its own. The 3ES 2nd gen features a redesigned output stage utilizing a matching quad of 300B power tubes, then output through our house-made push-pull output transformers, delivering a powerful, pure-tube sound—the ideal match for electrostatic headphones.

A newly redesigned driver stage offers two modes of operation: TUBE or HYBRID. In TUBE mode, a pair of 6SN7 driver tubes is used, delivering a warm, organic, and harmonically rich presentation with a spacious soundstage, perfect for listeners who value natural warmth and musicality. In HYBRID mode, precision transistor amplifiers are engaged, offering a faster, more dynamic response with tighter bass control and enhanced detail retrieval, ideal for those who prefer maximum clarity and accuracy. These two driver modes allow the user to conveniently choose their sound preferences. The 3ES maintains the same architecture as our flagship WA33 (2nd gen) dynamic headphones amplifier in a two-tier chassis design, where the top section is an amplifier coupled to the power supply using our internal coupling architecture (ICA) technology. Tube configuration includes two 6SN7 drivers, four 300B power output tubes, and one 5U4G rectifier tube.



Specifications:

  • Re-designed the output stage using our newly developed output transformers

  • Re-designed driver stage using our own STEP-UP Driver

  • User-selectable driver using 6SN7 or precision operational amplifier

  • Compatible with 5-pin 580v (Pro-bias) for STAX, Audeze, HiFiMan, MrSpeakers electrostatic headphones

  • Dual headphone outputs [simultaneous operation for two (2) of the same make and model headphones]

  • TKD (Tokyo Ko-on Denpa) 4-channel balanced smooth potentiometer

  • XLR input x 2, RCA input x 1

  • Maximum output 1500Vrms

  • Anodized aluminum chassis, available in black or silver

  • Self-biasing with compatible tubes

  • Dimensions: 17.5"(W), 12"(D), 13"(H) with tubes, weight 54 lbs. / 24.5 kg.

  • Voltage: AC 100 - 120V 60HZ or AC220 - 240V, 50HZ, voltage built to destination country

  • Designed and assembled in New York, USA

  • Three-year limited warranty
