IN STOCK. One Only.
Please Give Us A Quick Call For Pricing.

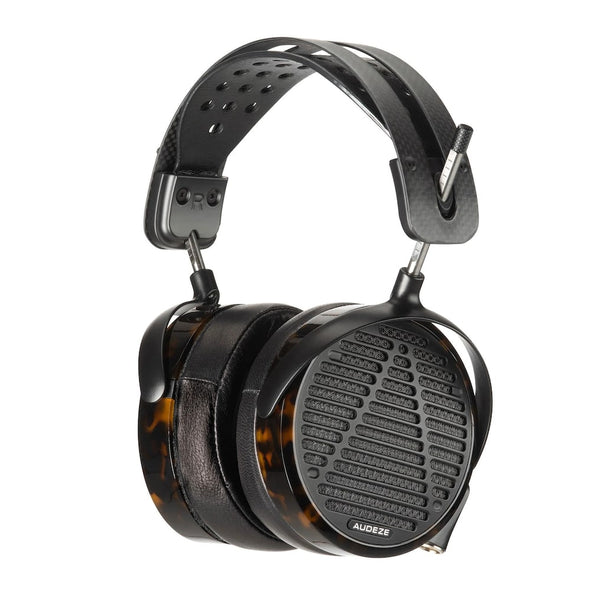

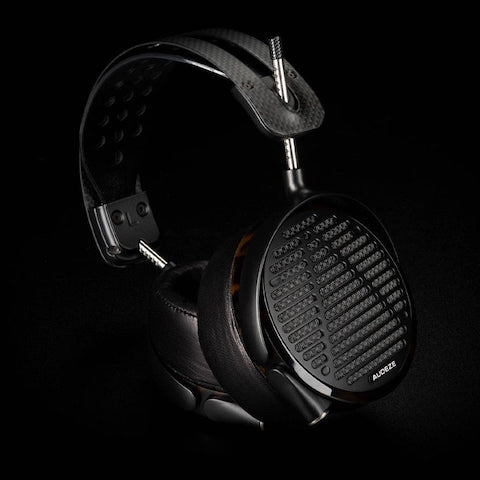

The LCD-5 sets a new standard for accuracy. Its drivers are engineered with our award-winning Fluxor magnets and updated Fazor waveguides along with our new Patent-pending Parallel Uniforce™ voice coils, which employ varying width parallel traces to keep the impedance low and provide increased voltage headroom by altering the current density within each trace. The uniform force created by this optimization lowers distortion and provides better control over diaphragm movement, resulting in improved sonic resolution. LCD-5 also features newly designed low-profile Fazor waveguides to further reduce diffractions and interactions with the ear.
At only 420 grams, the LCD-5 offers hours of listening pleasure. Every part has been re-engineered, using materials such as magnesium, aluminum and acetate which offer light weight and high rigidity. When you put on a pair of LCD-5s, your head and ears are cradled in materials of the finest quality. Supple premium leather and carbon-fiber pull all the elements together into a package of the finest craftsmanship, which we hand-assemble in our California workshop. New sculpted, internally sloped earpad architecture reduces unwanted resonances and interior reflections. The ergonomic design cradles your cranium, and helps naturally place the headphone in the optimal listening position. The pads have less contact surface area than standard designs to reduce fatigue while providing a superior seal for all shapes and sizes. The LCD-5 cable is specially tuned with directional OCC high-purity copper that provide a low capacitance and low resistance path for the signal to travel from your amp to the drivers, maintaining unsurpassed clarity and precision.
The Audeze LCD Series Premium cable features cryogenically treated four conductor stranded wire, each wire consisting of a large number of extremely fine strands of single-crystal OCC copper with a combined cross section equivalent to AWG 20 that ensures low resistance and negligible signal loss. The white/black cable uses silver-plated copper strands. Crystals within strands are oriented in a specific pattern to provide the best possible signal transmission.
- Very flexible, tangle free
- Non-microphonic jacket
- Length: 2.5m; Weight: 110 g
Connectors:

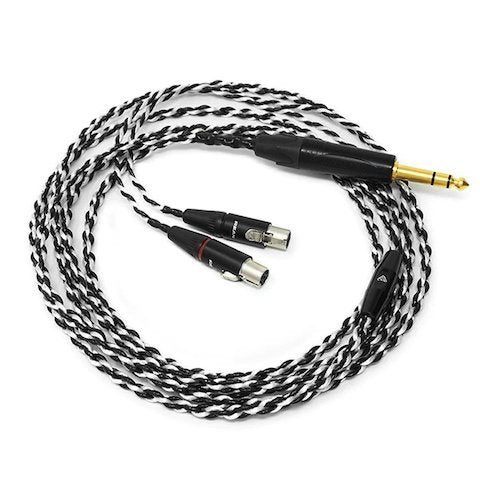

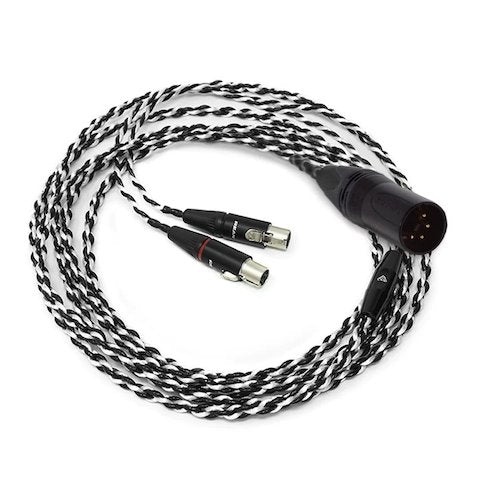

- 1/4" (6.3mm) stereo OR 4-pin balanced XLR plug for connection to amplifier
- 2 x 4-pin mini XLR for headphone earcup connection
Electrical Specifications:
- Resistance: 12 milliohms per foot
- Capacitance: 10 picofarads per foot
- Inductance: 0.15 microhenrys per foot
- Dielectric strength: 1000V
PLEASE indicate choice of Balanced 4 pin XLR or 6.3mm Single Ended Connector in the check out notes. Thank you.
LCD-5 Specifications:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Nano-Scale Parallel Uniforce™
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
90 dB/1mW (at Drum Reference Point)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
