Frequency Response
|
63–25,000 Hz ± 3 dB
|
|
Tweeter Dispersion (horizontal x vertical)
|
30° x 80°
|
|
Sensitivity
|
92 dB @ 2.83 volts/ meter
|
|
Impedance
|
4 ohms. Compatible with
4, 6, or 8 ohm rated amps.
|
|

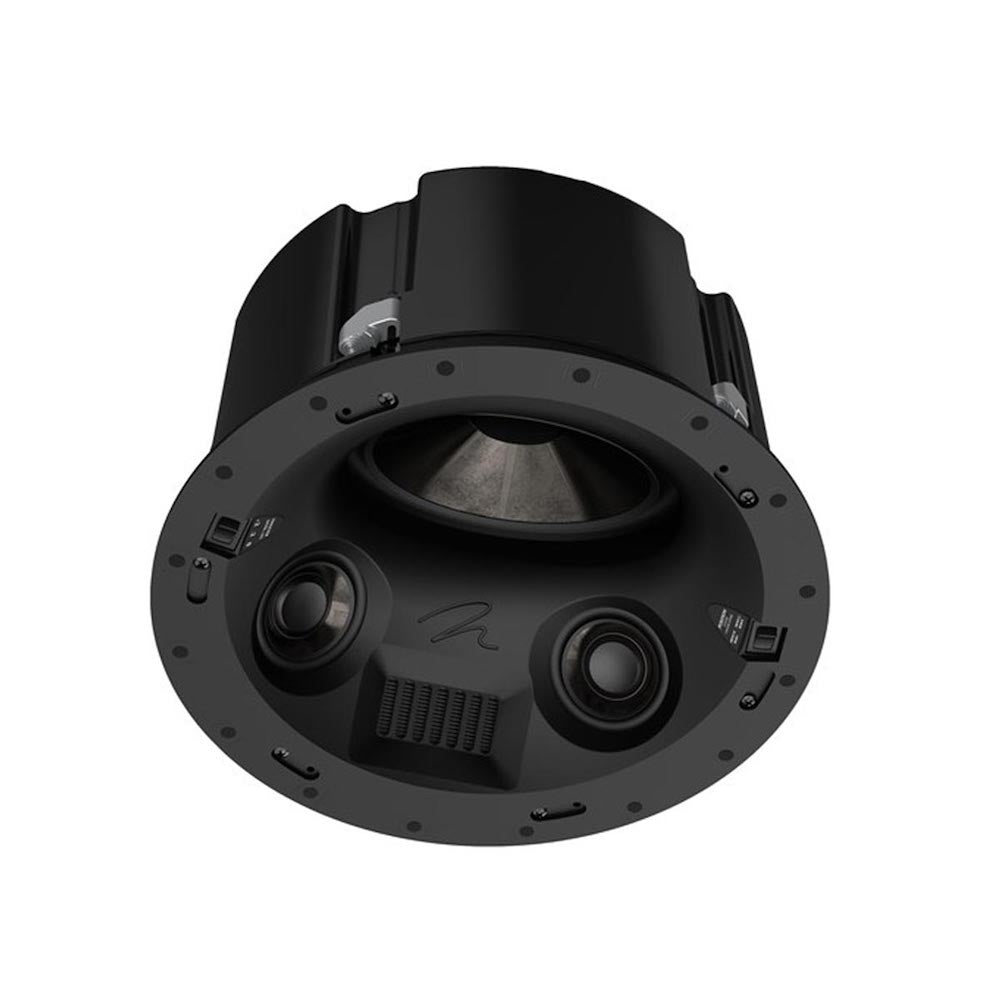

High Frequency Driver
|
1.25 x 2.4 inch (3.2 x 6.1 cm)
Folded Motion XT Obsidian
transducer with 4.5 x 2.75 inch
(11.4 x 7 cm) diaphragm.
|
|
Crossover Frequency
|
400, 2250 Hz
|
|
Mid-Frequency Drivers
|
Two 3.5-inch (8.9 cm) black
unidirectional carbon fiber
multi-section cone with Nomex®
backer and cast aluminum
basket, sealed back chamber
format. Concave dust cap.
|
|
Low Frequency Driver
|
8-inch (20.3 cm) black unidirectional
carbon fiber multi-section cone
with Nomex® backer and cast
aluminum basket, sealed back
chamber format. Concave dust cap.
|
|
Controls
|
Tweeter Level (dB): +2, –2, 0
Position: Front R/Rear L, Front L/
Rear R, For center choose either
|
|
Components
|
Custom air core coil inductors,
polypropylene film capacitors,
and low DF electrolytic capacitors.
Thermal/current protection.
|
|
Suitable Amplifier Range
|
20–300 watts
|
|
Max Power Handling
|
150 wat
|
|
Binding Post Inputs
|
Push style
|
|
Weight
|
13.5 lb (6.1 kg)
|
|
Dimensions (overall size)
|
12.8 x 7.5 inch
(325 x 190 mm)
|
|
Required Wall Opening (includes tolerance)
|
11.46 inch
(291 mm)
|
|
Projection From Wall Surface
|
0.26 inch
(6.6 mm)
|
|
Depth Behind Wall Surface
|
7.2 inch
(184 mm)
|
|
Optional Accessories
|
Pre-install bracket (PN: C8HTBRK)
Square grille (PN: C8HTSQ)
|
