On the outside, Exposure products are simple, clean and elegant. Robustly built, they offer friendly features and clear controls. Exposure believes that the best place for all the complex engineering is on the inside, where decades of research and development go into producing that renowned musical performance. Hand Built in England.
MM and MC Phono Stage Options are available for $499 each.
DSD Dac Option available for $599.
PLEASE NOTE: Phono and Dac cannot be combined.
Features of the New 3010S2D
Hand Crafted in England - NEW MODEL
Fast bipolar transistor output stage for dynamic and vivid performance NEW
New power supply adds extra stages of regulation for improved performance NEW
110 watts RMS per channel into 8 Ohms

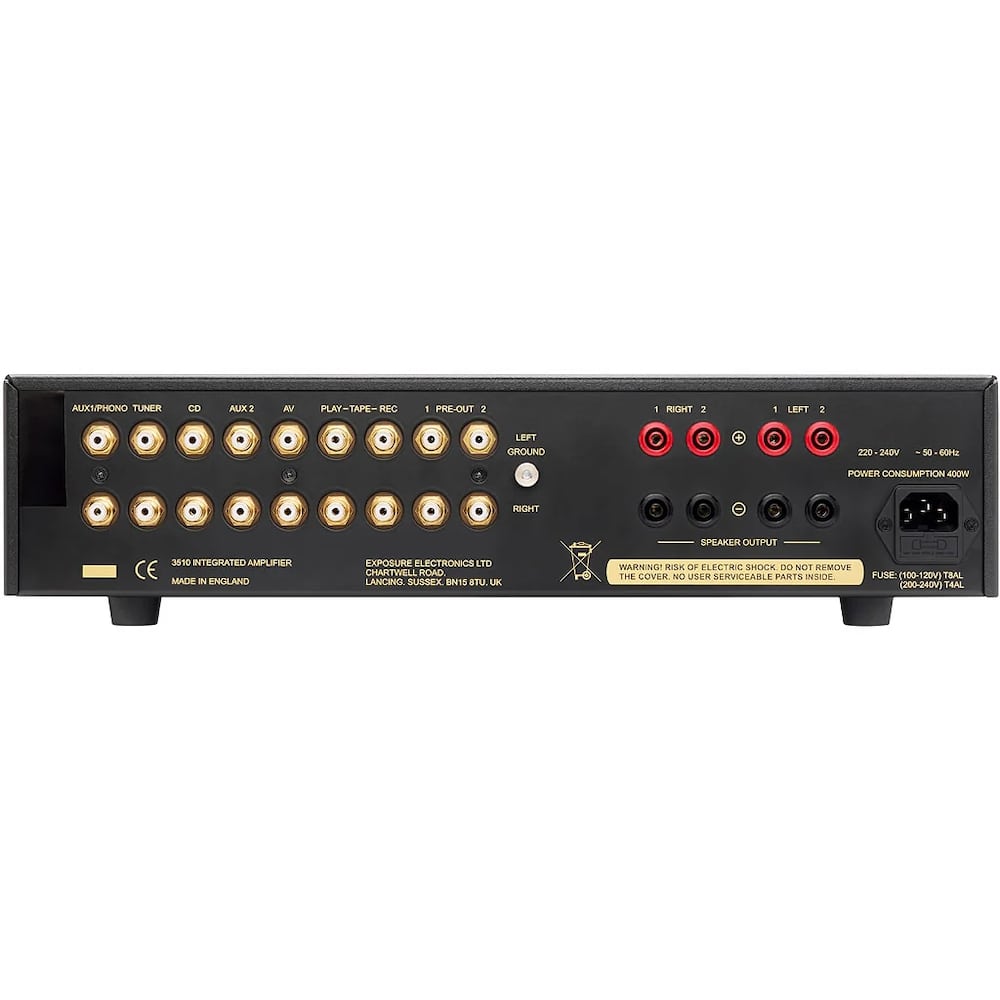

Six line inputs including direct AV with fixed gain NEW
Option to fit a DAC module (24bit 192kHz) NEW
Updated pre-amp section with advanced circuit design NEW
Option to fit a MC or MM phono module
Separate pre-amp output with class A buffer stage
High quality capacitors used in the signal path
Uniquely tuned short signal and power supply path PCB
Cascode circuitry utilised for improved power supply immunity
Fast bipolar transistor output stage for dynamic and vivid performance

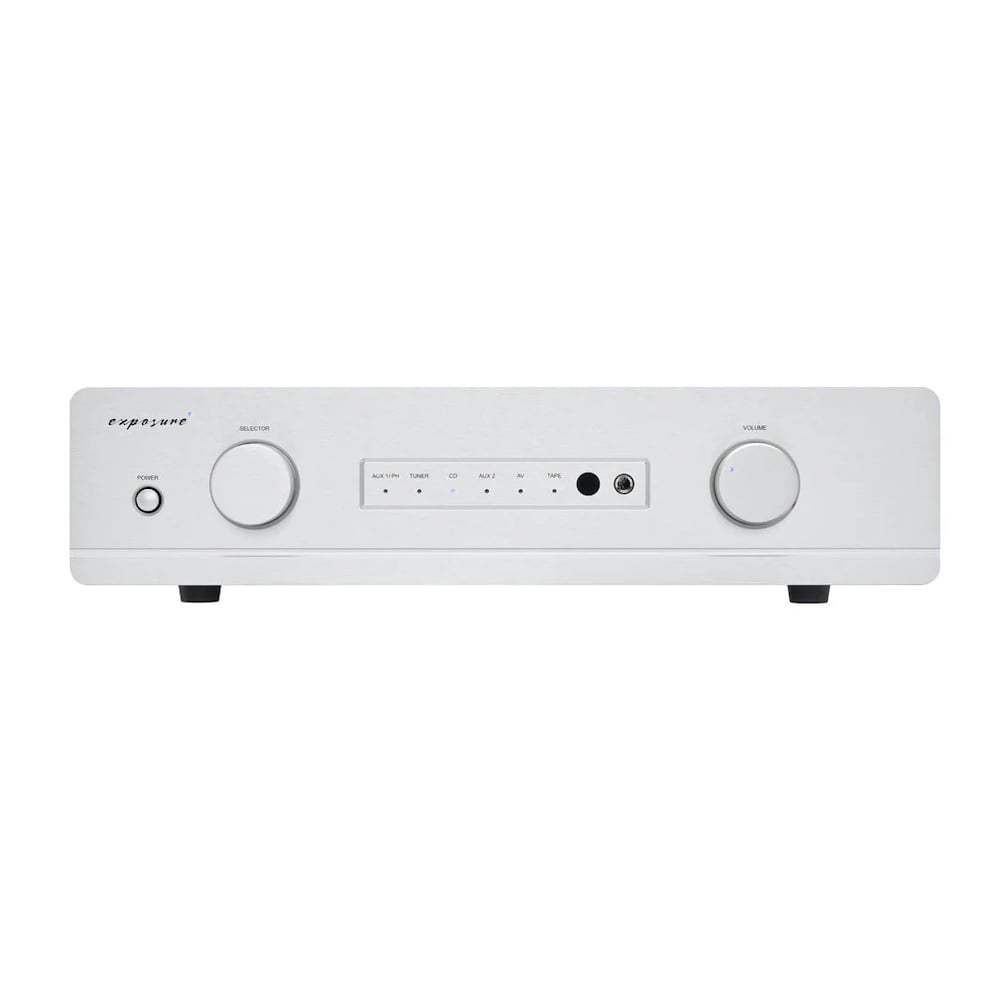

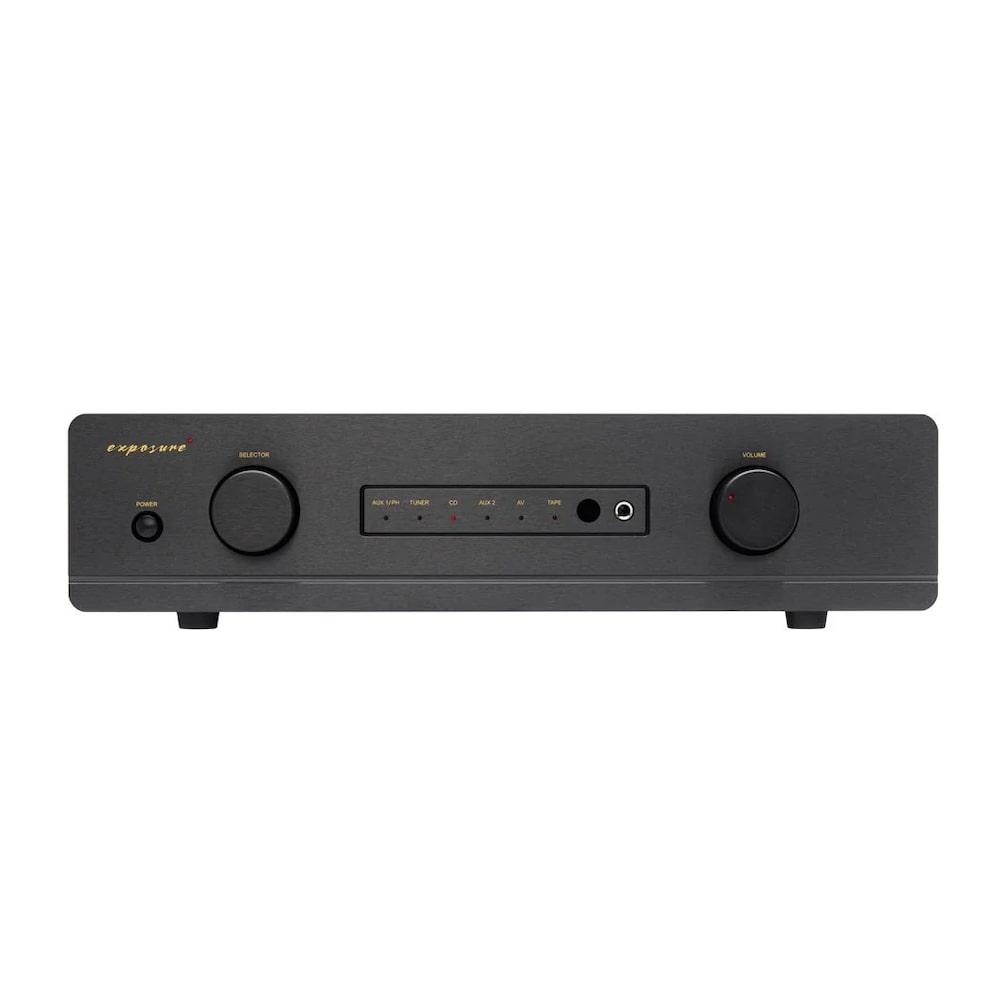

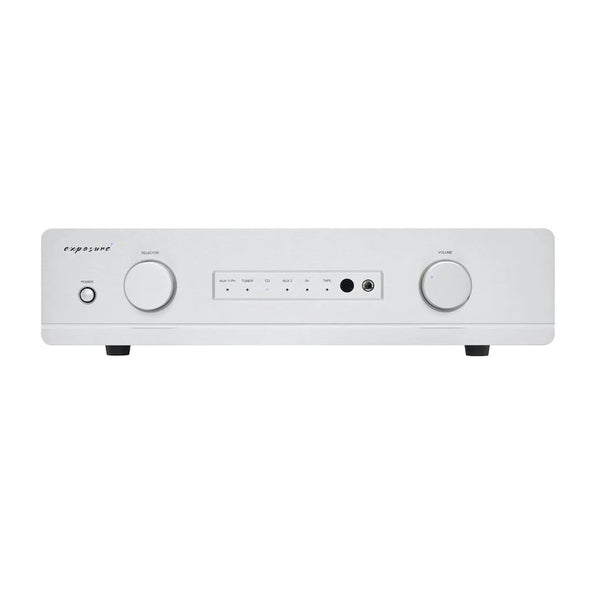

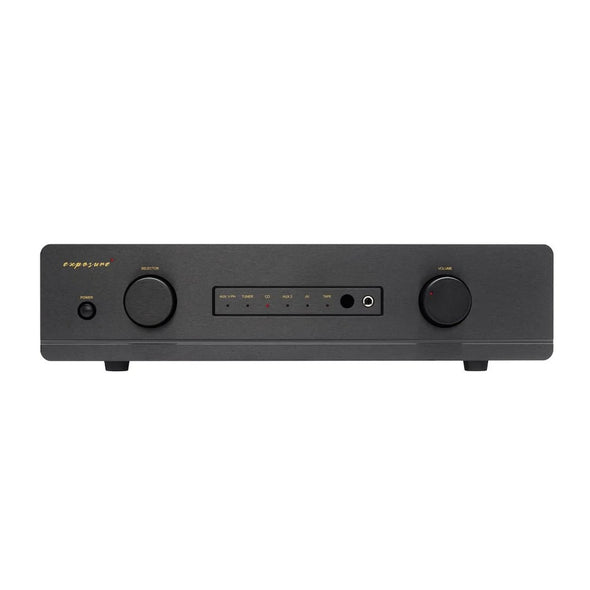

All aluminium casework and extruded front panel to control resonance and stray electro-magnetic fields
Power Output (Stereo): 110 Watts per channel at 1KHz into 8 Ohms
Input Impedance: 17K Ohms minimum (line input)
Input Sensitivity: 250mV
Pre-amplifier Output: 1V for rated input (gain + 18dB full volume)
Frequency Response: 20Hz - 20KHz ± 0.5dB
Total Harmonic Distortion: <0.03% at rated output, ref. 1KHz
Signal to Noise Ratio: >100dB, ref. rated output
Channel Separation: >60dB, 20Hz - 20KHz
Mains Supply: 110/120V or 220/240V, 50/60Hz (factory set)
Power Consumption: <400VA, 8 Ohms load, both channels driven
Dimensions - H x W x D: 115mm x 440mm x 300mm
Net Weight (unpacked): 12kg
Gross Weight (packed): 14kg
