DESIGNED AND MADE IN THE USA
USING DOMESTIC AND IMPORTED COMPONENTS

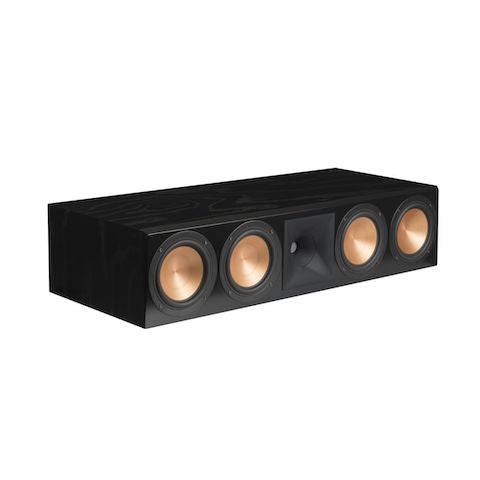

The Klipsch RC-64 III speaker is a testament to the quality that Klipsch demands from each and every one of its audio products. Remember great sound? We do, too. The RC-64 III enclosure is made in the USA, by proud craftsmen in Hope, Arkansas. Just like Paul W. Klipsch (PWK) intended.
NEW 1 3/4 TITANIUM DIAPHRAGM COMPRESSION DRIVER
The compression driver features a new phase plug design to improve phase coherency at the throat of the horn, resulting in improved sound pressure linearity at high frequencies.
90° x 90° TRACTRIX® HORN
The redesigned Tractrix horn utilizes a circular horn throat
paired to a square horn mouth to further improve high-frequency response and extension, while enhancing imaging and dynamics. The compressed molded rubber construction adds high frequency damping to reduce harshness and improve detail. This creates the cleanest, most natural sound possible.
SPUN COPPER CERAMETALLIC WOOFERSTM
Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix horn-loaded compression driver, it provides speaker ef ciency highest in its class.
CAST FRAME WOOFER DESIGN
Each 6.5” woofer feature a heavy-duty cast aluminum frame for resonant-free operation.
2 1/2 WAY NETWORK CROSSOVER DESIGN
The sophisticated design of the RC-64 III network attenuates the outer woofers output at higher frequencies to minimize horizontal interference off-axis to the loudspeaker. This maintains a wide and even sound distribution — ensuring each listener hears the center channel information exactly as intended.
FURNITURE GRADE WOOD VENEERS

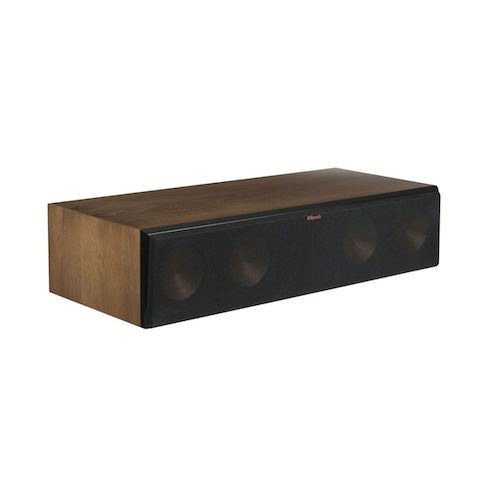

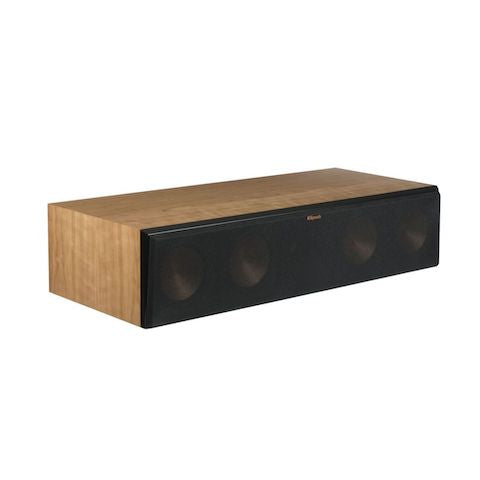

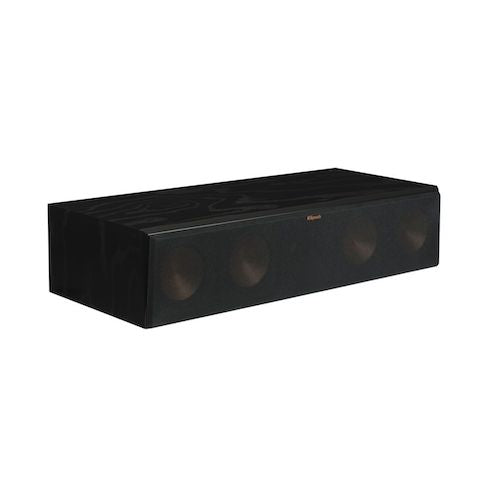

RC-64 III enclosures all utilize furniture grade wood veneers, and are available in Black Ash, Cherry & Walnut.
|
|
*Sensitivity in average listening room
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6.25” square 90 ̊ x 90 ̊ Tractrix® Horn
|
|
|
1.75” (4.45cm) titanium diaphragm compression driver
|
|
|
|
|
|
Quad 6.5” (16.5cm) Cerametallic cone woofers
|
|
|

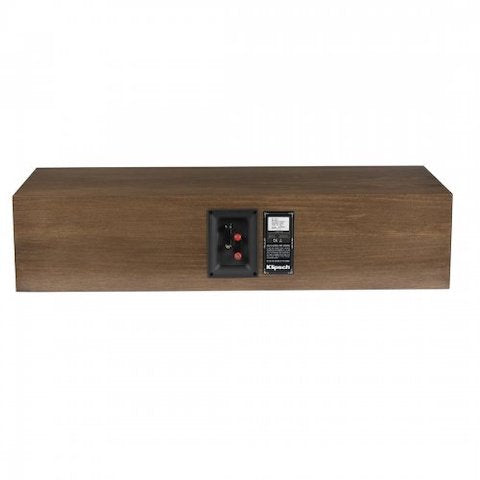

Dual binding posts / bi-wire / bi-amp
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
