Martin Logan

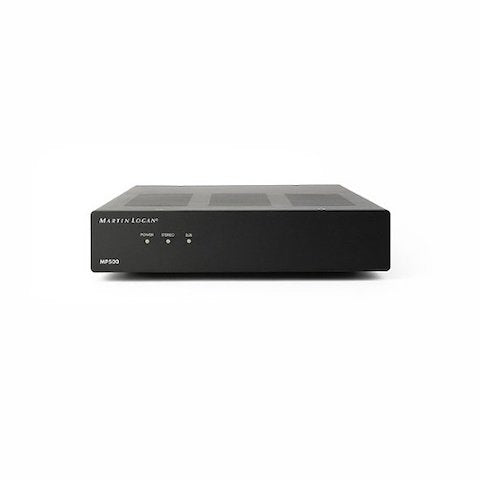

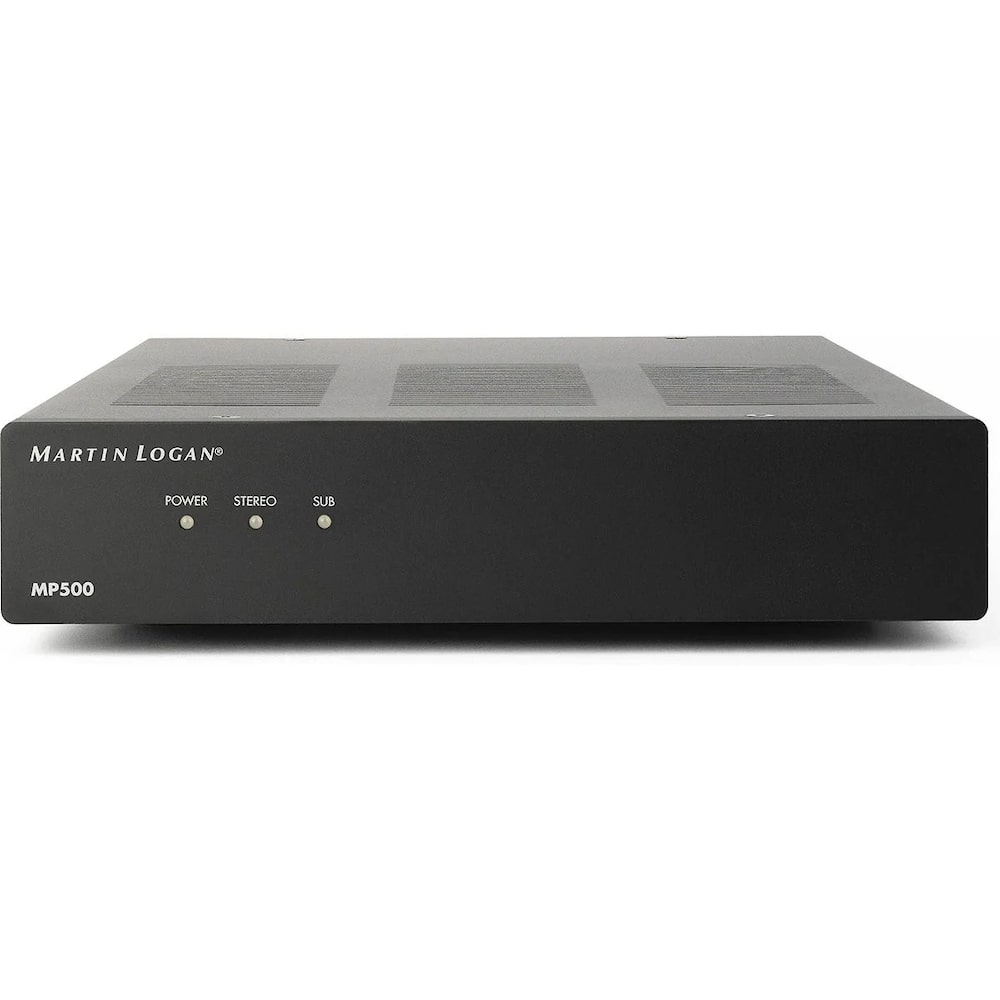

Martin Logan MP500 Multi Purpose Bridgeable Amplifier
Martin Logan MP500 Multi Purpose Bridgeable Amplifier
Couldn't load pickup availability
Lighting fast delivery in Canada
Canadian Warranty
Customer Experience
Description
Martin Logan does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for more information or to order. Thank you very much.
The new Martin Logan MP500 power amplifier is the perfect match for the Dynamo In Wall Subwoofers or Outdoor Living Foundation 8.1 system. It can be used in many other installations.
The MP500 is configurable as either a 2 channel Stereo or 1 channel bridged Mono amplifier, MP500’s 500 watts of available power, flexible inputs, and selectable DSP presets make for a powerful solution that doesn’t take up a lot of space.
The MP500 is a 2-channel, Multi-Purpose, DSP amplifier with up to 500 watts of power on tap. In 2-channel mode it outputs 140w x 2 @ 8 ohms or 250w x 2 @ 4 ohms and when in bridged mode it can output up to 500w x 1 @ 8 ohms. While MP500 can be used to power nearly any speaker, the selectable onboard DSP presets focus on optimizing all MartinLogan Outdoor products, such as the MartinLogan Outdoor Foundation System, and Custom Installation subwoofers. MartinLogan engineers also went the extra step to make sure that the MP500 could even drive dual subwoofers! These “Dual Subwoofer” DSP presets ensure powerful and reliable operation for MartinLogan Custom Install subwoofers. As new supported products are released, the MP500’s DSP is also easily updatable via PC by following the “Firmware Update” link above. With this and many other features, the MP500 is one of the most versatile high quality custom installation amplifiers on the market.
Specifications:
|
Fan Cooled |
Yes |
|
Bridgeable |
Yes |
|
THD |
< 0.05% |
|
Amplifier Frequency Range |
20Hz-20kHz +1/-3dB |
|
Output |
2V Trigger Passthrough |
|
Included Accessories |
Power Cord, Rack Mount Ears, and Hardware Pack |
|
Continuous Watts x Channel @ Ohms |
140W x 2 @ 8ohms, 250W x 2 @ 4ohms, 500w x 1 @ 8ohms |
|
Design |
Ultra-Class-DTM Multi-Purpose, Two-Channel Power Amplifier |
|
Standby Power |
<.5 Watts |
|
Controls (back panel) |
Main Power Switch (On/ |
|
Amplifier |
Up to 500 Watts (when Bridged) |
|

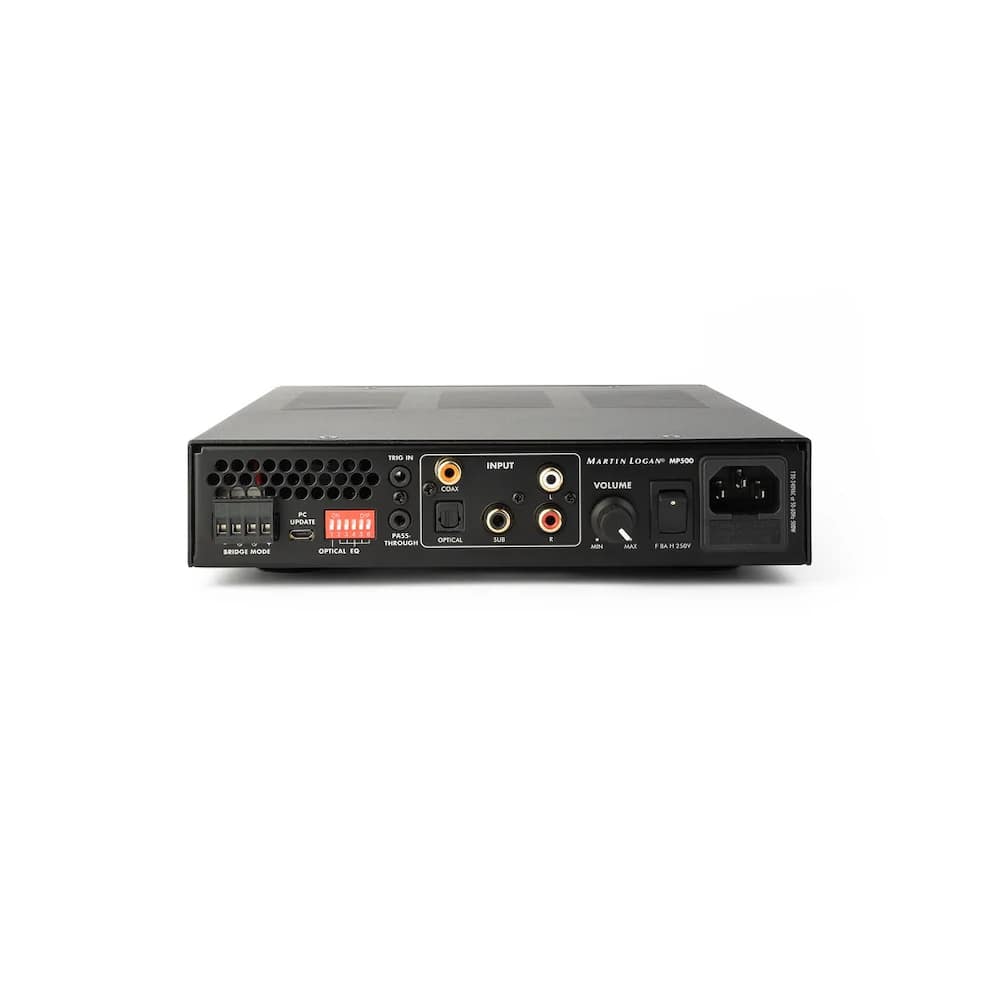

Inputs |
Stereo RCA, Sub RCA, 12V Trigger, Digital Optical, Digital Coax, MIcro USB (Firmware Updates) |
|
Weight |
7.22 lb (3.27 kg) |
|
Dimensions |
2.2” x 8.5” x 12.5” (5.6cm x 21.6cm x 31.75cm) |
