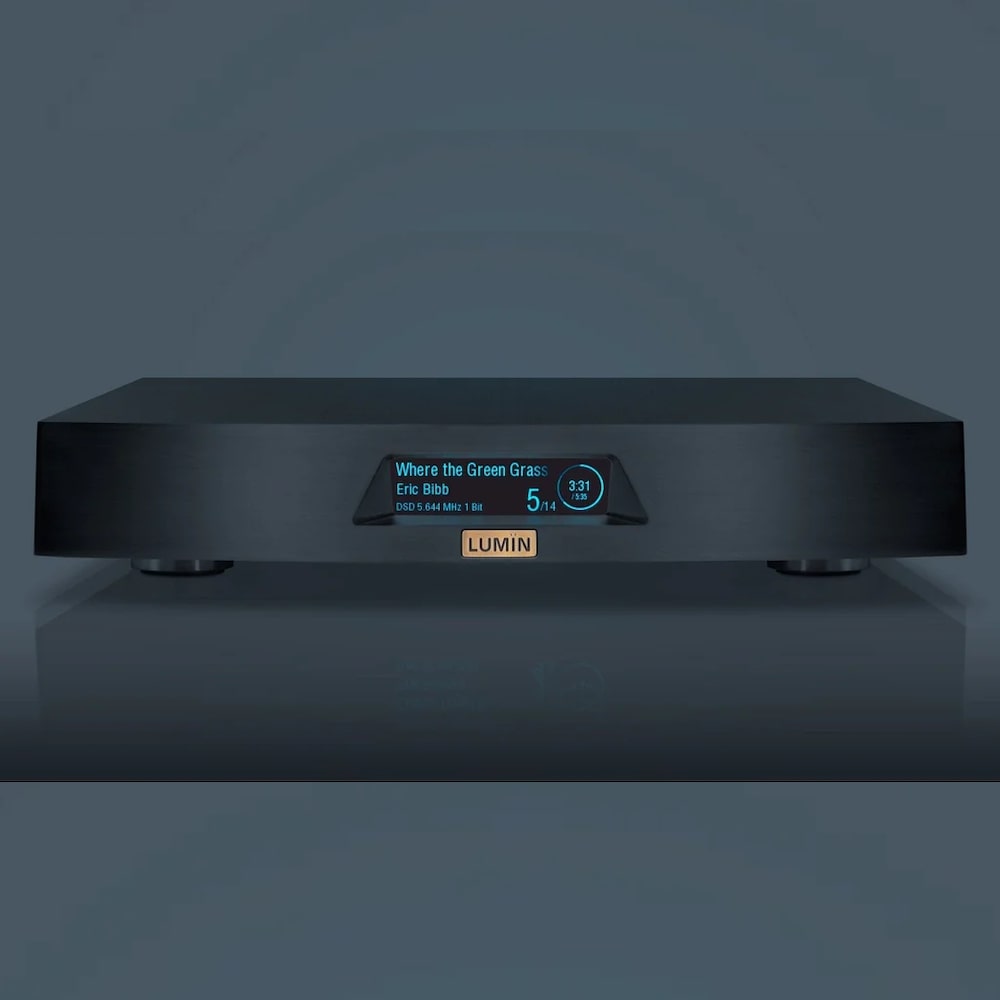

Lumin S1 Streamer Dac Preamp
Lumin S1 Streamer Dac Preamp
Regular price
$13,500.00
Regular price
Sale price
$13,500.00
Unit price
per
Sale
Featured
Sold out
Free Express Shipping In Canada
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description
NOW INCLUDES LEEDH PROCESSING
- An innovative new digital volume adjustment algorithm that eliminates rounding errors.
- Modifies the digital signal amplitude exactly, without any changes to its shape and free from any kind of information loss.
- Uses more efficient whole number volume values to maintain audio information integrity during subsequent DAC conversion.
- Low processing power requirements free up cpu resources.
- Removes need for a pre-amplifier in more systems.
- Improves the quality of the signal into LUMIN Amp.
- Includes DSD128 5.6Mhz 1-bit playback
- 4 ESS SABRE32 ES9018 DAC chips 2 units per channel delivering 16 DACs per channel in parallel
- New clocking system
- Enhanced external dual-toroidal power supply
- From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
- Native support for TIDAL, Qobuz, Spotify and AirPlay, giving you access to tens of millions of songs
- LUMIN programme of continuous development that has seen Roon, MQA, and Spotify support added in 2017 alone.

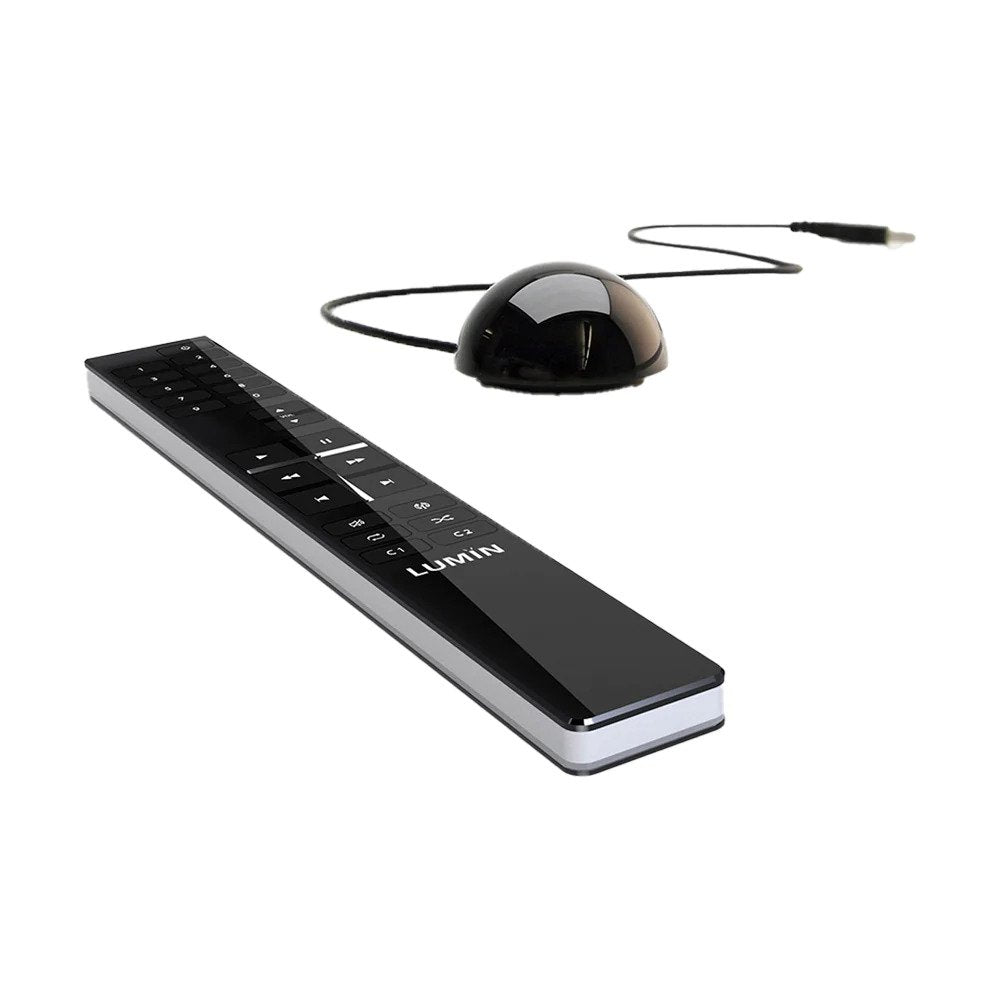

Please Note: The Lumin remote requires a free USB port.
S1 SPECIFICATIONS:
-
DSD SUPPORT:
- Up to DSD128 5.6MHz, 1-bit
-
PCM SUPPORT:
- Up to 384kHz, 16–32-bit, Stereo
-
ANALOG OUTPUT STAGE:
- 4 ESS SABRE32 9018 DAC chips – 2 units per channel delivering 16 DACs per channel in parallel
- Fully balanced layout with high-quality components
- Output connectors coupled with dual LUNDAHL LL7401 output transformers
-
DIGITAL OUTPUT STAGE:
-
HDMI:
- DSD 2.8MHz, 1-bit
- PCM 44.1–192kHz, 16–24-bit, Stereo
-
BNC SPDIF:
- PCM 44.1kHz–192kHz, 16–24-bit
- DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
-
-

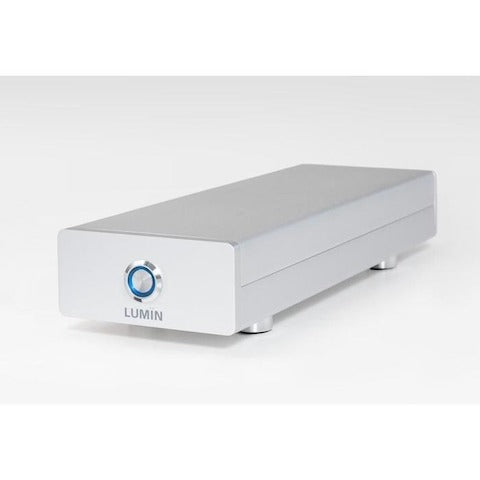

POWER SUPPLY:
- External dual-toroidal
- Available in 240V and 110V versions
-
PHYSICAL:
-
FINISH:

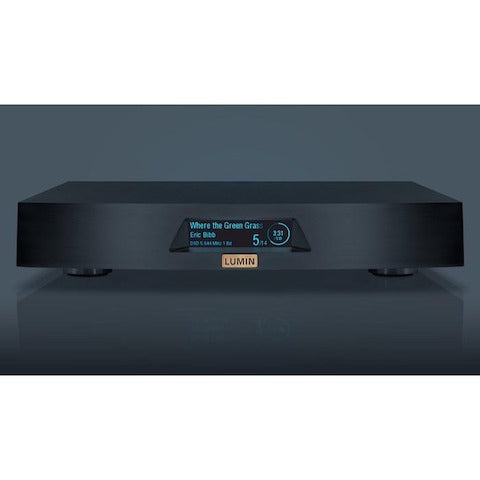

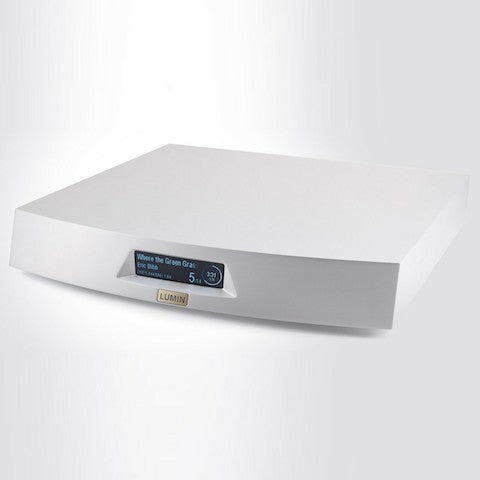

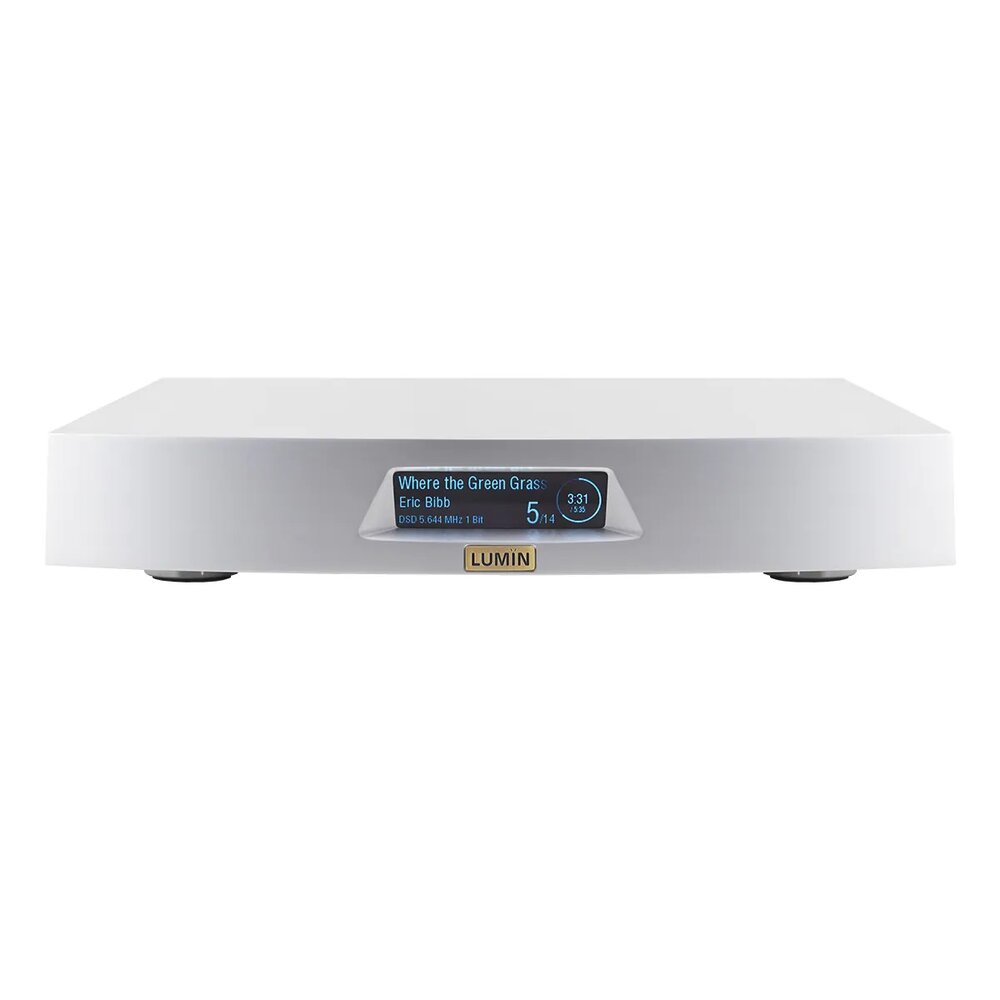

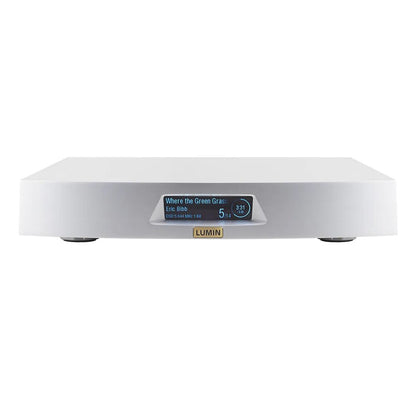

- Raw brushed aluminium or black anodised brushed aluminium
LUMIN (SOLID ALUMINIUM CHASSIS):
- 350mm (W), 345mm (D), 60mm (H), 8kg
-
PSU:
- 100mm (W), 315mm (D), 55mm (H), 2kg
-
STREAMING PROTOCOL:
-
- UPnP AV protocol with audio streaming extension (OpenHome)
- Roon Ready
- Spotify Connect
- Apple AirPlay
- Gapless Playback
- On-Device Playlist
-
APP FEATURES:
- Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
- Tidal MQA icons to identify high-res music
- Qobuz high-res icons to identify high-res music
- Volume control
- High-resolution artwork
- Artwork caching
- Search
- Multiple tag handling
- Composer tag support
- Album-grouping in playlist
- Automatic internet links to artists/album/songs
- Saving and restoring of playlists (including Tidal and Qobuz)
-
SUPPORTED AUDIO FILE FORMATS:
- DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
- PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
- Compressed (lossy) Audio: MP3, AAC (in M4A container)
- MQA
-
INPUT:
- Ethernet RJ45 network 100Base-T
- USB storage, flash drive, USB hard disk (FAT32, exFAT, NTFS and EXT2/3)
-

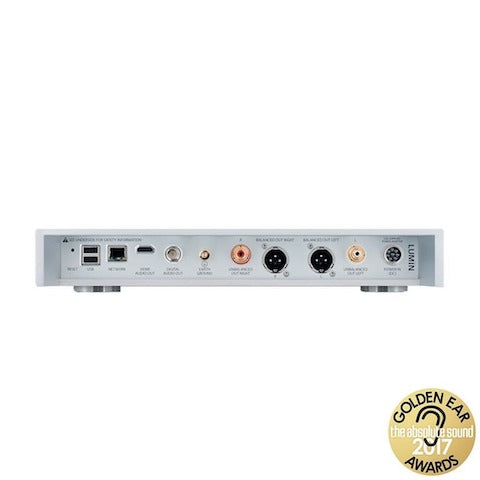

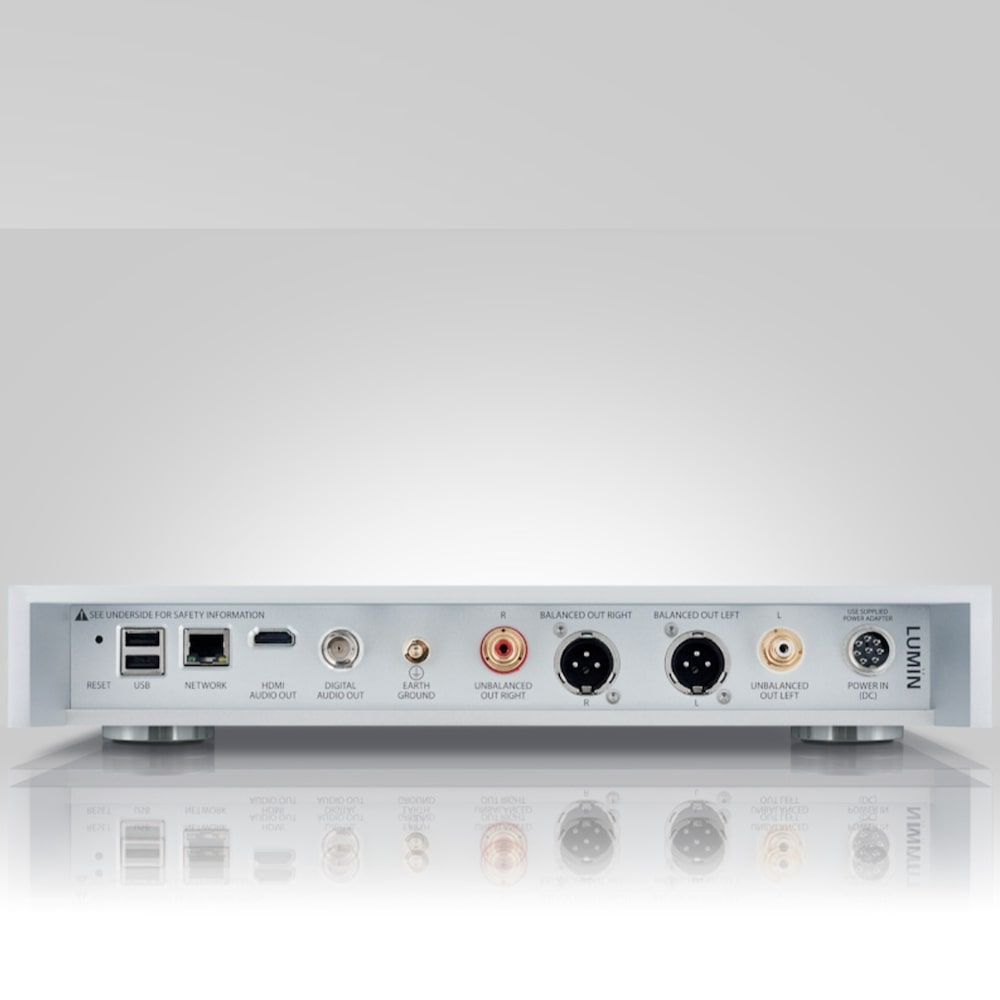

ANALOGUE AUDIO OUTPUTS:
- XLR balanced, 4Vrms, pin 2 Hot
- RCA unbalanced, 2Vrms
-
SUPPORTED CONTROL DEVICES:
- All models of Apple iPad (v2 or later). iOS 8.0 or later required. Full Retina Display support.
- Android devices. Android 4.0 (Ice Cream Sandwich) or later required
-
OTHER:
- Programme of Continuous Development – Firmware-upgradable for further features and enhancements
