Description

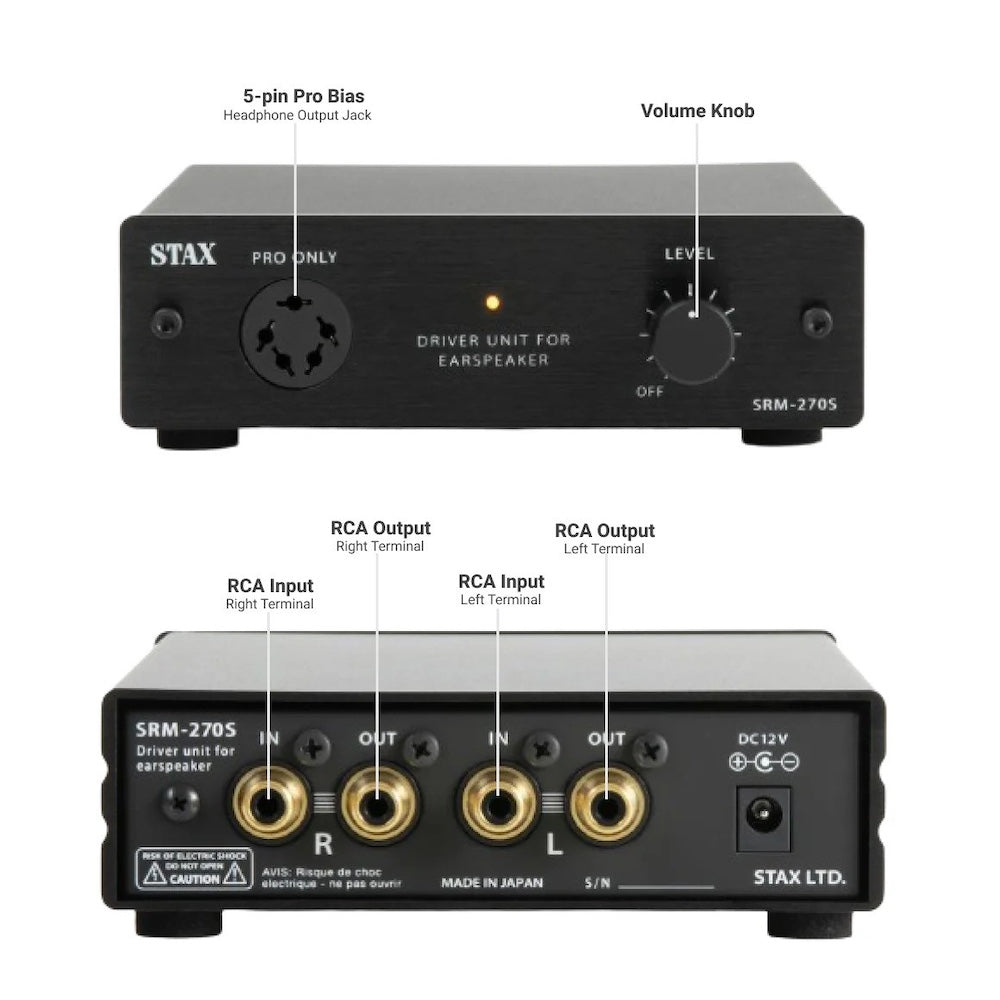

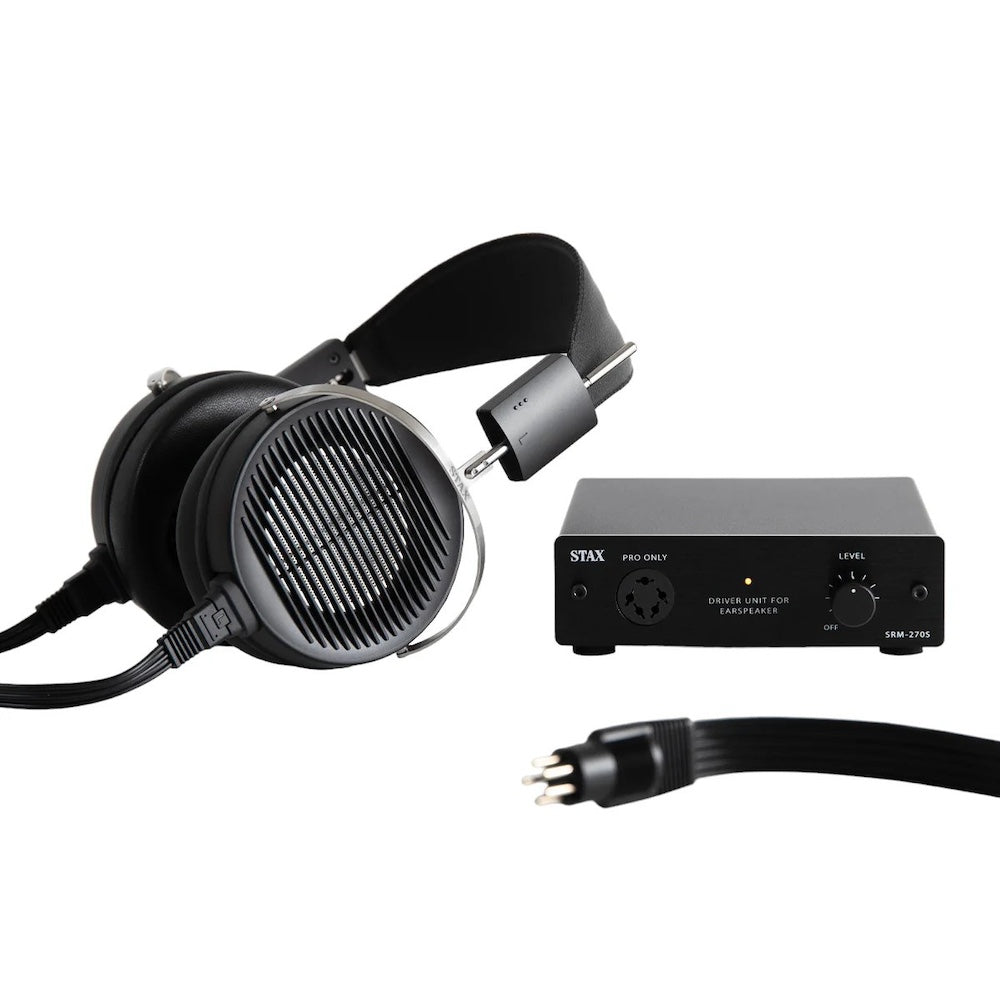

The new Stax SRM-270S Electrostatic Driver amplifier is engineered for superior performance and versatility. This unit boasts enhanced heat dissipation with a robust 3mm-thick front aluminum panel and larger aluminum extrusion case. Experience high-grade connectivity via RCA pin jacks, ensuring a pristine connection. The inclusion of a low noise FET for the First Stage amplifier, alongside a refined emitter follower circuit in the Output Stage, guarantees unparalleled audio clarity. Its compact chassis is designed for easy placement and transportability, fitting seamlessly into any space. The flexible installation is further supported by PARALLEL OUT terminals, making it ideal for enhancing both music and movie experiences. Key specifications include a frequency response of DC to 35,000Hz, harmonic distortion of 0.01% or less, and an amplification of 58dB, all housed in a lightweight, compact design.
Specifications:
SRM-270S:
Gain: 58dB
Harmonic distortion: 0.01% or less (1kHz/100Vrms output)
Maximum output voltage: 280Vrms (1kHz)
Bias voltage: DC 580V
Operating temperature / humidity: 0 to 35 degrees C / less than 90% (non condensing)
Power consumption: DC12V/500mA
Made in Japan
