Special Order. Please contact us for ETA, to order and to coordinate delivery. Thank you.
Priced Per Pair.
Additional Cost Of Active Crossover Option TBA.

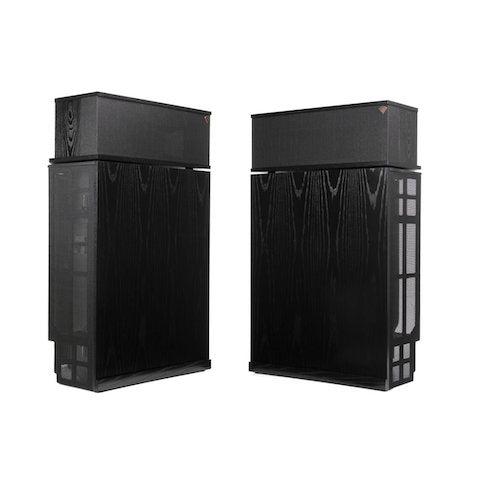

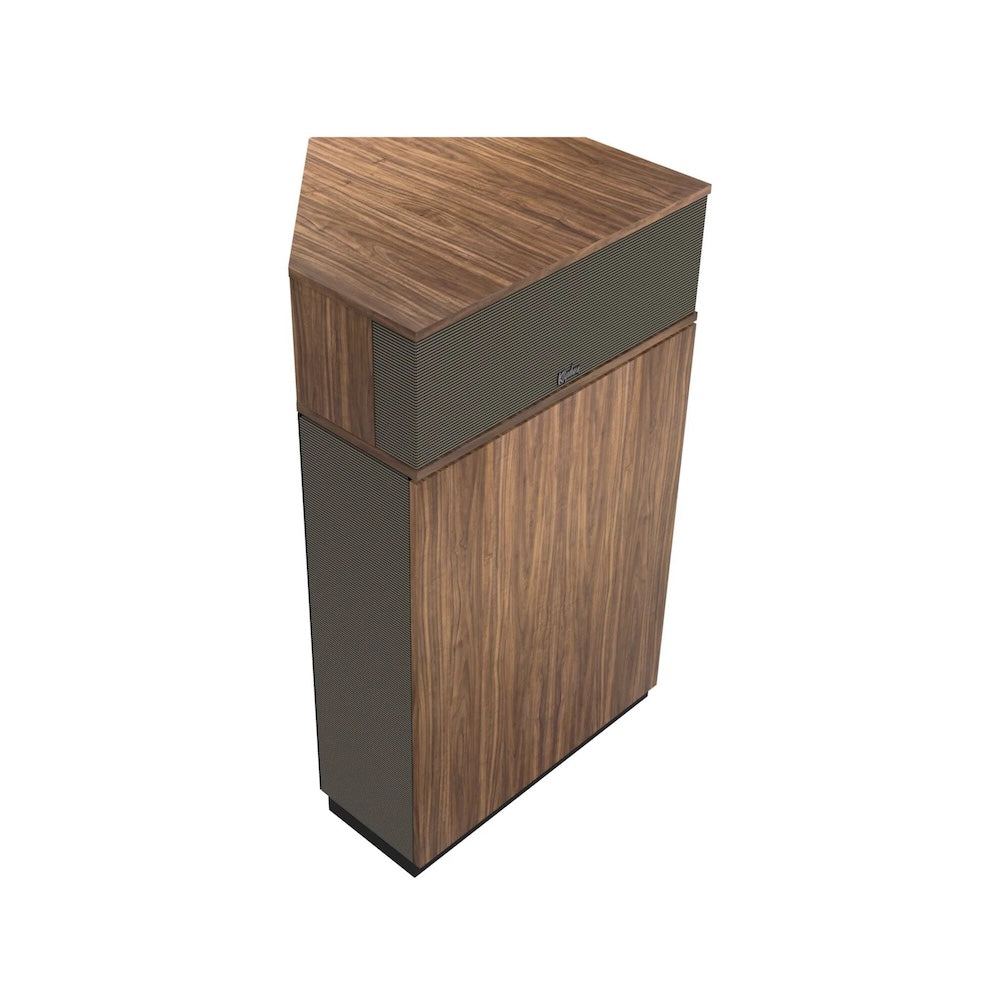

The new Klipschorn AK7 speaker features a three-way, horn-loaded system that makes it leagues more efficient than the average loudspeaker. For the AK7, we couple each driver to a precisely measured horn and optimize it for one of three pass-bands. This design generates greater acoustic power with less wattage, producing crystal clear sound with minimal distortion across the frequency spectrum.
The new AK7 is paired our K-771 compression driver with a new, patented, extended phase plug to prevent cancellations and equalize wavelengths for cleaner dispersion. That means you get more coverage and clarity than ever before.
The new, cinema grade, mid-range K1133 compression driver adds a full inch (to 3") to the drivers on previous AK6 models. Hand-built in Hope, Arkansas, the larger compression area increases sound pressure to the horn’s throat for more voluptuous volume.
The AK7 gets the Tractrix® treatment. The new K-406M patented Tractrix mid-range horn features a shorter, 2" throat for unparalleled presence and precision. Mumps technology improves coverage, adding small contours to help maintain frequency response to the horn’s edge. The Klipschorn’s fully enclosed low-frequency horn, paired with the powerful K-33-E 15" woofer, delivers deep, rich bass with remarkable clarity and impact. Its innovative folded horn design increases bass extension and efficiency.
Features:
-
3-Way Fully Horn-Loaded System
-
High Frequency: K-771 Compression Driver with a new Wide-Dispersion Phase Plug
-
Midrange: K-1133-HP 3" Compression Driver
-
Midrange Horn: K-406M Patented Tractrix Midrange Horn with Mumps Technology
-
Low Frequency: K-33-E 15" Woofer with Folded Horn
-
Upgraded Internal Crossover, optional Heritage Active Crossover
-

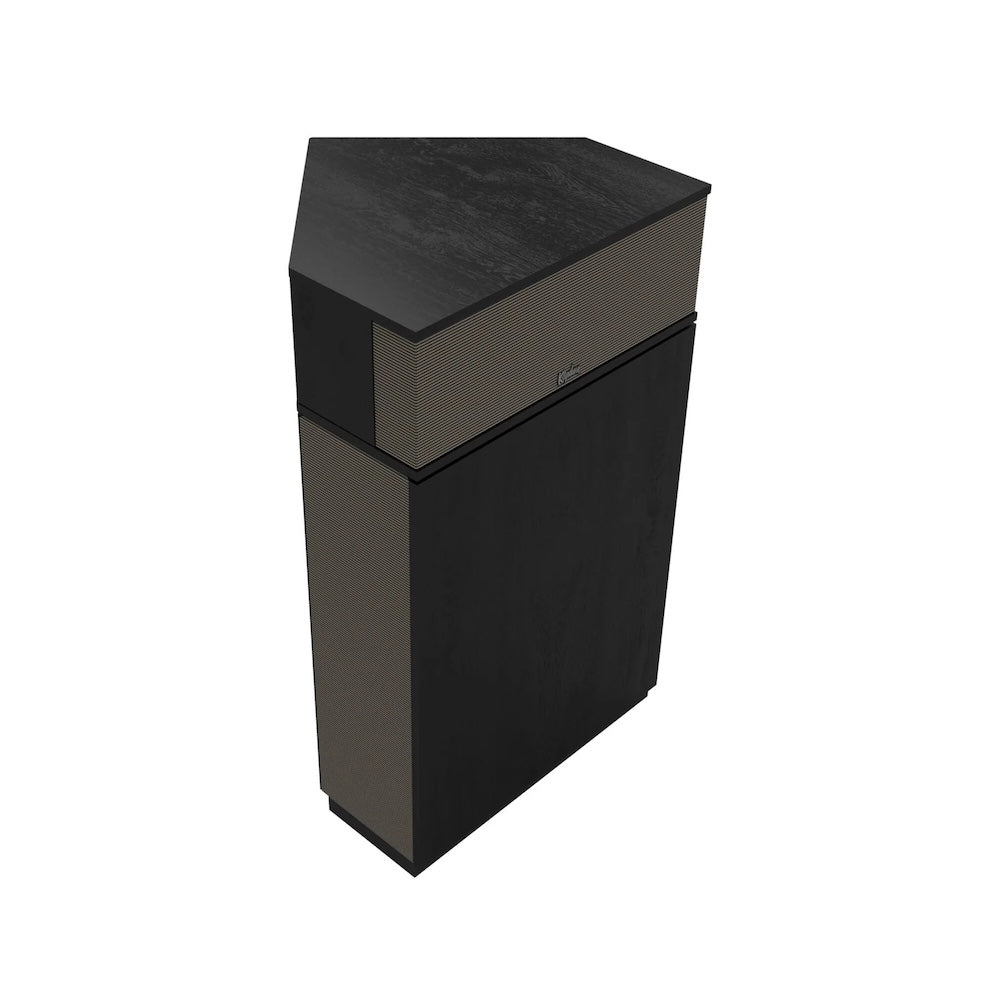

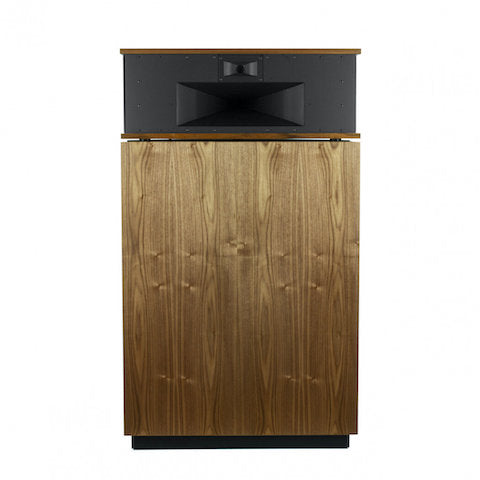

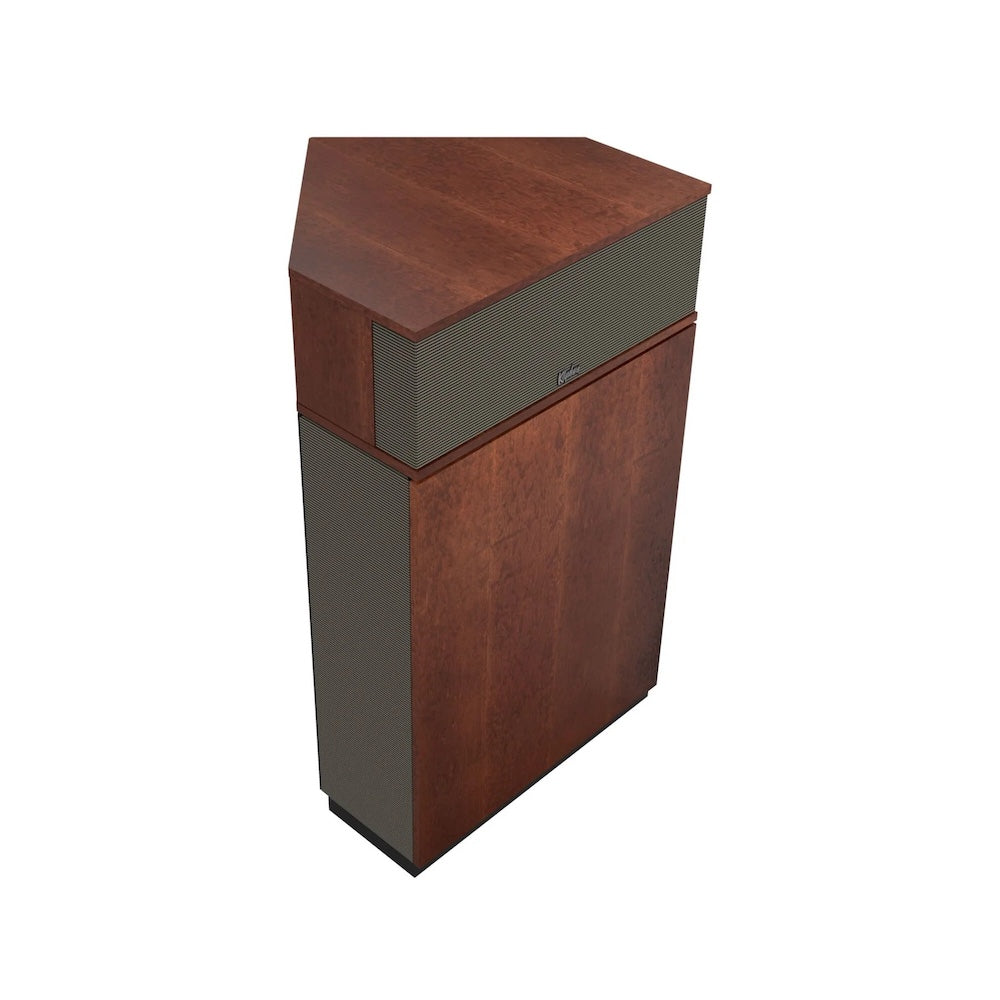

Available in American Auburn, American Walnut, or Black Ash
-
10-year warranty
-
Made in Hope, AR

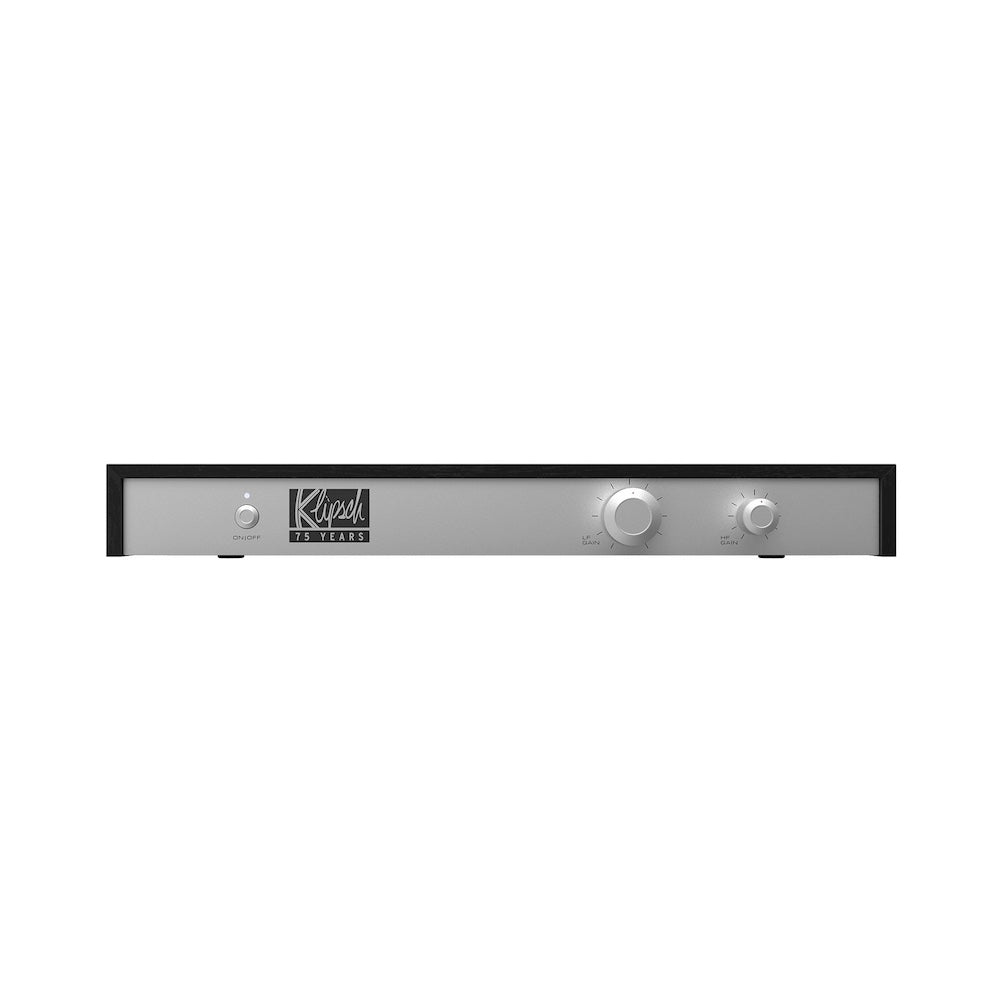

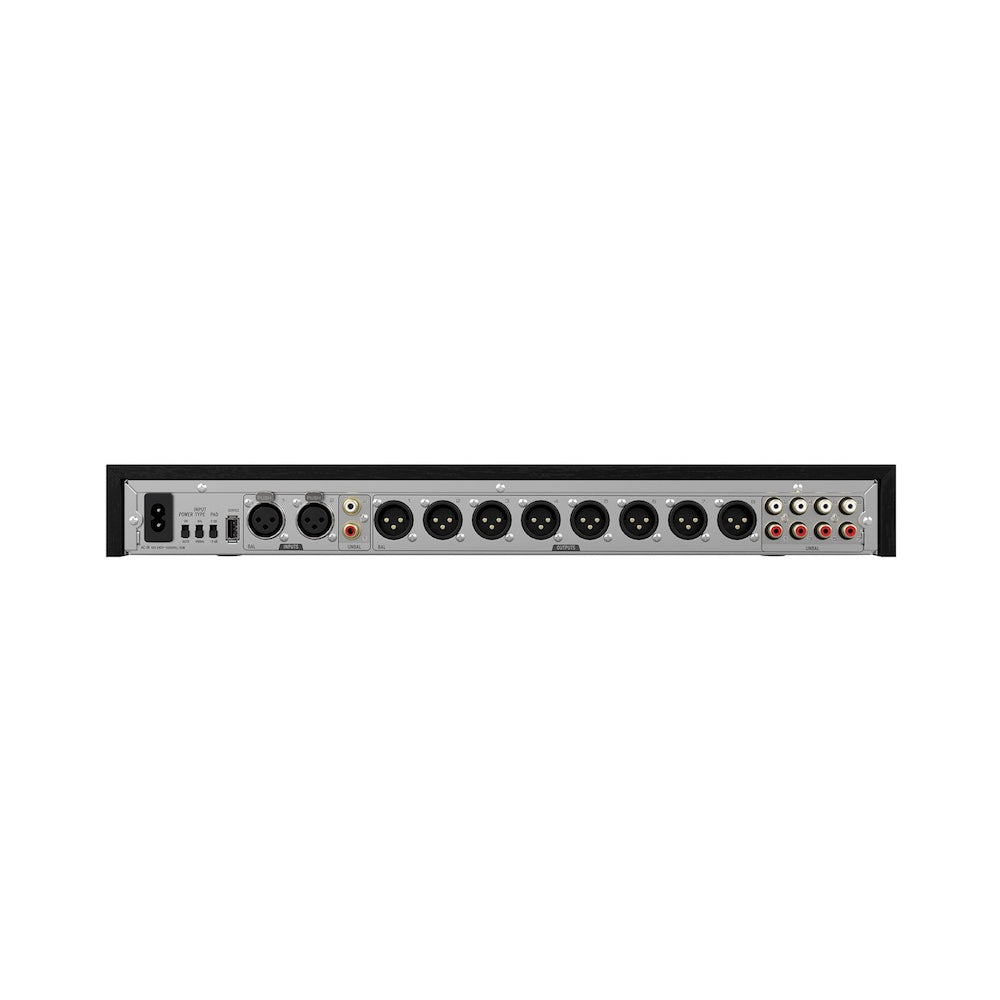

The new Heritage Active DSP, optional with Klipschorn® AK7 and La Scala® AL6 loudspeakers, is the same active DSP offered with the Klipsch Jubilee floorstanding loudspeakers. The difference is the firmware, which we designed specifically to embrace and enhance the sound of Klipschorns and La Scalas.Using signal processing technology, the Heritage Active DSP analyzes the crossover and adjusts for horn throat depth and wavelength, delaying the signal to specific speakers to ensure that all sound arrives simultaneously at the listener’s ears.
S P E C I F I C AT I O N S - PA S S I V E N E T W O R K:
FREQUENCY RESPONSE 34Hz-19kHz (+/- 4 dB), 1/8 space anechoic
SENSITIVITY1 103dB, Pink noise, 2.83V, 1m. 34 Hz-19kHz
POWER HANDLING
(CONT/PEAK) 100W/400W
MAXIMUM SPL 120dB, pink noise, 1m, 20v, 34Hz-19kHz
NOMINAL IMPEDANCE 8 ohms, 4 ohm minimum at 50Hz
CROSSOVER FREQUENCY 380Hz, 2900Hz
HIGH FREQUENCY DRIVER K-771 compression driver with extended phase plug on a K-792 horn
MIDRANGE K-1133-HP 3” compression driver on a K-406 horn
LOW FREQUENCY DRIVER K-33-E 15” woofer in a fully horn loaded system
ENCLOSURE MATERIAL Veneered MDF, 1/2” plywood

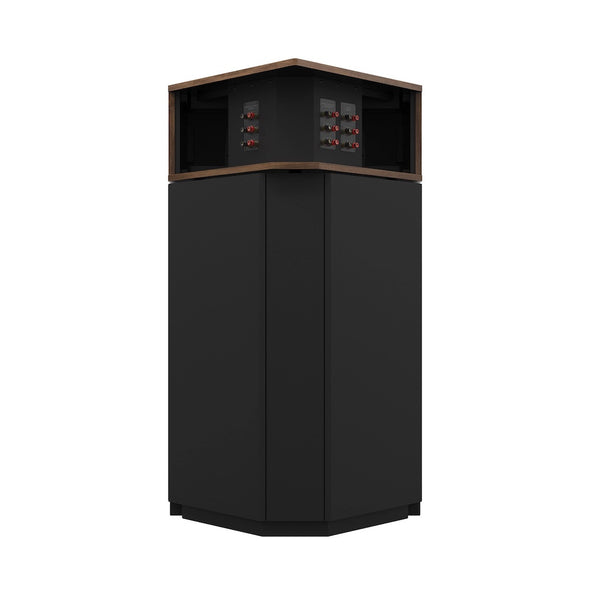

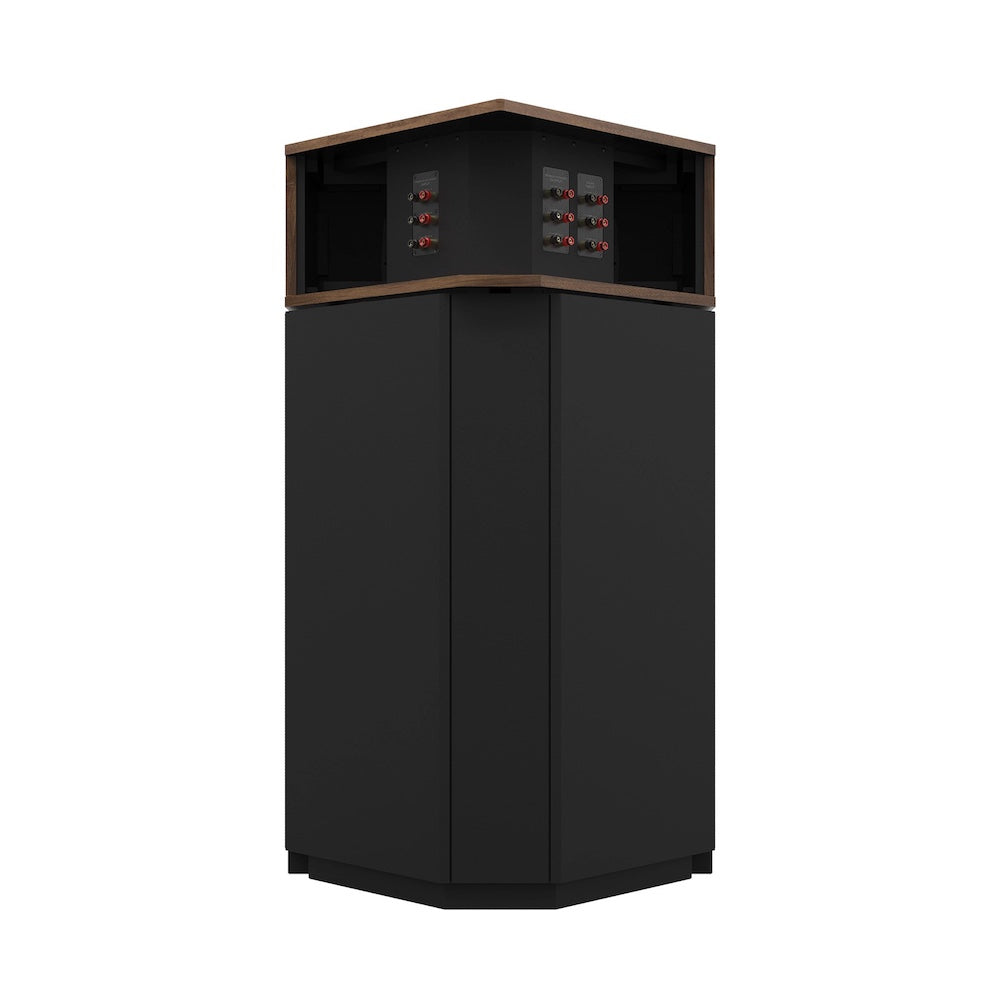

INPUTS 5 way metal binding post
HEIGHT 53.25” (135.25cm)
WIDTH 31.5” (80cm)
DEPTH 28.125” (71.5cm)
WEIGHT 260lbs(118kg)
FINISH American Auburn, Black Ash, or American Walnut
GRILLE CLOTH Silver Metallic
UTILIZES PATENTS 11902738, 7686129
1 Sensitivity in average listening room
S P E C I F I C AT I O N S - A C T I V E N E T W O R K
FREQUENCY RESPONSE 3502 WOODVIEW TRACE INDIANAPOLIS, IN 46268 | KLIPSCH.COM 34Hz-20kHz (+/- 2.5 dB), 1/8 space anechoic
